Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

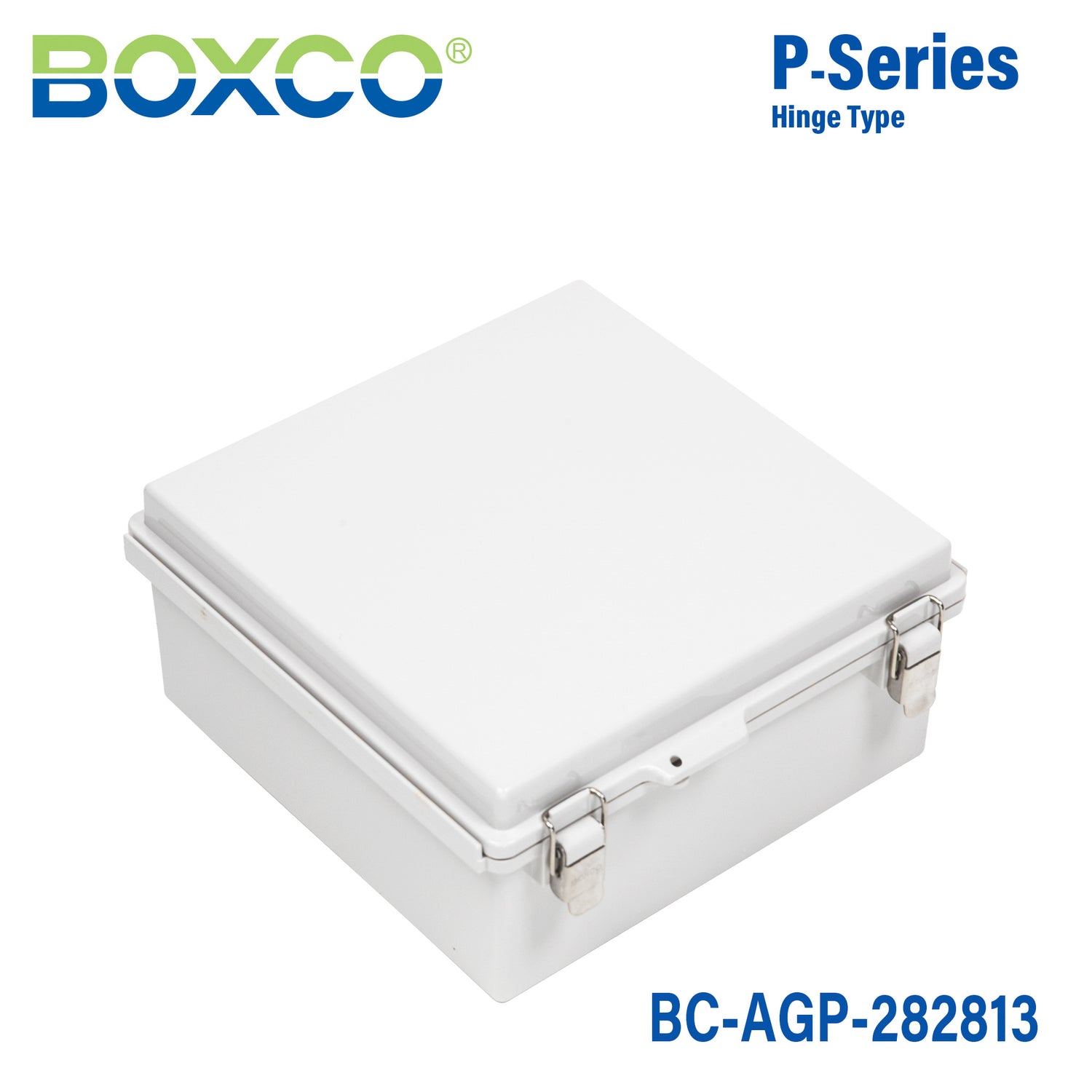

Boxco P-Series 280x280x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU:
BC-AGP-282813
Please for Pricing
|

Description

For Boxco P-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

  • Latch - Main part of the draw latch is made of stainless steel so it is very strong.
  • Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
  • Roof Protection – Both ends of the P series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
  • Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
  • Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
  • Integrated Hinge – Hinge is made of plastic and is integrated with the enclosure. Bearing is made of stainless steel to increase the life span.

Specifications
  • Brand
    Boxco
  • Series
    Boxco P Series
  • Standards Met
    CE,TUV,UL
  • Operating Temperature
    -40°C~70°C
  • Warranty
    1 Year
  • Length
    28 cm
  • Width
    28 cm
  • Height
    13 cm
  • Weight
    1.15 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is this Boxco P-Series enclosure best suited for?

This model is suited to protecting control, monitoring, and instrumentation components that need a sealed non-metallic enclosure. Its IP67 sealing, IK08 impact rating, UV-stabilized ABS construction, and anti-static material make it a practical fit for indoor or outdoor industrial and commercial equipment housings.

Is this enclosure suitable for outdoor use?

Yes. Boxco specifies an ultraviolet stabilizer in the P-Series to help the enclosure withstand outdoor exposure with only minor color change over long-term use. The design also includes roof protection details and a precision-injected gasket to support water and dust resistance at the IP67 level.

What are the key specifications of this specific enclosure?

This Boxco P-Series model measures 11.02 x 11.02 x 5.12 inches, or 280 x 280 x 130 mm. It is made from ABS, has a grey cover, uses a molded hinge and latch-type design, carries IP67 and IK08 ratings, weighs 1.146 kg, and is rated for use from -40 C to 70 C.

How does the molded hinge and latch design benefit this model?

The enclosure uses an integrated plastic hinge with a stainless steel bearing to improve service life during repeated opening and closing. Its draw latch main component is stainless steel, giving the closure added strength compared with lighter-duty plastic-only latch hardware.

Can this enclosure support internal mounting hardware or heavier internal components?

Yes. Boxco includes pre-molded mounting screw nuts for securing DIN rail or other equipment, and dedicated attachment points for an internal mounting plate. The mounting plate can be fixed to brass inserted injection-molded points to better support heavier equipment inside the enclosure.

Does this enclosure offer protection for sensitive electronics?

Yes. Boxco states that anti-static material is used in this P-Series enclosure to help protect sensitive electronic instruments from static electricity. The high-impact ABS body also resists external impact and helps reduce breakage during machining or press processing.
