Boxco

Boxco P-Series 350x450x200mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-354520
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGP-354520 is a 350×450×200 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-354520Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
350×450×200 mm (13.78×17.72×7.87 in)
Mounting plate dimension M1 × M2
305 × 405 mm

Material

Material
ABS
Cover
Grey
Mounting plates
3545 P (Plastic, P type), 3545 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

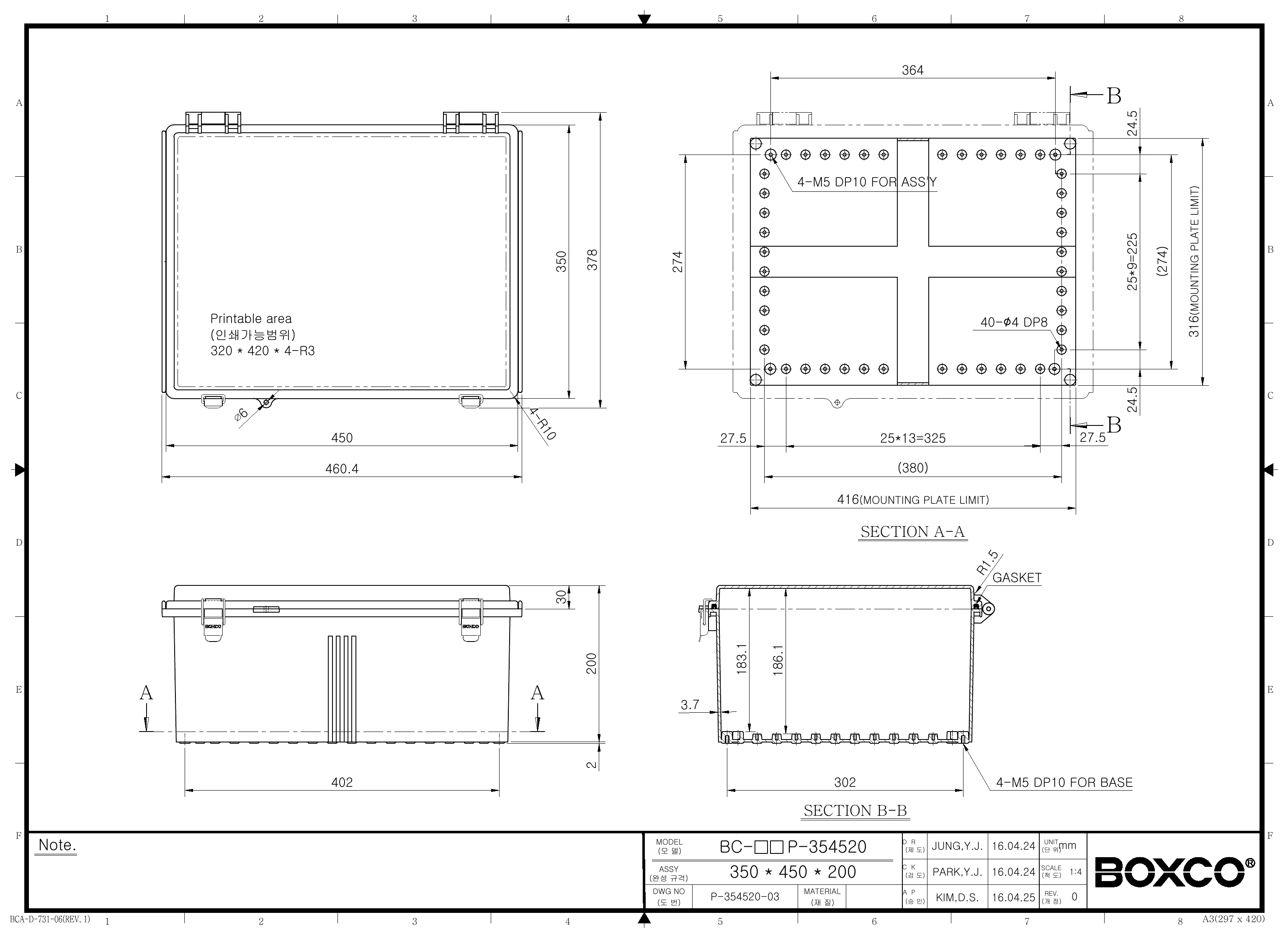

Technical drawings

BC-AGP-354520 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the dimensions of Boxco P-Series BC-AGP-354520?

This enclosure measures 13.78 x 17.72 x 7.87 inches, which corresponds to 350 x 450 x 200 mm. It is a larger plastic enclosure intended for applications that need more internal space than compact junction-style boxes.

What material is this enclosure made from?

BC-AGP-354520 is made from ABS plastic and has a grey cover. The product description also notes anti-static material use and high impact resistance for protecting sensitive electronic instruments and improving durability during processing.

Is this plastic enclosure suitable for outdoor use?

Yes. The P-Series description states that an ultraviolet stabilizer is added to help protect the enclosure for outdoor usage, and the design includes roof protection features to reduce water and dust penetration when the cover is opened or closed.

What do the IP67 and IK08 ratings mean for this model?

This model is rated IP67 for dust-tight sealing and protection against temporary water exposure under rated conditions. It is also rated IK08 for impact resistance, which aligns with the product's high impact resistant construction.

What temperature range can this enclosure handle?

Boxco BC-AGP-354520 is specified for use from -40 °C to 70 °C. That range makes it suitable for demanding indoor and outdoor industrial environments where temperatures can vary significantly.

What kind of closure system does this enclosure use?

This model uses a molded hinge and latch type design. The integrated hinge is plastic with a stainless steel bearing to help improve lifespan, and the main part of the draw latch is made of stainless steel for added strength.

What types of applications is this enclosure commonly used for?

This enclosure is suited for protecting electrical or electronic equipment that needs a sealed plastic housing with strong environmental protection. Its anti-static material, impact-resistant body, and internal mounting plate attachment points make it a practical choice for industrial control and instrumentation enclosures.

Does this enclosure support internal equipment mounting?

Yes. The product includes pre-molded mounting screw nuts for securing DIN rail or other equipment, and it also has internal mounting plate attachment points with brass inserted injection molding for handling heavier installed equipment.
