Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 400x600x230mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-406023
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGP-406023 is a 400×600×230 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-406023Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
400×600×230 mm (15.75×23.62×9.06 in)
Mounting plate dimension M1 × M2
357 × 556 mm

Material

Material
ABS
Cover
Grey
Mounting plates
4060 P (Plastic, P type), 4060 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

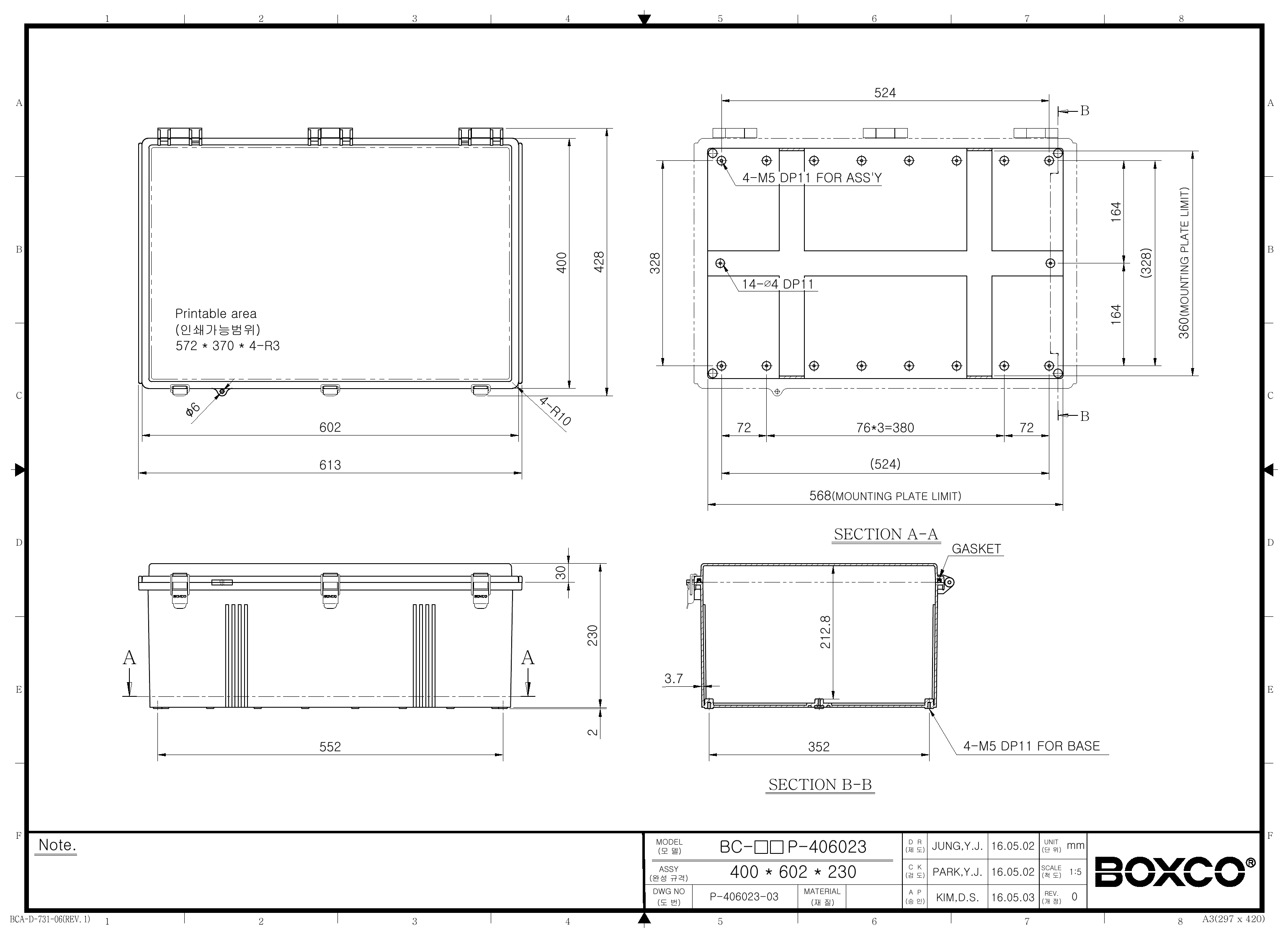

BC-AGP-406023 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What environments is this Boxco P-Series plastic enclosure designed for?

This model is built for demanding indoor or outdoor industrial environments where dust, water exposure, and impact resistance matter. It has an IP67 rating for dust-tight and water-resistant protection, and the ABS enclosure includes ultraviolet stabilizer material to help maintain performance during outdoor use.

What are the exact dimensions of this enclosure?

The enclosure measures 15.75 x 23.62 x 9.06 inches, which corresponds to 400 x 600 x 230 mm. That size makes it suitable for larger control, instrumentation, or protection applications that need more internal space than compact boxes.

How durable is this enclosure for industrial use?

This Boxco P-Series enclosure is made from high impact resistant ABS and carries an IK08 impact rating. It also uses a molded hinge with a stainless steel bearing and a stainless steel draw latch main part for added durability over repeated use.

What temperature range can this enclosure handle?

This model is rated for use from -40 degrees C to 70 degrees C. That range supports use in both cold and warm operating environments where the enclosure must protect sensitive equipment from external conditions.

Is this enclosure suitable for protecting sensitive electronic equipment?

Yes. The product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity, making it a strong fit for applications where electrostatic protection is a concern.

What features help this enclosure resist water and dust ingress?

This enclosure combines several protective design elements, including an injected gasket for waterproof and dust-proof performance and roof protection at both ends to reduce water and dust penetration when the cover is opened or closed. These features support the model's IP67 protection rating.

Can this enclosure support internal hardware or mounting accessories?

Yes. It includes pre-molded mounting screw nuts for securing compatible internal components, and it has internal mounting plate attachment points with brass inserted injection molding to help hold heavier equipment more securely.
