Boxco

Boxco P-Series 300x400x150mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-304015
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-ATP-304015 is a 300×400×150 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-304015Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
300×400×150 mm (11.81×15.75×5.91 in)
Mounting plate dimension M1 × M2
264 × 364 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
3040 P (Plastic, P type), 3040 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

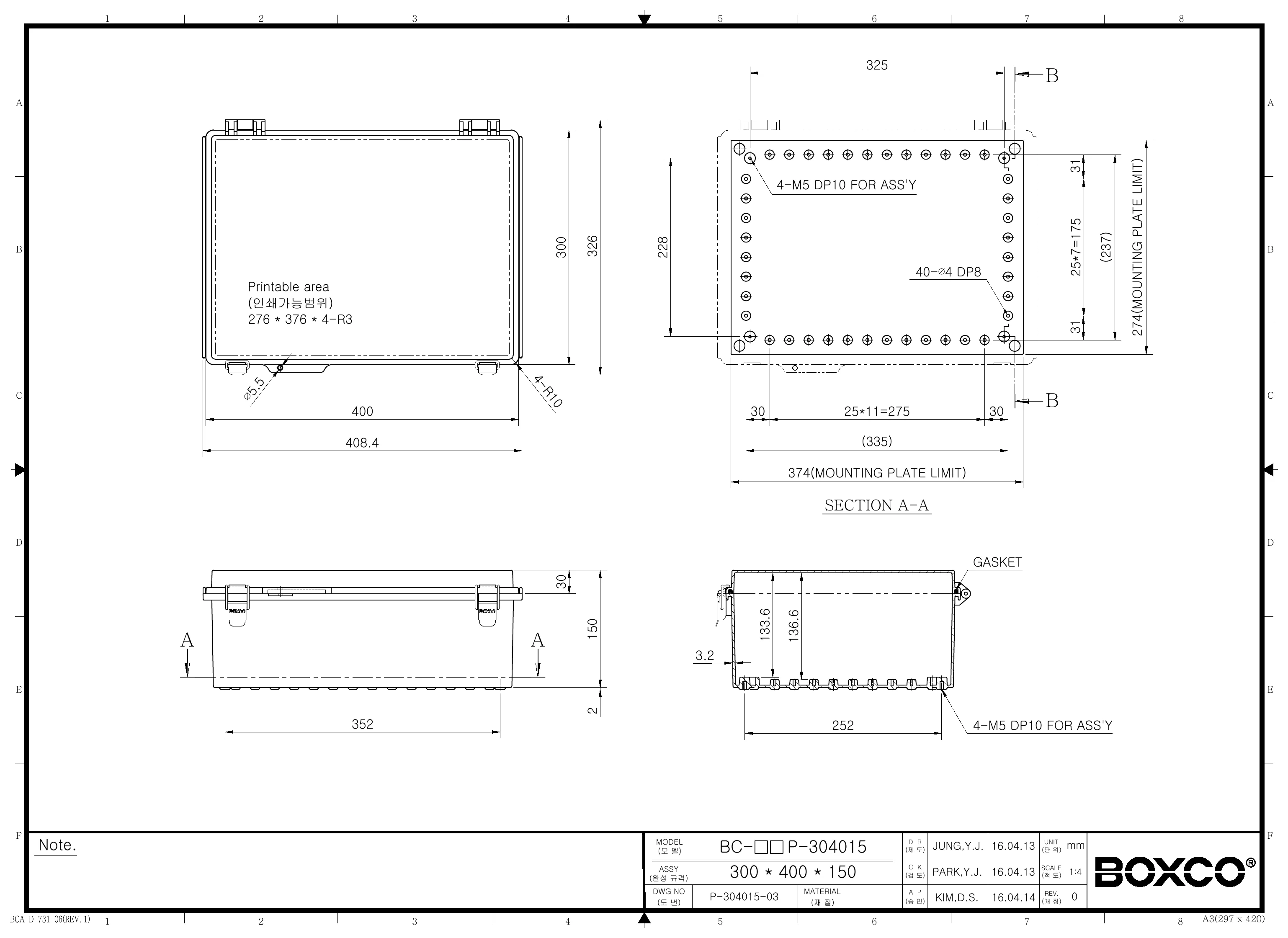

Technical drawings

BC-ATP-304015 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series BC-ATP-304015 enclosure best suited for?

This enclosure is designed for protecting electrical and electronic equipment in industrial and commercial environments where dust, water, and impact resistance matter. Its ABS construction, transparent cover, and molded hinge and latch design make it a practical choice for control, monitoring, and instrumentation housing.

Is this enclosure suitable for outdoor environments?

Yes, this model is built for outdoor-capable use with an ultraviolet stabilizer added to help reduce color change over time. It also includes roof protection features and an IP67 rating to support resistance against water and dust exposure.

What are the key specifications of this enclosure?

The BC-ATP-304015 measures 11.81 x 15.75 x 5.91 inches, which corresponds to 300 x 400 x 150 mm. It is made from ABS, has a transparent cover, carries IP67 and IK08 ratings, operates from -40 C to 70 C, and weighs 1.678 kg.

How does this model help protect equipment in demanding environments?

This enclosure combines IP67 sealing for dust and water resistance with an IK08 impact rating for added durability. Its gasket is robot-injected for waterproof and dust-proof performance, and the enclosure material is described as high impact resistant for demanding use.

What makes this enclosure different from a basic plastic enclosure?

This model includes several upgraded design features beyond a basic box, including a transparent cover, integrated plastic hinge with a stainless steel bearing, stainless steel latch components, and pre-molded mounting screw nuts. It is also built with outdoor-oriented UV stabilization and anti-static material for protection of sensitive instruments.

Can this enclosure support internal mounting hardware or equipment plates?

Yes, the enclosure includes pre-molded mounting screw nuts to help secure DIN rail or other equipment, and it has dedicated attachment points for an internal mounting plate. The mounting plate can be fixed onto brass inserted injection molding to better handle heavier installed equipment.
