Boxco

Boxco P-Series 400x500x200mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-405020
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-ATP-405020 is a 400×500×200 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-405020Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
400×500×200 mm (15.75×19.69×7.87 in)
Mounting plate dimension M1 × M2
358 × 457 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
4050 P (Plastic, P type), 4050 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

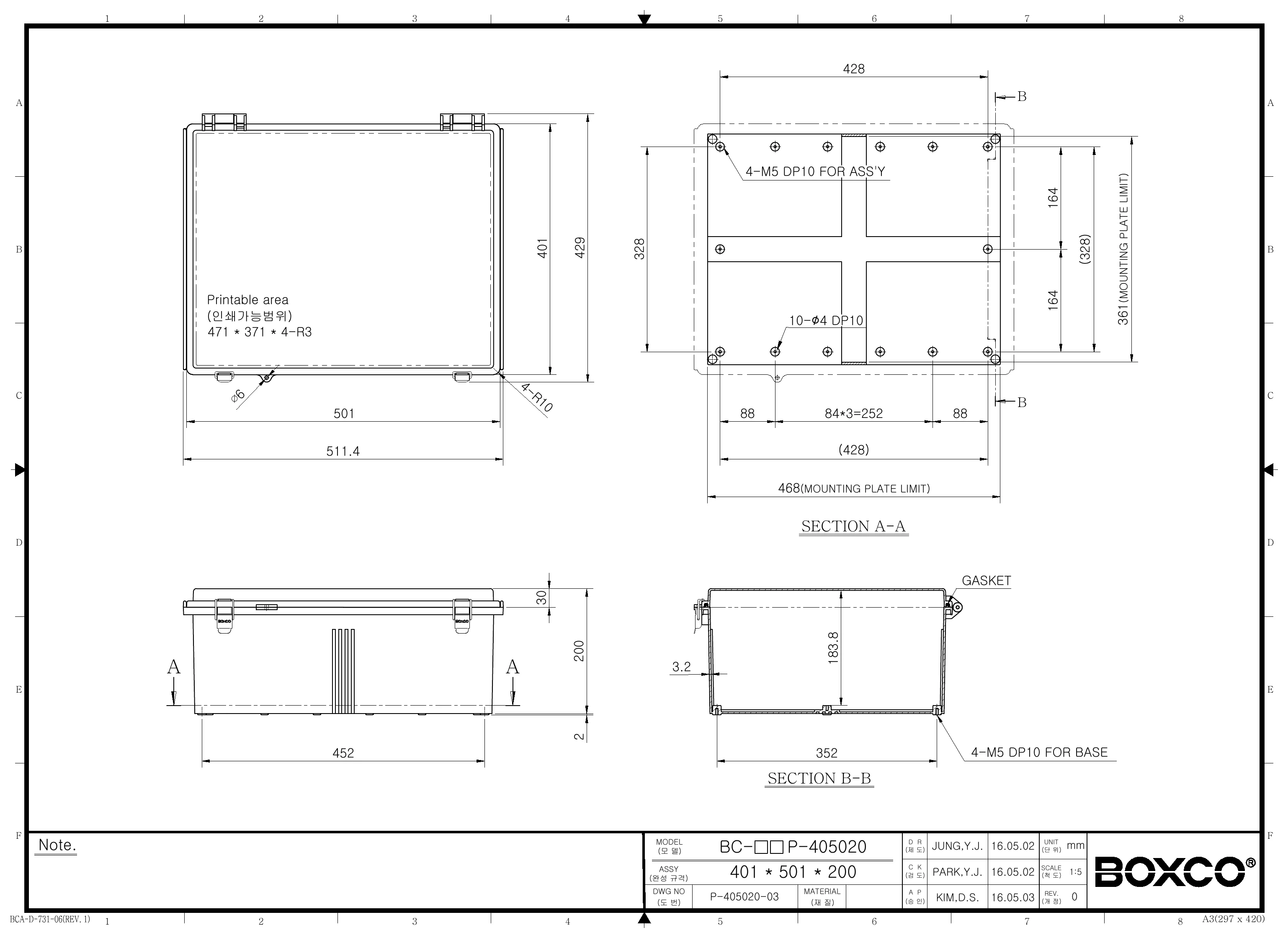

BC-ATP-405020 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco P-Series enclosure typically used for?

This model is a large plastic enclosure intended to protect industrial or commercial equipment in demanding environments. Its size, impact resistance, and sealed design make it suitable for housing controls, instrumentation, and other sensitive components that need protection from dust, water, and outdoor exposure.

What are the dimensions of the BC-ATP-405020 enclosure?

The enclosure measures 15.75 x 19.69 x 7.87 inches, which corresponds to 400 x 500 x 200 mm. This makes it a relatively large enclosure within the P-Series for applications that need more internal space.

Is this enclosure suitable for outdoor environments?

Yes. The product description states that an ultraviolet stabilizer is added to help protect the enclosure during outdoor use, and the design includes roof protection features intended to reduce water penetration when used outside. Its IP67 rating also indicates strong protection against dust and water ingress.

What do the IP67 and IK08 ratings mean for this enclosure?

IP67 indicates that the enclosure is designed to provide a high level of protection against dust and water ingress. IK08 indicates resistance to mechanical impact, which complements the ABS construction for applications where durability matters.

What material is this enclosure made from, and why does that matter?

This model is made from ABS and includes a transparent cover. The description also notes high impact resistance, anti-static material for protecting sensitive electronic instruments, and UV stabilization for improved outdoor durability.

What is the operating temperature range for this model?

The specified operating temperature range is -40 degrees C to 70 degrees C. That range supports use in both cold and hot industrial environments, provided the rest of the application is rated appropriately.

Does this enclosure support internal mounting hardware or equipment plates?

Yes. The product description states that it includes pre-molded mounting screw nuts and mounting plate attachment points with brass inserted injection molding. These features are intended to support secure mounting of internal equipment and plates inside the enclosure.

What kind of cover and closure design does this model use?

This enclosure uses a transparent cover with a molded hinge and latch type design. The latch main part is described as stainless steel for strength, while the integrated hinge uses a stainless steel bearing to help improve service life.
