Boxco

Boxco P-Series 530x730x255mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-507025
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGP-507025 is a 530×730×255 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-507025Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
530×730×255 mm (20.87×28.74×10.04 in)
Mounting plate dimension M1 × M2
460 × 660 mm

Material

Material
ABS
Cover
Grey
Mounting plates
5070 P (Plastic, P type), 5070 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

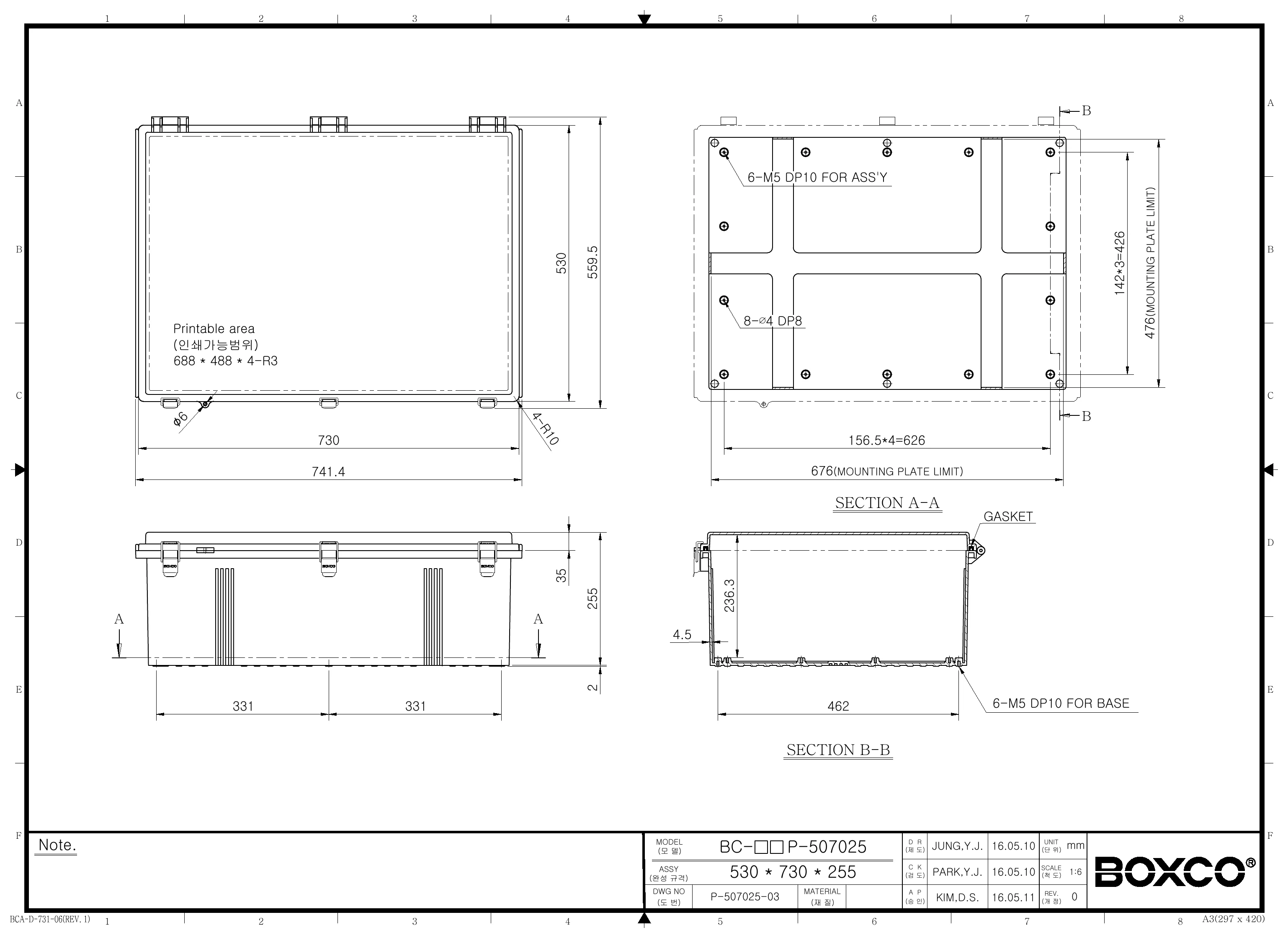

Technical drawings

BC-AGP-507025 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series BC-AGP-507025 best suited for?

This enclosure is designed for protecting industrial and commercial electrical or control equipment in demanding indoor or outdoor environments. Its large size, molded hinge and latch design, and high-impact ABS construction make it a practical choice for housing larger assemblies that need durable environmental protection.

What are the key size and material specifications of this enclosure?

The BC-AGP-507025 measures 20.87 x 28.74 x 10.04 inches, which is 530 x 730 x 255 mm. It is made from ABS and has a grey cover, with a total product weight of 20.586 kg.

Is this enclosure suitable for outdoor use?

Yes, this model is intended for outdoor use. The product description states that an ultraviolet stabilizer is added to help protect the enclosure outdoors, and the roof protection design helps reduce water penetration during outdoor exposure.

How much environmental protection does this enclosure provide?

This model is rated IP67 and IK08. That means it is built for strong protection against dust and water ingress, while also offering solid resistance to external mechanical impact.

What temperature range can this enclosure handle?

The specified operating temperature range for this enclosure is -40 C to 70 C. That range supports use in both cold and hot environments where stable enclosure performance is important.

What design features distinguish this Boxco P-Series enclosure from a basic plastic box?

This model includes a molded hinge and latch-type cover, stainless steel latch components, integrated hinge construction, and pre-molded mounting screw nuts. It also includes a precision-injected gasket and mounting plate attachment points, which make it better suited for demanding industrial enclosure applications than a basic non-sealed utility box.
