Boxco P-Series 100x150x70mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type

SKU BC-CTP-101507
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTP-101507 is a 100×150×70 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CTP-101507Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
100×150×70 mm (3.94×5.91×2.76 in)
Mounting plate dimension M1 × M2
65 × 115 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
0813 P (Plastic, P type), 0813 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

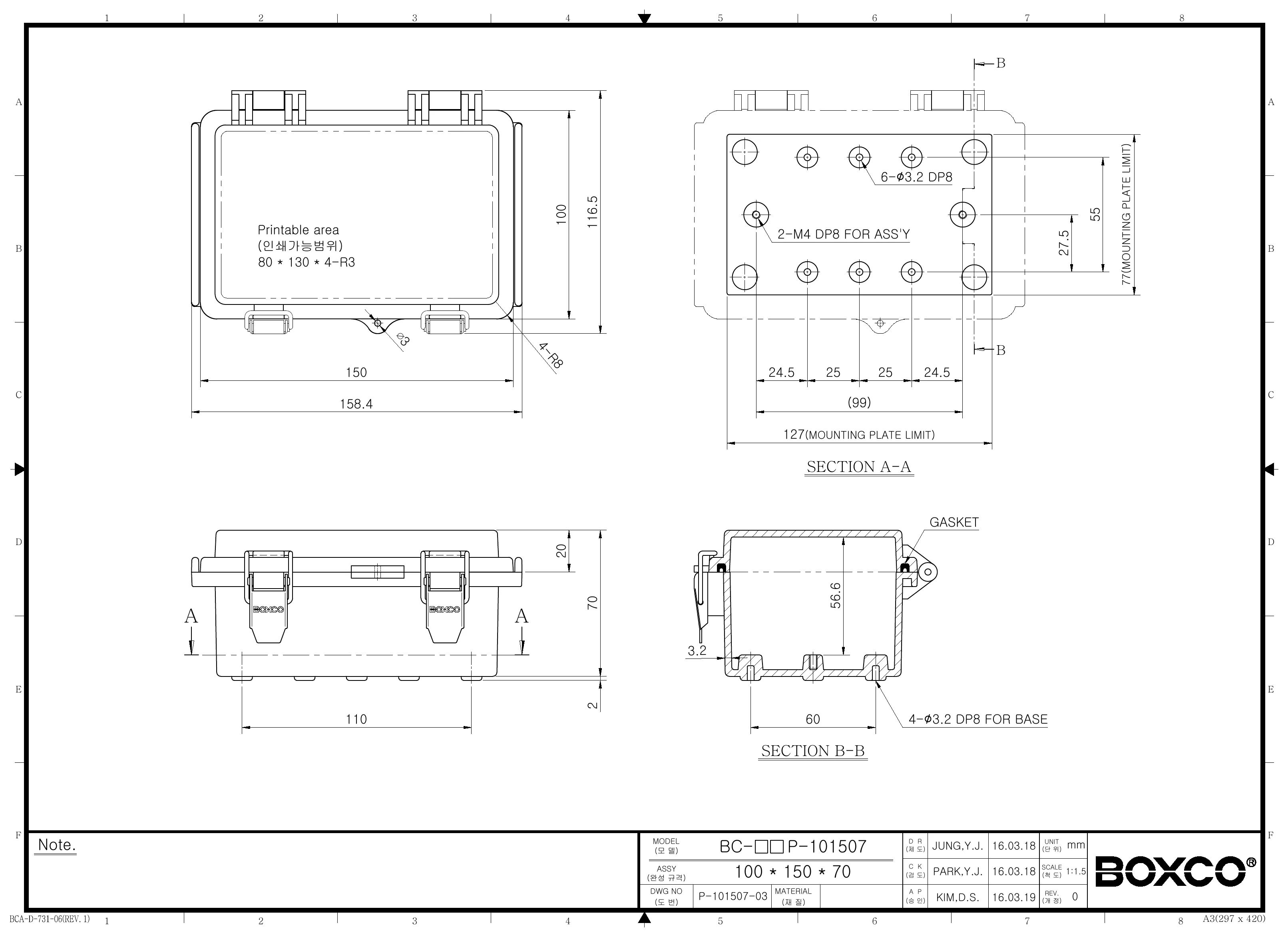

Technical drawings

BC-CTP-101507 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco P-Series enclosure designed for?

This model is a plastic enclosure for protecting electrical or electronic equipment in industrial and outdoor environments. Its transparent cover makes it useful where visual inspection is needed without opening the box, and the molded hinge and latch design supports repeated access.

What are the dimensions of this enclosure?

The enclosure measures 3.94 x 5.91 x 2.76 inches, which corresponds to 100 x 150 x 70 mm. That size is suited to compact control, monitoring, or instrumentation assemblies that need a sealed housing.

Is this enclosure suitable for outdoor use?

Yes. Boxco states that the P-Series includes an ultraviolet stabilizer to help protect the enclosure during outdoor use, and the design includes roof protection features to reduce water and dust penetration when opening and closing the cover. The IP67 rating also supports use in demanding outdoor conditions.

How durable is the enclosure in harsh environments?

This model is rated IP67 for dust-tight and water-resistant protection and IK08 for impact resistance. Boxco also describes the material as high impact resistant polycarbonate with anti-static properties, which helps it perform well around sensitive electronic equipment.

What makes the transparent-cover version different from a standard opaque enclosure?

The transparent cover allows contents to be viewed without opening the enclosure, which can be useful for inspections or status checks. This version also keeps the same molded hinge and latch format, polycarbonate construction, and environmental protection rating listed for this model.

What temperature range can this enclosure handle?

The specified operating temperature range is -40 °C to 110 °C. That wide range makes it appropriate for applications exposed to both low ambient temperatures and elevated internal or external heat.
