Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 110x210x100mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-112110
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGP-112110 is a 110×210×100 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-112110Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
110×210×100 mm (4.33×8.27×3.94 in)
Mounting plate dimension M1 × M2
77 × 176 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1121 P (Plastic, P type), 1020 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

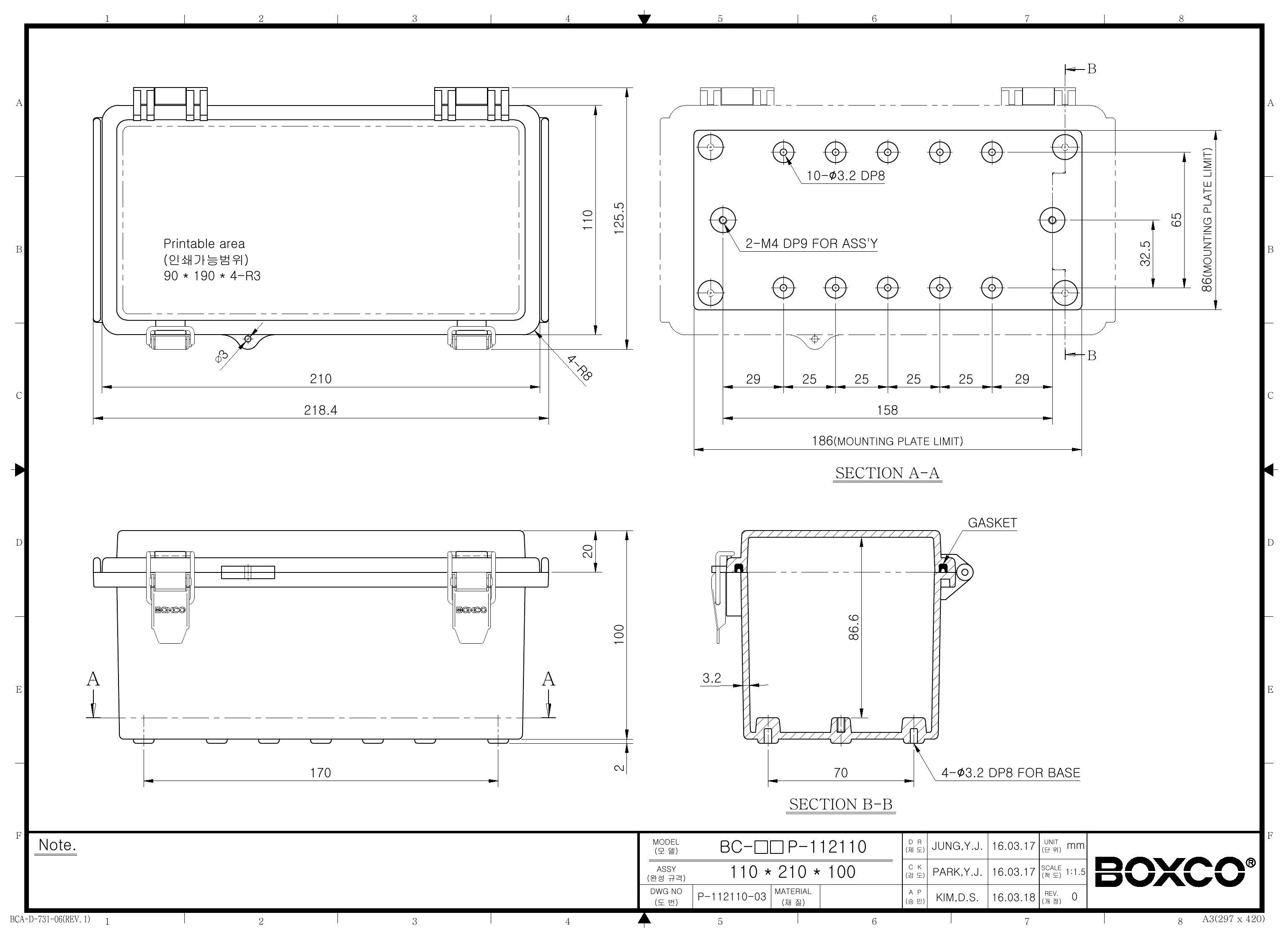

BC-CGP-112110 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

Is this enclosure suitable for outdoor use?

Yes. This Boxco P-Series model includes an ultraviolet stabilizer for outdoor exposure and is rated IP67 for protection against dust and water ingress. The housing design also includes roof protection features that help reduce water and dust penetration when the cover is opened and closed.

What level of impact and environmental protection does this enclosure provide?

This model is rated IP67 and IK08. That means it is built for strong resistance to dust, water ingress, and mechanical impact, making it a practical choice for industrial or exposed environments where the enclosure may face rough handling or outdoor conditions.

What kinds of equipment is this enclosure commonly used for?

This enclosure is intended for protecting sensitive electronic instruments and other components that need a sealed non-metallic housing. Its anti-static material, molded hinge and latch design, and internal mounting attachment points make it relevant for control, monitoring, and protection applications where durability and enclosure integrity matter.

What temperature range can this enclosure handle?

The listed operating temperature range for this model is -40 C to 110 C. That wide range makes it suitable for demanding environments where equipment may be exposed to cold outdoor conditions or elevated internal temperatures from installed devices.

What makes this model different from a basic plastic enclosure?

This P-Series enclosure adds several upgraded features beyond a simple box, including a molded hinge, latch type closure, UV-stabilized polycarbonate construction, anti-static material, and stainless steel hardware elements. It also includes pre-molded mounting screw nuts, a CNC-injected gasket, and mounting plate attachment points for more demanding equipment protection needs.

Is this enclosure compatible with internal mounting hardware or equipment plates?

Yes. The enclosure includes pre-molded mounting screw nuts for fixing DIN rail or other equipment, and it also provides mounting plate attachment points with brass inserted injection molding for securely supporting heavier internal equipment. These built-in mounting provisions make it easier to use the enclosure in professional equipment builds.
