Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 110x260x100mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type

SKU BC-CTP-112610
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTP-112610 is a 110×260×100 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CTP-112610Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
110×260×100 mm (4.33×10.24×3.94 in)
Mounting plate dimension M1 × M2
76 × 225 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1126 P (Plastic, P type), 1126 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

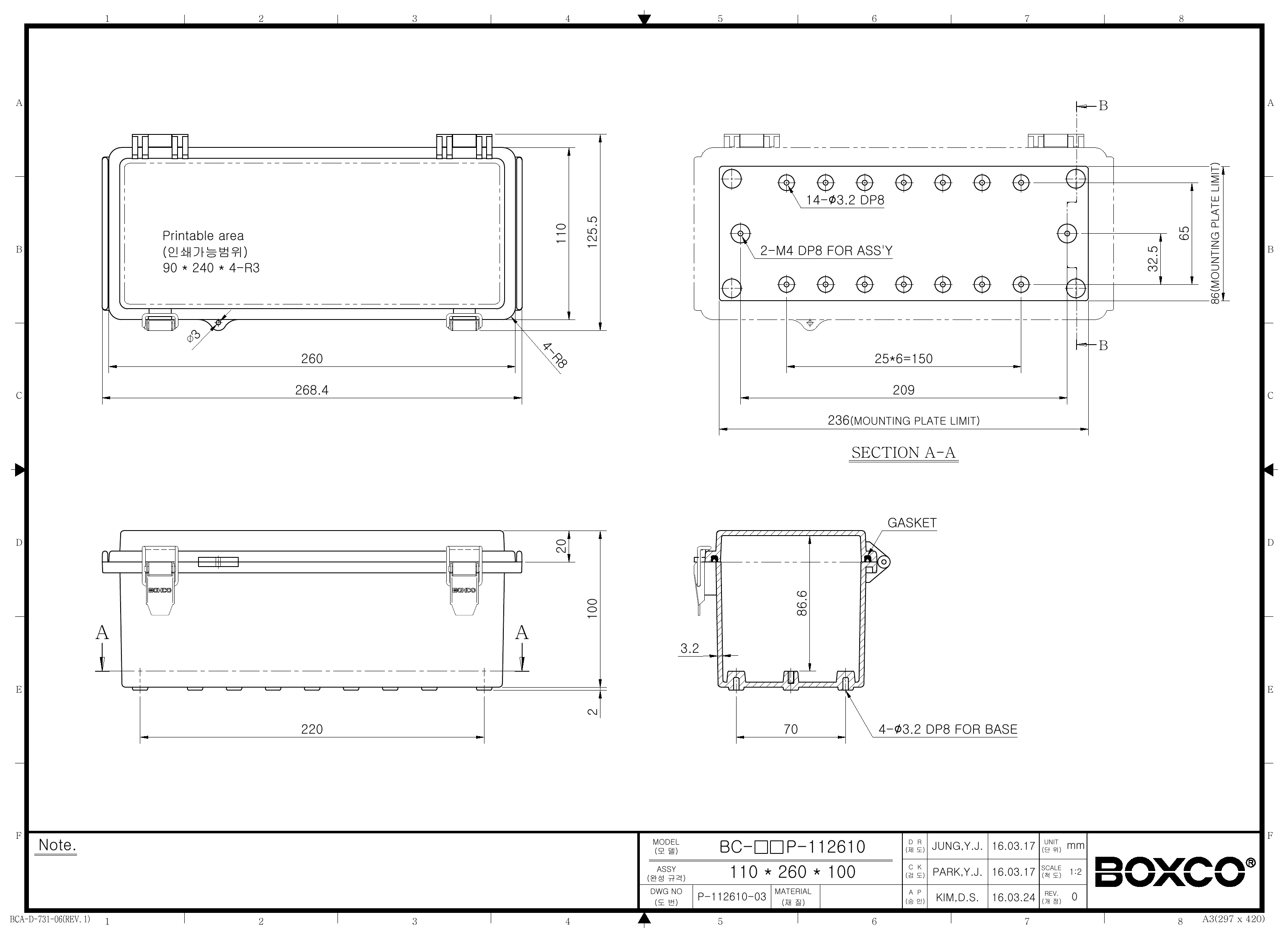

Technical drawings

BC-CTP-112610 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco P-Series enclosure used for?

This model is a plastic enclosure designed to protect electrical or electronic components in industrial and outdoor environments. Its transparent cover makes it useful when equipment needs to be visually checked without opening the box. The molded hinge and latch design also supports applications that require repeated access.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added to help protect the enclosure during outdoor use and reduce long-term color change. It also includes roof protection features intended to help resist water and dust intrusion during normal opening and closing.

What level of protection does this enclosure provide?

This enclosure is rated IP67 and IK08. IP67 indicates strong protection against dust and temporary immersion in water, while IK08 reflects impact resistance appropriate for demanding environments. Boxco also highlights a precision-injected gasket for waterproof and dust-proof performance.

What material is this enclosure made from?

This model is made from PC, or polycarbonate, and includes a transparent cover. The description also notes high impact resistance and anti-static material properties to help protect sensitive electronic instruments. That combination makes it a practical choice where durability and visibility matter.

What are the dimensions of this enclosure?

The enclosure measures 4.33 x 10.24 x 3.94 inches, which corresponds to 110 x 260 x 100 mm. This size is part of the Boxco P-Series and is suited for applications that need a longer rectangular enclosure format. Buyers should confirm internal clearance requirements based on their specific components.

Can this enclosure handle harsh temperatures?

Yes. This model is specified for temperatures from -40 C to 110 C. That range makes it suitable for many industrial and outdoor environments where equipment may face both low and elevated temperatures.

What distinguishes this model from a basic non-hinged enclosure?

This version includes a molded hinge and latch type cover, which is useful when the enclosure needs to be opened and closed repeatedly. It also has a transparent cover for visual inspection and pre-molded mounting screw nuts for securing internal accessories or equipment. Those features make it more specialized than a plain cover enclosure.
