Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 110x260x75mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-112607
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGP-112607 is a 110×260×75 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-112607Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
110×260×75 mm (4.33×10.24×2.95 in)
Mounting plate dimension M1 × M2
76 × 225 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1126 P (Plastic, P type), 1126 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

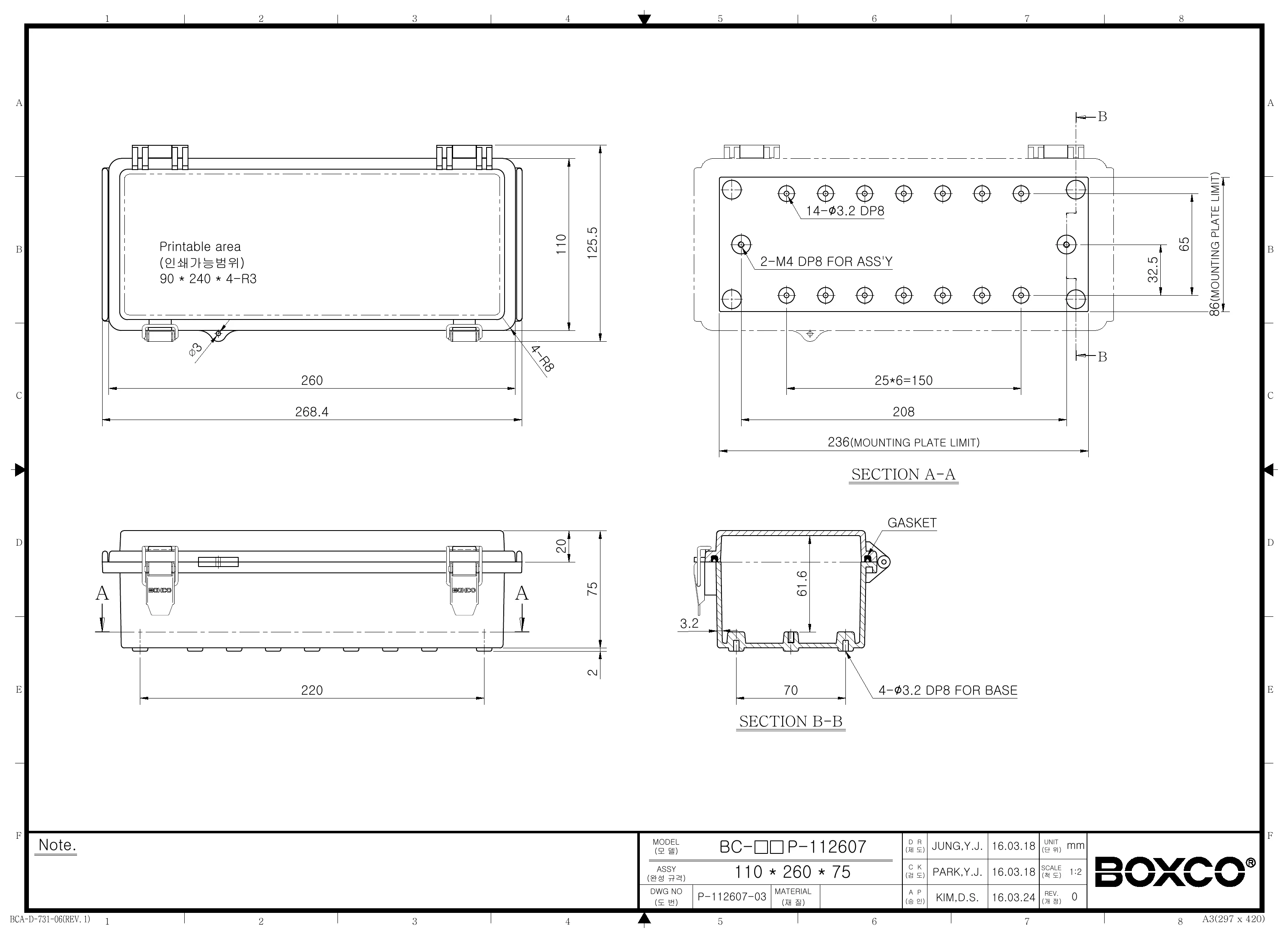

Technical drawings

BC-CGP-112607 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco P-Series enclosure suited for?

This model is designed for protecting electronic components in industrial and outdoor environments where dust, water, and impact resistance matter. Its anti-static material and high-impact polycarbonate construction make it a practical choice for housing sensitive control or monitoring equipment.

Is this enclosure suitable for outdoor use?

Yes. The enclosure includes an ultraviolet stabilizer to help it maintain performance during long-term outdoor exposure, with only minor color change over time. Its roof protection design and gasket system are also intended to help resist water and dust ingress in outdoor conditions.

What are the key protection ratings for this enclosure?

This enclosure is rated IP67 for dust-tight and water-resistant performance and IK08 for impact resistance. Those ratings, combined with its polycarbonate body, make it a durable option for demanding service conditions.

What are the dimensions of this enclosure?

This Boxco P-Series enclosure measures 4.33 x 10.24 x 2.95 inches, which is 110 x 260 x 75 mm. That size provides a narrow, elongated form factor for applications that need more internal length than width.

What temperature range can this plastic enclosure handle?

This model is specified for use from -40 °C to 110 °C. That wide operating range supports use in both cold and high-heat environments, depending on the requirements of the overall equipment design.

How does this model differ from a basic plastic enclosure?

This version includes features beyond a simple box, such as a molded hinge, latch-style closure, pre-molded mounting screw nuts, roof protection, and mounting plate attachment points. It is also built from polycarbonate with anti-static and UV-stabilized properties for more demanding applications.

Does this enclosure support internal mounting hardware or equipment plates?

Yes. It includes pre-molded mounting screw nuts that can be used for DIN rail or other internal equipment, and it also has mounting plate attachment points. The mounting plate can be fixed onto brass-inserted molded points to support heavier internal components.
