Boxco

Boxco P-Series 110x260x75mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type

SKU BC-CTP-112607
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTP-112607 is a 110×260×75 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CTP-112607Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
110×260×75 mm (4.33×10.24×2.95 in)
Mounting plate dimension M1 × M2
76 × 225 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1126 P (Plastic, P type), 1126 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

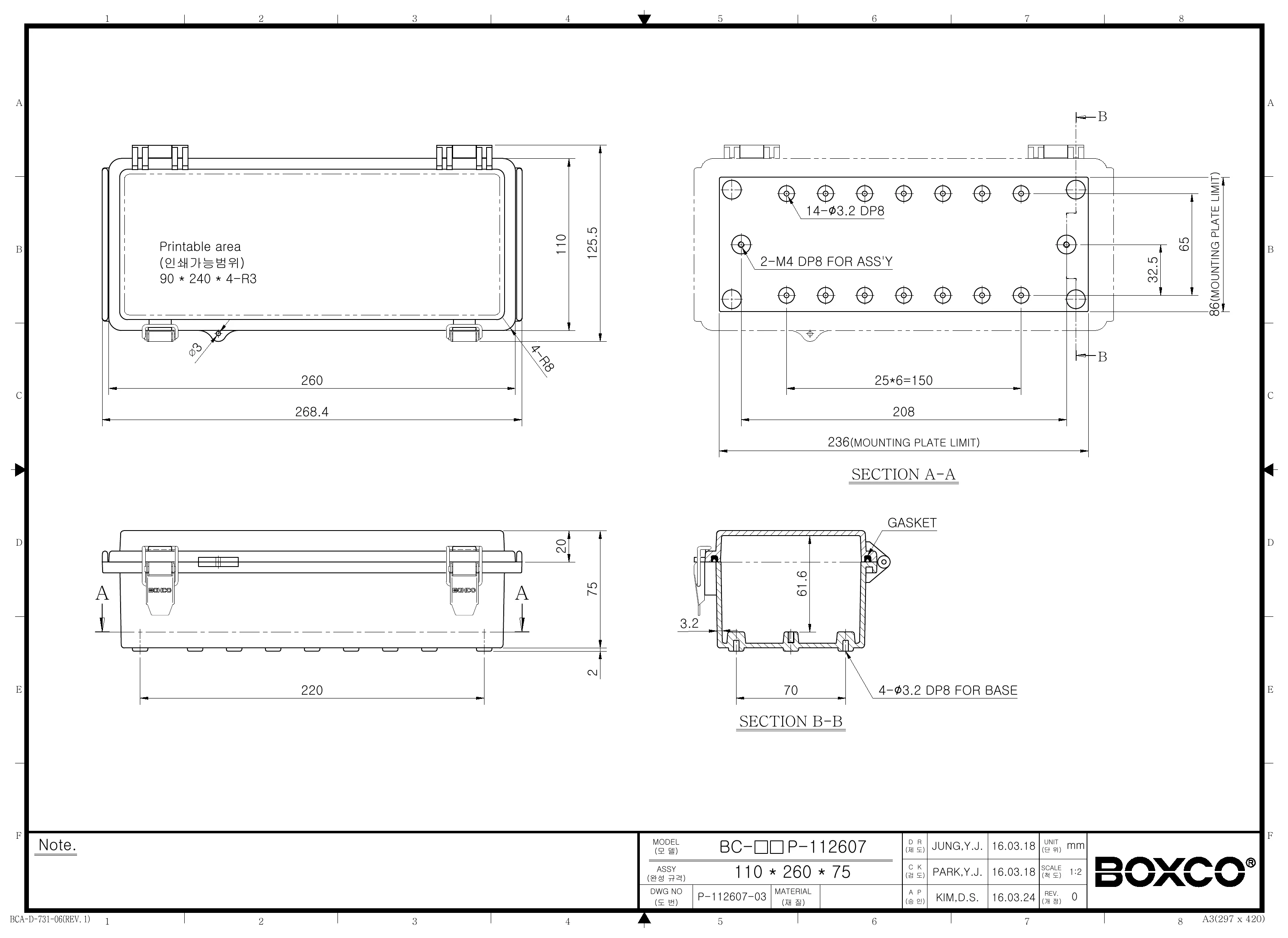

Technical drawings

BC-CTP-112607 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series BC-CTP-112607 enclosure suited for?

This enclosure is designed for protecting electronic components and instruments in industrial or commercial environments where dust, water, and impact resistance matter. Its anti-static material and high-impact polycarbonate construction make it a practical choice for housing sensitive equipment in demanding indoor or outdoor settings.

Is this enclosure suitable for outdoor use?

Yes. This model includes ultraviolet stabilizer for outdoor usage, and the product description notes that only minor color change is expected over long-term use. Its IP67 rating and roof-protection design also help resist water and dust exposure in outdoor environments.

What level of environmental protection does this enclosure provide?

The BC-CTP-112607 is rated IP67, which means it is built for strong protection against dust ingress and water exposure. It also carries an IK08 impact rating, indicating solid resistance to external mechanical impact for a plastic enclosure of this size.

What are the dimensions and material of this enclosure?

This model measures 4.33 x 10.24 x 2.95 inches, which is 110 x 260 x 75 mm. It is made from polycarbonate and features a transparent cover, giving visibility into the enclosure while maintaining protection.

How does this model differ from a basic plastic enclosure?

This P-Series enclosure adds several features beyond a standard box, including a transparent hinged cover, molded latch design, stainless steel latch components, and integrated hinge construction with a stainless steel bearing. It also includes pre-molded mounting screw nuts and attachment points for an internal mounting plate, making it better suited for more demanding protected-enclosure applications.

What temperature range can this enclosure handle?

The specified operating temperature range for this model is -40°C to 110°C. That range makes it appropriate for environments with both low-temperature exposure and elevated heat conditions, as long as the rest of the application components are rated accordingly.

Does this enclosure support internal mounting hardware or equipment panels?

Yes. The enclosure includes pre-molded mounting screw nuts that can be used for DIN rail or other equipment mounting, and it also has internal mounting plate attachment points. These features help support heavier internal equipment more securely than a plain enclosure body alone.
