Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 135x155x85mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-131508
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGP-131508 is a 135×155×85 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-131508Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
135×155×85 mm (5.31×6.10×3.35 in)
Mounting plate dimension M1 × M2
102 × 122 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1315 P (Plastic, P type), 1315 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

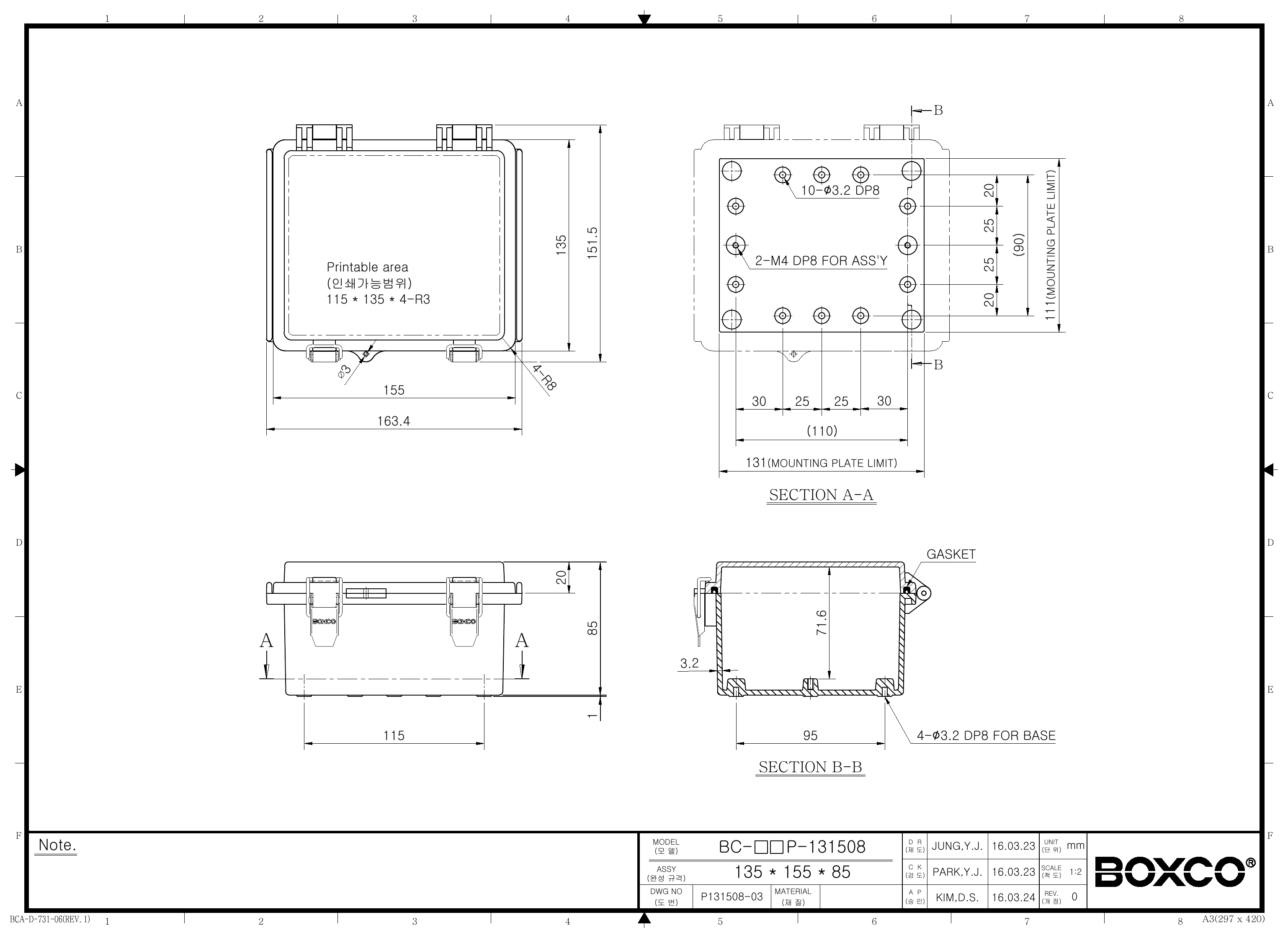

Technical drawings

BC-CGP-131508 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the dimensions of this Boxco P-Series enclosure?

This model measures 5.31 x 6.10 x 3.35 inches, which is 135 x 155 x 85 mm. It is part of the Boxco P-Series plastic enclosure line and is sized for applications that need a compact but durable hinged enclosure.

What material is this enclosure made from?

This enclosure is made from polycarbonate (PC) and has a grey cover. The product description also states that it uses high impact resistant material and anti-static material to help protect sensitive electronic instruments.

Is this enclosure suitable for outdoor or washdown environments?

Yes, this model is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. The description also notes UV stabilizer for outdoor use, along with roof protection and a precision-injected gasket to support waterproof and dust-proof performance.

How durable is this enclosure for industrial use?

This enclosure carries an IK08 impact rating and is described as being made from high impact resistant material. It also includes a molded hinge with a stainless steel bearing and a stainless steel latch main part for added durability in demanding environments.

What temperature range can this enclosure handle?

The listed operating temperature range is -40 °C to 110 °C. That makes this model suitable for applications exposed to both low and high ambient temperatures within that range.

What kinds of applications is this enclosure commonly used for?

This enclosure is intended for protecting electrical or electronic equipment in industrial and outdoor settings where dust, water, impact resistance, and long service life matter. Its anti-static material and rugged polycarbonate construction make it a practical choice for housing sensitive instruments or control components.

Does this model support internal equipment mounting?

Yes, the description states that it includes pre-molded mounting screw nuts for securing DIN rail or other equipment. It also includes mounting plate attachment points with brass inserted injection molding to support tightly fixed internal mounting plates for heavier equipment.
