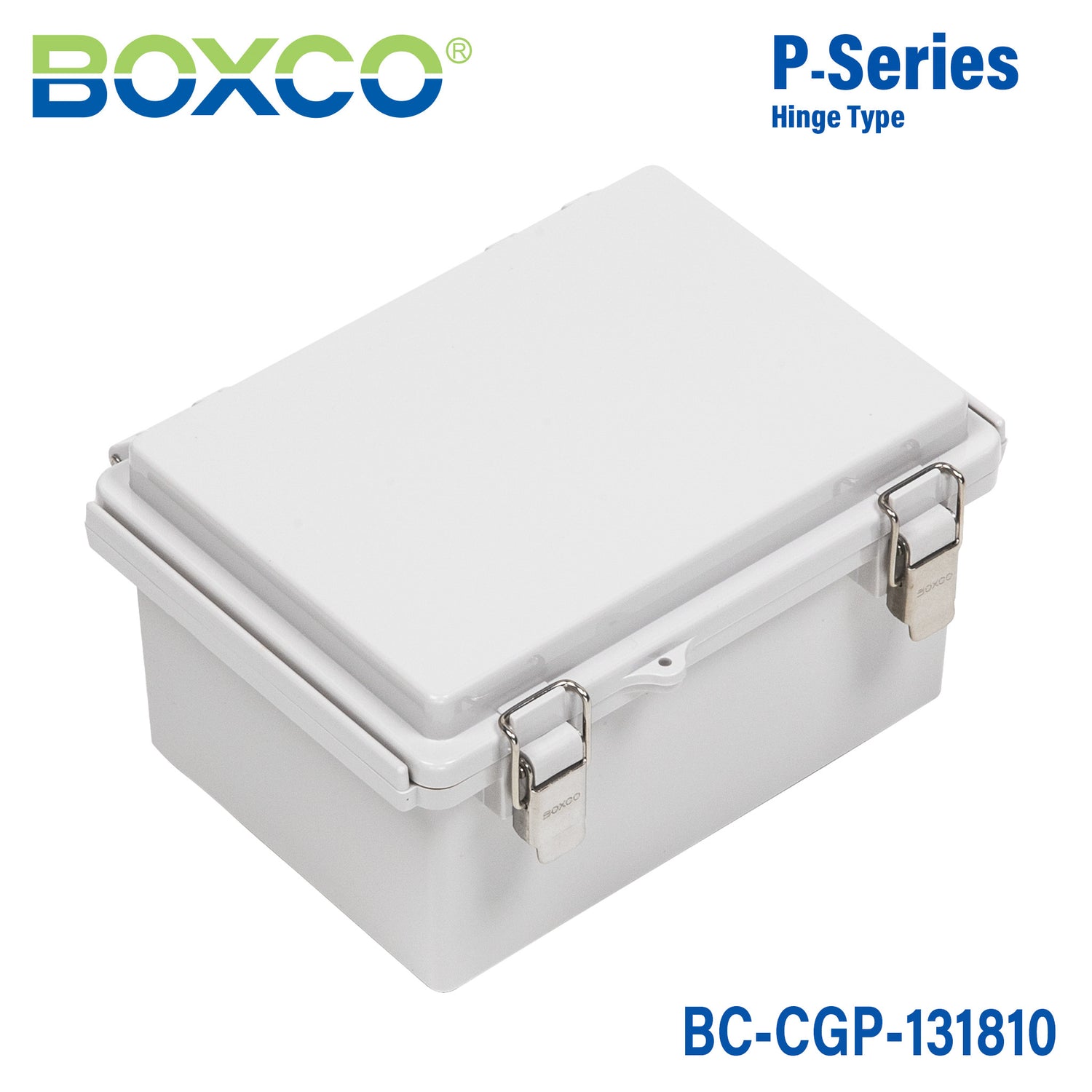

Boxco P-Series 135x185x100mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-131810
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGP-131810 is a 135×185×100 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-131810Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
135×185×100 mm (5.31×7.28×3.94 in)
Mounting plate dimension M1 × M2
110 × 159 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1217 G (Plastic, G type), 1217 P (Plastic, P type), 1217 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

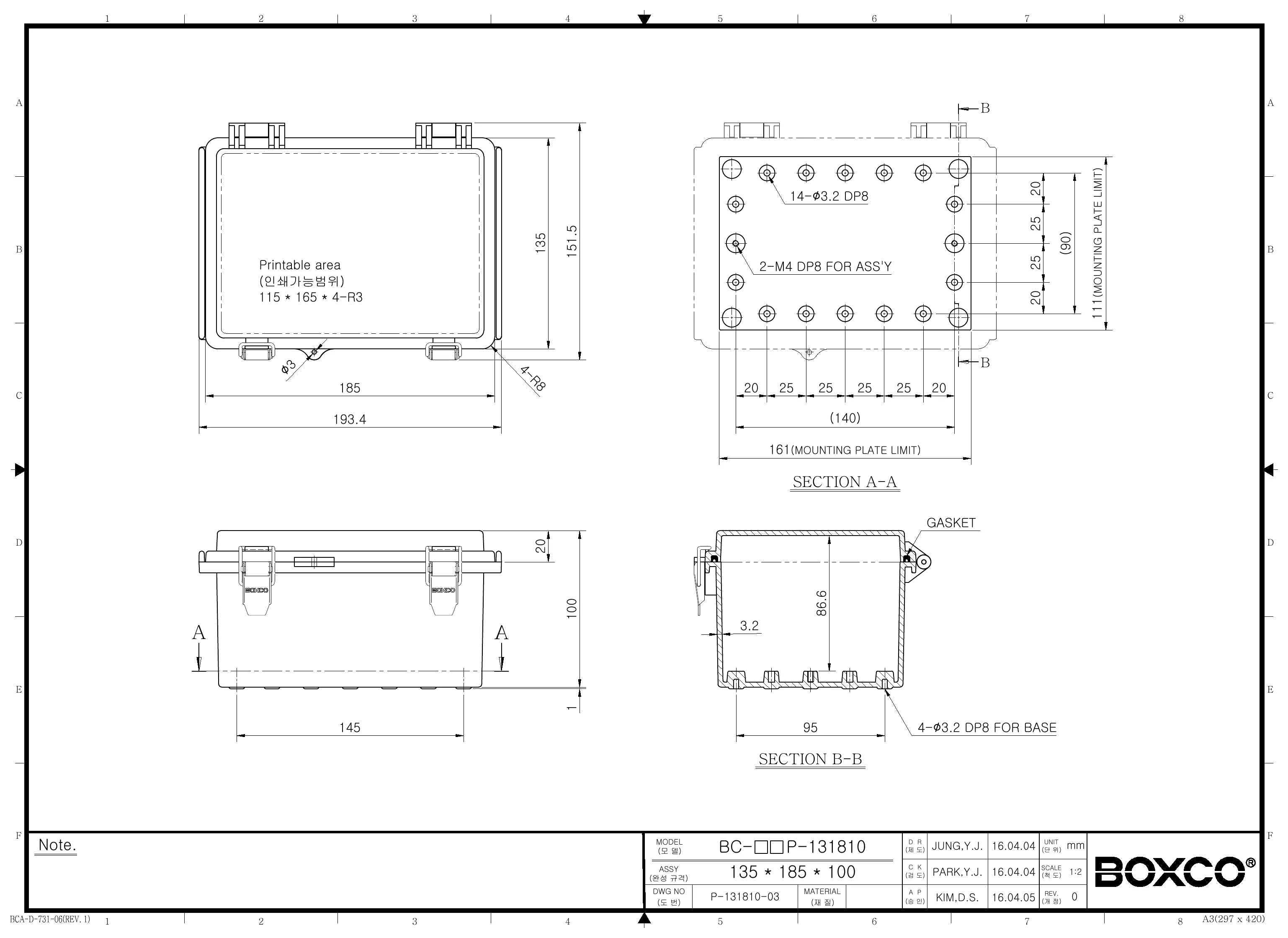

BC-CGP-131810 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is the size of Boxco P-Series model BC-CGP-131810?

This enclosure measures 5.31 x 7.28 x 3.94 inches, which is 135 x 185 x 100 mm. Its listed weight is 0.459 kg, making it a mid-size plastic enclosure for protected equipment housings.

Is BC-CGP-131810 suitable for outdoor use?

Yes. This Boxco P-Series enclosure includes an ultraviolet stabilizer for outdoor exposure, and the design includes roof protection at both ends to help reduce water and dust penetration when the cover is opened or closed.

What level of dust, water, and impact protection does this enclosure provide?

This model is rated IP67 and IK08. That means it is built for strong dust and water resistance and also offers solid impact protection for demanding industrial or outdoor environments.

What material is the BC-CGP-131810 enclosure made from?

The enclosure is made from polycarbonate (PC) with a grey cover. The product description also notes anti-static material for sensitive electronic instruments and high impact resistance to help reduce breakage during machining or press processing.

What types of applications is this enclosure a good fit for?

This model is well suited for protecting sensitive electronic instruments or control components that need a sealed plastic enclosure. Its IP67 rating, anti-static material, UV-stabilized construction, and impact-resistant body make it a practical choice for industrial and outdoor equipment housings.

Does this enclosure support internal mounting hardware or plates?

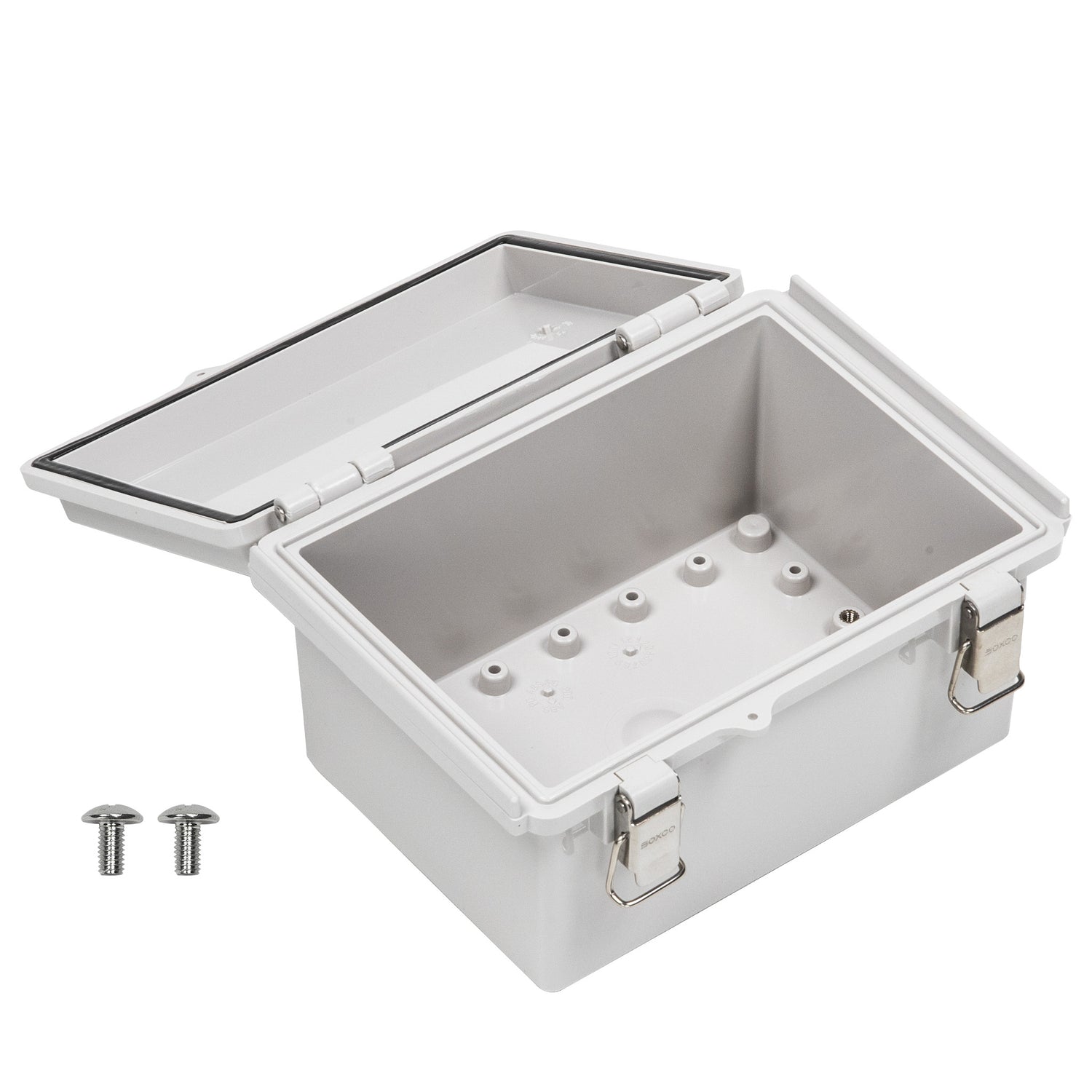

Yes. It includes pre-molded mounting screw nuts for securing DIN rail or other equipment, and it also has mounting plate attachment points with brass inserted injection molding for tightly fixing an internal mounting plate.

What is the benefit of the molded hinge and latch design on this model?

This enclosure uses an integrated plastic hinge with a stainless steel bearing to improve hinge life, along with a stainless steel draw latch for strength. That combination helps provide repeatable access while maintaining the enclosure's sealed, heavy-duty design.

What temperature range can Boxco BC-CGP-131810 handle?

The listed operating temperature range is -40 C to 110 C. That gives it a wide environmental range for demanding indoor or outdoor applications where temperature swings are a concern.
