Boxco

Boxco P-Series 135x185x100mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type

SKU BC-CTP-131810
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTP-131810 is a 135×185×100 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CTP-131810Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
135×185×100 mm (5.31×7.28×3.94 in)
Mounting plate dimension M1 × M2
110 × 159 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1217 G (Plastic, G type), 1217 P (Plastic, P type), 1217 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

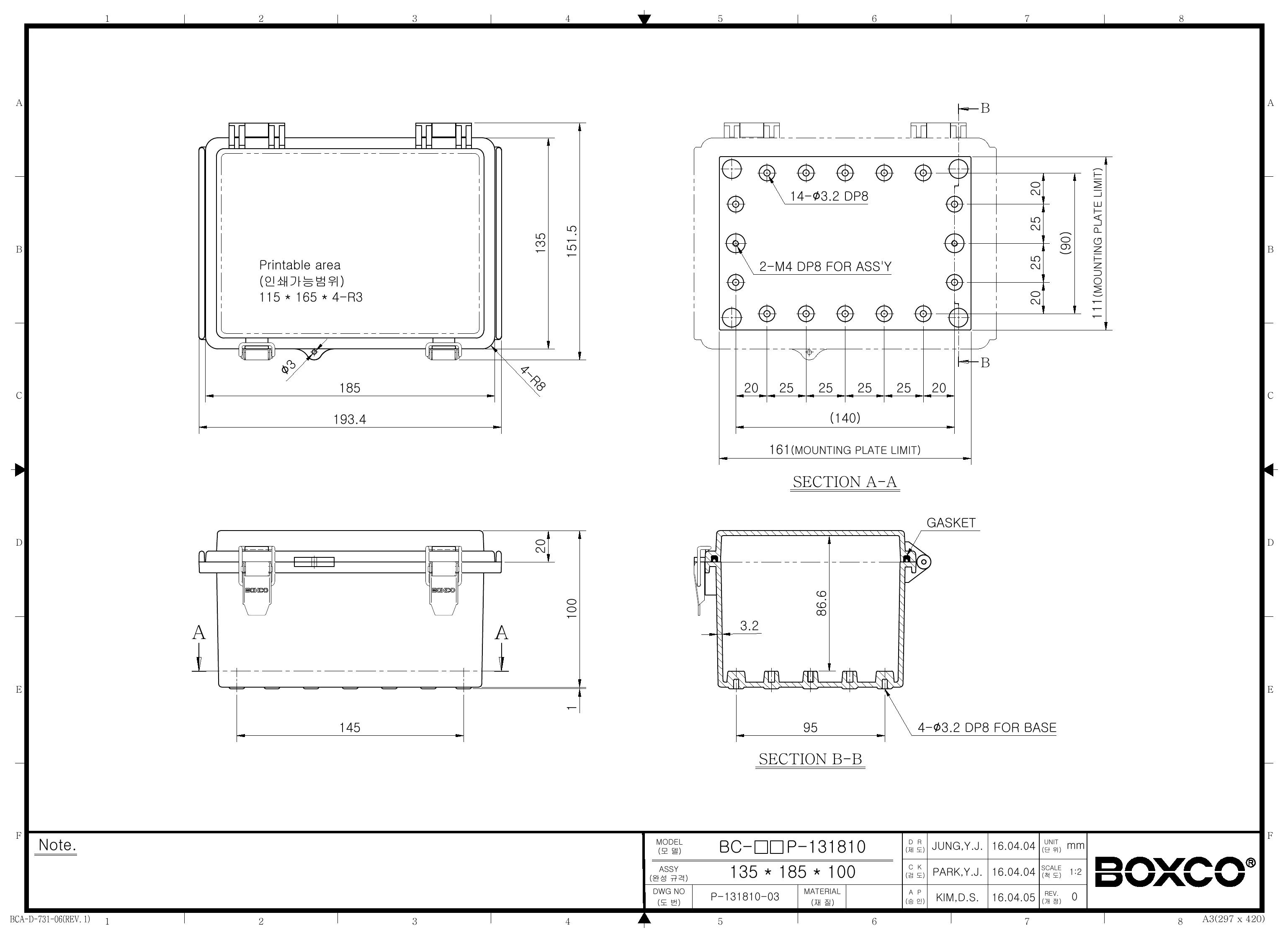

Technical drawings

BC-CTP-131810 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What material is this enclosure made from, and does it have a transparent cover?

This model uses PC (polycarbonate) construction and includes a transparent cover. The transparent lid helps with visual inspection of internal components without opening the enclosure.

What are the external dimensions of Boxco P-Series BC-CTP-131810?

The enclosure measures 5.31 x 7.28 x 3.94 inches, which is 135 x 185 x 100 mm. These dimensions make it suitable for protecting medium-size controls or instrumentation in a compact footprint.

Is this enclosure suitable for outdoor or harsh environments?

Yes, this model is designed for demanding environments, with an IP67 rating for dust-tight protection and resistance to temporary water immersion. The product description also notes UV stabilizer material for outdoor use and an IK08 impact rating for added durability.

What temperature range can this enclosure handle?

This enclosure is rated for use from -40 °C to 110 °C. That wide operating range makes it a practical choice for both cold and high-heat industrial environments.

What makes this P-Series enclosure different from a basic plastic box?

This model includes a transparent cover, molded hinge and latch construction, stainless steel latch components, and integrated mounting features such as pre-molded screw nuts and mounting plate attachment points. It is also built for stronger environmental protection with IP67 sealing and IK08 impact resistance.

What kinds of applications is this enclosure commonly used for?

This enclosure is suited for protecting industrial electronics, control components, and sensitive instruments that need sealed housing. Its anti-static material, impact-resistant body, and waterproof dustproof design make it a strong fit for commercial and industrial equipment protection.

Does this enclosure support internal mounting hardware or plates?

Yes, the product includes pre-molded mounting screw nuts and internal mounting plate attachment points. These features are intended to help secure DIN rail or other internal equipment more firmly inside the enclosure.
