Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 135x185x85mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type

SKU BC-CTP-131808
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTP-131808 is a 135×185×85 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CTP-131808Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
135×185×85 mm (5.31×7.28×3.35 in)
Mounting plate dimension M1 × M2
110 × 159 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1217 G (Plastic, G type), 1217 P (Plastic, P type), 1217 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

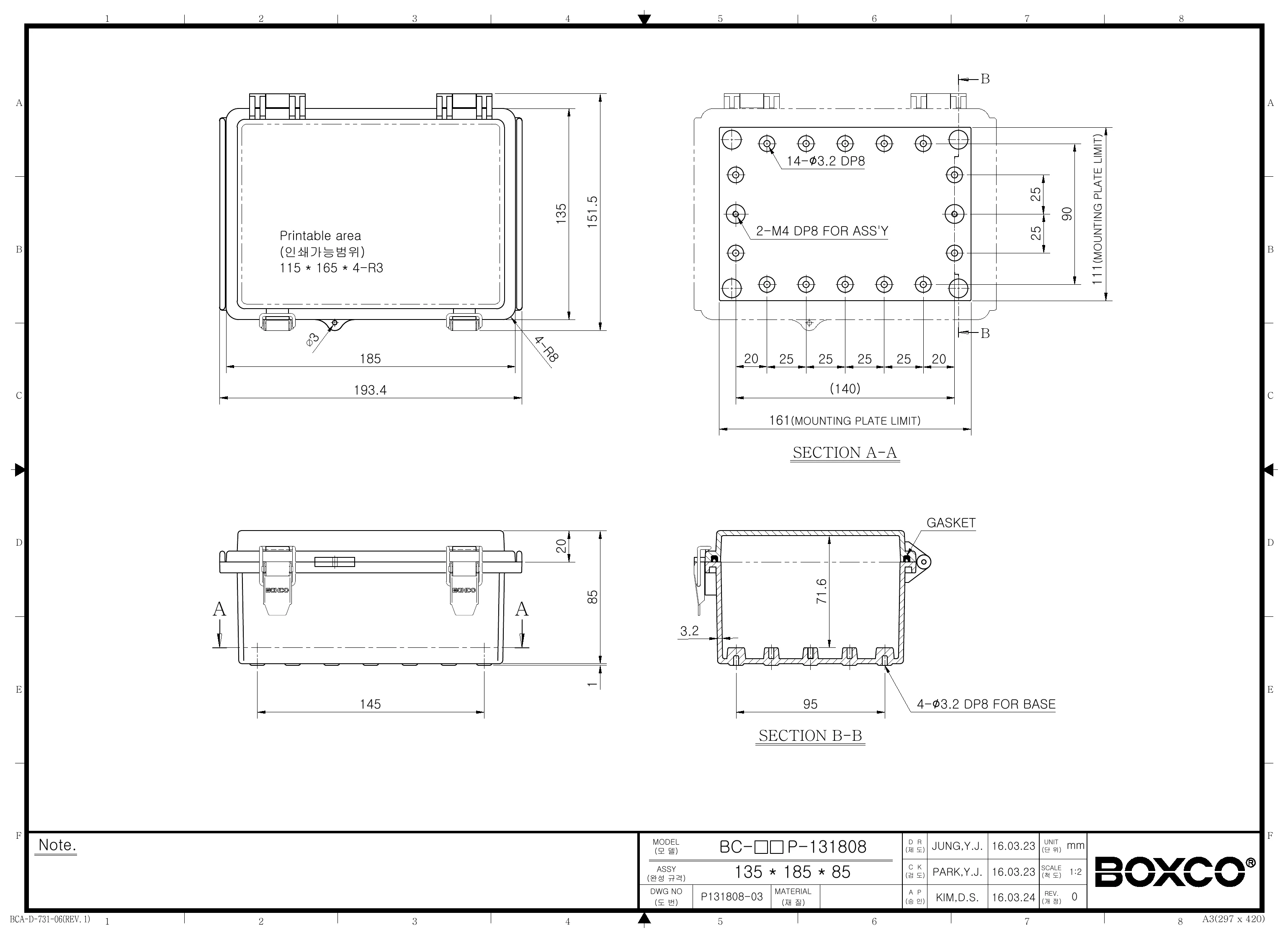

Technical drawings

BC-CTP-131808 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main specifications of the Boxco P-Series BC-CTP-131808 enclosure?

This model measures 5.31 x 7.28 x 3.35 inches (135 x 185 x 85 mm) and is made from polycarbonate (PC) with a transparent cover. It is rated IP67 for dust and water protection and IK08 for impact resistance. The enclosure weighs 0.456 kg and has a stated operating temperature range of -40°C to 110°C.

Is this enclosure suitable for outdoor environments?

Yes. Boxco states that the P-Series includes an ultraviolet stabilizer to help protect the enclosure during outdoor use and reduce visible color change over time. The design also includes roof protection features and an IP67 rating to support resistance to water and dust in demanding environments.

What makes the transparent-cover version useful?

The transparent cover allows visual inspection of internal components or indicators without opening the enclosure. That can be useful when equipment status needs to be checked while maintaining the enclosure's closed, sealed condition. This model combines that visibility with a polycarbonate body and cover construction.

How durable is the hinge and latch design on this model?

This enclosure uses a molded, integrated plastic hinge with a stainless steel bearing to improve service life. The main part of the draw latch is made of stainless steel for added strength. Boxco also lists IK08 impact resistance, which supports use where mechanical durability matters.

Can this enclosure be used for sensitive electronic equipment?

Yes, the product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. It is also made from high impact resistant material to better withstand external impact and reduce breakage during processing. That combination makes it relevant for industrial and electronics protection use cases.

Does the BC-CTP-131808 support internal accessories or mounting hardware?

Yes. Boxco lists pre-molded mounting screw nuts that can be used for DIN rail or other internal equipment, and it also includes mounting plate attachment points. The enclosure is designed so an internal mounting plate can be fixed tightly to support heavier installed components.
