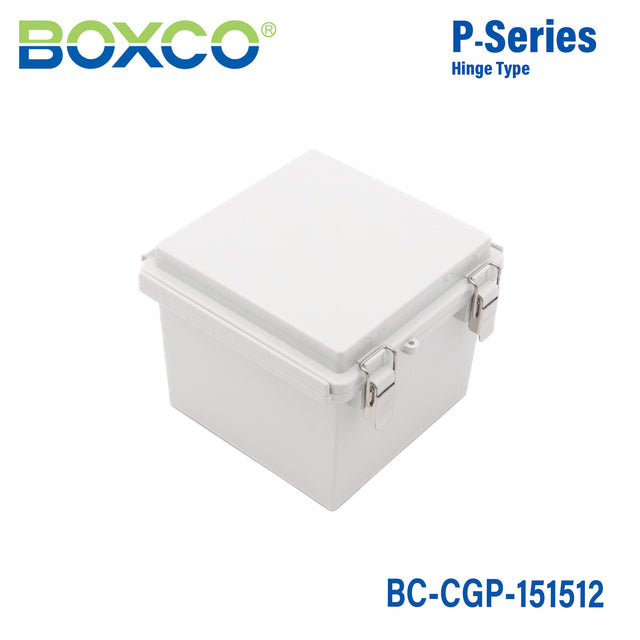

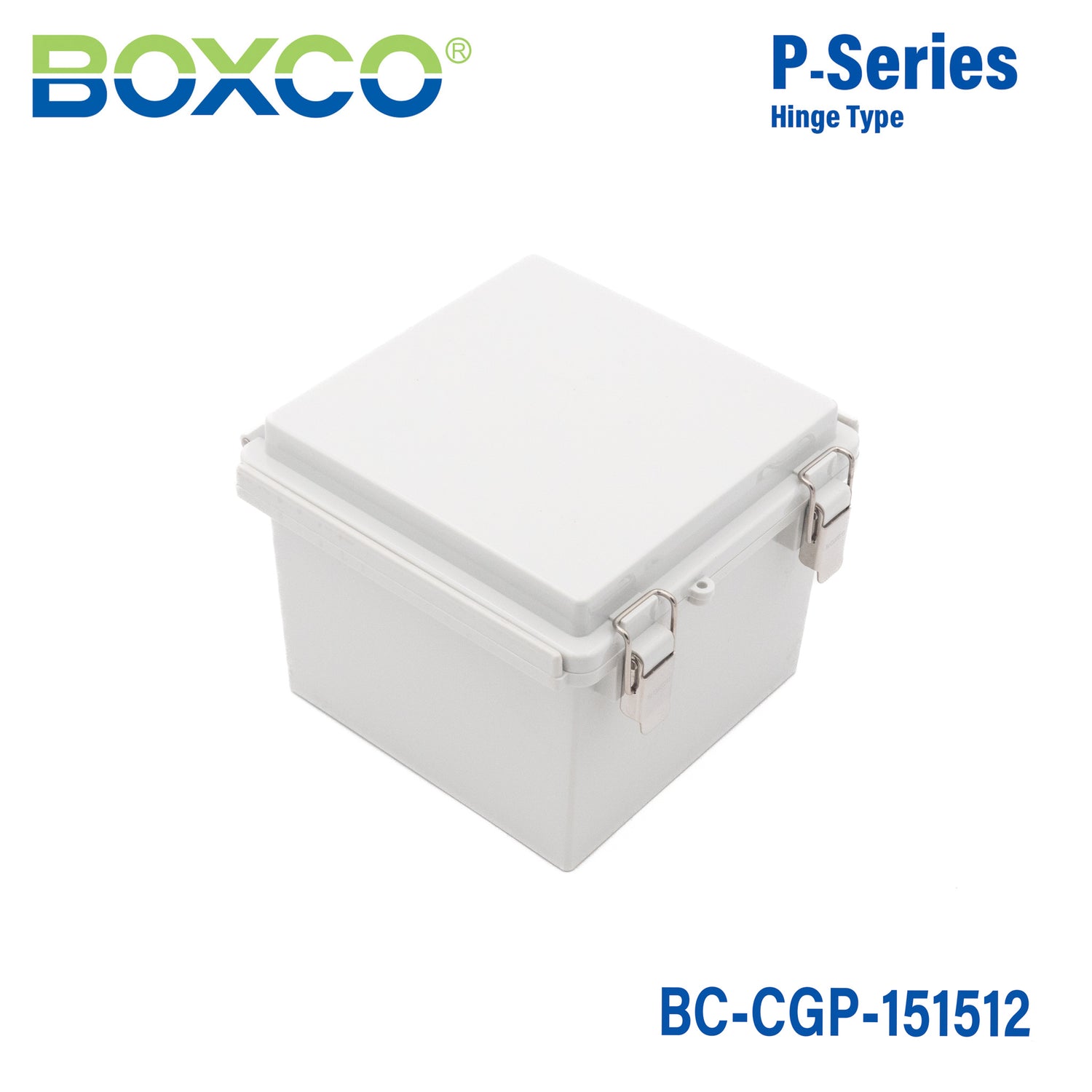

Boxco P-Series 150x150x120mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-151512
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CGP-151512 is a 150×150×120 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-151512Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
150×150×120 mm (5.91×5.91×4.72 in)
Mounting plate dimension M1 × M2
123 × 123 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1515 G (Plastic, G type), 1515 P (Plastic, P type), 1515 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

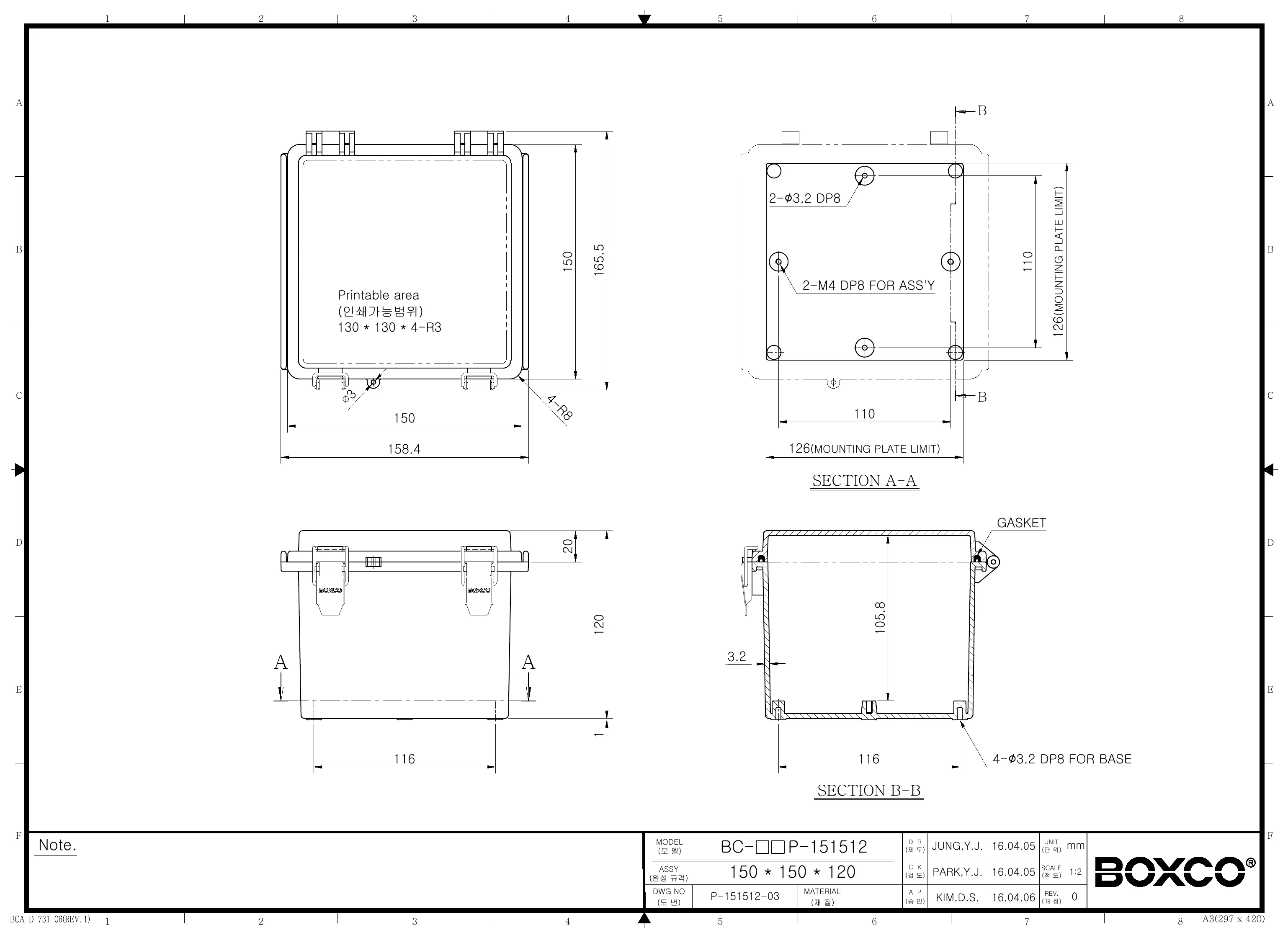

Technical drawings

BC-CGP-151512 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main size and material details for the Boxco BC-CGP-151512 enclosure?

This model measures 5.91 x 5.91 x 4.72 inches, which corresponds to 150 x 150 x 120 mm. It is a Boxco P-Series plastic enclosure made from PC material and comes with a grey cover plus a molded hinge and latch design.

Is the BC-CGP-151512 suitable for outdoor or washdown environments?

This enclosure is designed for demanding environments, with an IP67 rating for dust-tight performance and resistance to temporary water exposure. The description also notes UV stabilizer protection for outdoor use and roof protection features that help reduce water and dust intrusion during cover operation.

How durable is this plastic enclosure for industrial use?

The BC-CGP-151512 carries an IK08 impact rating, indicating good resistance to mechanical impact. Boxco also specifies high impact resistant material, a stainless steel bearing in the integrated hinge, and a stainless steel main latch component for added durability.

What kinds of equipment is this enclosure typically used to protect?

This model is suited to protecting electronic and control components that need a sealed non-metallic housing. Its anti-static material, waterproof gasket system, and internal equipment mounting points make it a practical choice for sensitive instruments and other enclosed industrial assemblies.

What temperature range can the BC-CGP-151512 handle?

The listed operating temperature range is -40 °C to 110 °C. That gives this enclosure a broad working range for both cold and high-heat environments where a sealed plastic housing is required.

What design features distinguish this Boxco P-Series enclosure from a basic plastic box?

This model includes a molded hinge and latch type cover, pre-molded mounting screw nuts, roof protection geometry, and dedicated mounting plate attachment points. It also uses a CNC-injected gasket system intended to deliver strong waterproof and dust-proof performance compared with a simpler general-purpose enclosure.
