Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 150x150x120mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type

SKU BC-CTP-151512
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTP-151512 is a 150×150×120 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CTP-151512Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
150×150×120 mm (5.91×5.91×4.72 in)
Mounting plate dimension M1 × M2
123 × 123 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1515 G (Plastic, G type), 1515 P (Plastic, P type), 1515 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

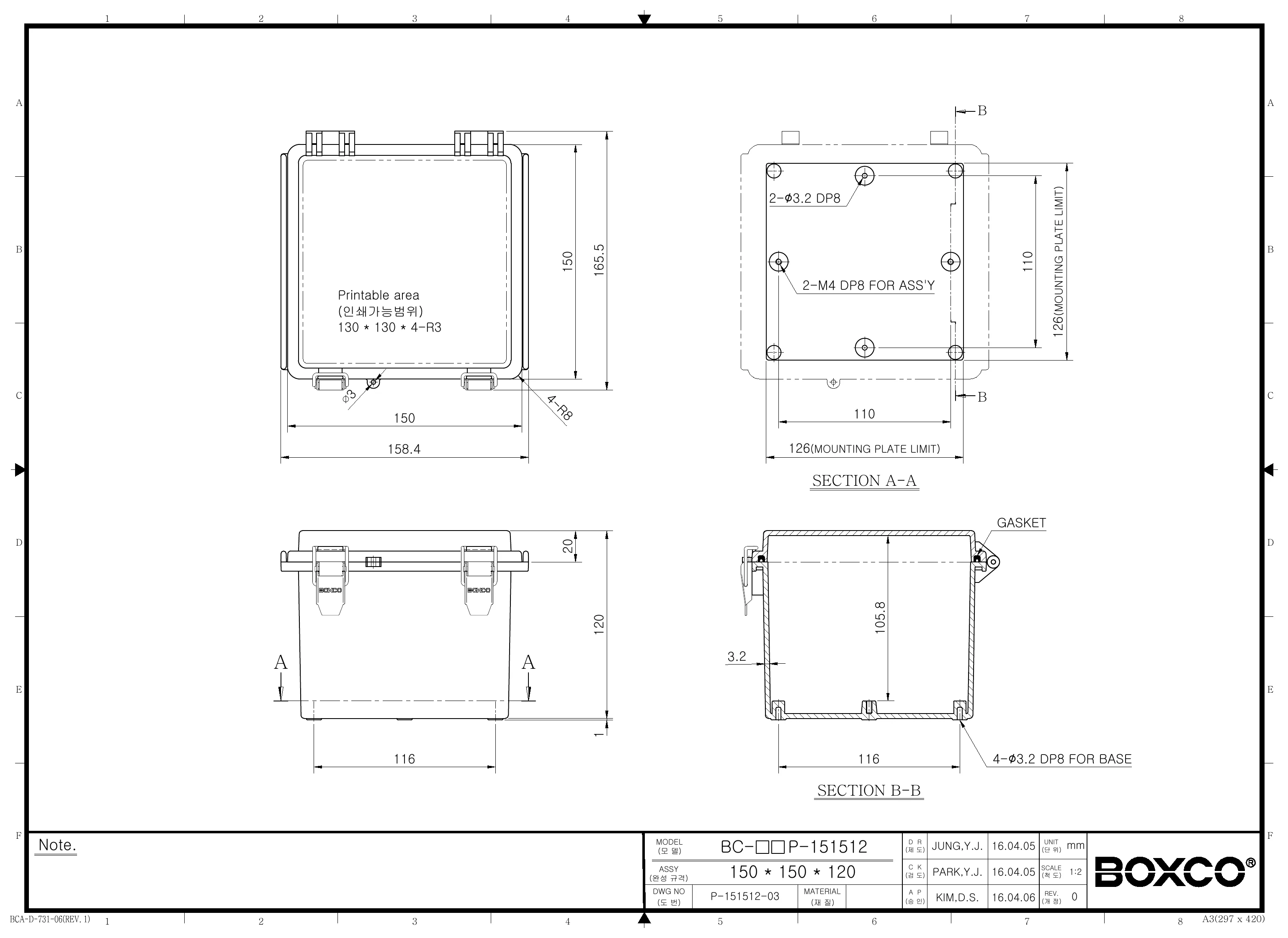

Technical drawings

BC-CTP-151512 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco P-Series enclosure best suited for?

This enclosure is suited for protecting sensitive electronic equipment in industrial and outdoor environments where dust, water, and impact resistance matter. Its anti-static material and high-impact polycarbonate construction make it a practical choice for control, monitoring, and instrumentation housings.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over long periods. Its roof protection design and gasket system are also intended to support strong waterproof and dust-proof performance.

What are the key protection features of this model?

This model is rated IP67 for dust and water ingress protection and IK08 for impact resistance. It also includes a transparent polycarbonate cover, molded hinge and latch design, and a robot-injected gasket to support sealing performance.

What size is this enclosure?

This Boxco P-Series enclosure measures 5.91 x 5.91 x 4.72 inches, which is 150 x 150 x 120 mm. That size makes it suitable when you need a compact but still substantial enclosure for internal equipment protection.

What temperature range can this enclosure handle?

The listed operating temperature range is from -40 °C to 110 °C. That makes this model appropriate for demanding environments with both low-temperature and elevated-temperature exposure.

How does this model differ from a basic plastic enclosure?

Compared with a basic enclosure, this model adds features aimed at durability and long-term field use, including UV stabilization, anti-static material, molded hinge and latch construction, and pre-molded mounting screw nuts. It also includes a transparent cover and an IP67 / IK08 protection profile, which are meaningful differentiators for B2B buyers.

Does this enclosure support internal mounting hardware?

Yes. The product description notes pre-molded mounting screw nuts for securing DIN rail or other equipment, along with attachment points for an internal mounting plate. It is designed to hold internal components more securely, including heavier installed equipment.
