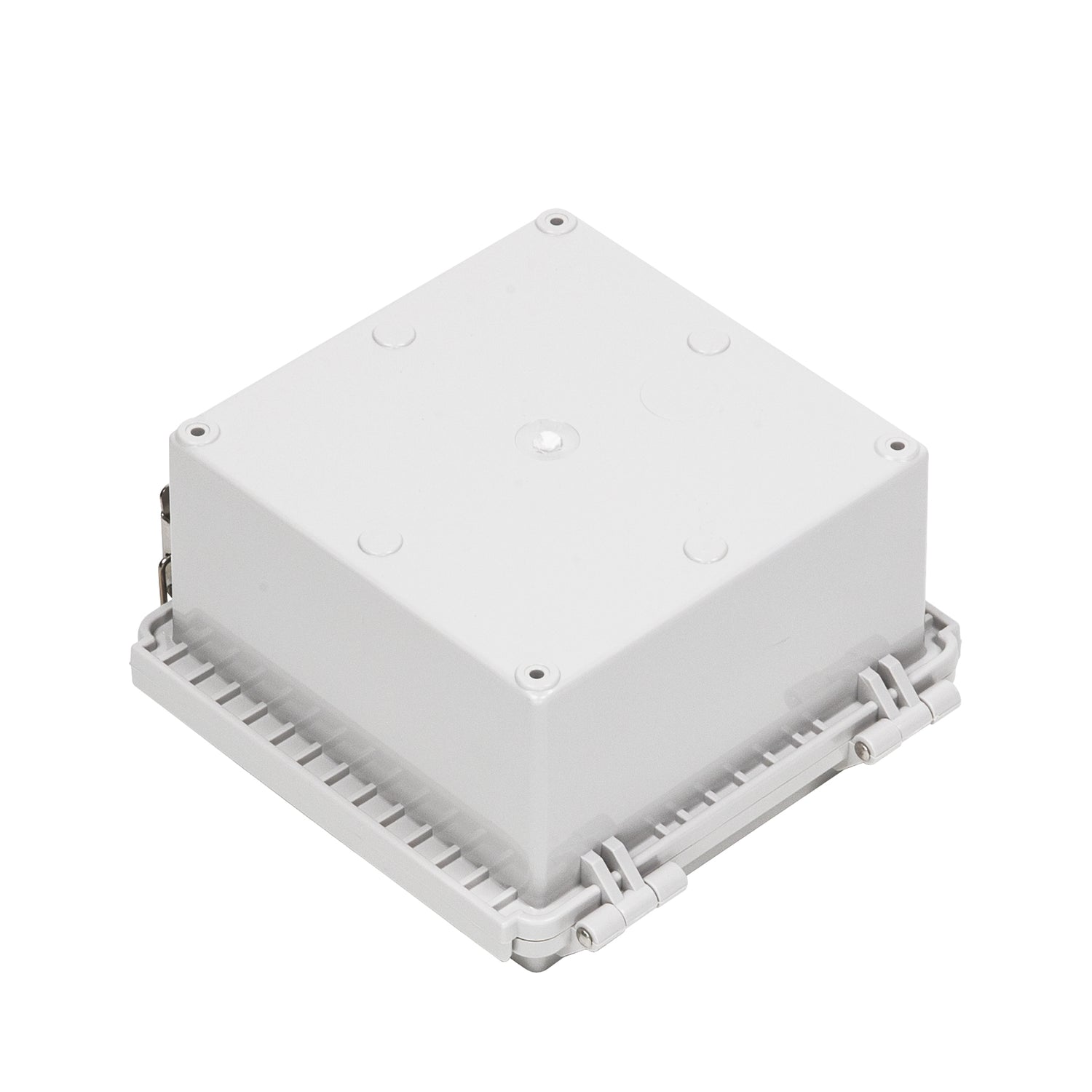

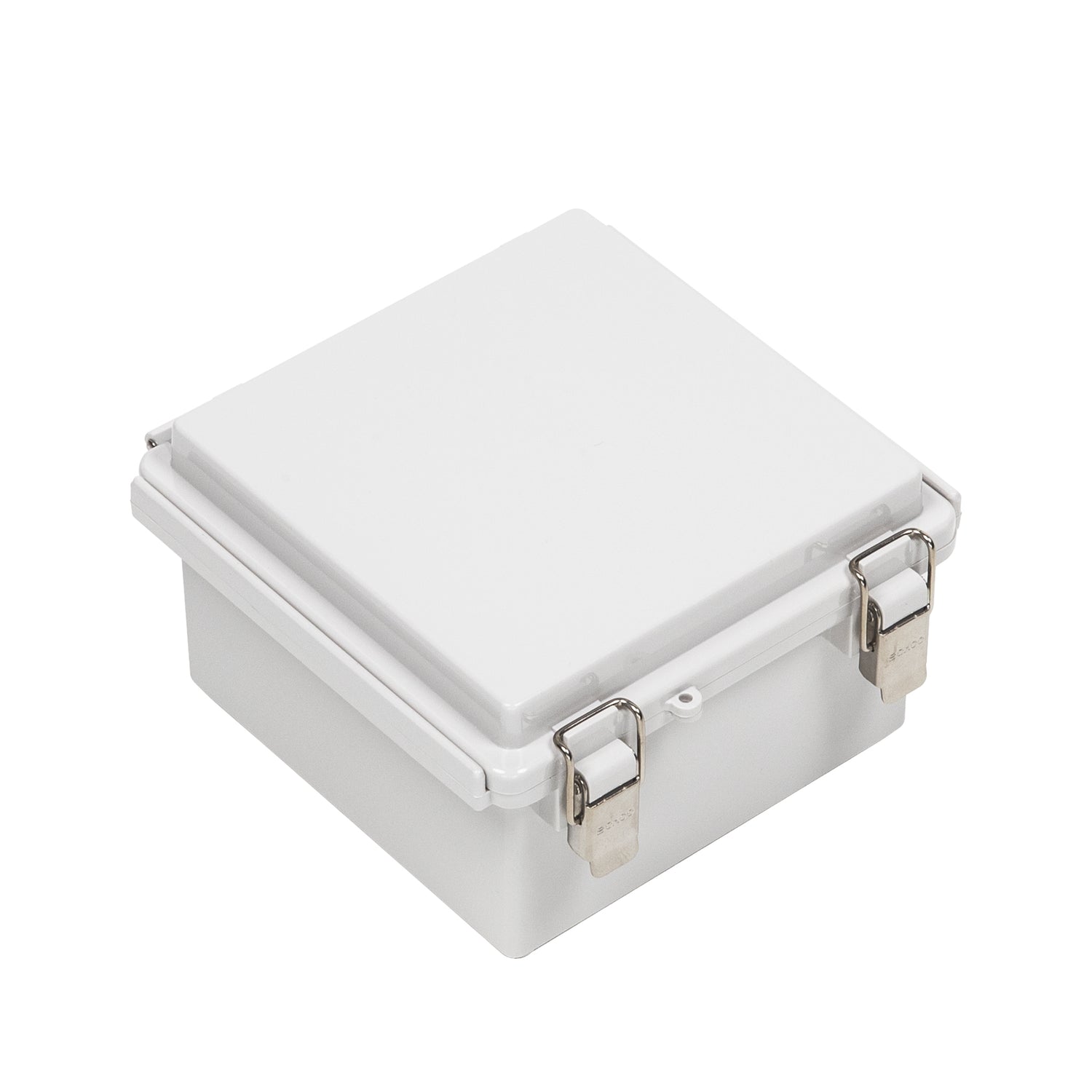

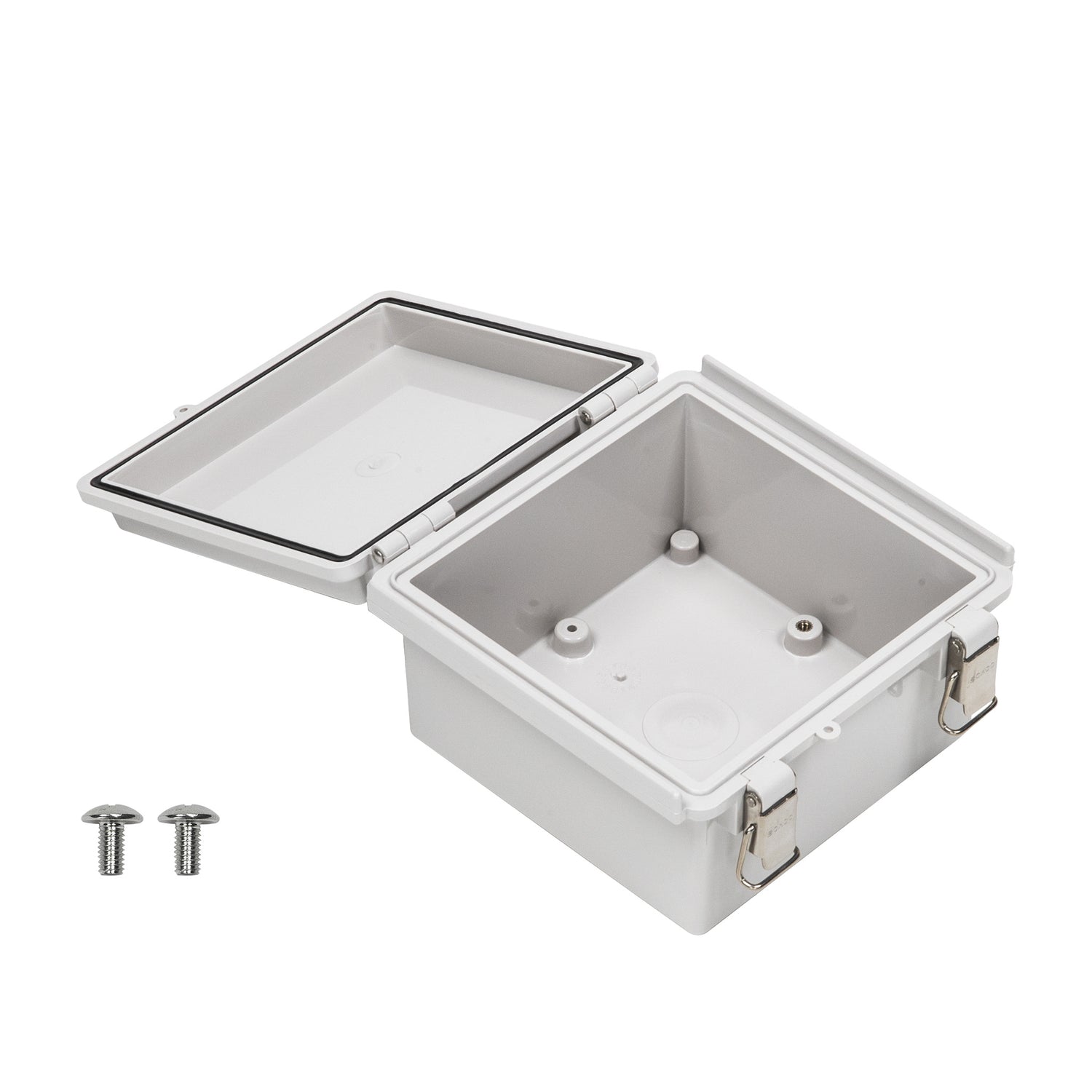

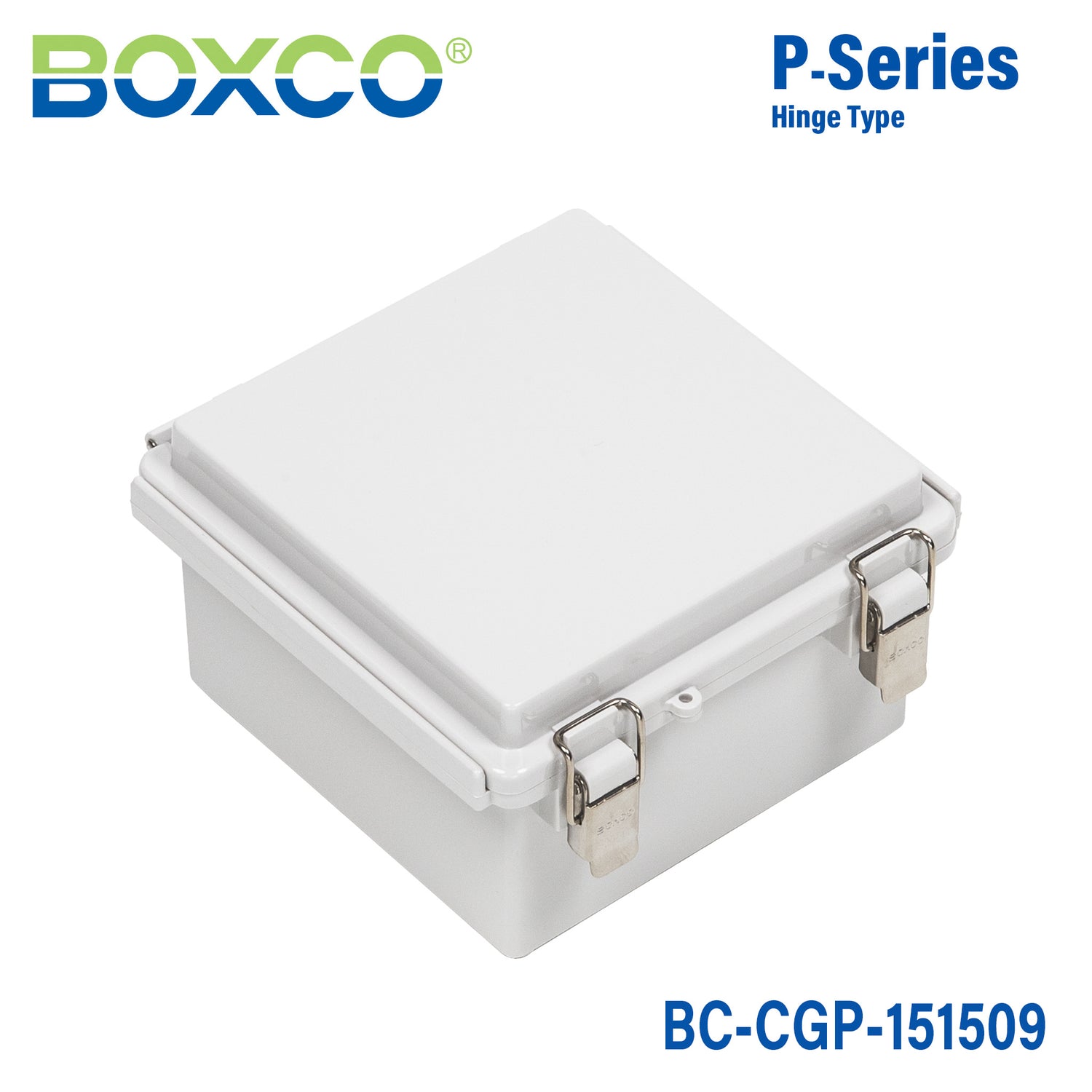

Boxco P-Series 150x150x90mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-151509
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGP-151509 is a 150×150×90 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-151509Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
150×150×90 mm (5.91×5.91×3.54 in)
Mounting plate dimension M1 × M2
123 × 123 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1515 G (Plastic, G type), 1515 P (Plastic, P type), 1515 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

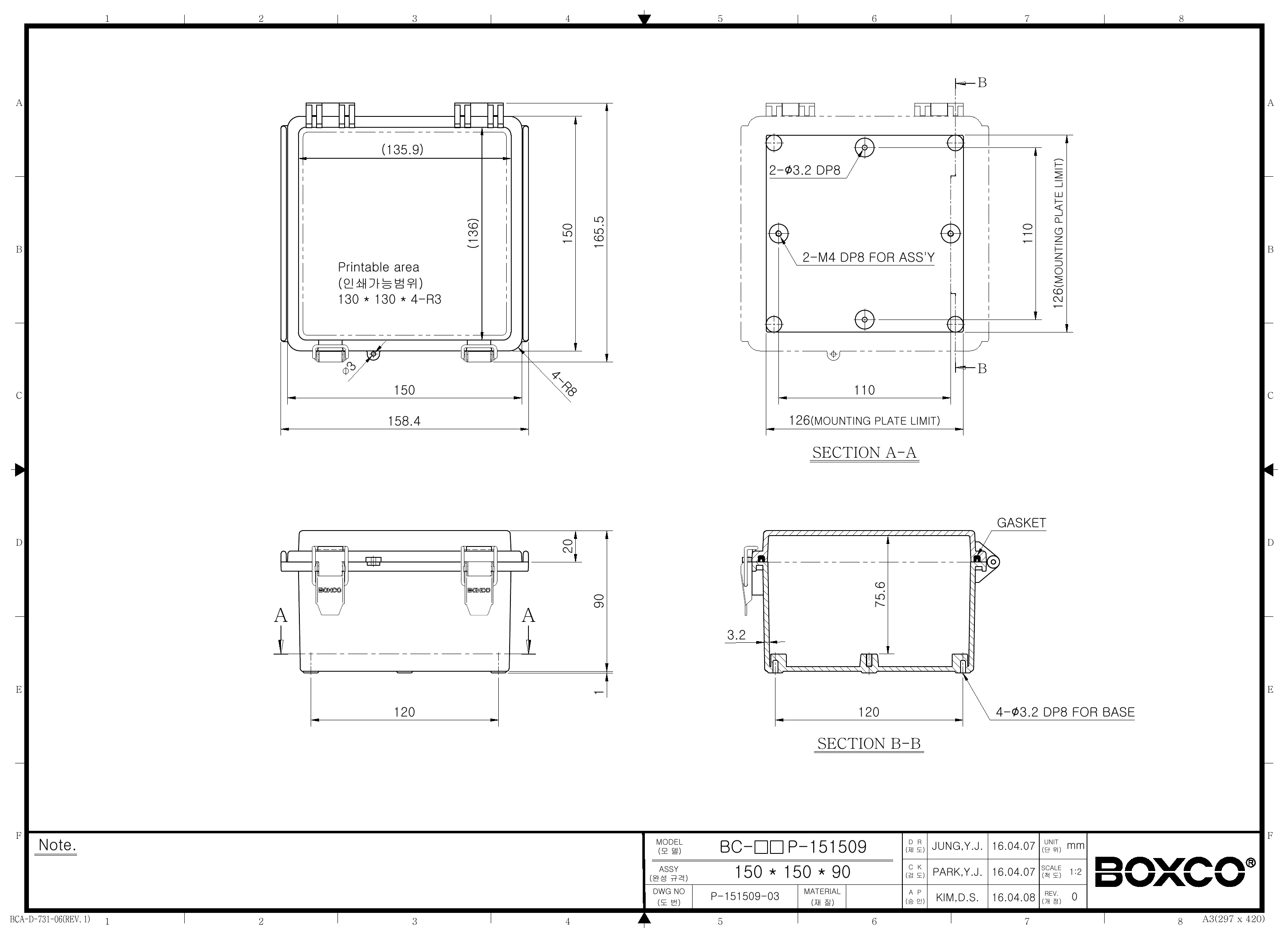

BC-CGP-151509 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco P-Series enclosure typically used for?

This enclosure is intended for protecting electrical or electronic components in industrial and outdoor environments where dust, water, and impact resistance matter. Its anti-static material and high-impact PC construction make it a practical choice for housing sensitive instruments and control components.

What are the exact dimensions of this enclosure?

This model measures 5.91 x 5.91 x 3.54 inches, which is 150 x 150 x 90 mm. Those dimensions make it a mid-size plastic enclosure suitable for applications that need more internal space than compact junction-style boxes.

How durable is this enclosure for demanding environments?

This model is rated IP67 for dust-tight and water-resistant performance and IK08 for impact resistance. It is made from polycarbonate with high impact resistance, and the molded hinge includes a stainless steel bearing to improve service life.

Can this enclosure be used outdoors?

Yes, this Boxco P-Series enclosure is designed for outdoor use. It includes an ultraviolet stabilizer to reduce long-term color change, and the roof protection design helps limit water and dust intrusion during cover opening and closing.

What temperature range can this enclosure handle?

This enclosure is specified for use from -40 degrees C to 110 degrees C. That wide range supports use in both cold outdoor conditions and warmer industrial environments.

Does this enclosure include features for mounting internal components?

Yes, it includes pre-molded mounting screw nuts for securing items such as DIN rail or other internal equipment. It also has mounting plate attachment points with brass-inserted injection molding to support heavier internal assemblies.

What makes this model different from a basic plastic enclosure box?

This model stands out with its molded hinge and latch design, IP67 and IK08 ratings, UV-stabilized material, and anti-static construction. It also adds protective roof geometry, a precision-injected gasket, and reinforced internal mounting support, which go beyond the features of a basic general-purpose enclosure.
