Boxco

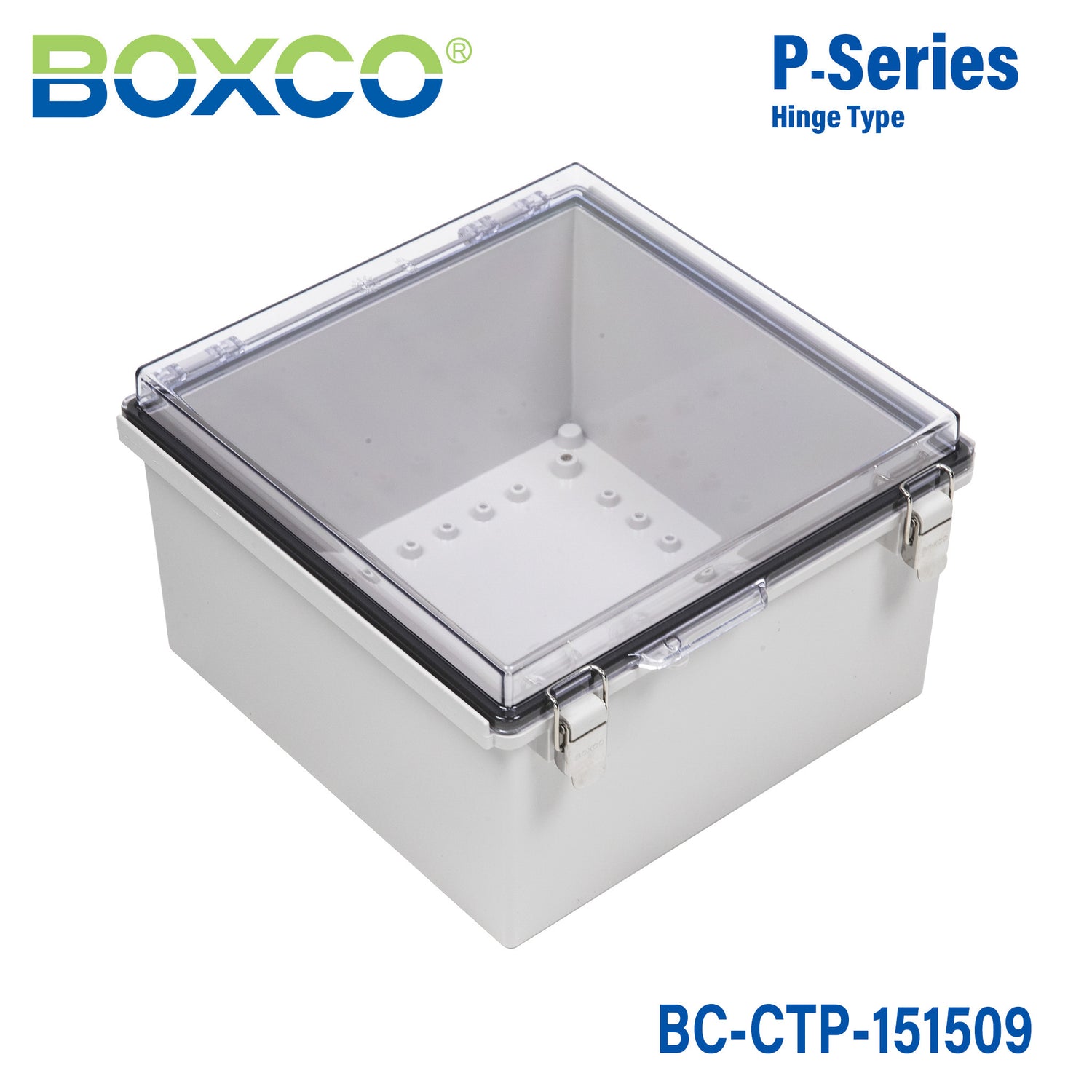

Boxco P-Series 150x150x90mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type

SKU BC-CTP-151509
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTP-151509 is a 150×150×90 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CTP-151509Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
150×150×90 mm (5.91×5.91×3.54 in)
Mounting plate dimension M1 × M2
123 × 123 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1515 G (Plastic, G type), 1515 P (Plastic, P type), 1515 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

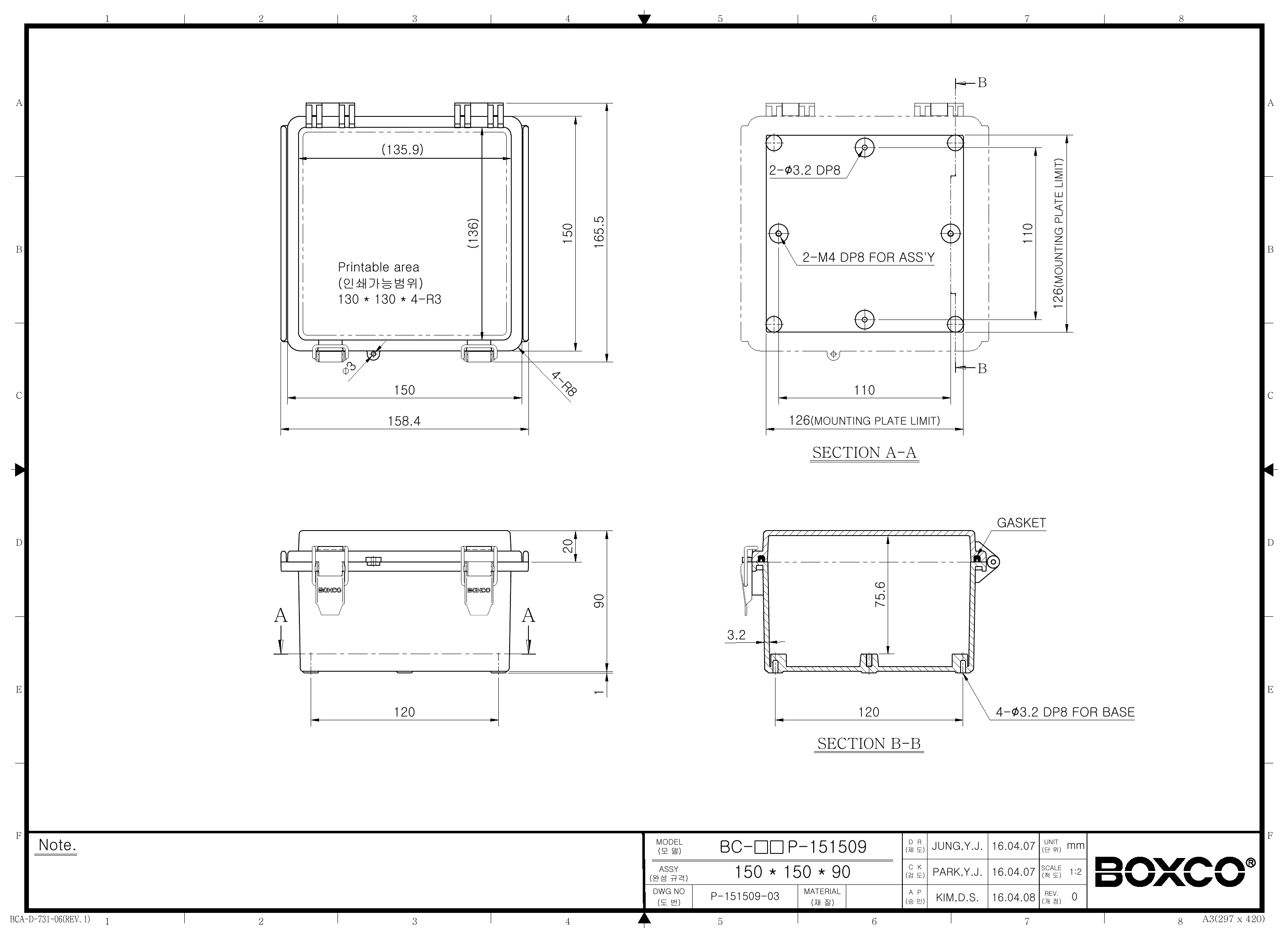

Technical drawings

BC-CTP-151509 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco P-Series enclosure best suited for?

This model is suited for protecting electronics and control components in indoor or outdoor industrial environments where a durable non-metallic enclosure is needed. Its transparent cover is useful when visual inspection is important without opening the box. The molded hinge and latch design also makes it practical for enclosures that may need repeated access.

Is this enclosure suitable for outdoor or washdown environments?

Yes, this enclosure is designed for demanding environments with an IP67 rating for dust-tight sealing and protection against temporary water immersion. The product description also notes an ultraviolet stabilizer for outdoor use and roof protection features that help reduce water and dust penetration during cover operation. Those features make it a strong fit for exposed industrial locations.

What are the key material and durability characteristics of this model?

This enclosure is made from PC and includes a transparent cover, combining visibility with impact resistance. It is rated IK08 for mechanical impact resistance, and the description highlights high-impact-resistant construction to help prevent breakage during processing. The hinge is integrated into the enclosure, with a stainless steel bearing to improve service life.

What size is this enclosure, and when is that size useful?

This model measures 5.91 x 5.91 x 3.54 inches, or 150 x 150 x 90 mm. That size is typically useful when you need more internal room than a compact junction box but still want a manageable wall-mountable enclosure format. It can accommodate heavier internal equipment because the enclosure includes mounting plate attachment points designed for secure fastening.

How does this model differ from a standard opaque plastic enclosure?

The main difference is its transparent cover, which allows contents or indicators to be checked visually without opening the enclosure. This model also adds outdoor-oriented details such as UV stabilization, roof protection, and a molded hinge-and-latch design. Compared with a basic opaque box, it is better suited when visibility and repeated access both matter.

What temperature range can this enclosure handle?

This enclosure is specified for temperatures from -40 °C to 110 °C. That wide range supports use in both cold and high-heat industrial settings, subject to the requirements of the components placed inside. Buyers comparing models should verify that this range matches the operating conditions of their application.
