Boxco P-Series 160x210x100mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-162110
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGP-162110 is a 160×210×100 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-162110Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
160×210×100 mm (6.30×8.27×3.94 in)
Mounting plate dimension M1 × M2
129 × 179 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1520 G (Plastic, G type), 1520 P (Plastic, P type), 1520 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

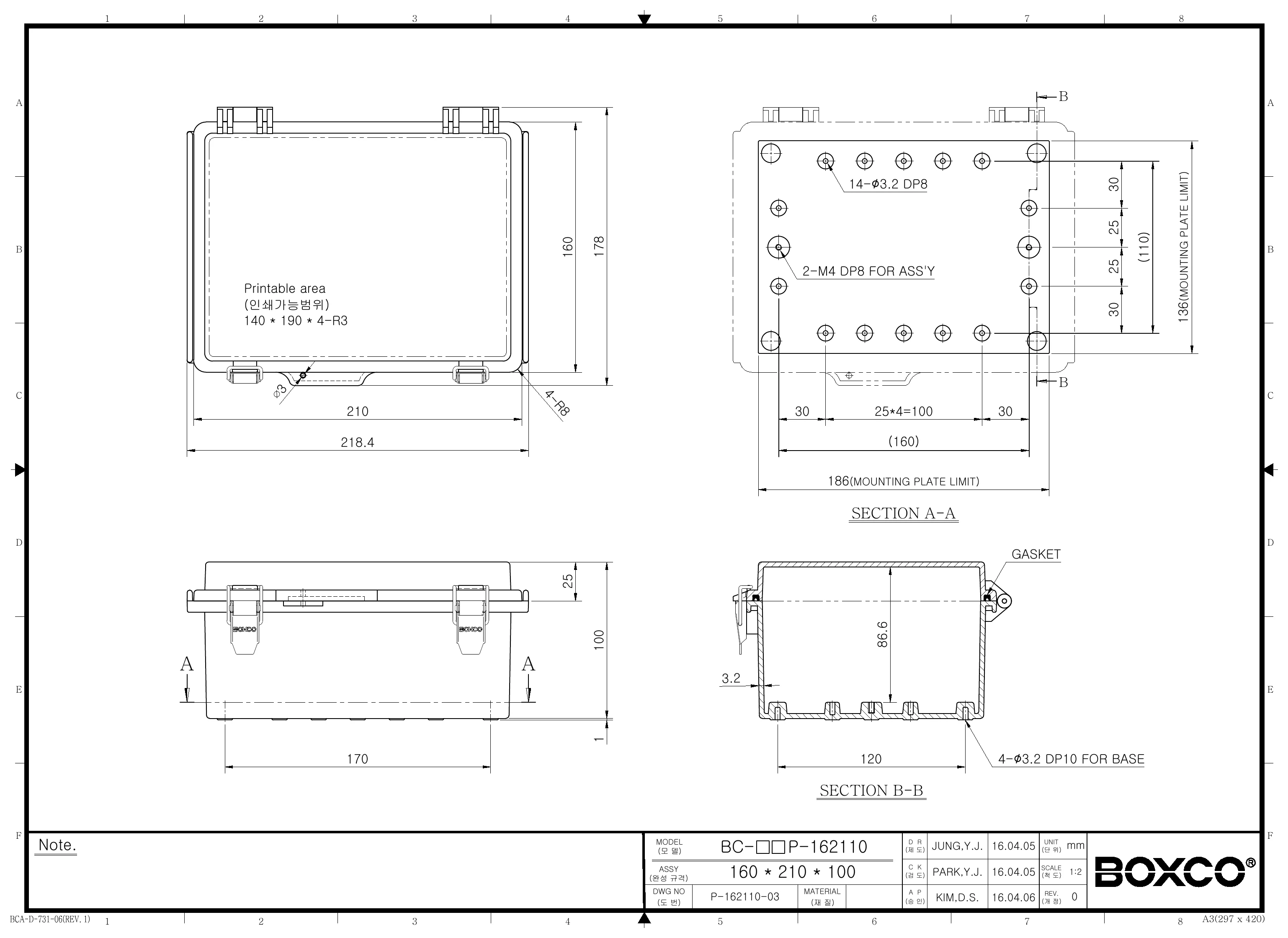

Technical drawings

BC-CGP-162110 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series BC-CGP-162110 enclosure suited for?

This enclosure is suited for protecting electrical or control components that need a durable non-metallic housing in indoor or outdoor environments. Its IP67 sealing, IK08 impact rating, UV-stabilized polycarbonate body, and anti-static material make it a practical choice for industrial and commercial equipment protection.

Can this enclosure be used outdoors?

Yes. Boxco states that this P-Series model includes an ultraviolet stabilizer for outdoor usage, helping reduce visible color change over long periods. The design also includes roof protection features and a precision-injected gasket to support waterproof and dust-proof performance.

What protection ratings does this model have?

The BC-CGP-162110 is rated IP67 for protection against dust and water ingress and IK08 for impact resistance. It is made from high-impact polycarbonate, which is intended to resist external impact and reduce breakage during machining or press processing.

What are the dimensions and material of this enclosure?

This model measures 6.30 x 8.27 x 3.94 inches, which corresponds to 160 x 210 x 100 mm. It is made of polycarbonate (PC) and comes with a grey cover in a molded hinge and latch style design.

What temperature range can this enclosure handle?

The listed operating temperature range for this model is -40 degrees C to 110 degrees C. That wide range makes it suitable for demanding environments where both low and high ambient temperatures may be present.

What makes this P-Series enclosure different from a basic plastic box?

This model includes several higher-end features beyond a standard plastic enclosure, including a molded integrated hinge, stainless steel latch components, pre-molded screw nut points, and mounting plate attachment points. It also uses UV-stabilized, anti-static, high-impact material to support tougher industrial use cases.
