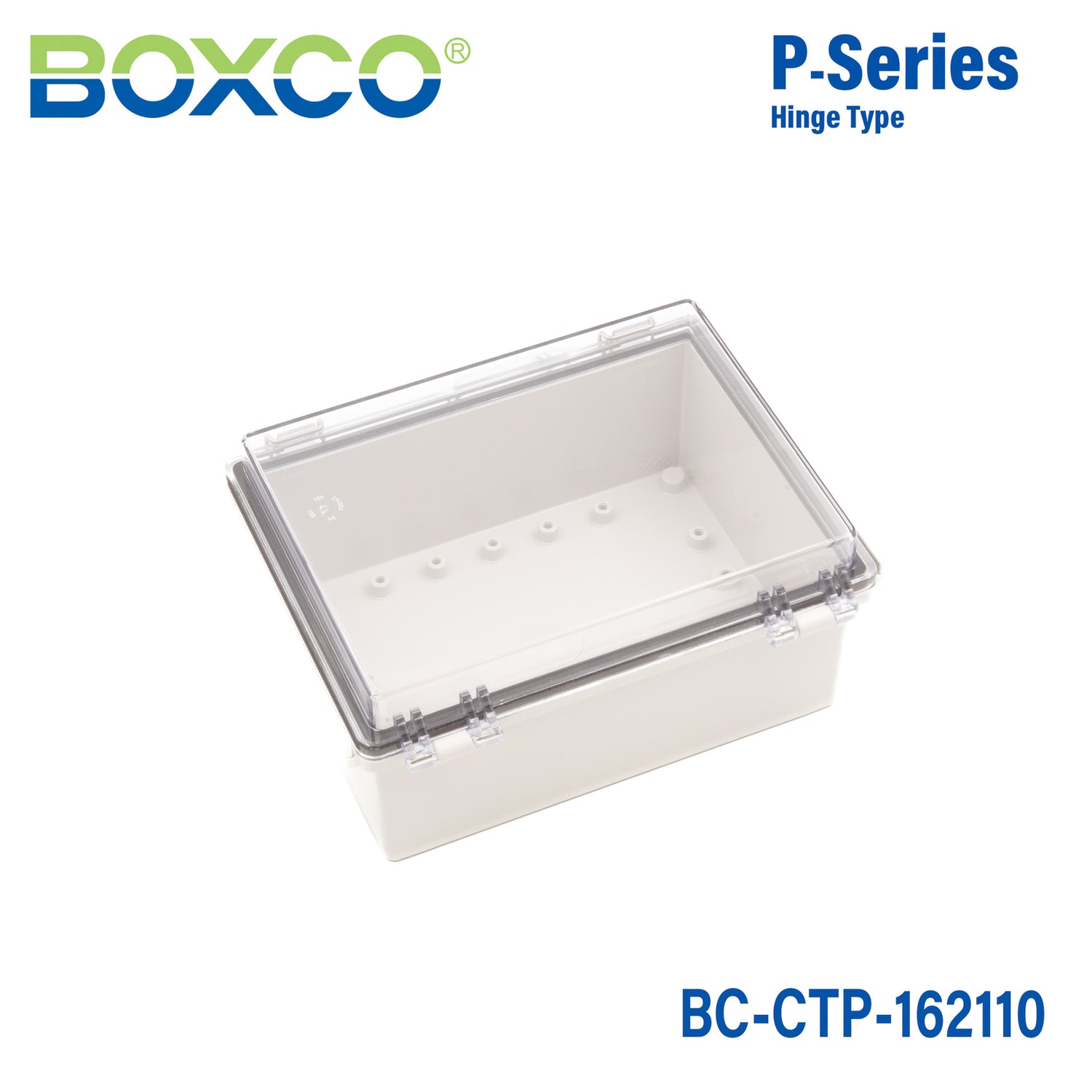

Boxco P-Series 160x210x100mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type

SKU BC-CTP-162110
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTP-162110 is a 160×210×100 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CTP-162110Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
160×210×100 mm (6.30×8.27×3.94 in)
Mounting plate dimension M1 × M2
129 × 179 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1520 G (Plastic, G type), 1520 P (Plastic, P type), 1520 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

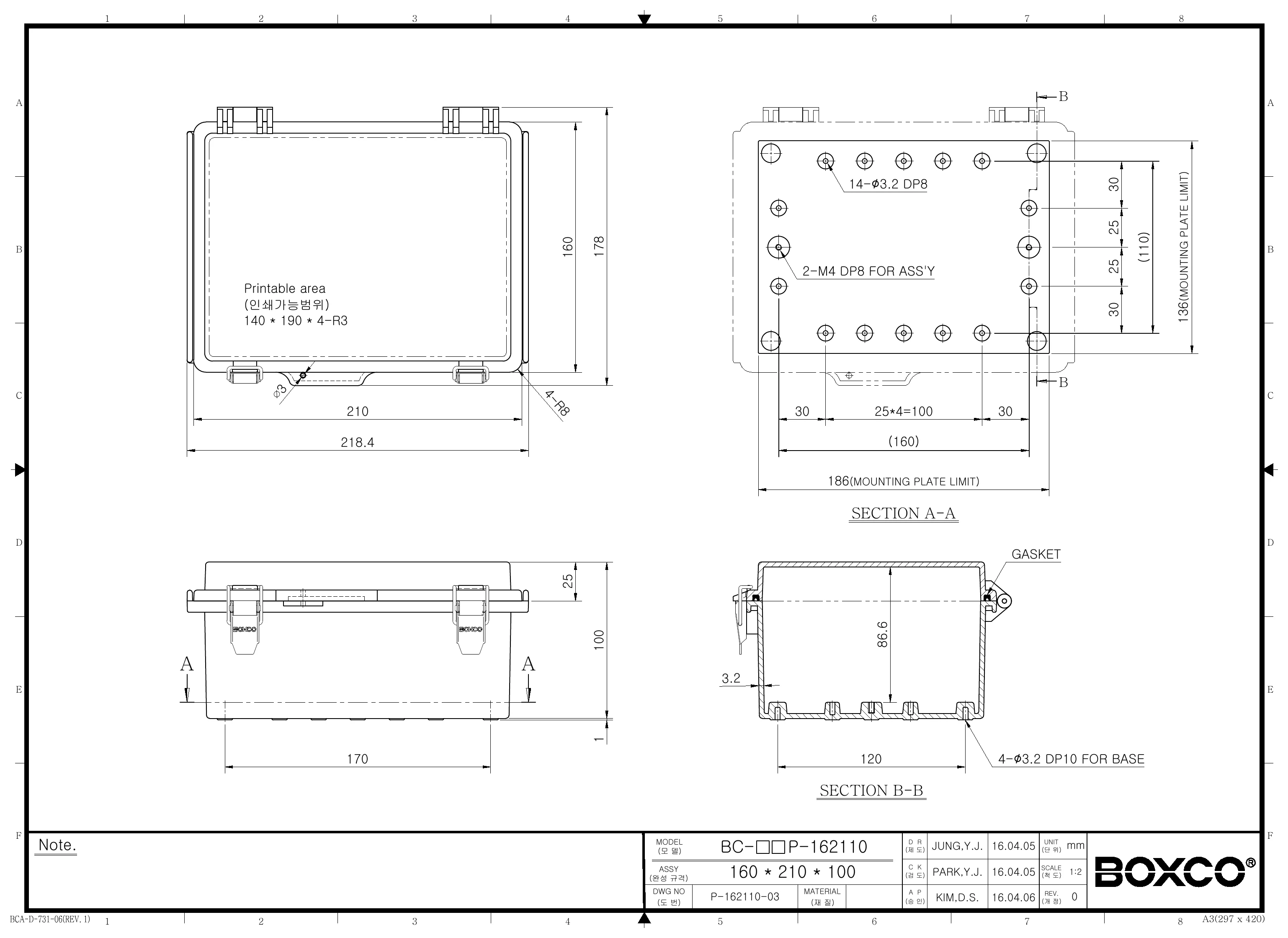

BC-CTP-162110 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this enclosure typically used for?

This Boxco P-Series enclosure is designed to protect electronic equipment and components in industrial and commercial environments. Its plastic body, transparent cover, and hinged latch design make it well suited for applications where equipment needs to be enclosed while still allowing visual inspection of the interior.

Is this enclosure suitable for outdoor use?

Yes, this model is intended for outdoor-capable use. The product description states that an ultraviolet stabilizer is added to help protect the enclosure outdoors, and the design includes roof protection features to help reduce water and dust penetration during cover operation.

What do the IP67 and IK08 ratings mean for this model?

This enclosure is rated IP67 for protection against dust and water ingress, and IK08 for impact resistance. Combined with its polycarbonate construction and gasketed design, these ratings make it a strong choice for demanding environments where sealing and durability matter.

What are the dimensions of this enclosure?

This model measures 6.30 x 8.27 x 3.94 inches, which is also listed as 160 x 210 x 100 mm. That size provides a mid-sized enclosure format for protecting internal equipment while maintaining a relatively compact footprint.

What material is the enclosure made from, and why does that matter?

This enclosure is made from polycarbonate (PC) with a transparent cover. The description highlights high impact resistance, anti-static material for protecting sensitive electronic instruments, and outdoor durability support through UV stabilization.

What temperature range can this enclosure handle?

The specified operating temperature range for this model is -40 °C to 110 °C. That wide range makes it suitable for applications exposed to both low-temperature and high-temperature environments.

Does this enclosure support internal mounting hardware?

Yes, the product description notes pre-molded mounting screw nuts for securing DIN rail or other equipment, along with internal mounting plate attachment points. These built-in features help support organized installation of components inside the enclosure.
