Boxco

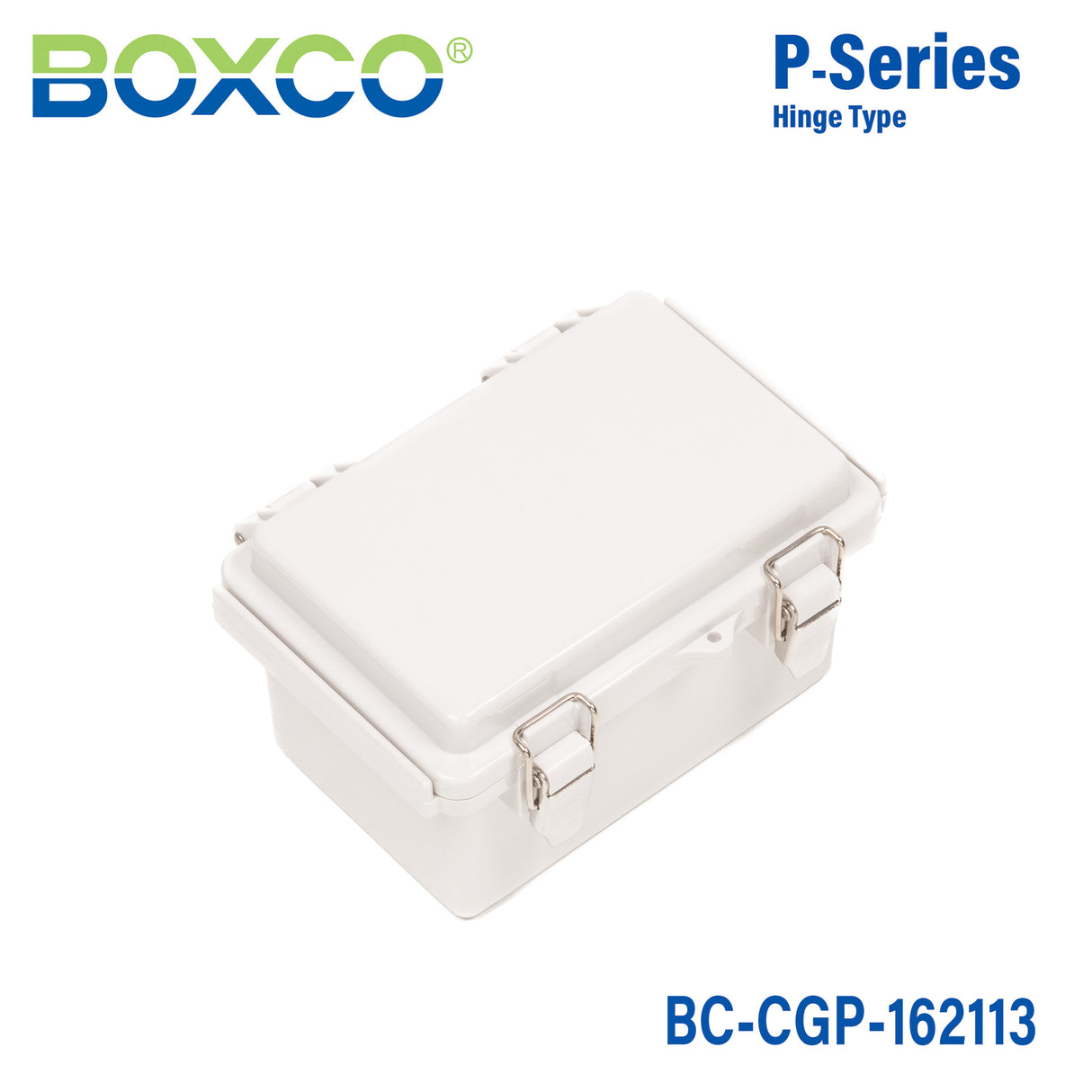

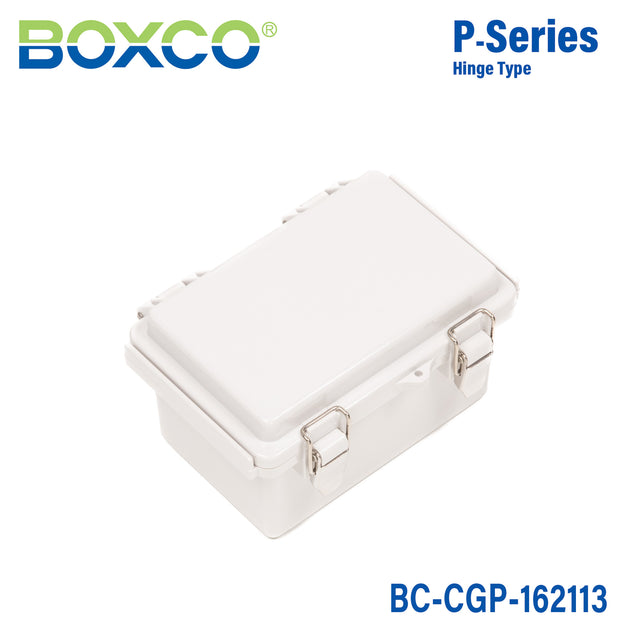

Boxco P-Series 160x210x130mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-162113
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGP-162113 is a 160×210×130 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-162113Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
160×210×130 mm (6.30×8.27×5.12 in)
Mounting plate dimension M1 × M2
129 × 179 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1520 G (Plastic, G type), 1520 P (Plastic, P type), 1520 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

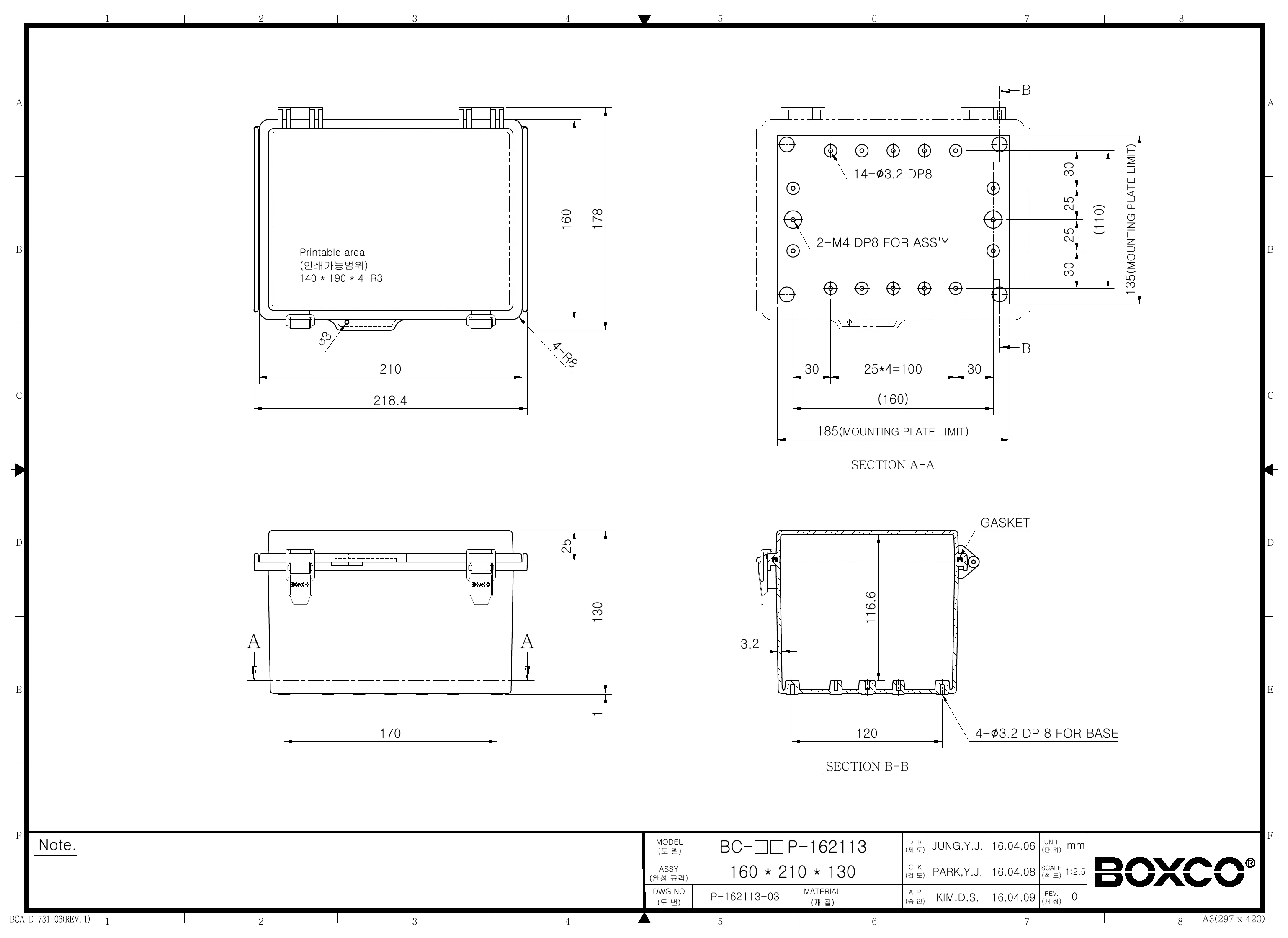

Technical drawings

BC-CGP-162113 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series BC-CGP-162113 plastic enclosure best suited for?

This enclosure is a fit for protecting electronic controls, instrumentation, and other components that need a sealed non-metallic housing. Its IP67 sealing, anti-static material, UV stabilizer, and impact-resistant polycarbonate construction make it well suited for industrial and outdoor equipment housings.

Is this enclosure suitable for outdoor use?

Yes. Boxco states that this P-Series model includes an ultraviolet stabilizer to help protect the enclosure in outdoor conditions, and the roof-protection shape is designed to reduce water and dust intrusion during cover opening and closing. The IP67 rating also supports use where strong protection against dust and water ingress is required.

What are the key material and durability specifications for this model?

This model uses polycarbonate (PC) and has an IK08 impact rating for resistance to external impact. Boxco also notes the material is high-impact resistant and designed to reduce breakage during hole and press processing. The cover is grey, and the enclosure uses a molded hinge and latch design.

What size is the BC-CGP-162113 enclosure?

The enclosure size is 6.30 x 8.27 x 5.12 inches, which Boxco also lists as 160 x 210 x 130 mm. This gives it a mid-size format for applications that need more internal space than compact junction-style boxes.

What temperature range can this enclosure handle?

The listed operating temperature range is -40 degrees C to 110 degrees C. That makes it suitable for demanding environments where the enclosure may see both low-temperature exposure and elevated heat around installed equipment.

What features differentiate this P-Series enclosure from a basic plastic box?

This model adds several durability-focused features beyond a standard molded box, including a stainless steel latch main part, an integrated plastic hinge with a stainless steel bearing, and a CNC-injected gasket for waterproof and dust-proof performance. It also includes pre-molded mounting screw nuts and dedicated attachment points for securing an internal mounting plate or equipment.
