Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 160x210x130mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type

SKU BC-CTP-162113
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTP-162113 is a 160×210×130 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CTP-162113Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
160×210×130 mm (6.30×8.27×5.12 in)
Mounting plate dimension M1 × M2
129 × 179 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1520 G (Plastic, G type), 1520 P (Plastic, P type), 1520 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

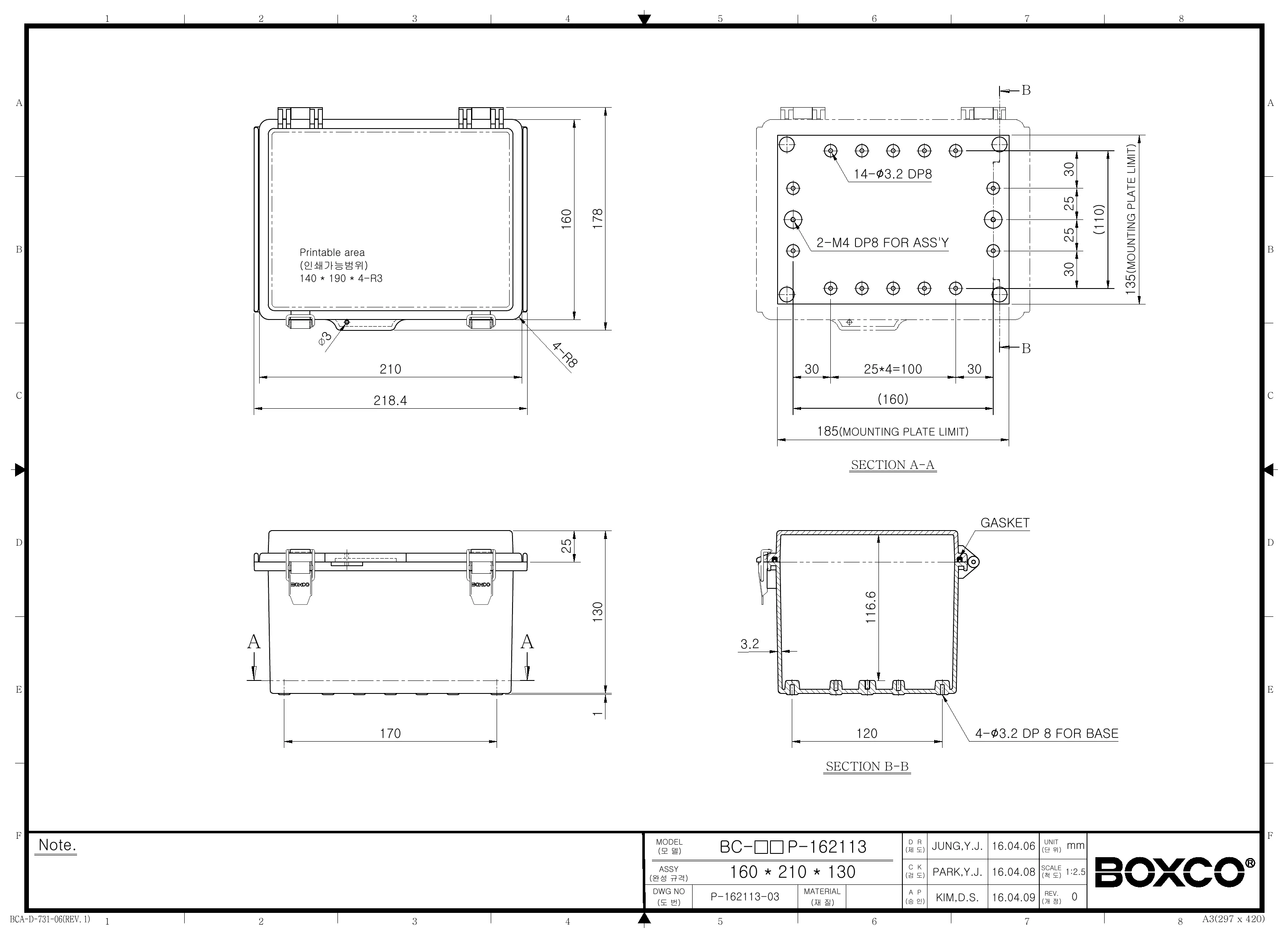

Technical drawings

BC-CTP-162113 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

Is this enclosure suitable for outdoor use?

Yes. This Boxco P-Series enclosure is rated IP67 for protection against dust and water ingress, and the description states that an ultraviolet stabilizer is added for outdoor usage. The roof protection design on both ends also helps reduce water penetration when the cover is opened and closed outdoors.

What are the main dimensions of this Boxco P-Series enclosure?

This model measures 6.30 x 8.27 x 5.12 inches, which is 160 x 210 x 130 mm. That size makes it a mid-sized plastic enclosure for protecting internal components while allowing room for a mounting plate or DIN rail accessories.

What material is this enclosure made from, and why does the transparent cover matter?

This enclosure is made from polycarbonate (PC), a high-impact-resistant plastic used here for durability and resistance to breakage during machining. The transparent cover allows visual inspection of indicators, displays, or internal status without opening the enclosure.

What kind of equipment is this enclosure commonly used for?

This model is designed for protecting electronic instruments and other enclosed components that need dust and water resistance. Its anti-static material, impact-resistant construction, and internal attachment points make it suitable for industrial or outdoor control and monitoring applications where a hinged access cover is useful.

What temperature range can this enclosure handle?

The specified operating temperature range is -40 °C to 110 °C. That gives this model a wide working range for both low-temperature and high-temperature environments compared with general-purpose plastic enclosures.

Does this enclosure support internal mounting hardware?

Yes. The product description states that it includes pre-molded mounting screw nuts for fixing DIN rail or other equipment, and it also has mounting plate attachment points with brass inserted injection molding. That makes it better suited for securely holding heavier internal equipment than a plain empty box without molded attachment features.
