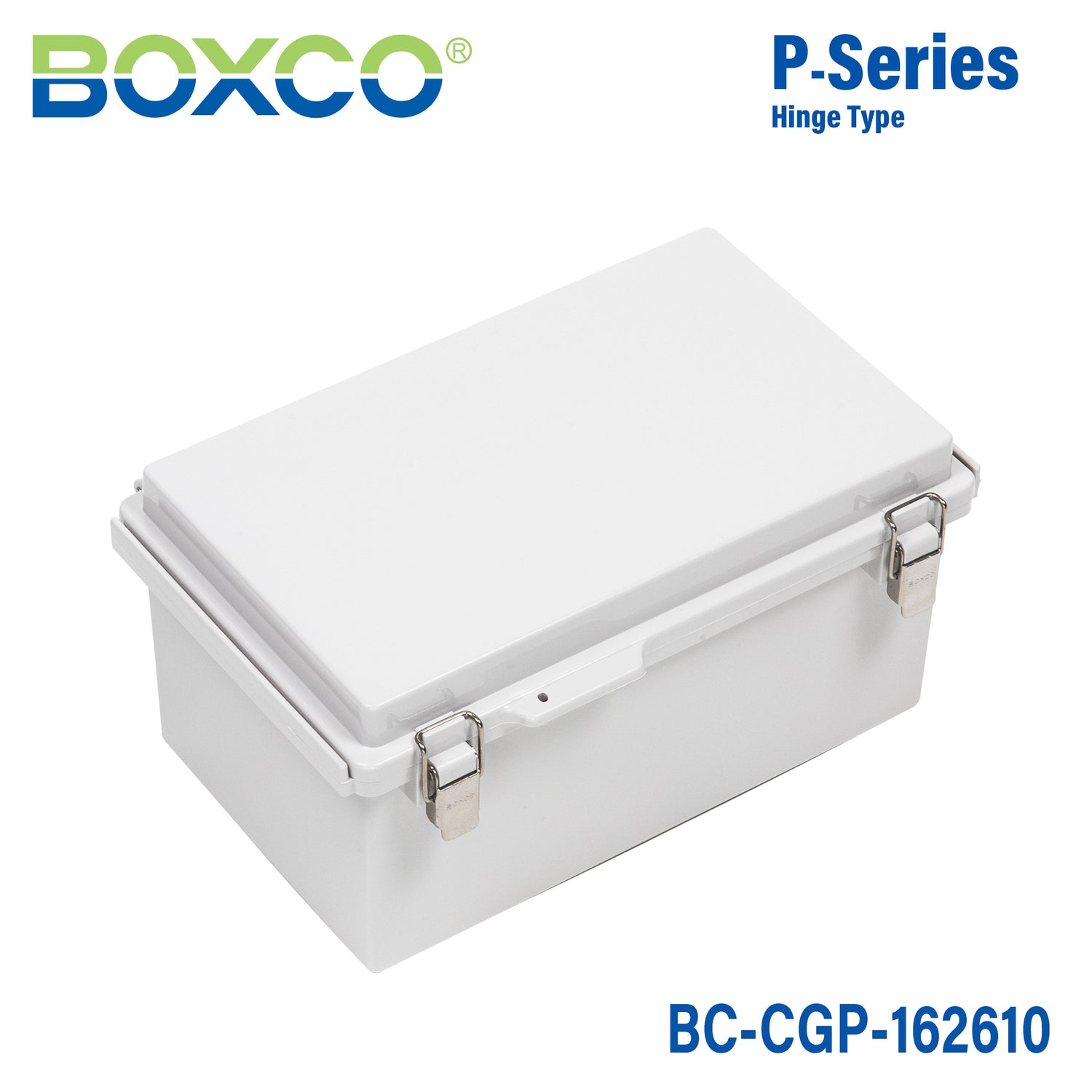

Boxco P-Series 160x260x100mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-162610
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGP-162610 is a 160×260×100 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-162610Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
160×260×100 mm (6.30×10.24×3.94 in)
Mounting plate dimension M1 × M2
129 × 229 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1525 G (Plastic, G type), 1525 P (Plastic, P type), 1525 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

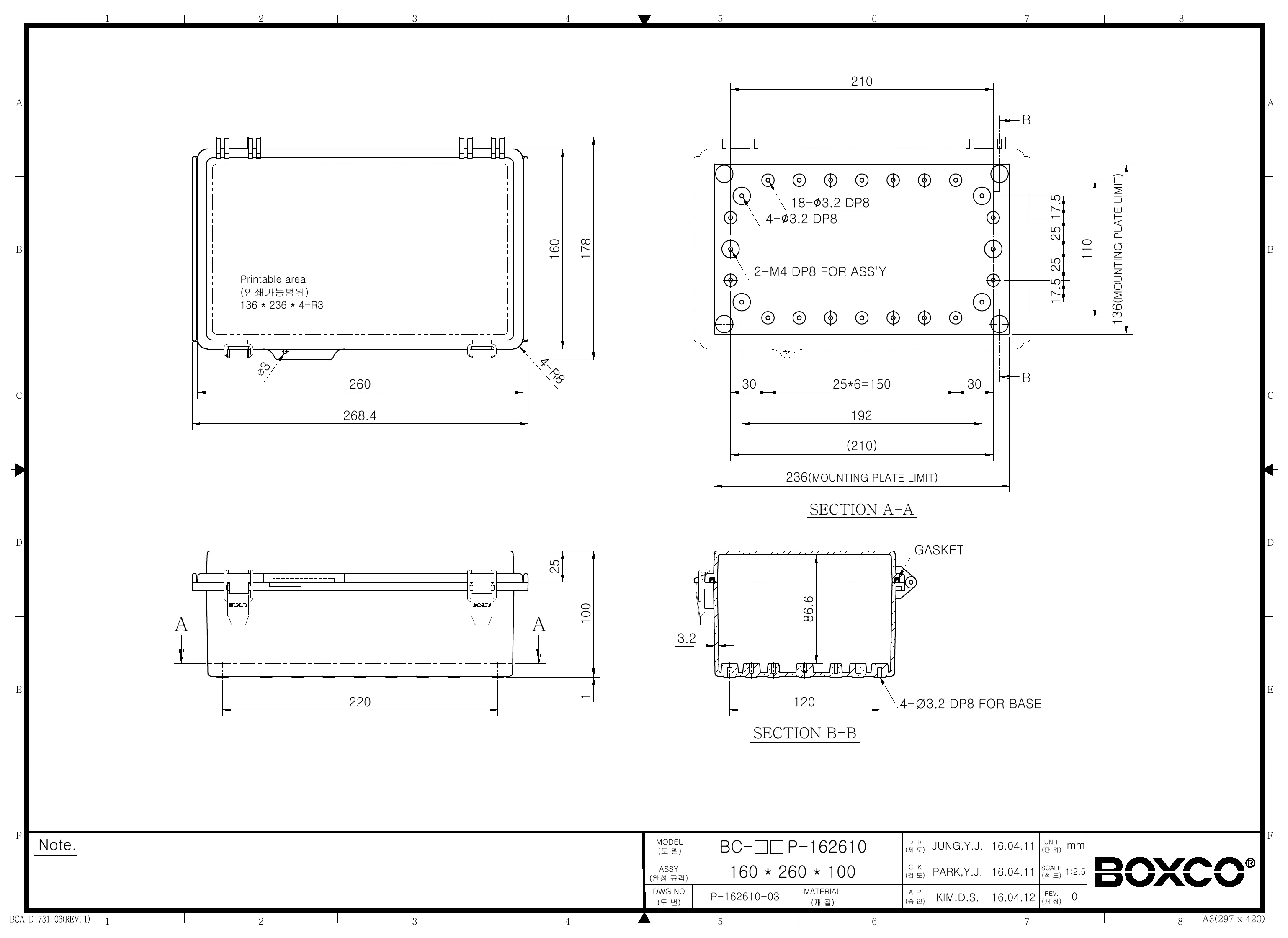

Technical drawings

BC-CGP-162610 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series 160 x 260 x 100mm plastic enclosure best suited for?

This enclosure is a good fit for protecting industrial controls, monitoring devices, and other sensitive electronics that need a sealed non-metallic housing. Its IP67 rating, IK08 impact rating, and anti-static material make it suitable for demanding commercial and industrial environments, including outdoor use.

Is this enclosure suitable for outdoor environments?

Yes. This model includes an ultraviolet stabilizer to help protect the enclosure during outdoor use, and the product description notes that only limited color change should be expected over time. The roof protection design and precision-injected gasket also support strong water and dust resistance.

What are the key protection ratings and material details for this model?

This enclosure is made from PC and is rated IP67 for dust-tight and water-resistant protection, along with IK08 for impact resistance. It has a grey cover and uses a molded hinge and latch-style closure. The stated operating temperature range is -40°C to 110°C.

How does the molded hinge and latch design benefit this enclosure?

The integrated plastic hinge is built into the enclosure body, and its stainless steel bearing is intended to improve service life. The latch assembly uses stainless steel in the main draw latch component, which helps provide a strong and durable closure for repeated access.

Can this enclosure support internal mounting hardware or heavier internal components?

Yes. The enclosure includes pre-molded mounting screw nuts for securing DIN rail or other equipment, and it also has dedicated mounting plate attachment points. According to the product details, the internal mounting plate can be fixed to brass inserted injection molding to better handle heavier equipment inside the enclosure.
