Boxco

Boxco P-Series 160x260x100mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type

SKU BC-CTP-162610
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTP-162610 is a 160×260×100 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CTP-162610Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
160×260×100 mm (6.30×10.24×3.94 in)
Mounting plate dimension M1 × M2
129 × 229 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1525 G (Plastic, G type), 1525 P (Plastic, P type), 1525 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

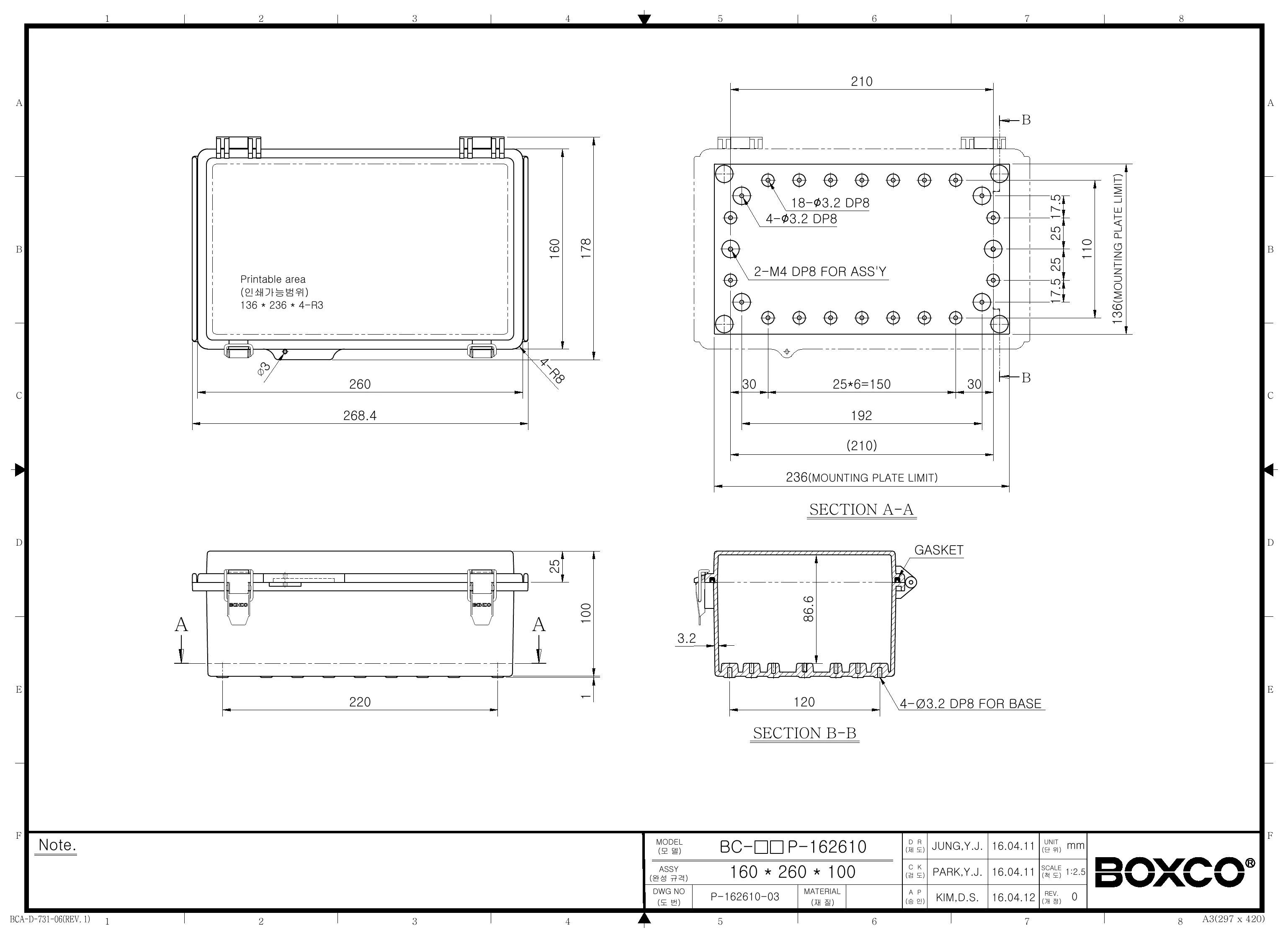

BC-CTP-162610 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco P-Series enclosure typically used for?

This model is a plastic enclosure for protecting electrical or electronic components in industrial and outdoor environments. Its transparent cover makes it useful when you need to visually inspect indicators, displays, or internal equipment without opening the box.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, and the design includes roof protection features to help reduce water and dust penetration during cover operation. Its IP67 rating also indicates strong protection against dust and water ingress when properly closed.

What does the transparent cover offer compared with a solid cover enclosure?

The transparent polycarbonate cover allows visual inspection of internal components without opening the enclosure. That can be useful for monitoring status lights, meters, or other visible devices while maintaining enclosure protection.

What are the main size and material specifications for this enclosure?

This Boxco P-Series model measures 6.30 x 10.24 x 3.94 inches, which corresponds to 160 x 260 x 100 mm. It is made from PC material and weighs 0.6640 kg.

What protection ratings does this enclosure have?

This enclosure is rated IP67 and IK08. That means it is designed for strong dust and water resistance and also offers impact resistance appropriate for demanding commercial or industrial settings.

What temperature range can this enclosure handle?

The listed operating temperature range is -40 °C to 110 °C. That makes this model suitable for applications exposed to both low and high ambient temperatures within that range.

Does this enclosure support internal mounting hardware or equipment plates?

Yes. The description mentions pre-molded mounting screw nuts for fixing DIN rail or other equipment, along with internal mounting plate attachment points. These features help support organized internal component mounting for heavier equipment.

What makes the hinge and latch design notable on this model?

This version uses a molded hinge and latch type design. The latch main part is stainless steel for strength, while the integrated plastic hinge includes a stainless steel bearing to improve service life.
