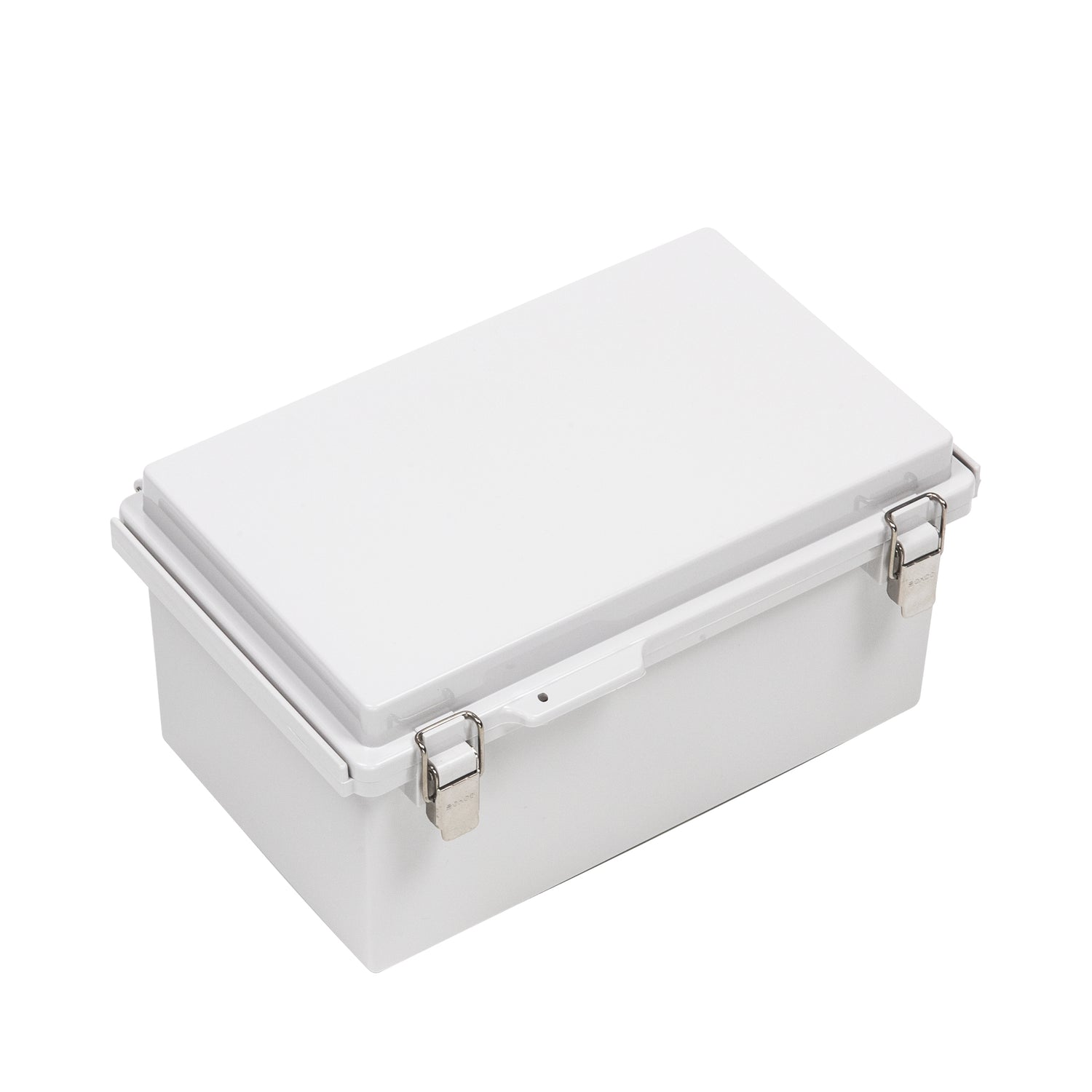

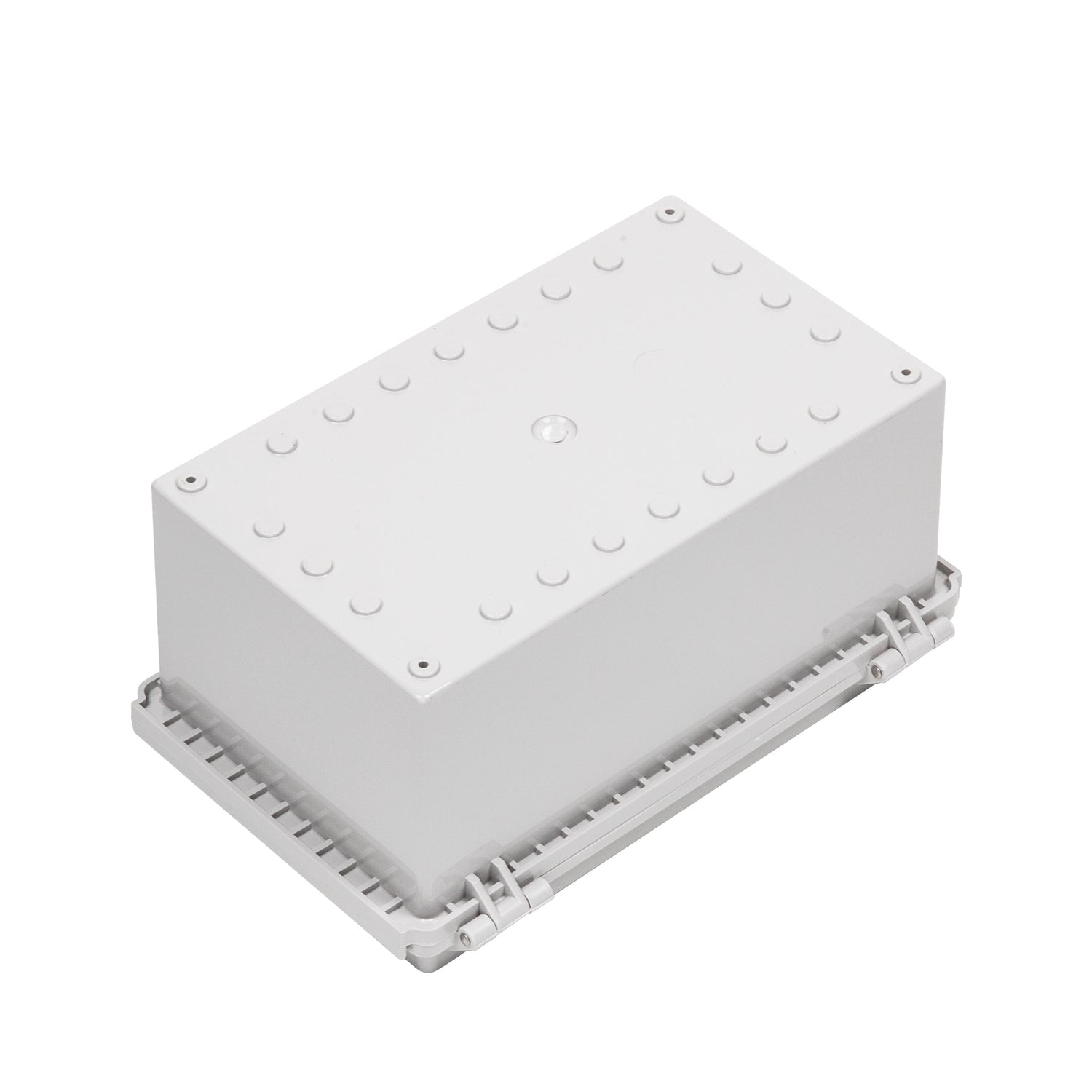

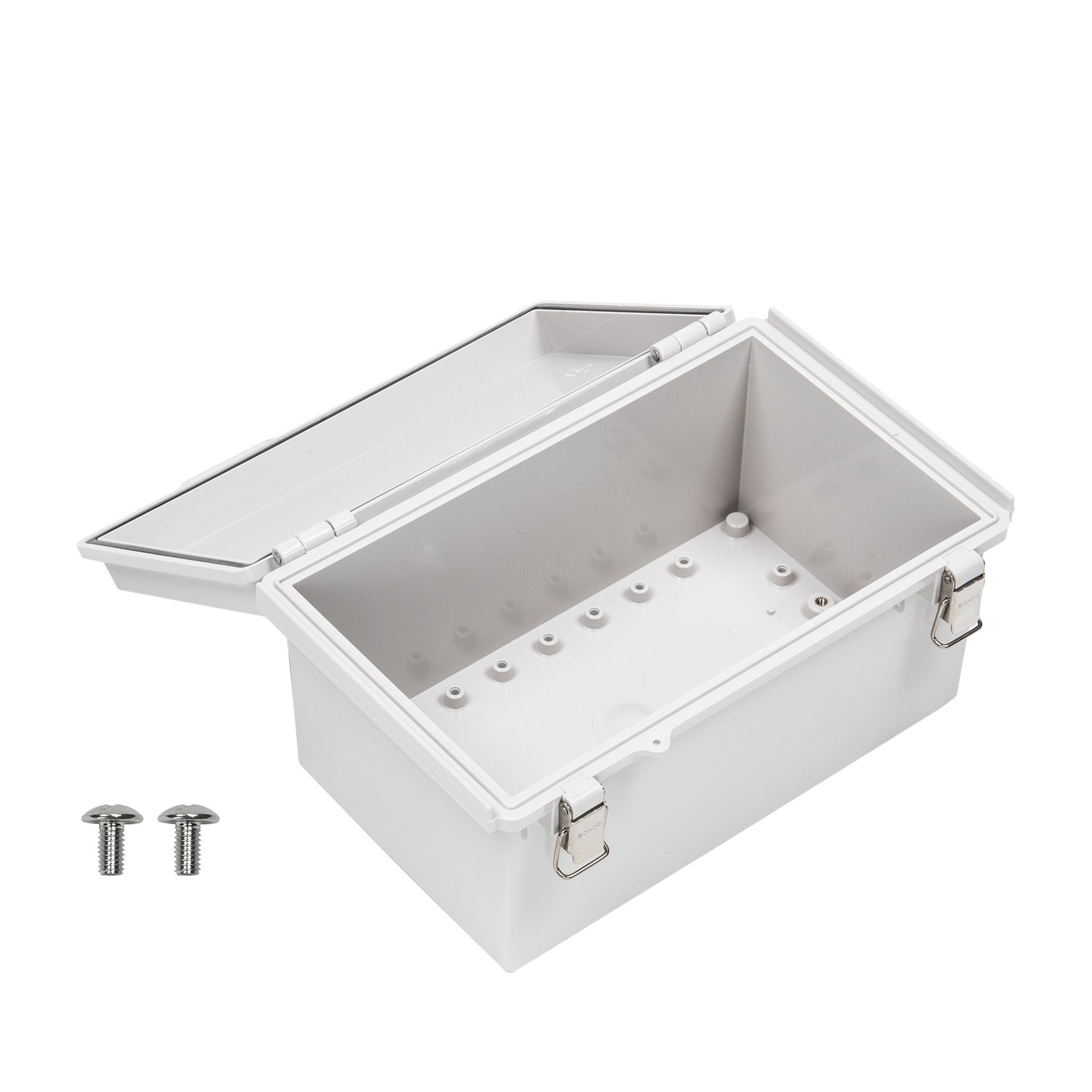

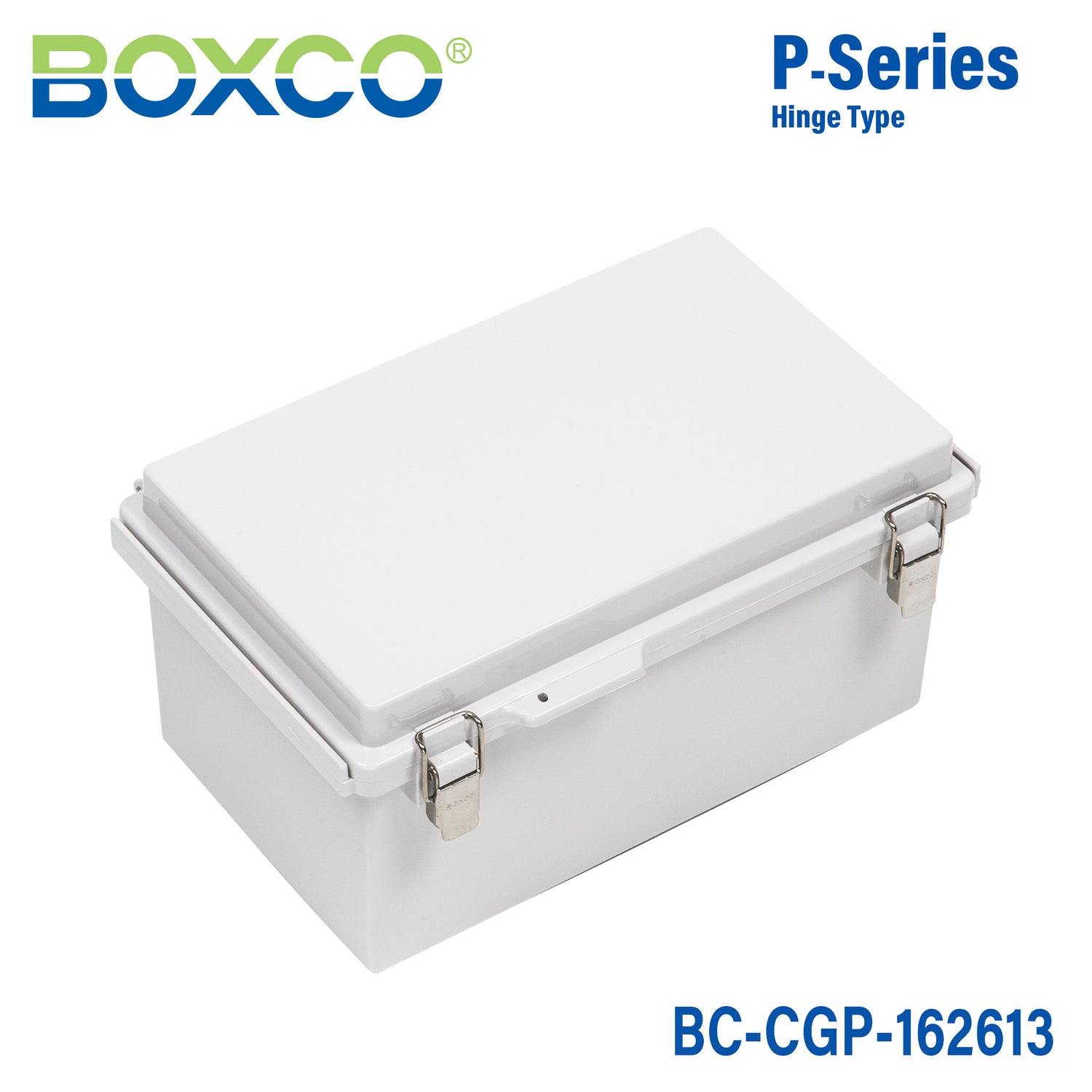

Boxco P-Series 160x260x130mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-162613
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGP-162613 is a 160×260×130 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-162613Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
160×260×130 mm (6.30×10.24×5.12 in)
Mounting plate dimension M1 × M2
129 × 229 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1525 G (Plastic, G type), 1525 P (Plastic, P type), 1525 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

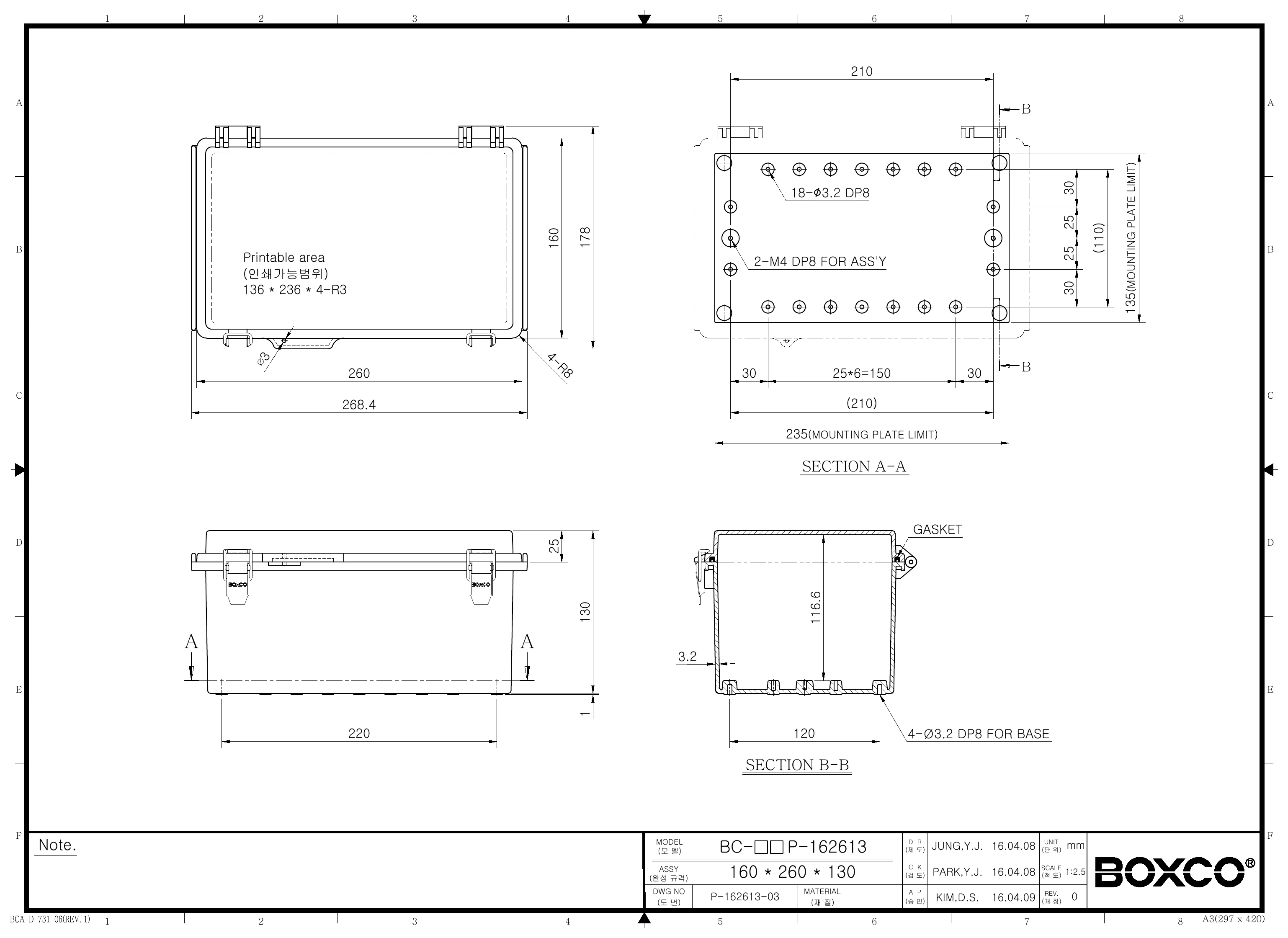

BC-CGP-162613 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What material is this Boxco P-Series enclosure made from?

This model uses polycarbonate (PC) construction with a grey cover. The product description also notes ultraviolet stabilizer and anti-static material, which helps it suit outdoor use and protect sensitive electronic instruments.

What are the dimensions of this enclosure?

The enclosure measures 6.30 x 10.24 x 5.12 inches, which corresponds to 160 x 260 x 130 mm. These dimensions make it a mid-size enclosure for applications that need more internal space than compact junction boxes.

Is this enclosure suitable for outdoor environments?

Yes, this model is designed for outdoor use. The enclosure includes ultraviolet stabilizer for better long-term appearance and material performance, and the P-Series roof protection design helps resist water and dust intrusion during cover operation.

How much environmental protection does this enclosure provide?

This enclosure is rated IP67 and IK08. That means it is built for strong protection against dust and water ingress and has impact resistance suited for demanding industrial and commercial environments.

What makes the hinge and latch design different on this model?

This version uses a molded hinge and latch-type cover design rather than a plain screw-fastened cover. The integrated plastic hinge uses a stainless steel bearing for longer service life, and the latch assembly includes stainless steel in the main draw latch for added strength.

Can this enclosure support internal mounting hardware or heavy components?

Yes, the enclosure includes pre-molded mounting screw nuts for securing DIN rail or other equipment. It also has mounting plate attachment points with brass inserted injection molding to help hold internal mounting plates more securely when heavier equipment is installed.

What operating temperature range can this enclosure handle?

This model is specified for temperatures from -40 °C to 110 °C. That wide range makes it suitable for applications exposed to both low and high ambient temperatures.

What types of applications is this enclosure commonly used for?

This enclosure is intended for protecting electrical or electronic equipment in industrial and commercial settings where dust, water resistance, and impact durability matter. Its anti-static material and outdoor-focused design make it a practical choice for housing sensitive instruments in harsh environments.
