Boxco

Boxco P-Series 160x260x130mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type

SKU BC-CTP-162613
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTP-162613 is a 160×260×130 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CTP-162613Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
160×260×130 mm (6.30×10.24×5.12 in)
Mounting plate dimension M1 × M2
129 × 229 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1525 G (Plastic, G type), 1525 P (Plastic, P type), 1525 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

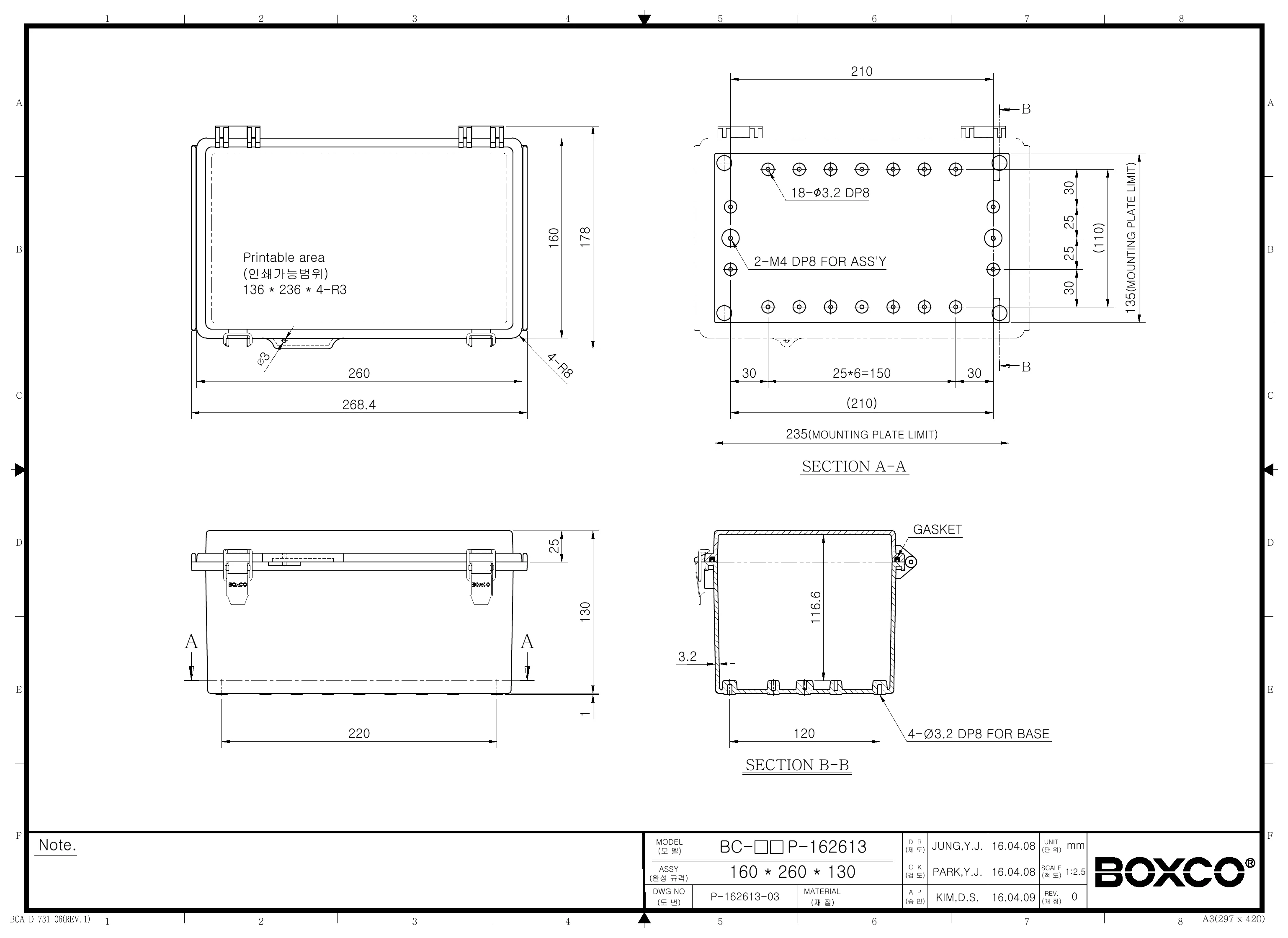

Technical drawings

BC-CTP-162613 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the dimensions of this Boxco P-Series enclosure?

This model measures 6.30 x 10.24 x 5.12 inches, which is 160 x 260 x 130 mm. It is part of the Boxco P-Series plastic enclosure line and uses a transparent cover with a molded hinge and latch design.

Is this enclosure suitable for outdoor environments?

Yes, this enclosure is designed for outdoor use. The housing includes an ultraviolet stabilizer to reduce long-term color change, and the roof-protection design helps limit water and dust intrusion when the cover is opened and closed.

What protection ratings does this enclosure have?

This enclosure is rated IP67 for dust-tight and water-resistant protection and IK08 for impact resistance. It is also made from high-impact polycarbonate material for added durability in demanding environments.

What temperature range can this enclosure handle?

This Boxco P-Series enclosure is rated for use from -40 °C to 110 °C. That wide operating range makes it suitable for applications exposed to very low or high ambient temperatures.

What kinds of applications is this enclosure commonly used for?

This enclosure is intended for protecting electronic instruments and components in industrial or commercial environments. Its anti-static material, impact-resistant body, and sealed transparent cover make it a practical choice where equipment needs protection from dust, water, and external impact.

What design features make this model different from a basic plastic enclosure?

This model includes a transparent cover, an integrated molded hinge with a stainless steel bearing, and a latch whose main draw-latch section is stainless steel. It also has pre-molded mounting screw nuts, gasket sealing applied by CNC-controlled production, and mounting plate attachment points for securing heavier internal equipment.
