Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

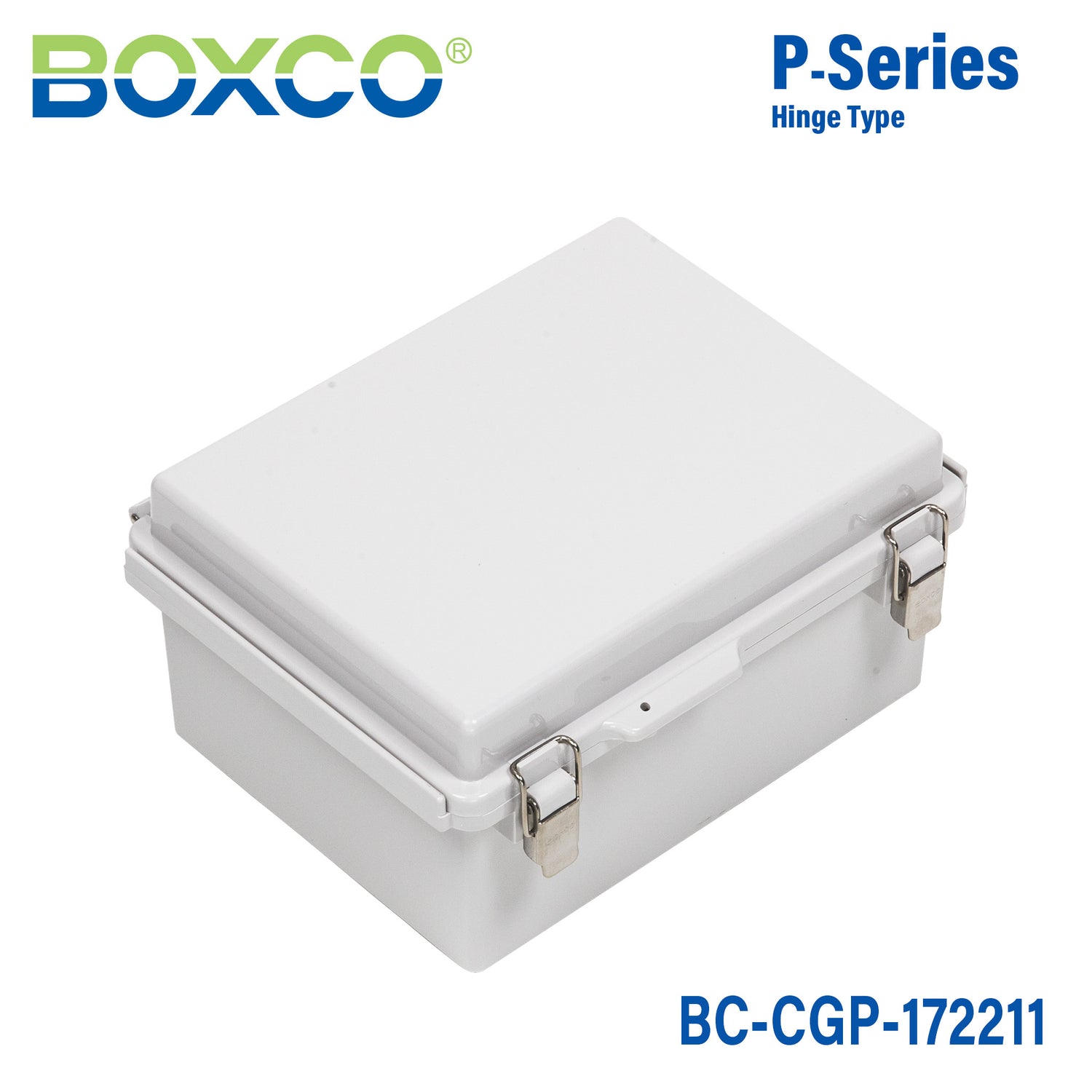

Boxco P-Series 170x220x110mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-172211
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGP-172211 is a polycarbonate (PC) enclosure (220×170×110 mm) from Boxco.

Specifications

BC-CGP-172211Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H
220×170×110 mm (8.66×6.69×4.33 in)

Material

Material
Polycarbonate (PC)
Base colour
Grey
Cover
Grey

Protection & environment

IP rating
IP67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Use
Outdoor
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

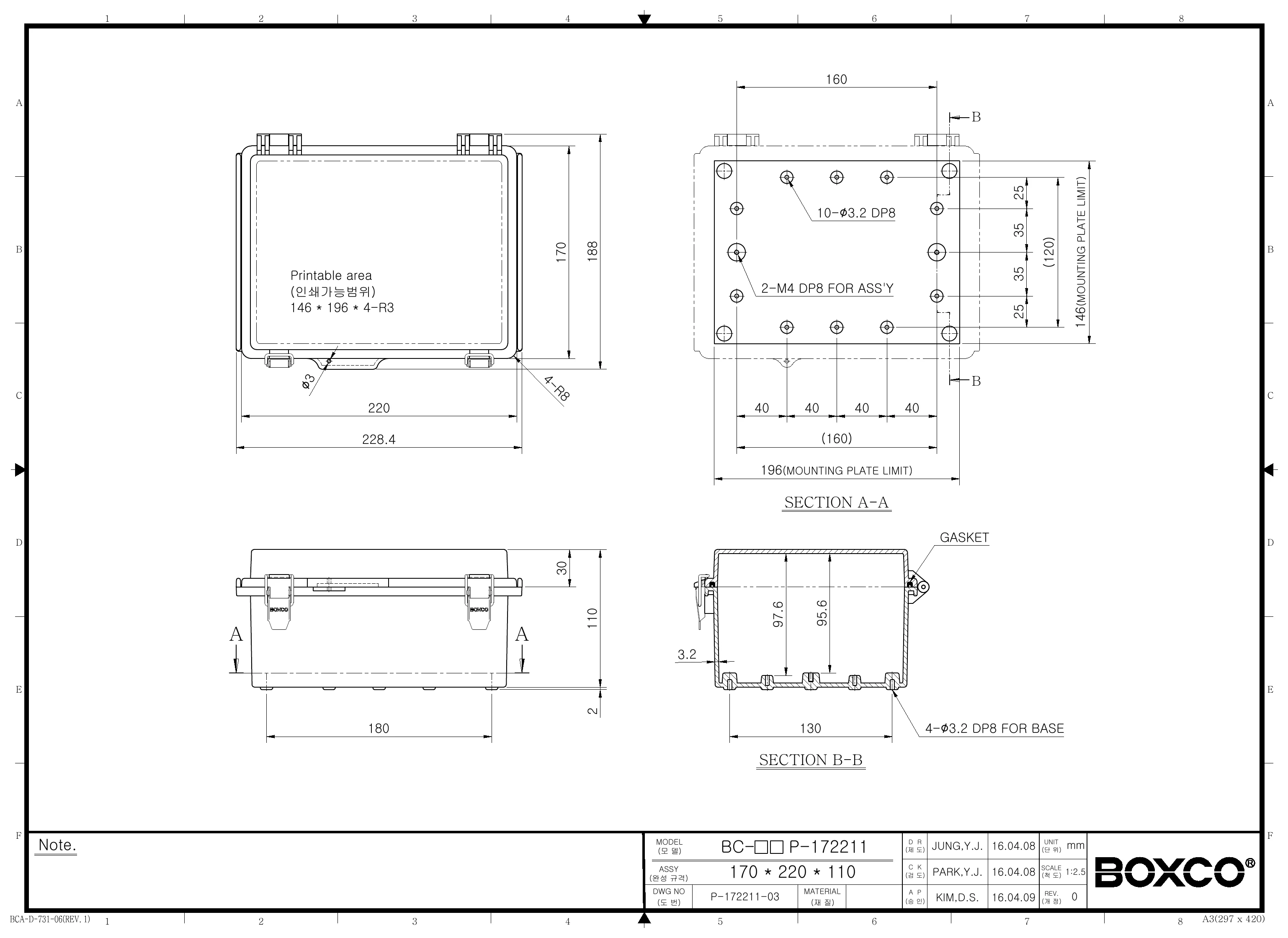

BC-CGP-172211 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What material is this Boxco P-Series enclosure made from?

This model is made from polycarbonate (PC) and has a grey cover. The description also notes anti-static material and ultraviolet stabilizer support for outdoor use. It is designed as a high-impact plastic enclosure with molded hinge and latch construction.

Is this enclosure suitable for outdoor environments?

Yes. This Boxco P-Series enclosure includes an ultraviolet stabilizer for outdoor usage, and the housing design includes roof protection features to reduce water and dust penetration around the cover. Its IP67 rating also supports use where strong dust and water resistance is required.

What level of ingress and impact protection does this enclosure provide?

This model is rated IP67 and IK08. That means it is built for strong protection against dust ingress and water exposure, while also offering solid resistance to external impact for industrial enclosure applications.

What are the dimensions of this enclosure?

The enclosure measures 6.69 x 8.66 x 4.33 inches, which is 170 x 220 x 110 mm. That size makes it suitable for applications needing a mid-size sealed plastic enclosure with internal room for mounted components.

Can this enclosure support internal mounting hardware or equipment plates?

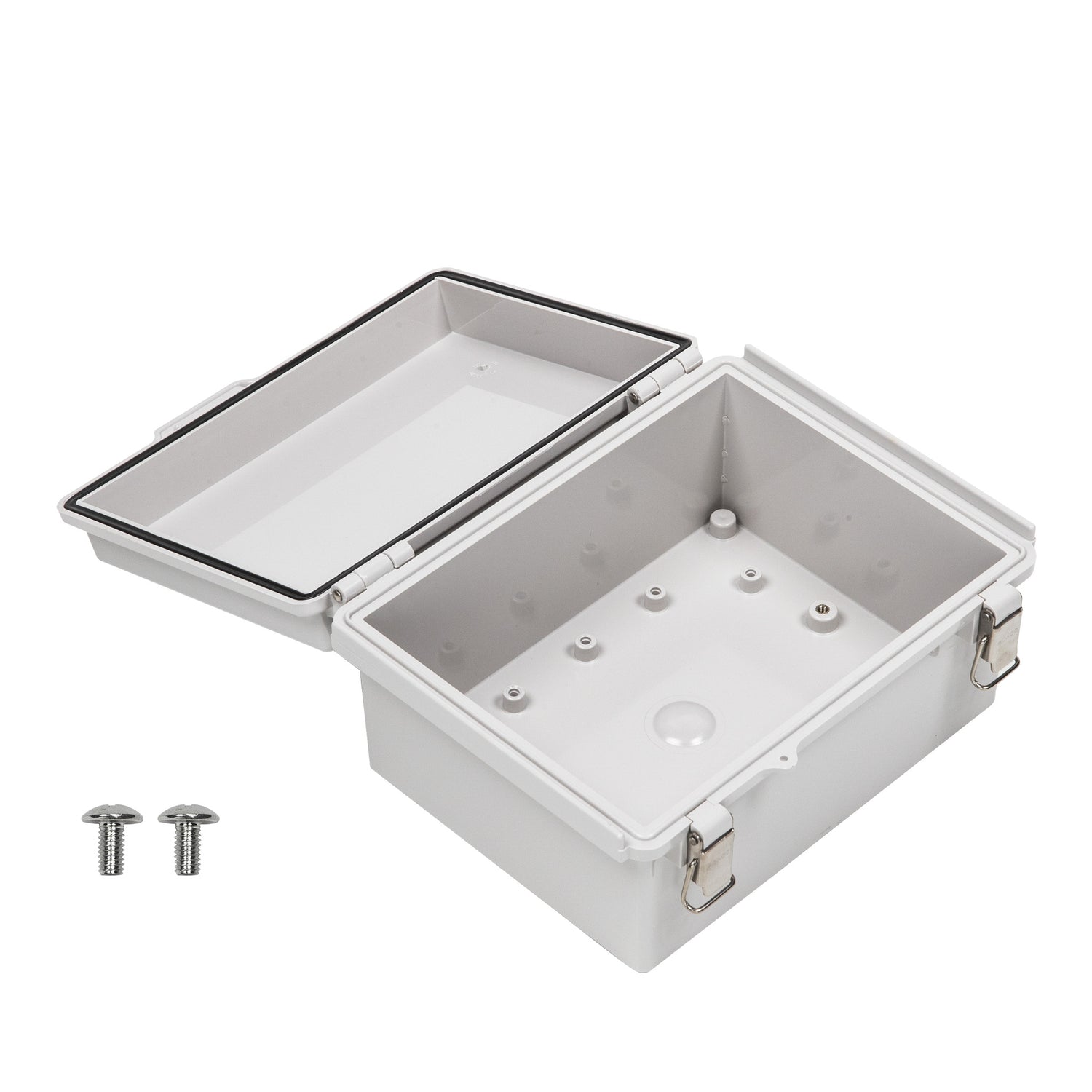

Yes. The product description states it includes pre-molded mounting screw nuts for fixing DIN rail or other equipment, and it also has internal mounting plate attachment points. Those features make it better suited for organized internal component mounting than a plain empty box.

What temperature range is this enclosure rated for?

This model is rated for temperatures from -40 °C to 110 °C. That range supports use in demanding industrial and outdoor environments where both low-temperature and high-temperature exposure may be a factor.

How does this model differ from a basic non-hinged enclosure box?

This version is a molded hinge and latch type enclosure rather than a simple screw-cover box. It also includes stainless steel latch hardware, an integrated hinge with stainless steel bearing, and sealing-focused features intended for repeated access while maintaining environmental protection.
