Boxco

Boxco P-Series 170x220x110mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type

SKU BC-CTP-172211
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTP-172211 is a polycarbonate (PC) enclosure (220×170×110 mm) from Boxco.

Specifications

BC-CTP-172211Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H
220×170×110 mm (8.66×6.69×4.33 in)

Material

Material
Polycarbonate (PC)
Base colour
Grey
Cover
Transparent

Protection & environment

IP rating
IP67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Use
Outdoor
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

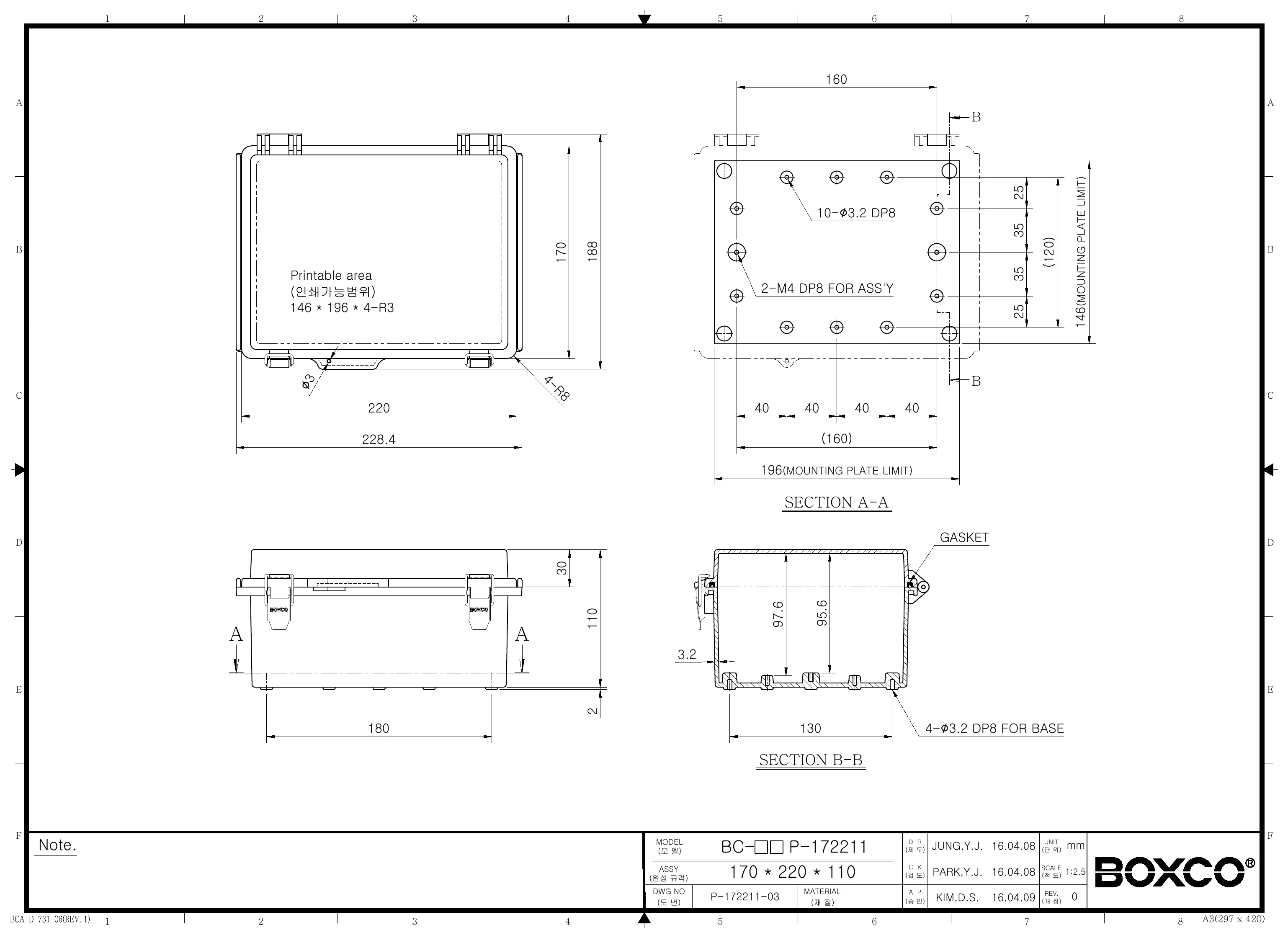

Technical drawings

BC-CTP-172211 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco P-Series enclosure best suited for?

This enclosure is designed for protecting electrical and electronic components in demanding indoor or outdoor environments. Its IP67 sealing, IK08 impact rating, UV-stabilized polycarbonate construction, and transparent cover make it a practical choice for industrial control, monitoring, and equipment protection applications where visibility of internal components is useful.

What are the exact dimensions of this enclosure?

This model measures 6.69 x 8.66 x 4.33 inches, which corresponds to 170 x 220 x 110 mm. That size provides a mid-sized enclosure format for housing components while maintaining a compact footprint.

Is this enclosure suitable for outdoor use?

Yes, this model is intended for outdoor use. The product description states that an ultraviolet stabilizer is added for outdoor exposure, and the enclosure also includes roof protection features to help resist water penetration and dust entry during cover operation.

How much environmental protection does this enclosure provide?

This enclosure is rated IP67 and IK08. That means it is built for strong protection against dust and water ingress and also offers solid resistance to external impact for demanding operating environments.

What material is this enclosure made from, and why does that matter?

This model is made from polycarbonate with a transparent cover. The description also notes high impact resistance and anti-static material properties, which can help protect sensitive electronic instruments while providing durability during demanding use.

What temperature range can this enclosure handle?

This enclosure is specified for use from -40 °C to 110 °C. That wide temperature range makes it suitable for environments with significant cold or heat exposure, depending on the overall system design.

Does this enclosure support mounting internal components?

Yes, the enclosure includes pre-molded mounting screw nuts and mounting plate attachment points. These features are intended to help secure DIN rail or other internal equipment and support heavier installed components more effectively.
