Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 170x270x110mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-172711
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGP-172711 is a 170×270×110 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-172711Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
170×270×110 mm (6.69×10.63×4.33 in)
Mounting plate dimension M1 × M2
129 × 229 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1525 G (Plastic, G type), 1525 P (Plastic, P type), 1525 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

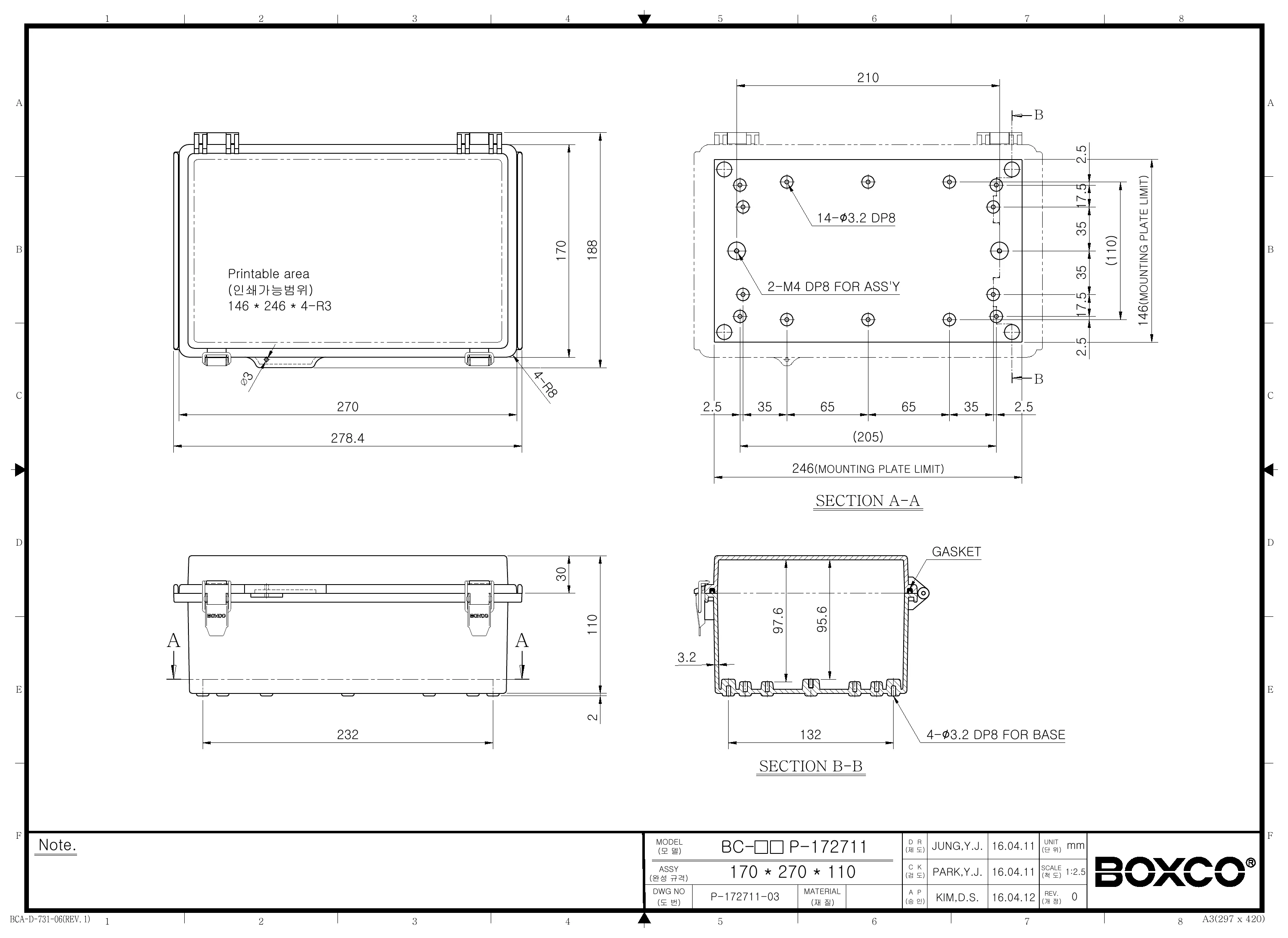

Technical drawings

BC-CGP-172711 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco P-Series enclosure best suited for?

This enclosure is suited for protecting electronic controls and instrumentation that need a durable non-metallic housing in industrial or outdoor environments. Its IP67 sealing, IK08 impact rating, UV-stabilized polycarbonate construction, and anti-static material make it a practical choice for demanding B2B applications.

Is this enclosure suitable for outdoor use?

Yes. The enclosure description specifies a UV stabilizer for outdoor usage, and the P-Series design includes protruded roof protection features to help reduce water penetration when used outside. Its IP67 rating also indicates strong protection against dust and temporary water exposure.

What are the key size and material specifications of this model?

This model measures 6.69 x 10.63 x 4.33 inches, which corresponds to 170 x 270 x 110 mm. It is made from polycarbonate (PC) and comes with a grey cover, molded hinge, and latch-style closure.

How durable is this plastic enclosure in demanding environments?

This model is built from high impact resistant material and carries an IK08 impact rating. The integrated plastic hinge uses a stainless steel bearing for longer service life, and the main part of the draw latch is stainless steel for added strength.

What environmental operating range does this enclosure support?

The stated operating temperature range for this model is -40 degrees C to 110 degrees C. That makes it appropriate for both low-temperature and high-temperature environments within that published range.

Does this enclosure support mounting internal components and accessories?

Yes. The enclosure includes pre-molded mounting screw nuts for securing DIN rail or other equipment, and it also has attachment points for an internal mounting plate. The mounting plate can be fixed to brass inserted injection-molded points to support heavier installed equipment.
