Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

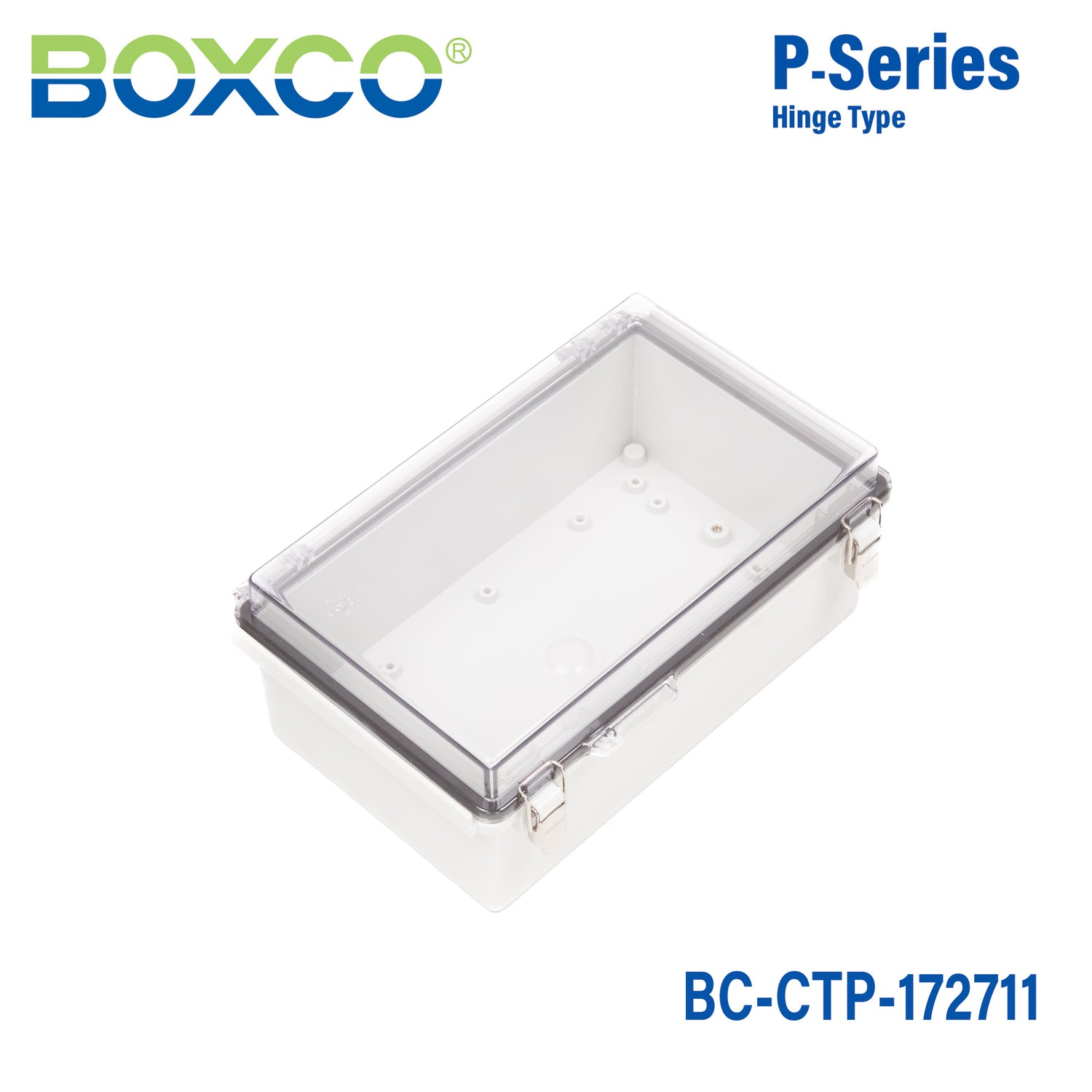

Boxco P-Series 170x270x110mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type

SKU BC-CTP-172711
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CTP-172711 is a 170×270×110 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CTP-172711Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
170×270×110 mm (6.69×10.63×4.33 in)
Mounting plate dimension M1 × M2
129 × 229 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1525 G (Plastic, G type), 1525 P (Plastic, P type), 1525 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

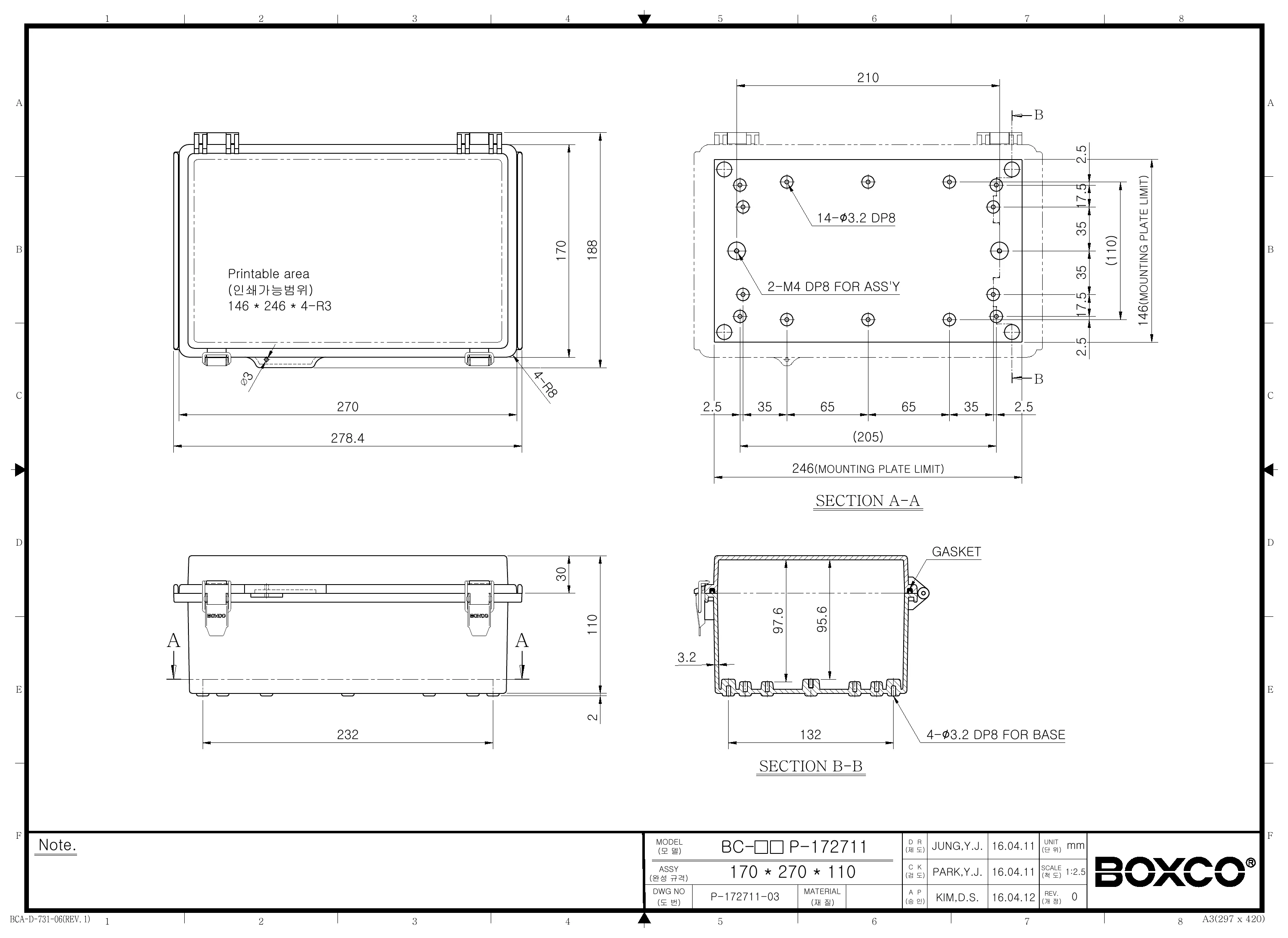

BC-CTP-172711 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What protection ratings does this Boxco P-Series enclosure provide?

This model is rated IP67 for dust-tight and water-resistant protection and IK08 for impact resistance. It is built from polycarbonate with a transparent cover, which makes it suitable for applications that need visibility into the enclosure while maintaining strong environmental protection.

Is this plastic enclosure suitable for outdoor use?

Yes. Boxco specifies an ultraviolet stabilizer in the P-Series material to support outdoor use and reduce visible color change over time. The design also includes roof protection features and a gasket system intended to improve resistance to water and dust exposure.

What are the dimensions of this enclosure?

The enclosure measures 6.69 x 10.63 x 4.33 inches, which is 170 x 270 x 110 mm. That size gives more internal room than compact junction-style boxes and is better suited to projects that need space for mounted components and cable management planning.

What makes this model different from a standard solid-cover enclosure?

This version has a transparent polycarbonate cover, so components inside can be visually checked without opening the box. It also uses a molded hinge and latch-style closure, which makes it better suited to applications that need repeated access compared with a basic screw-cover enclosure.

Can this enclosure be used for industrial or commercial equipment protection?

Yes, it is a realistic choice for industrial and commercial enclosures where impact resistance, dust protection, and weather resistance matter. Boxco also notes anti-static material use for protecting sensitive electronic instruments, which can make it a better fit for control and instrumentation housing than a general-purpose plastic box.

What temperature range can this enclosure handle?

This model is specified for temperatures from -40 °C to 110 °C. That wide range makes it suitable for demanding indoor or outdoor environments where the enclosure may be exposed to cold weather, heat, or equipment-generated temperature rise.

Does this enclosure support internal mounting of accessories or plates?

Yes. The product description states that it includes pre-molded mounting screw nuts and mounting plate attachment points for securing internal equipment. Those built-in fixing points are useful when the enclosure needs to support heavier internal components more securely.
