Boxco

Boxco P-Series 190x280x100mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type

SKU BC-CTP-192810
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTP-192810 is a 190×280×100 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CTP-192810Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
190×280×100 mm (7.48×11.02×3.94 in)
Mounting plate dimension M1 × M2
159 × 249 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1928 PG (Plastic, PG type), 1928 P (Plastic, P type), 1928 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

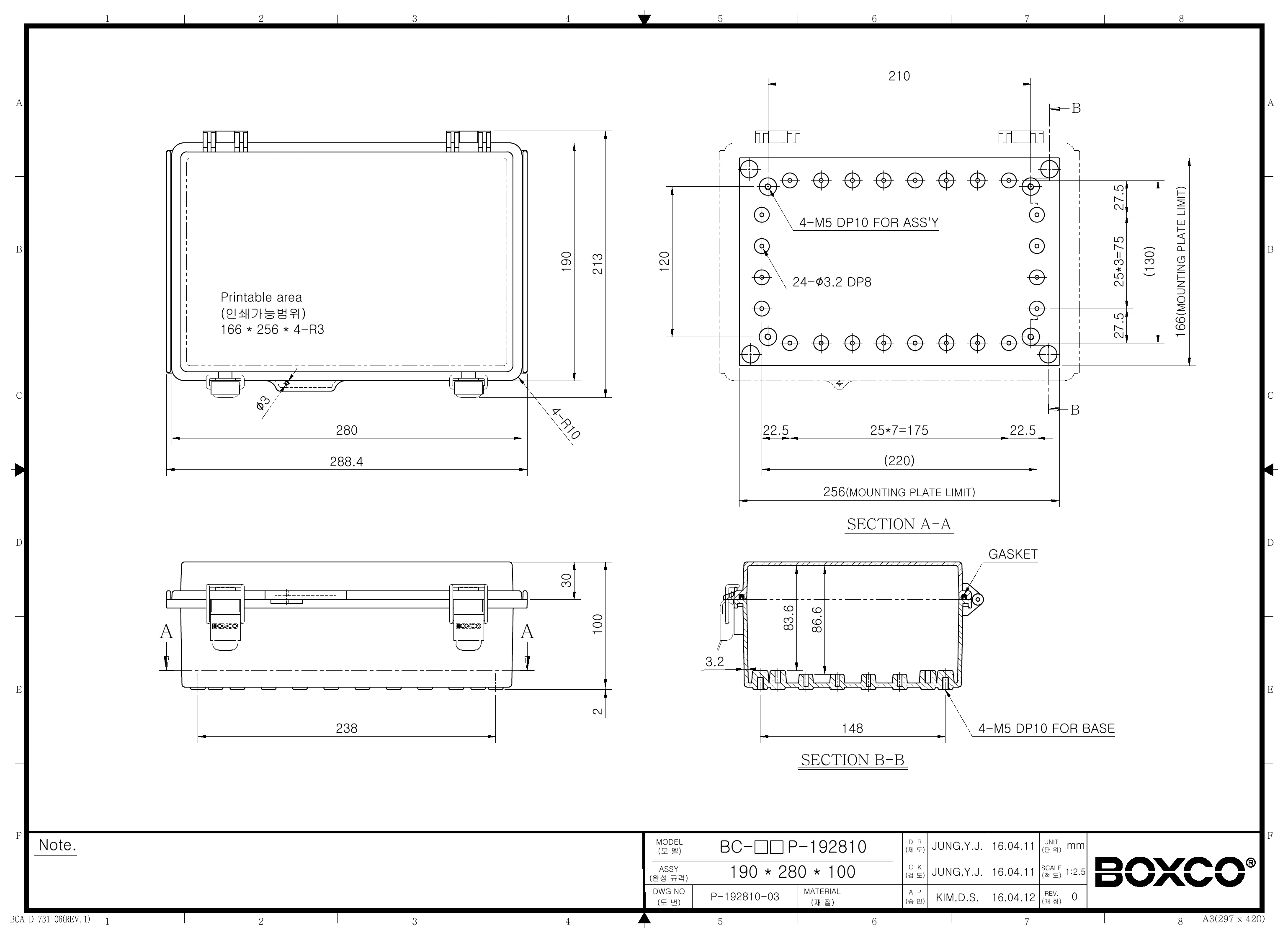

Technical drawings

BC-CTP-192810 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this enclosure typically used for?

This Boxco P-Series enclosure is designed to protect electrical and electronic components in industrial and commercial equipment housings. Its transparent cover makes it practical when internal indicators or components need to remain visible without opening the box.

Is this enclosure suitable for outdoor environments?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor use, and the enclosure also includes roof protection features to help reduce water and dust penetration during cover operation. Its IP67 rating also supports use in demanding environments where dust and temporary water exposure are concerns.

What material is this enclosure made from?

This model is made from polycarbonate (PC) and includes a transparent cover. The description also notes that it uses high impact resistant material and anti-static material to help protect sensitive electronic instruments.

How durable is this enclosure against impact and harsh conditions?

This enclosure is rated IK08 for impact resistance and IP67 for dust-tight and water-resistant performance. It is also specified for use in temperatures from -40 degrees C to 110 degrees C, making it suitable for a wide range of operating environments.

What are the dimensions of this Boxco P-Series enclosure?

This model measures 7.48 x 11.02 x 3.94 inches, which corresponds to 190 x 280 x 100 mm. Those dimensions make it a mid-size enclosure for applications that need more internal space than compact utility boxes.

Does this enclosure support internal mounting hardware or equipment plates?

Yes. The product description states that it includes pre-molded mounting screw nuts for fixing DIN rail or other equipment, and it also has internal mounting plate attachment points. These features help support organized internal component mounting inside the enclosure.

What makes this model different from a basic plastic enclosure?

This model combines a transparent cover, molded hinge and latch design, UV-stabilized construction for outdoor use, and anti-static material for sensitive instruments. It also includes enhanced sealing and structural details such as a robot-injected gasket, stainless steel latch components, and stainless steel hinge bearing support.
