Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

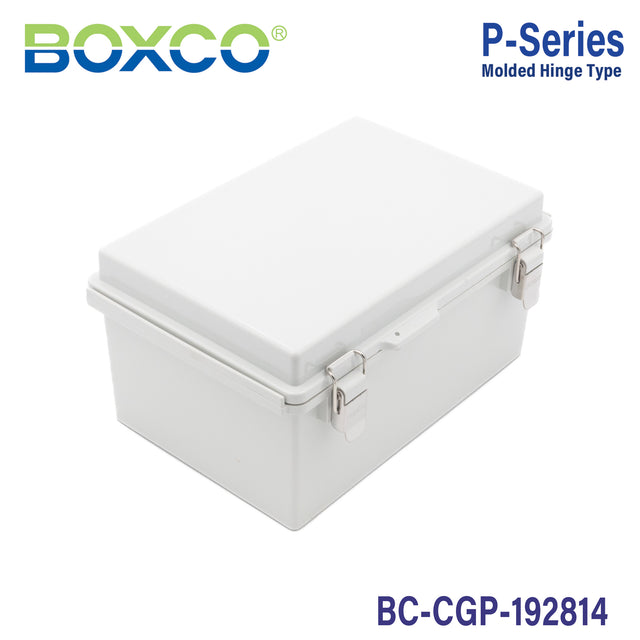

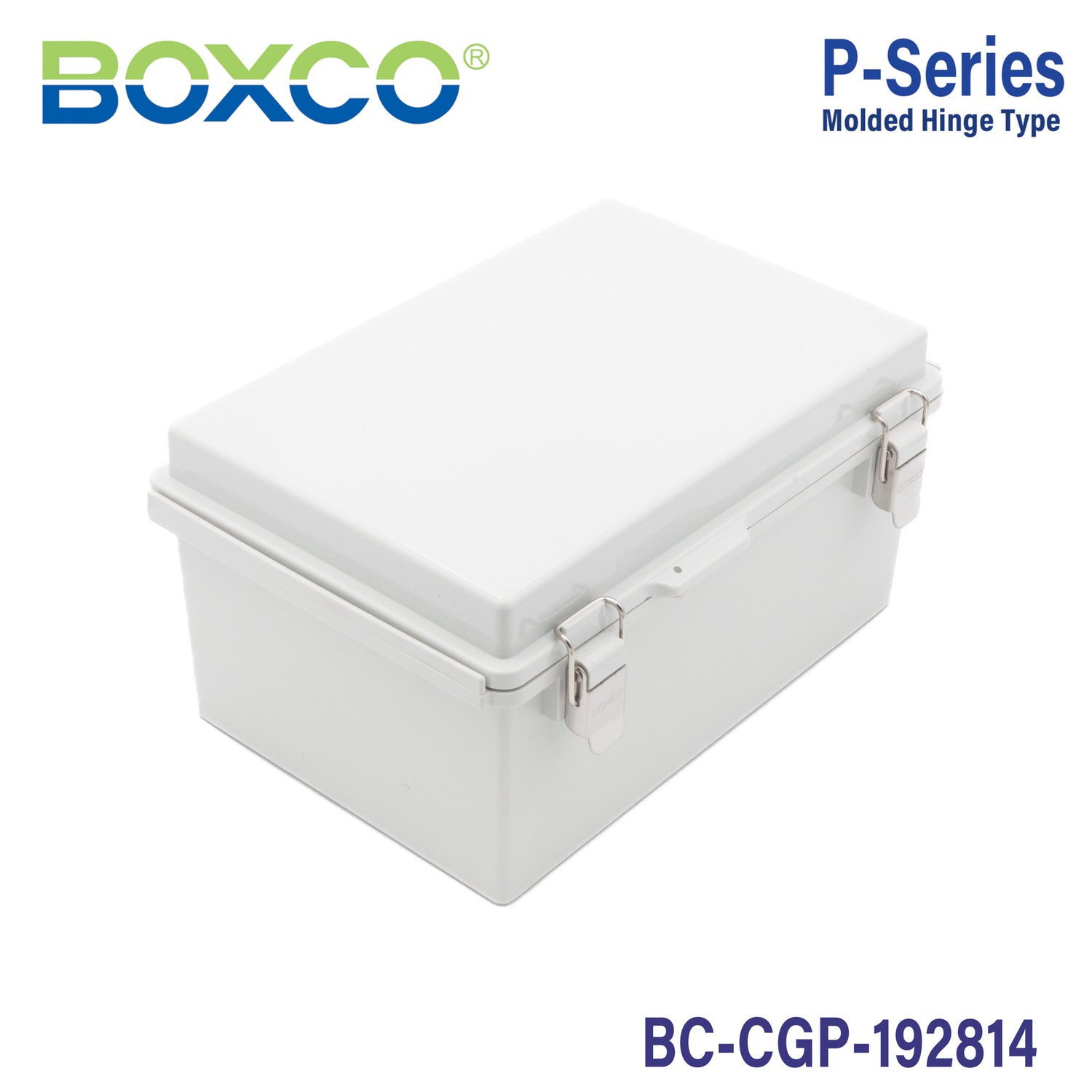

Boxco P-Series 190x280x140mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-192814
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGP-192814 is a 190×280×140 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-192814Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
190×280×140 mm (7.48×11.02×5.51 in)
Mounting plate dimension M1 × M2
159 × 249 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1928 PG (Plastic, PG type), 1928 P (Plastic, P type), 1928 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

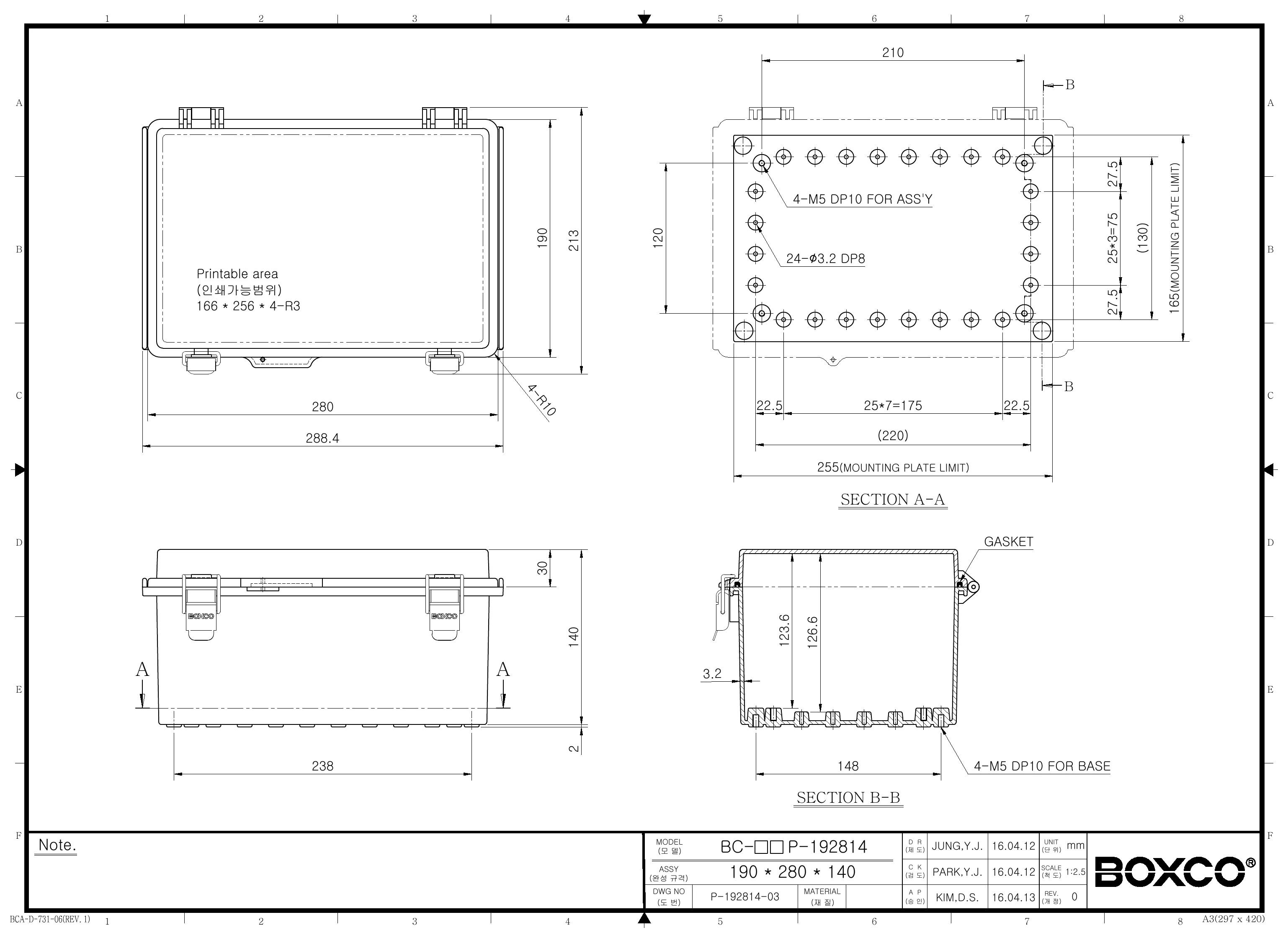

Technical drawings

BC-CGP-192814 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco P-Series enclosure best suited for?

This model is suited for protecting electronic equipment in industrial, commercial, and outdoor environments where a sealed non-metallic enclosure is needed. Its molded hinge and latch design, impact resistance, and weather-focused features make it a practical choice for control, monitoring, or instrumentation housings.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, and the design includes roof protection features to help reduce water and dust penetration during cover operation. Its IP67 rating also indicates strong protection against dust ingress and water exposure in demanding environments.

What are the key specifications of this enclosure?

This Boxco P-Series enclosure measures 7.48 x 11.02 x 5.51 inches (190 x 280 x 140 mm) and is made from polycarbonate (PC) with a grey cover. It carries IP67 and IK08 ratings, weighs 1.104 kg, and has an operating temperature range of -40 degrees C to 110 degrees C. The listed warranty period is 1 year.

How does this model help protect equipment in demanding environments?

This enclosure combines high impact resistant material with an IK08 impact rating to help protect against external mechanical impact. It also uses an injected gasket for waterproof and dust-proof performance, while the integrated hinge uses a stainless steel bearing to improve service life.

Does this enclosure support mounting internal components?

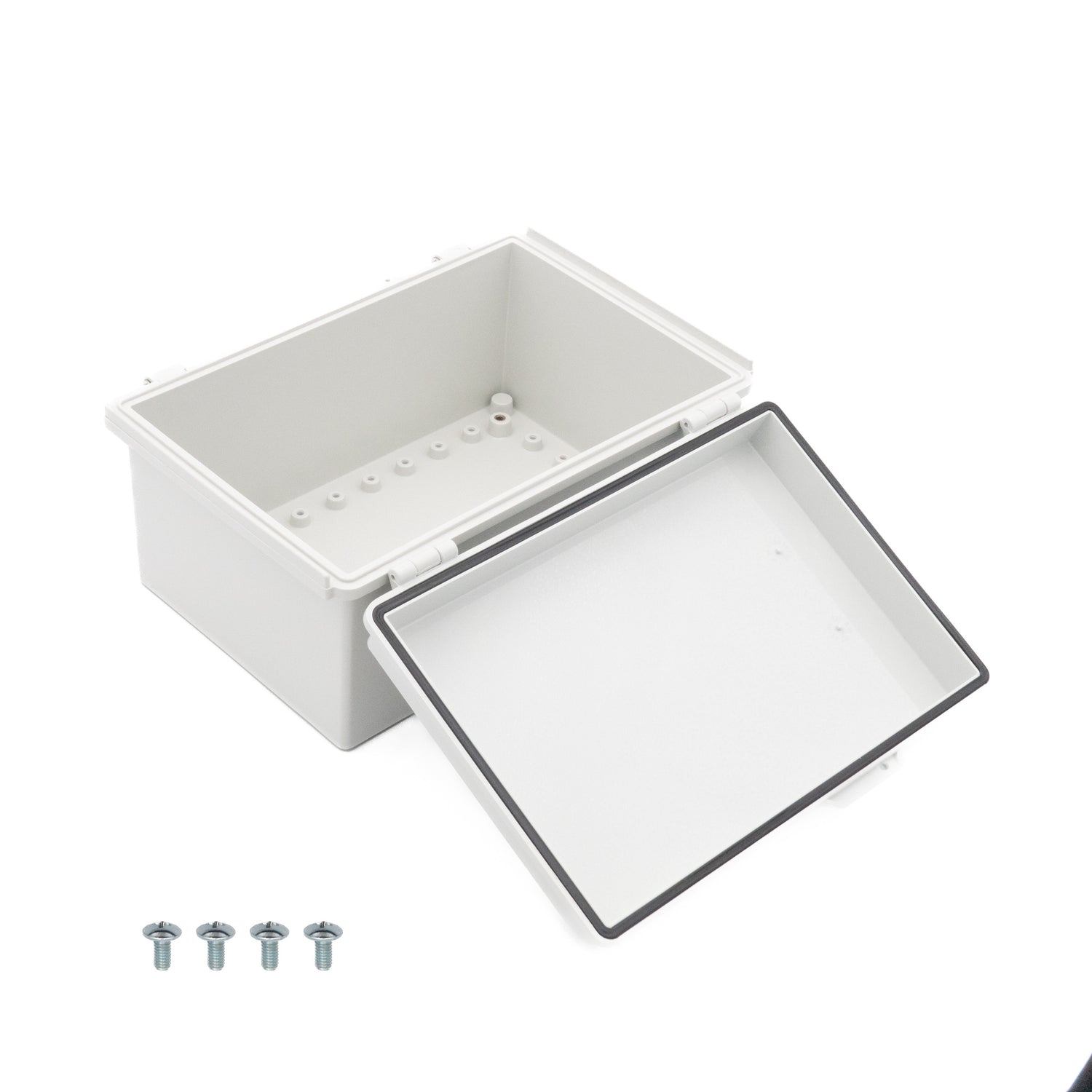

Yes. The enclosure includes pre-molded mounting screw nuts that can be used to secure compatible internal equipment, and it also has mounting plate attachment points for fastening an internal mounting plate. These features make it easier to organize and support heavier internal assemblies within the enclosure.

What distinguishes this hinged plastic enclosure from a basic non-hinged box?

This model is designed with an integrated molded hinge and latch-type cover, which helps with repeated access while keeping the enclosure body and cover as a matched assembly. Compared with a simpler cover-off box style, it also emphasizes outdoor protection details such as roof protection features and a precision-injected gasket.
