Boxco

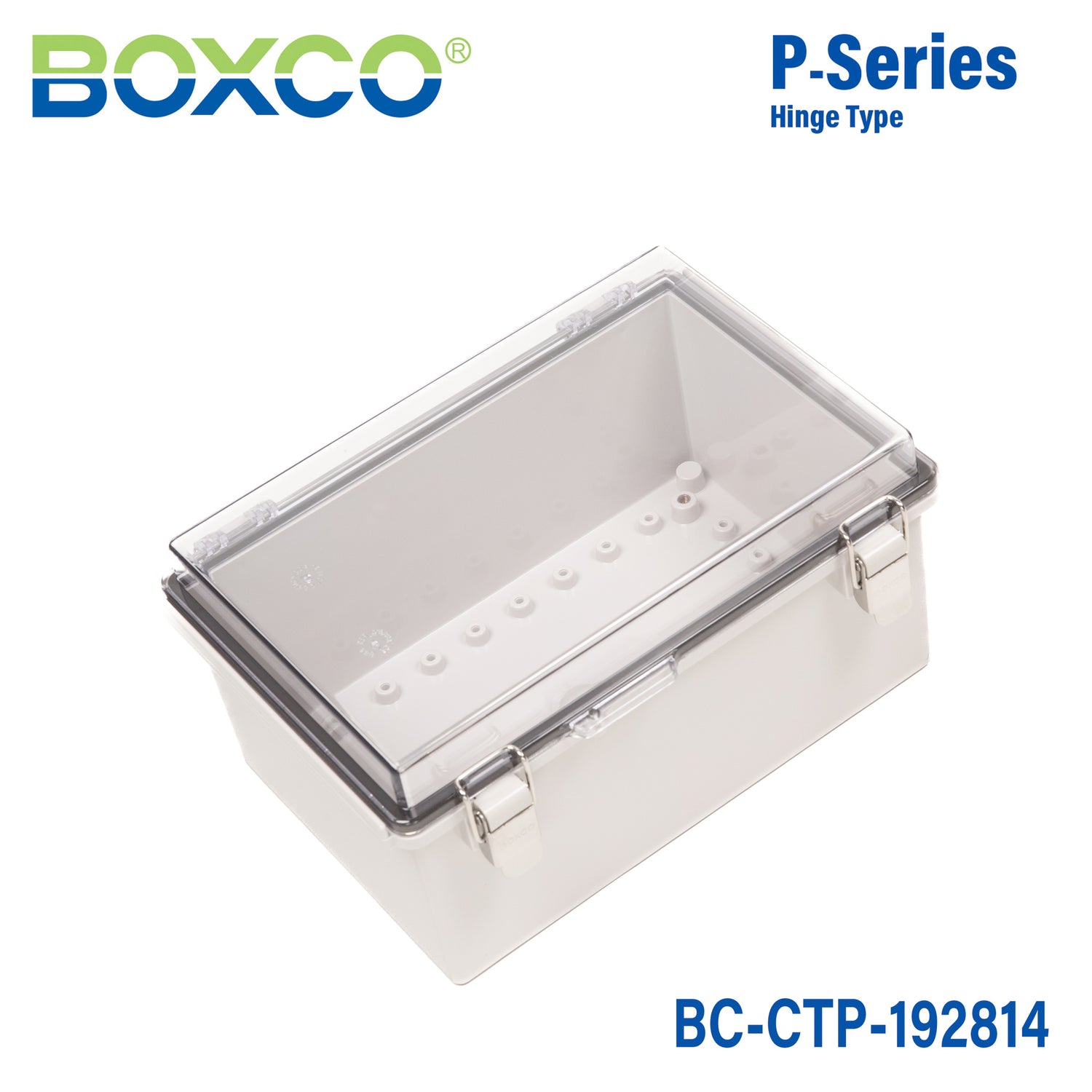

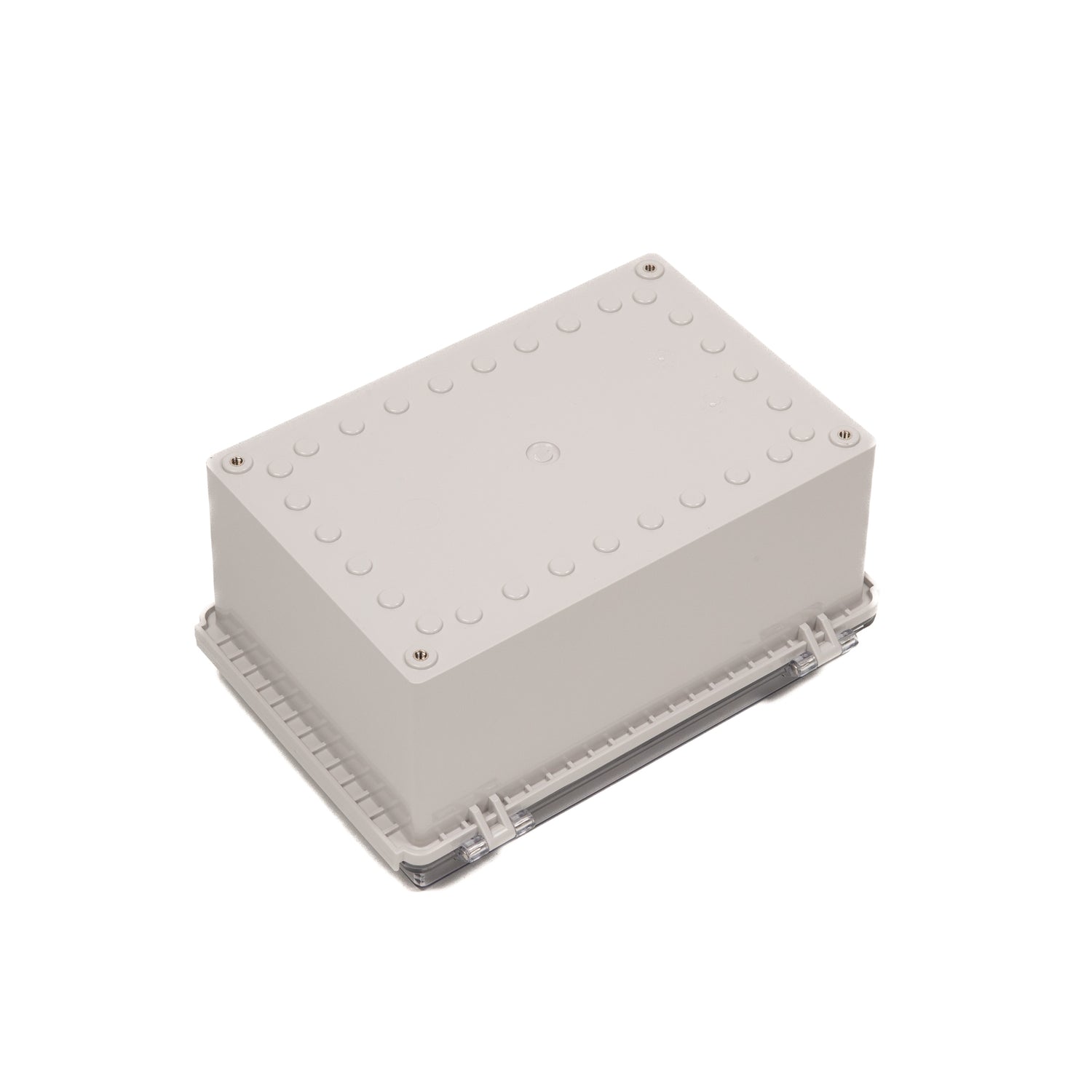

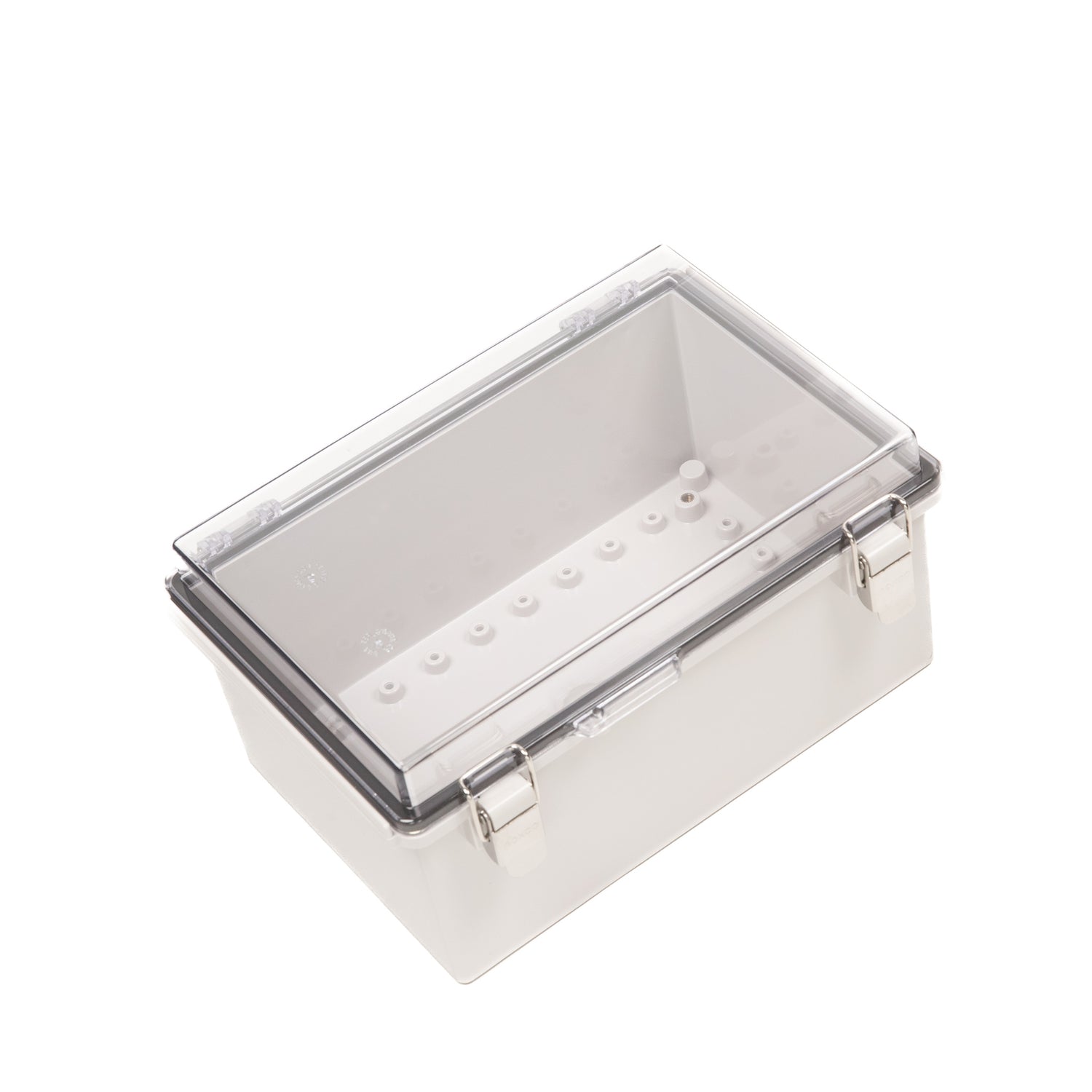

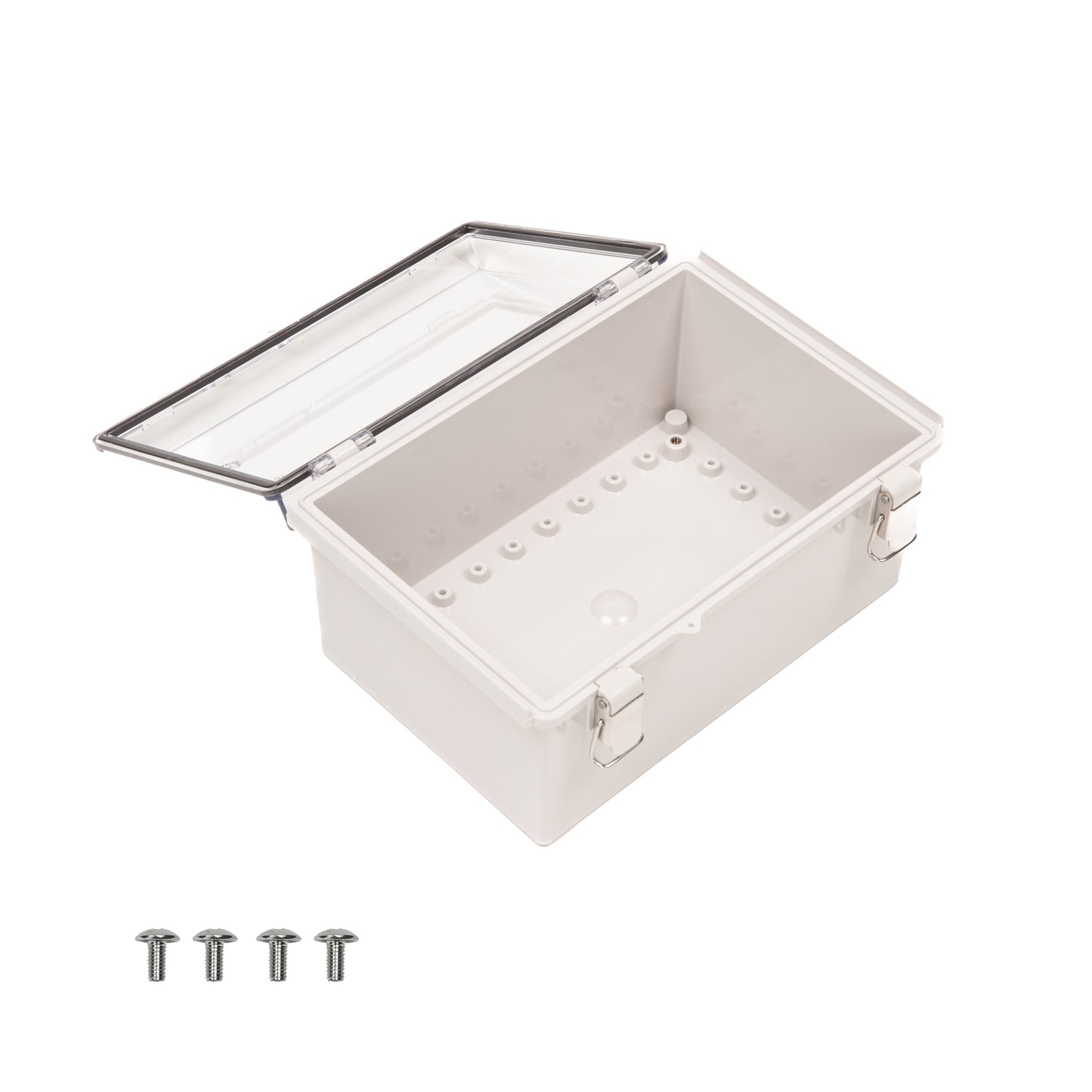

Boxco P-Series 190x280x140mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type

SKU BC-CTP-192814
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CTP-192814 is a 190×280×140 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CTP-192814Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
190×280×140 mm (7.48×11.02×5.51 in)
Mounting plate dimension M1 × M2
159 × 249 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1928 PG (Plastic, PG type), 1928 P (Plastic, P type), 1928 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

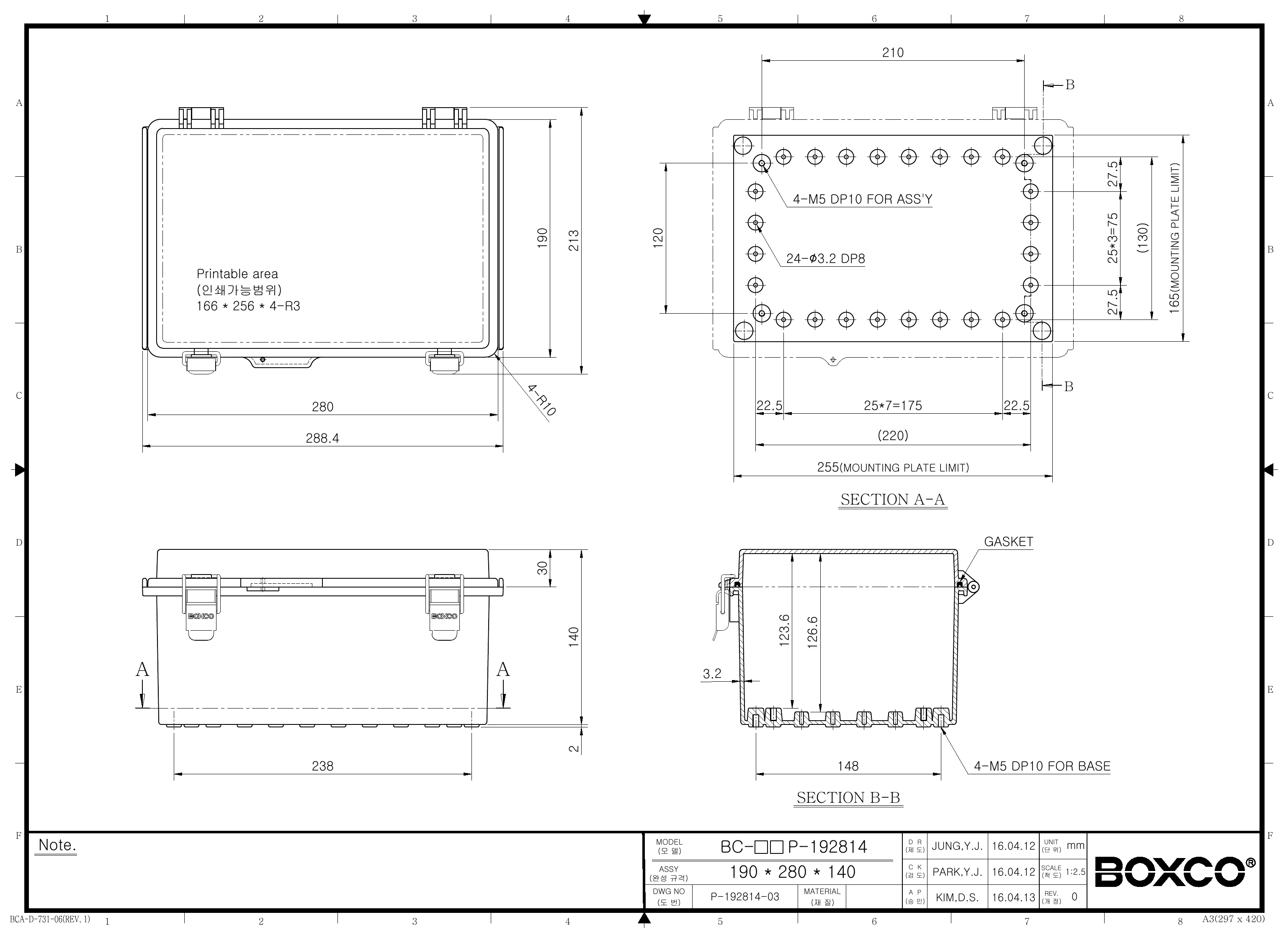

Technical drawings

BC-CTP-192814 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series BC-CTP-192814 plastic enclosure suited for?

This model is suited for protecting industrial and commercial electrical or electronic equipment that needs a sealed non-metallic enclosure. Its transparent cover makes it useful when components need to remain visible without opening the box, and its high-impact polycarbonate construction supports demanding indoor or outdoor use.

What are the dimensions of this enclosure?

The Boxco BC-CTP-192814 measures 7.48 x 11.02 x 5.51 inches, which is 190 x 280 x 140 mm. That size provides a mid-sized enclosure option for equipment that needs more internal space than compact junction boxes.

Is this enclosure suitable for outdoor environments?

Yes, this enclosure is designed for outdoor use. The description states that an ultraviolet stabilizer is added to help protect the enclosure in outdoor conditions, and the housing includes roof protection features that help reduce water and dust intrusion during cover operation.

What do the IP67 and IK08 ratings mean for this model?

The IP67 rating indicates this enclosure is built for strong protection against dust and water ingress. The IK08 rating shows it has a defined level of impact resistance, which fits its high-impact polycarbonate construction and helps it perform in tougher industrial settings.

What material is the BC-CTP-192814 made from, and why does that matter?

This model is made from polycarbonate and includes a transparent polycarbonate cover. Polycarbonate is valued for impact resistance, durability, and suitability for demanding environments, making this enclosure a strong choice when visibility and ruggedness are both important.

What temperature range can this enclosure handle?

The listed operating temperature range for this model is -40°C to 110°C. That broad range makes it appropriate for environments exposed to both very low and very high temperatures.

What design features distinguish this Boxco P-Series enclosure?

This model includes a molded hinge and latch-type cover, a transparent cover, pre-molded mounting screw nuts, gasket sealing, and mounting plate attachment points. It also uses a plastic integrated hinge with a stainless steel bearing and a stainless steel main latch component for added durability.
