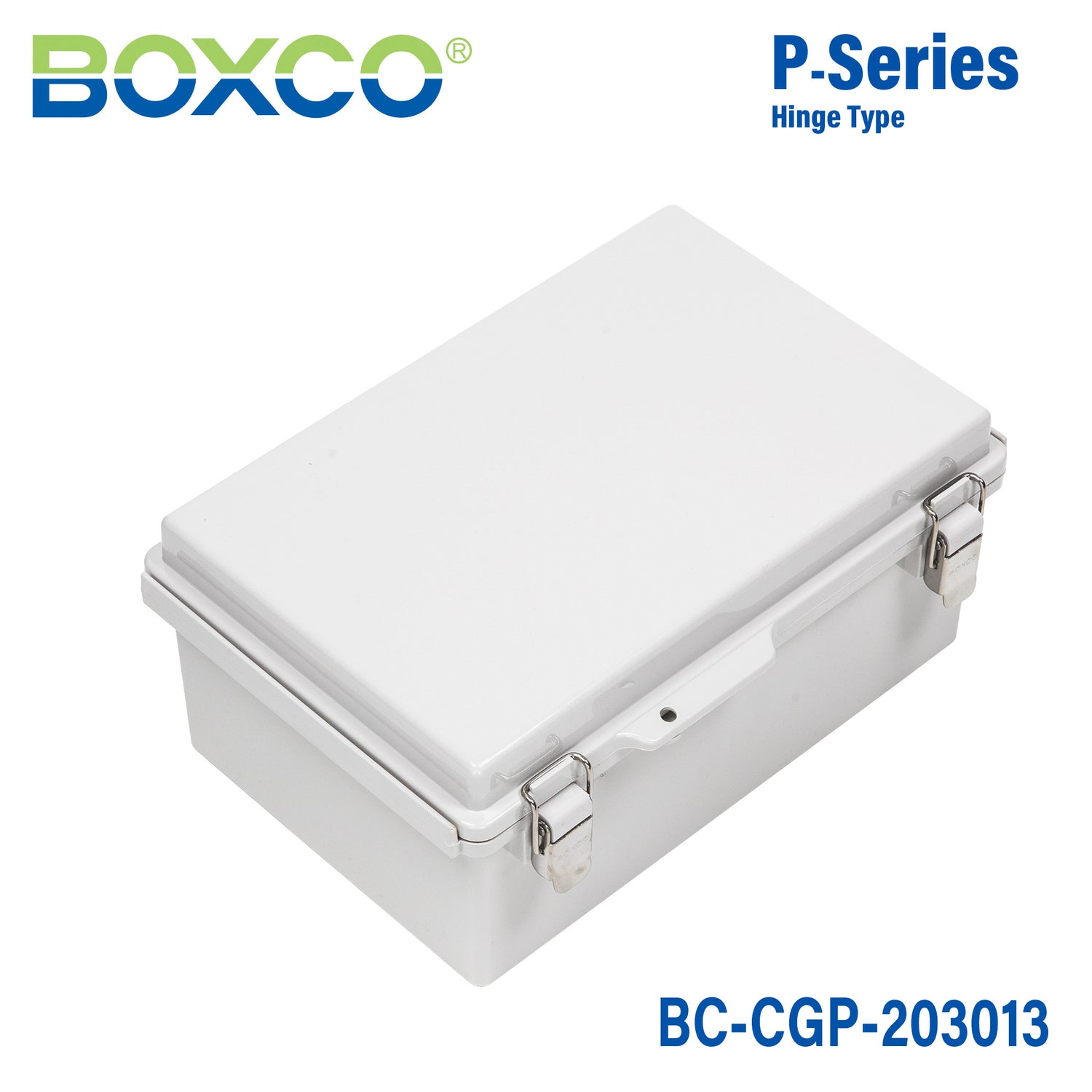

Boxco P-Series 200x300x130mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-203013
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGP-203013 is a 200×300×130 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-203013Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
200×300×130 mm (7.87×11.81×5.12 in)
Mounting plate dimension M1 × M2
167 × 267 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
2030 P (Plastic, P type), 2030 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

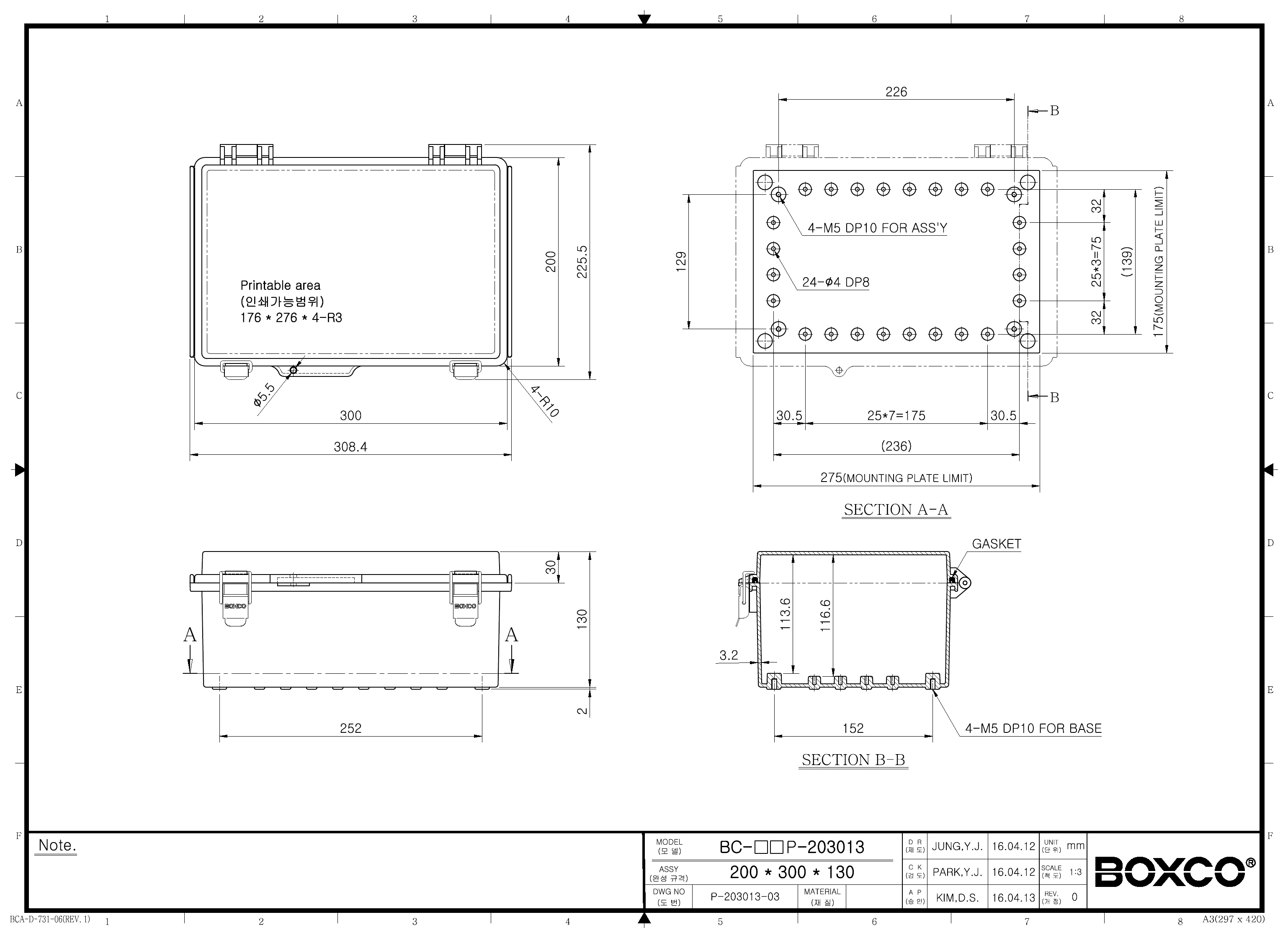

Technical drawings

BC-CGP-203013 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series BC-CGP-203013 enclosure suited for?

This model is suited for protecting control, monitoring, and other electronic equipment that needs a sealed non-metallic enclosure. Its IP67 rating, UV-stabilized polycarbonate construction, and anti-static material make it a practical choice for industrial and outdoor equipment housings where dust, water, and static protection matter.

Is the BC-CGP-203013 suitable for outdoor use?

Yes. The enclosure description states that an ultraviolet stabilizer is added for outdoor usage, and the P-Series design includes roof protection features that help reduce water ingress when the cover is opened or closed. Its IP67 rating also indicates strong protection against dust and water exposure.

What are the main specifications of this enclosure?

The BC-CGP-203013 measures 7.87 x 11.81 x 5.12 inches, which corresponds to 200 x 300 x 130 mm. It is made from polycarbonate, has a grey cover, carries IP67 and IK08 ratings, weighs 1.042 kg, and is rated for use from -40 degrees C to 110 degrees C.

How durable is the hinge and latch design on this model?

This enclosure uses a molded integrated plastic hinge with a stainless steel bearing to improve service life. The draw latch main part is made of stainless steel, and the enclosure body is described as high impact resistant material, which aligns with its IK08 impact rating.

Can this enclosure support internal mounting hardware or equipment plates?

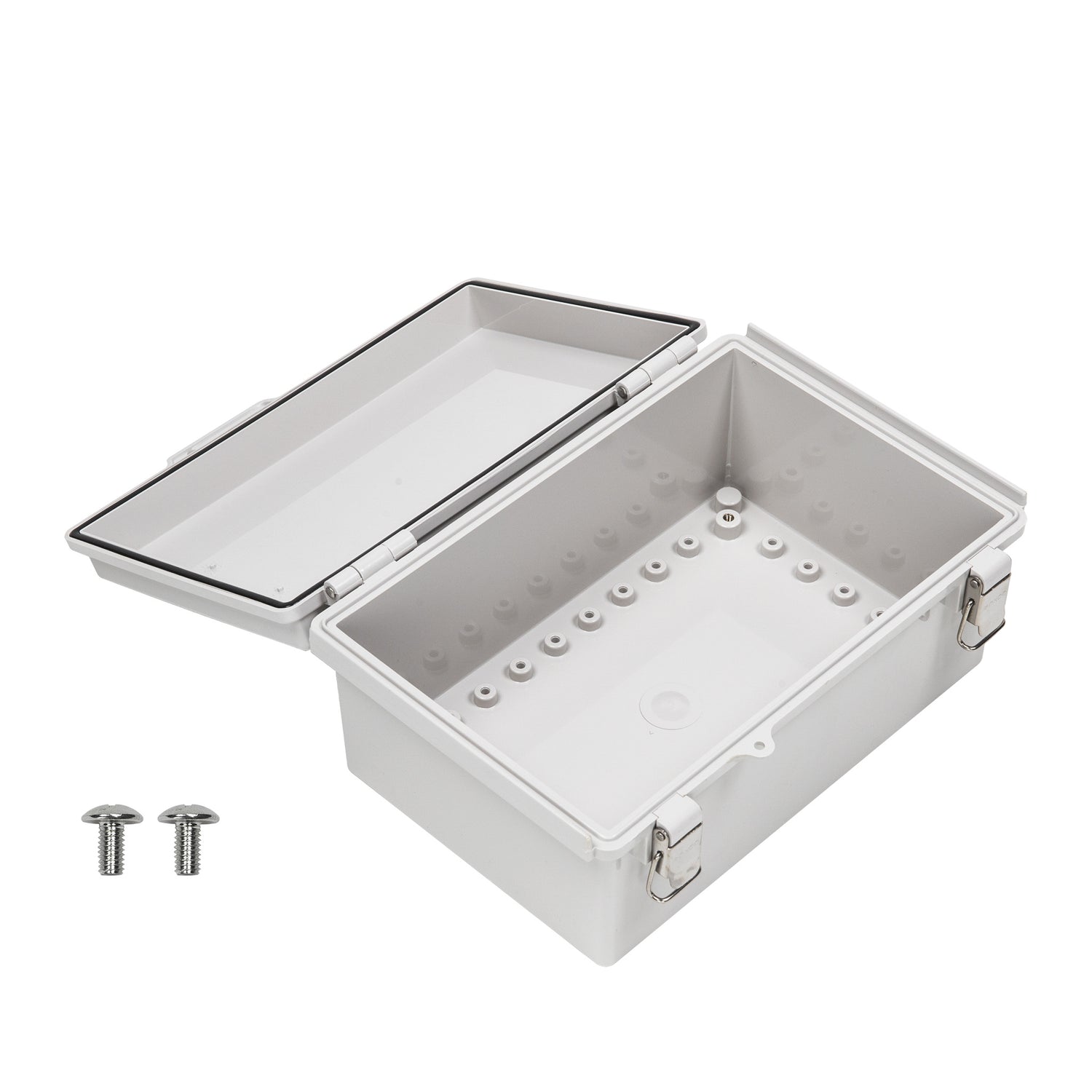

Yes. The enclosure includes pre-molded mounting screw nuts so DIN rail or other equipment can be fixed inside, and it also has dedicated mounting plate attachment points. Boxco states the internal mounting plate can be secured to brass inserted injection-molded points to better handle heavier internal equipment.

What makes this model a good choice for protecting sensitive electronics?

The material is described as anti-static, which helps protect sensitive electronic instruments from static electricity. In addition, the CNC-injected gasket is designed to provide strong waterproof and dust-proof performance, helping protect the contents in demanding environments.
