Boxco

Boxco P-Series 200x300x130mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type

SKU BC-CTP-203013
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTP-203013 is a 200×300×130 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CTP-203013Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
200×300×130 mm (7.87×11.81×5.12 in)
Mounting plate dimension M1 × M2
167 × 267 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
2030 P (Plastic, P type), 2030 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

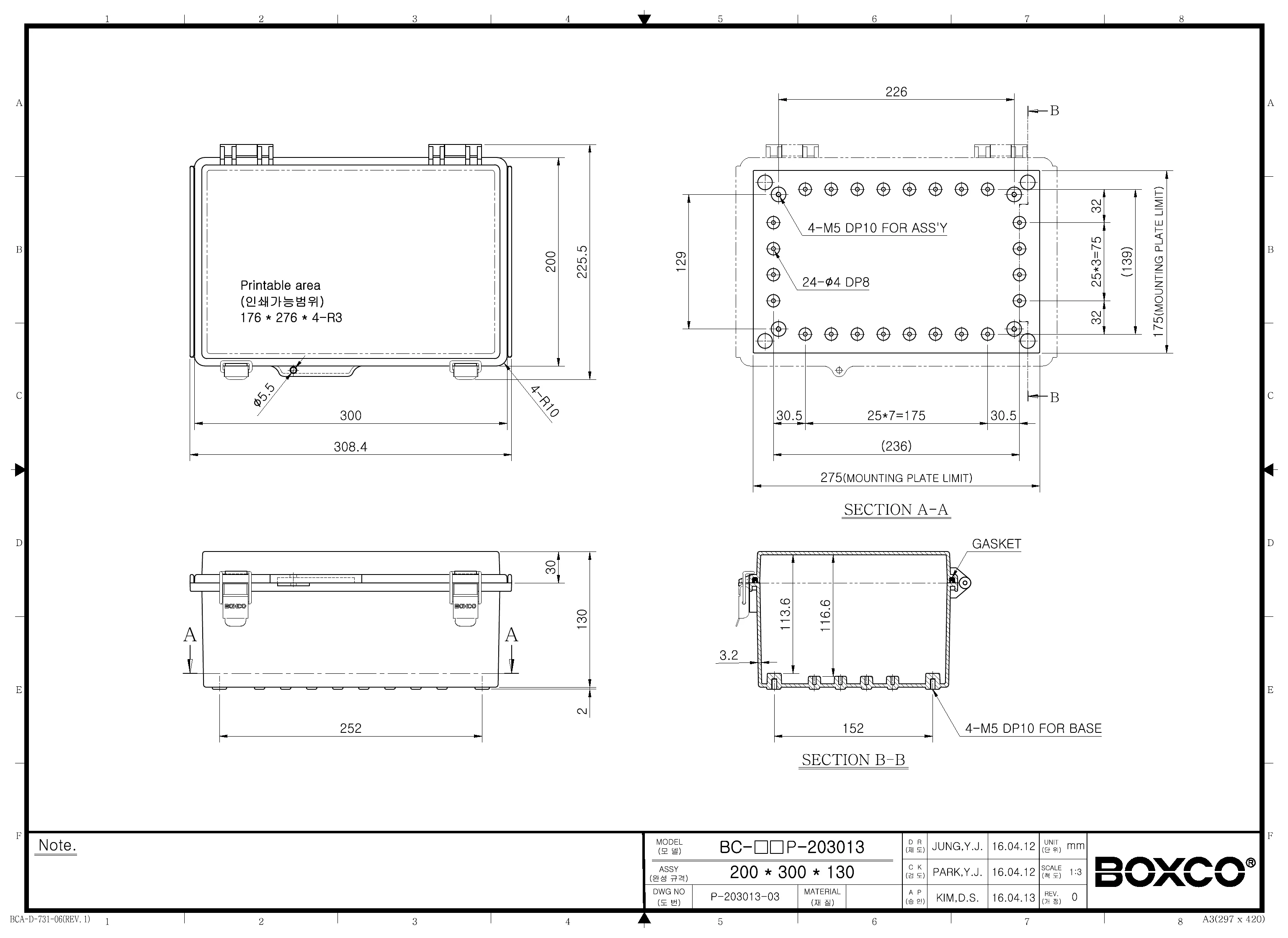

Technical drawings

BC-CTP-203013 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What environments is this Boxco P-Series enclosure designed for?

This model is built for demanding indoor or outdoor use where dust, water, and impact resistance matter. It is rated IP67 for protection against dust and temporary water immersion, and IK08 for impact resistance. The enclosure body also includes ultraviolet stabilizer material to help maintain performance during long-term outdoor exposure.

What material is this enclosure made from, and why does it matter?

This enclosure is made from polycarbonate (PC) with a transparent cover. Polycarbonate is known for strong impact resistance, which helps the box withstand external force and reduces the chance of breakage during machining or panel modification. The product description also notes anti-static material use to help protect sensitive electronic instruments from static electricity.

Is the cover transparent, and when is that useful?

Yes, this model includes a transparent cover. That makes it easier to visually inspect indicators, labels, or internal mounted components without opening the enclosure. It is a practical choice when regular visual checks are needed while still maintaining environmental protection.

What size is this Boxco P-Series enclosure?

This enclosure measures 7.87 x 11.81 x 5.12 inches, which corresponds to 200 x 300 x 130 mm. That size provides a relatively large internal volume for housing control components, instrumentation, or other protected equipment. Buyers comparing enclosure options should confirm this footprint fits their panel space and internal component layout needs.

What makes this P-Series enclosure different from a basic plastic box?

This model combines several higher-spec features beyond a basic utility box, including IP67 sealing, IK08 impact resistance, a transparent cover, and an integrated molded hinge and latch design. It also includes roof protection geometry, injected gasket sealing, pre-molded mounting screw nuts, and mounting plate attachment points. Those details make it better suited for industrial or outdoor protection than a plain general-purpose enclosure.

What temperature range can this enclosure handle?

The stated operating temperature range for this model is -40 C to 110 C. That wide range makes it suitable for applications exposed to cold outdoor conditions as well as elevated internal or ambient temperatures. Buyers should still verify that all installed components inside the enclosure are rated for the same conditions.

Does this enclosure support internal mounting hardware or equipment plates?

Yes, the product description states that it includes pre-molded mounting screw nuts and mounting plate attachment points. These features help secure DIN rail or other internal equipment and allow an internal mounting plate to be fixed tightly. That makes the enclosure better suited for builds that need stable internal component support.

How durable is the hinge and latch system on this model?

This enclosure uses an integrated plastic hinge with a stainless steel bearing to improve service life. The latch system also uses stainless steel in the main draw-latch section for added strength. Together, those details make this model more durable for repeated opening and closing than a simpler all-plastic closure design.
