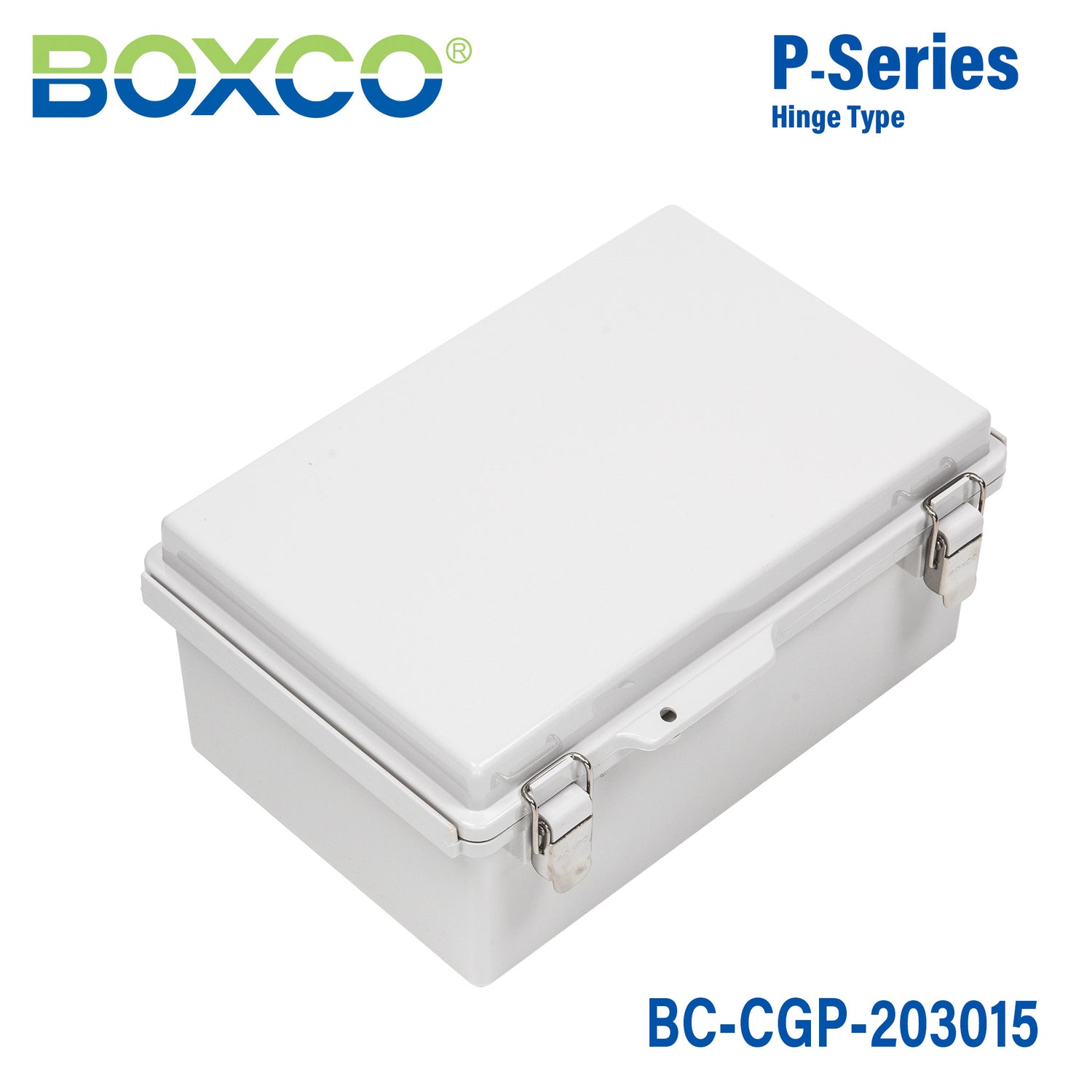

Boxco P-Series 200x300x150mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-203015
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CGP-203015 is a 200×300×150 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-203015Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
200×300×150 mm (7.87×11.81×5.91 in)
Mounting plate dimension M1 × M2
167 × 267 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
2030 P (Plastic, P type), 2030 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

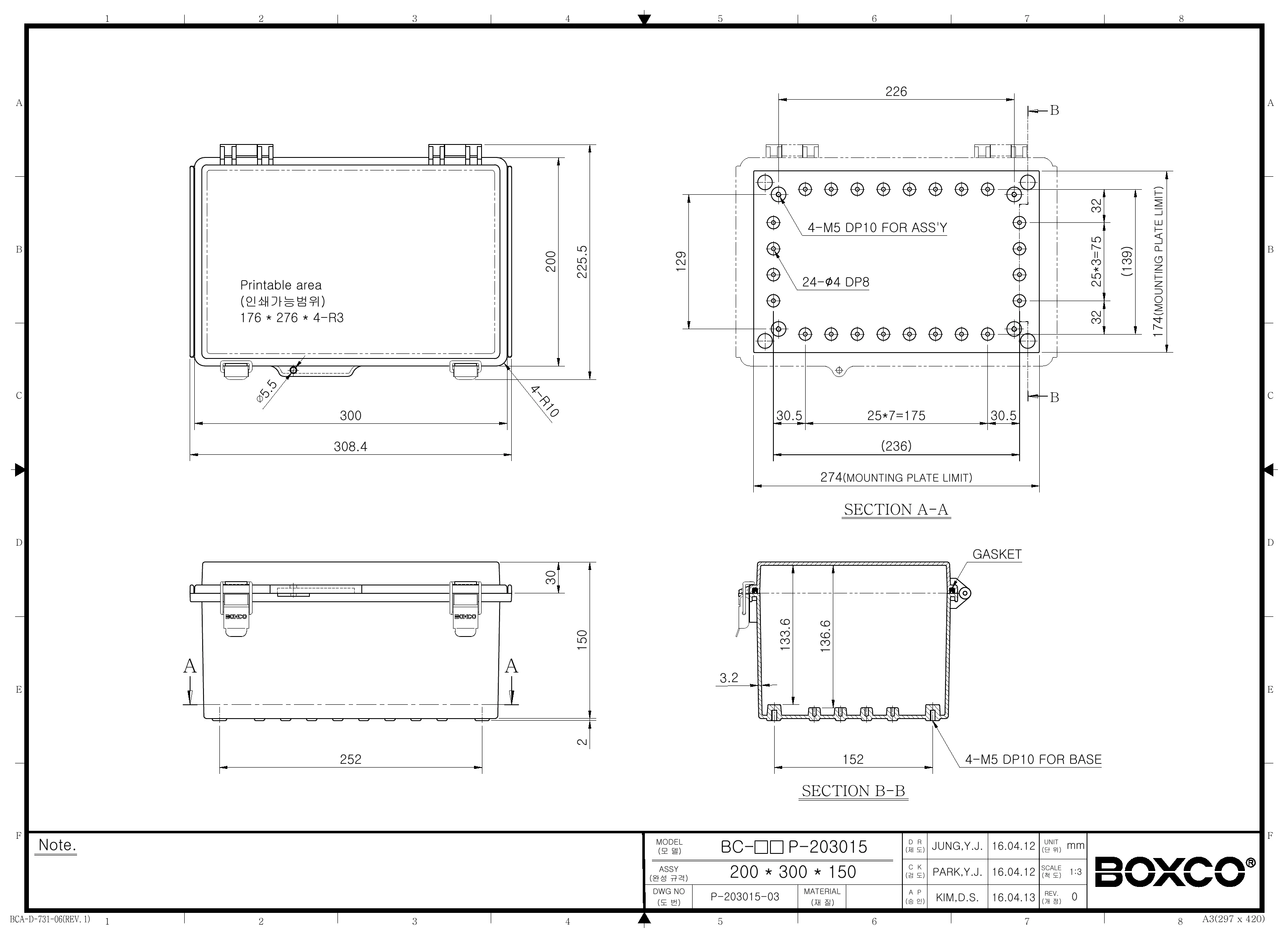

Technical drawings

BC-CGP-203015 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco P-Series enclosure typically used for?

This model is commonly used as a protective enclosure for industrial and commercial electrical or electronic assemblies that need a durable non-metallic housing. Its molded hinge and latch design, impact resistance, and IP67 sealing make it a practical fit for control, monitoring, and instrumentation applications where dust and water protection matter.

Is this enclosure suitable for outdoor environments?

Yes, this enclosure is designed for outdoor-capable use. The description states that an ultraviolet stabilizer is added to help protect the housing outdoors, and the design includes roof protection features intended to reduce water and dust intrusion during cover operation.

What are the key size and material specifications of model BC-CGP-203015?

This enclosure measures 7.87 x 11.81 x 5.91 inches, which corresponds to 200 x 300 x 150 mm. It is made from polycarbonate (PC) and comes in a grey cover version with an integrated molded hinge and latch-type closure.

How much environmental protection does this enclosure provide?

This model is rated IP67 and IK08. That means it is built for strong protection against dust and water ingress, while also providing a defined level of impact resistance for demanding environments.

What temperature range can this Boxco enclosure handle?

The stated operating temperature range is -40 degrees C to 110 degrees C. That wide range makes it suitable for applications exposed to both low-temperature and elevated-temperature conditions, provided the rest of the installed equipment is rated appropriately as well.

Does this enclosure support mounting internal components?

Yes, the product description highlights pre-molded mounting screw nuts and dedicated mounting plate attachment points. These features are intended to make it easier to secure DIN rail or other internal equipment and to hold a mounting plate firmly inside the enclosure.

What makes this P-Series enclosure different from a basic plastic box?

This model includes several upgraded design elements beyond a standard plain enclosure, including a stainless-steel-based latch assembly, integrated hinge construction with a stainless bearing, CNC-injected gasket sealing, and outdoor-oriented roof protection. It is also made from high impact resistant material and includes anti-static properties for protecting sensitive instruments.
