Boxco P-Series 200x300x150mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type

SKU BC-CTP-203015
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTP-203015 is a 200×300×150 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CTP-203015Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
200×300×150 mm (7.87×11.81×5.91 in)
Mounting plate dimension M1 × M2
167 × 267 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
2030 P (Plastic, P type), 2030 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

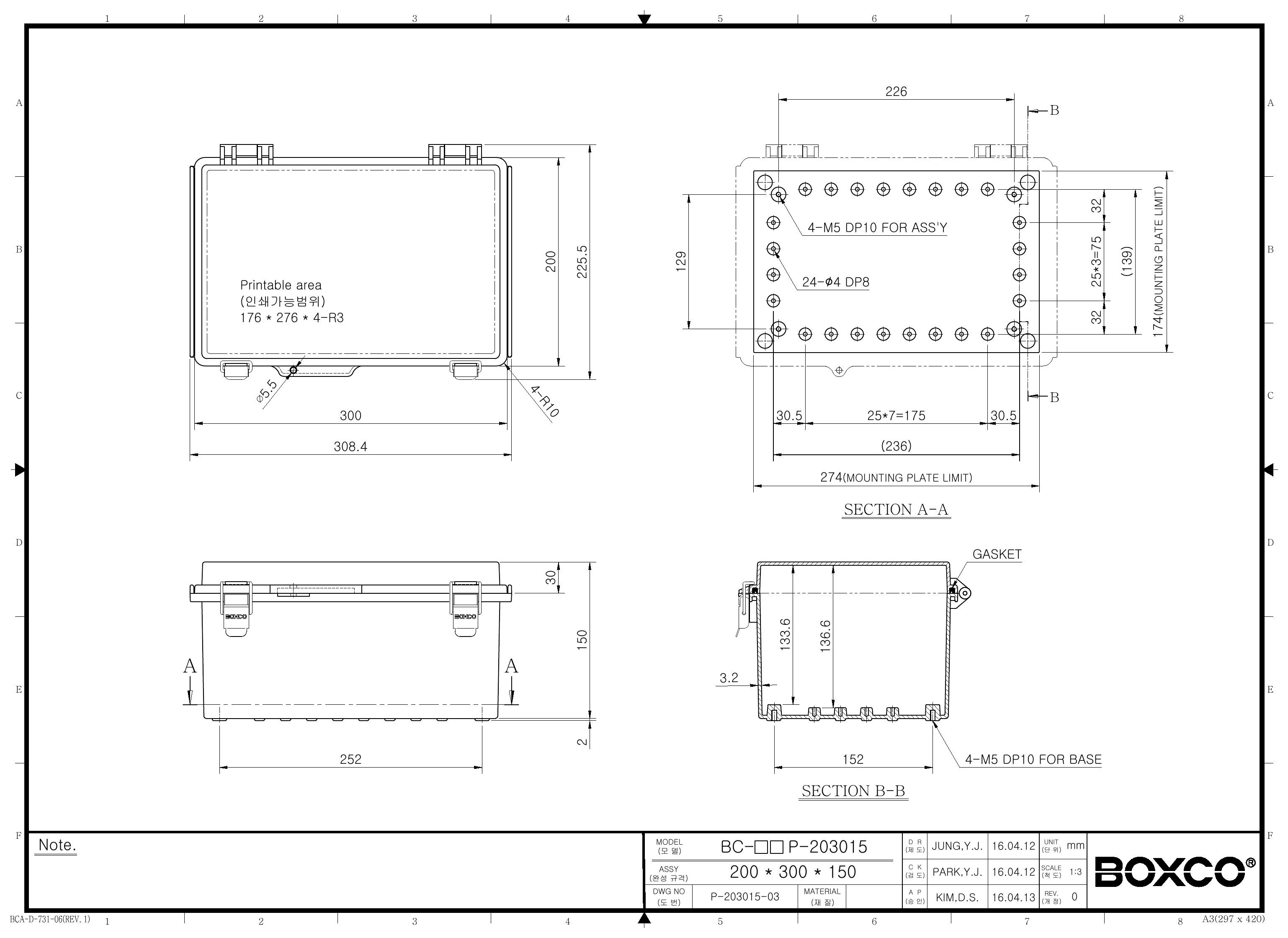

Technical drawings

BC-CTP-203015 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main specifications of the Boxco P-Series BC-CTP-203015 enclosure?

This model is a polycarbonate plastic enclosure with a transparent cover and molded hinge-and-latch closure. Its external size is 7.87 x 11.81 x 5.91 inches (200 x 300 x 150 mm), and it is rated IP67 for dust and water resistance and IK08 for impact resistance. The enclosure weighs 1.122 kg.

Is this enclosure suitable for outdoor environments?

Yes. The product description states that an ultraviolet stabilizer is added to help protect the enclosure for outdoor use and reduce visible color change over time. It also includes roof protection features intended to help limit water and dust intrusion during outdoor use.

What temperature range can this enclosure handle?

The BC-CTP-203015 is specified for use from -40 °C to 110 °C. That range makes it suitable for demanding indoor and outdoor industrial environments where both low and high temperatures may be a concern. Buyers should still confirm overall system suitability for their full application conditions.

What kinds of applications is this enclosure commonly used for?

This enclosure is intended for protecting electrical or electronic equipment in industrial and commercial environments where resistance to dust, water, and impact matters. The anti-static material also makes it relevant for housing sensitive electronic instruments. Its transparent cover is useful when internal components need to remain visible without opening the box.

How does the transparent cover version compare with an opaque enclosure?

The transparent cover allows visual inspection of internal components without opening the enclosure, which can be useful for monitoring indicators or checking equipment status. This model keeps the same core enclosure benefits, including polycarbonate construction, IP67 protection, and IK08 impact resistance. Buyers who do not need internal visibility may prefer an opaque cover for privacy or appearance reasons.

What design features distinguish this Boxco P-Series model?

This model includes a molded integrated hinge with a stainless steel bearing, a latch whose main draw-latch component is stainless steel, and a gasket produced for strong waterproof and dust-proof performance. It also has pre-molded mounting screw nuts and mounting plate attachment points for securing internal equipment. These features make it more specialized than a basic utility enclosure.
