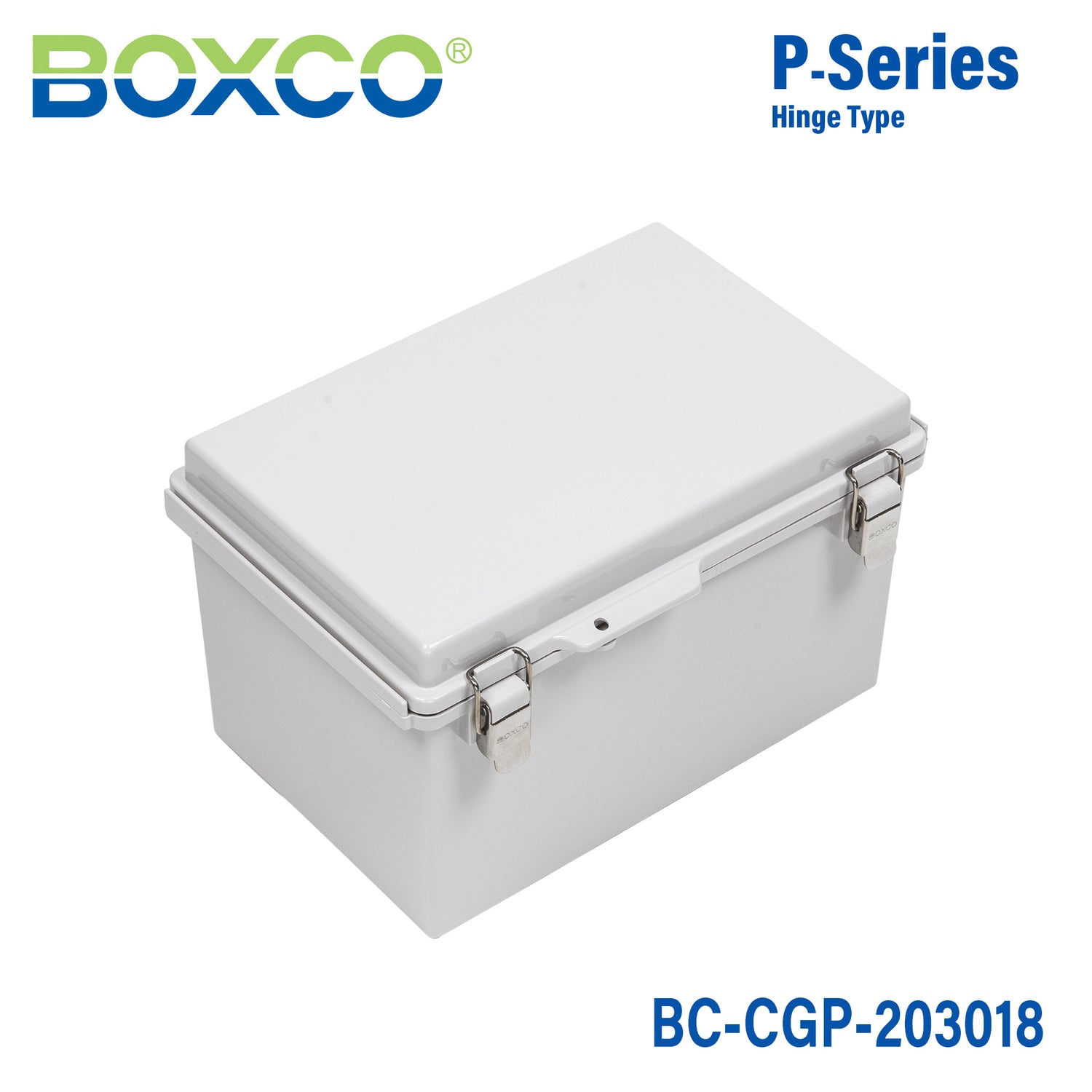

Boxco P-Series 200x300x180mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-203018
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGP-203018 is a 200×300×180 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-203018Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
200×300×180 mm (7.87×11.81×7.09 in)
Mounting plate dimension M1 × M2
167 × 267 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
2030 P (Plastic, P type), 2030 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

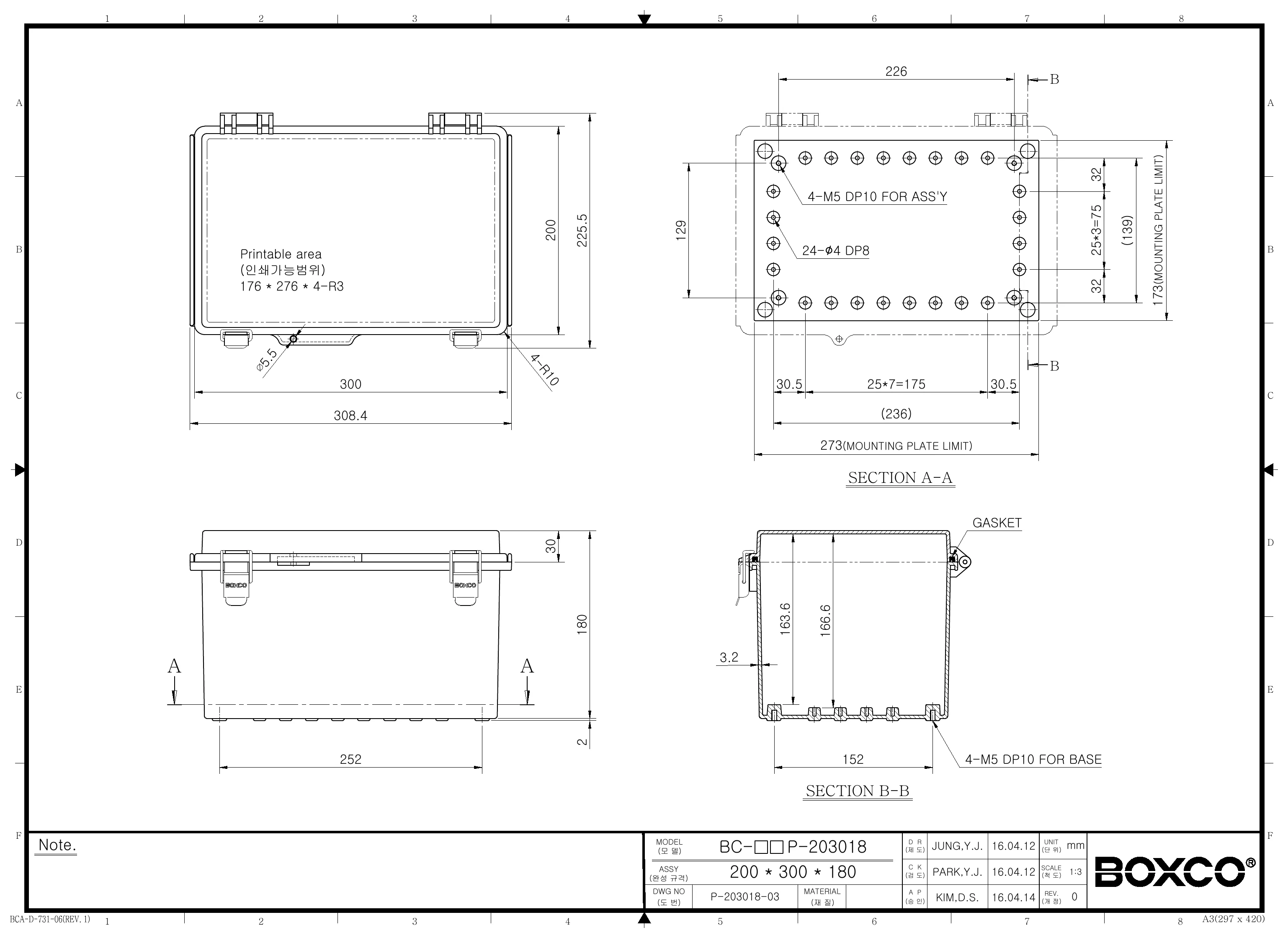

Technical drawings

BC-CGP-203018 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco P-Series plastic enclosure best suited for?

This model is a good fit for protecting industrial controls, outdoor electrical equipment, and sensitive electronic instruments that need a sealed non-metallic housing. Its IP67 rating, IK08 impact resistance, UV-stabilized polycarbonate construction, and anti-static material make it suitable for demanding indoor or outdoor B2B environments.

Is this enclosure suitable for outdoor use?

Yes. The enclosure is described as UV-stabilized for outdoor usage, and the P-Series design includes roof protection features to help reduce water and dust intrusion during cover operation. Its IP67 rating also indicates strong protection against dust and water ingress when properly closed.

What are the main specifications of this enclosure?

This Boxco P-Series enclosure measures 7.87 x 11.81 x 7.09 inches (200 x 300 x 180 mm) and weighs 1.225 kg. It has a grey cover, molded hinge and latch design, IP67 ingress protection, IK08 impact resistance, and a 1-year warranty.

What material is this enclosure made from, and why does that matter?

This model is made from polycarbonate (PC), a high-impact-resistant plastic used here for strength and durability. The product description also notes anti-static material properties to help protect sensitive electronic instruments from static electricity.

What temperature range can this enclosure handle?

This enclosure is rated for use from -40 degrees C to 110 degrees C. That wide operating range makes it suitable for many industrial and outdoor environments where temperatures can vary significantly.

Does this enclosure support internal mounting hardware or accessory plates?

Yes. The product description states that it includes pre-molded mounting screw nuts for fixing DIN rail or other equipment, and it also has internal mounting plate attachment points. Those built-in features help support organized component mounting inside the enclosure.

What distinguishes this model from a basic plastic enclosure box?

This model combines several protective features that go beyond a basic box, including IP67 sealing, IK08 impact resistance, UV stabilization, anti-static material, and an integrated hinge with a stainless steel bearing. It also includes a molded latch design and mounting provisions that make it better suited for more demanding industrial use cases.
