Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

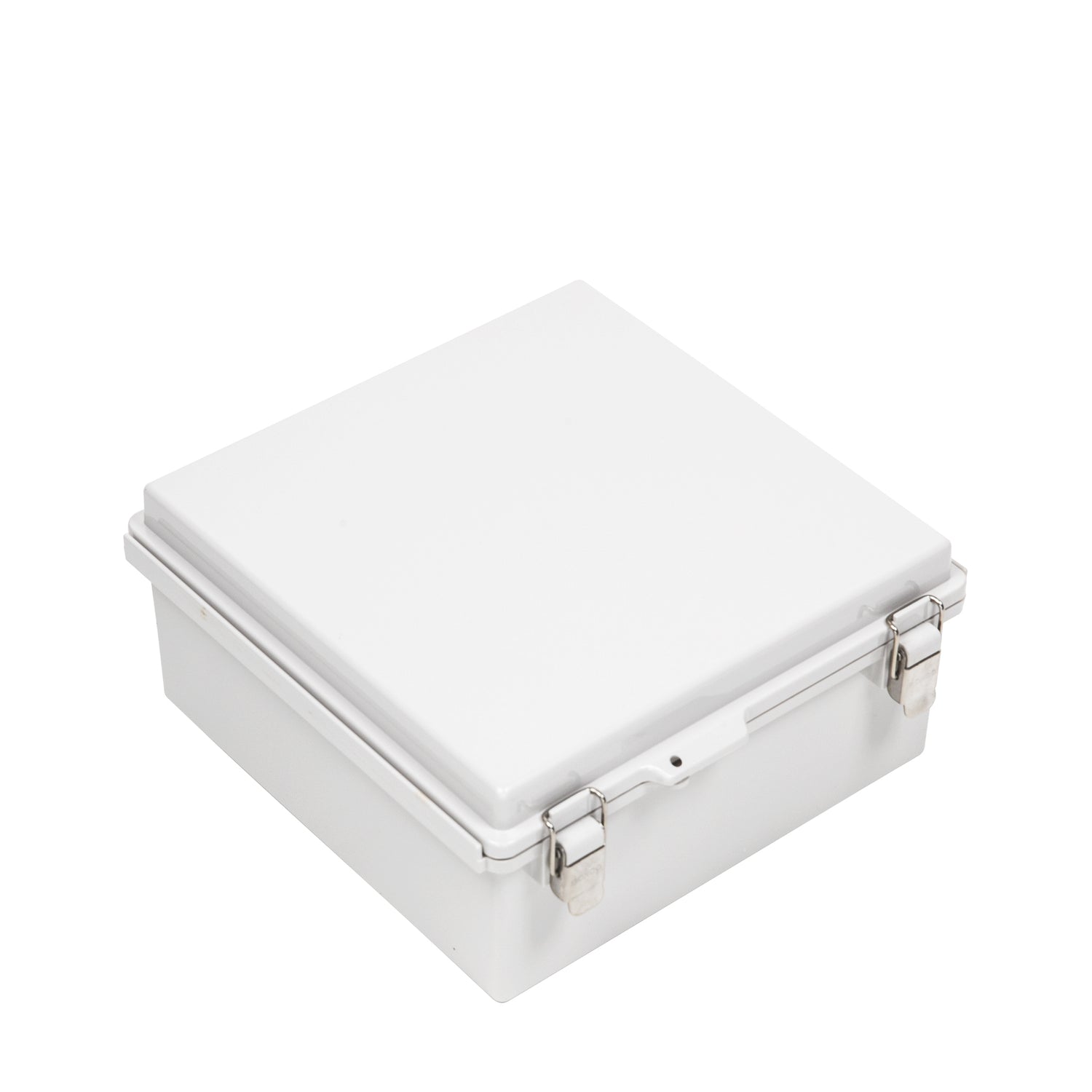

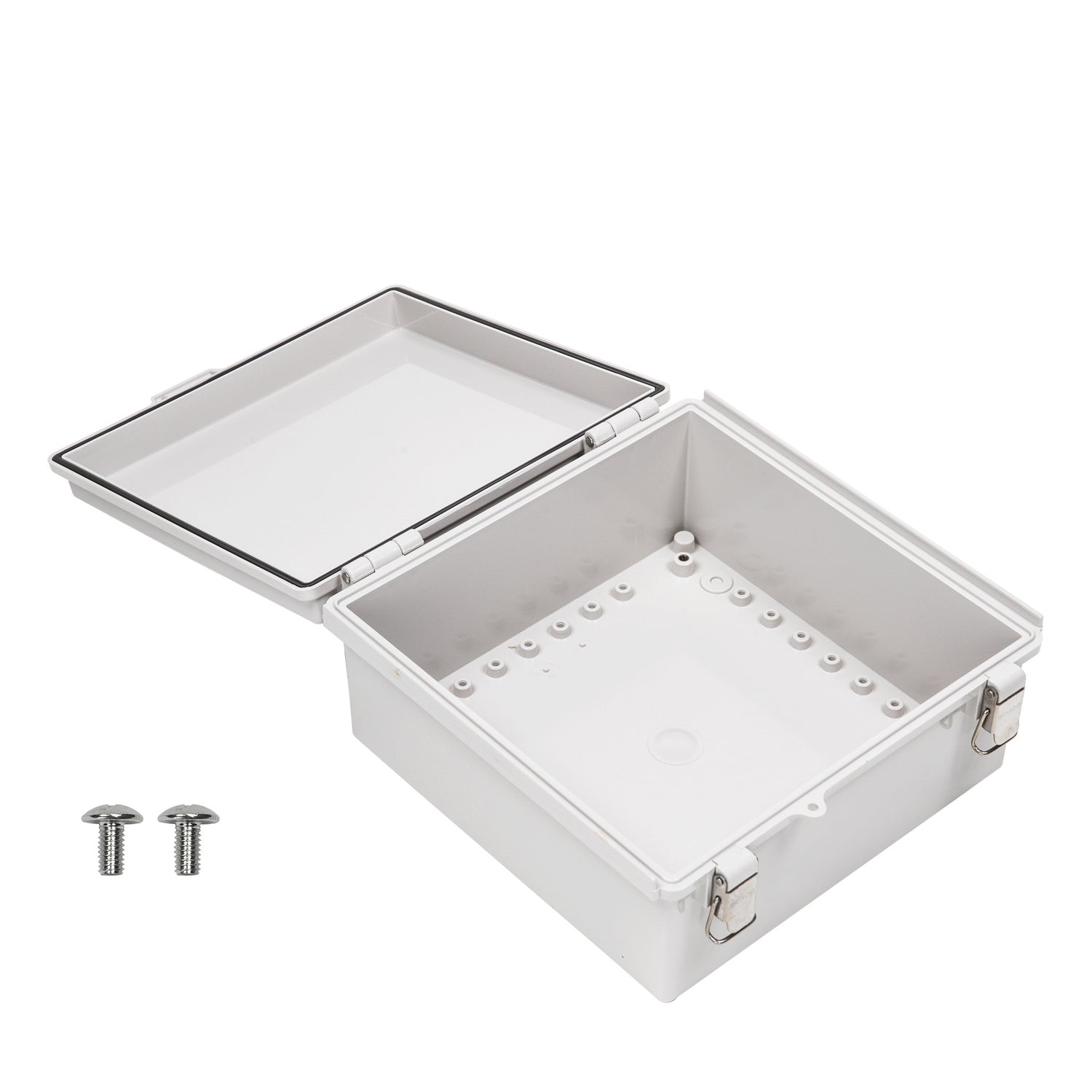

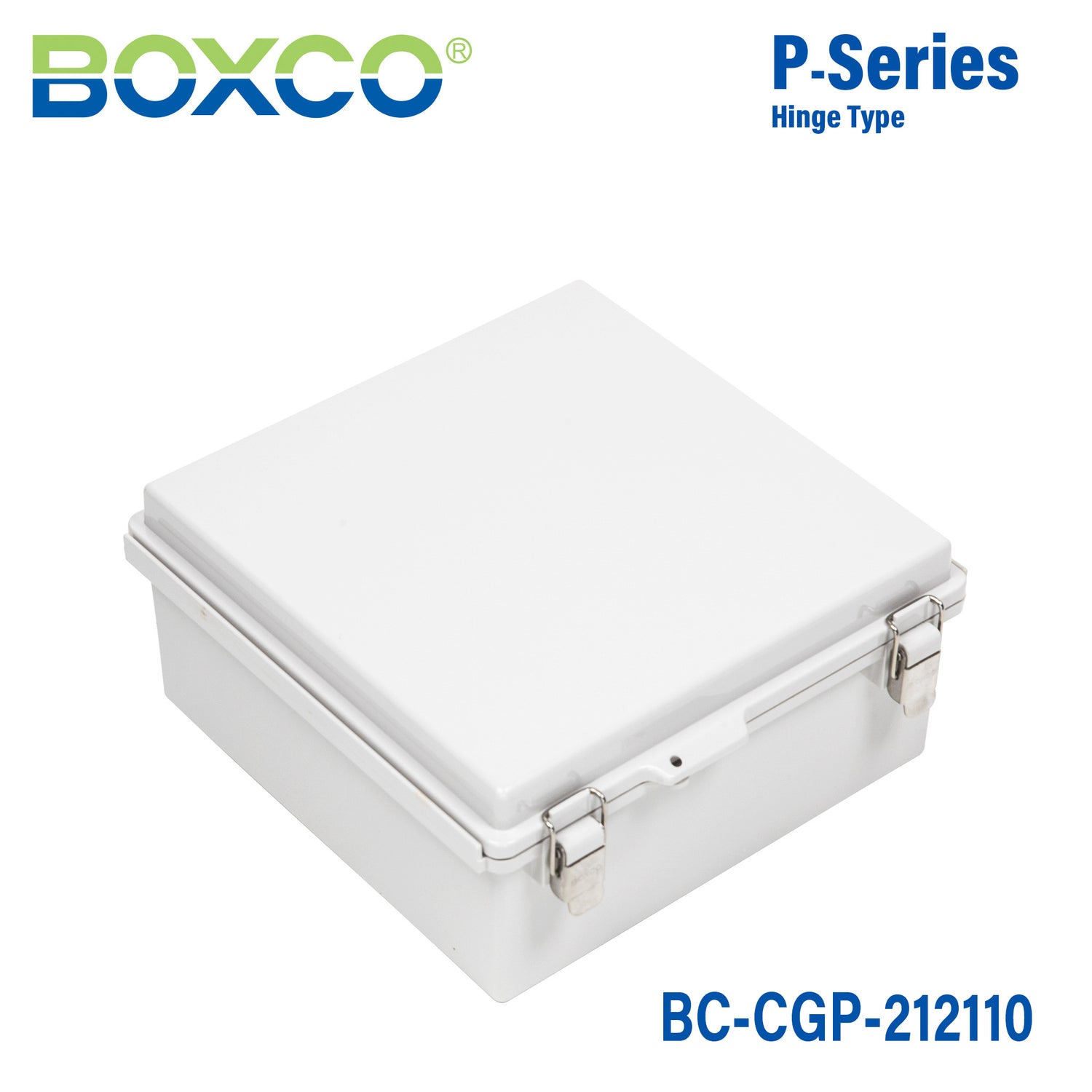

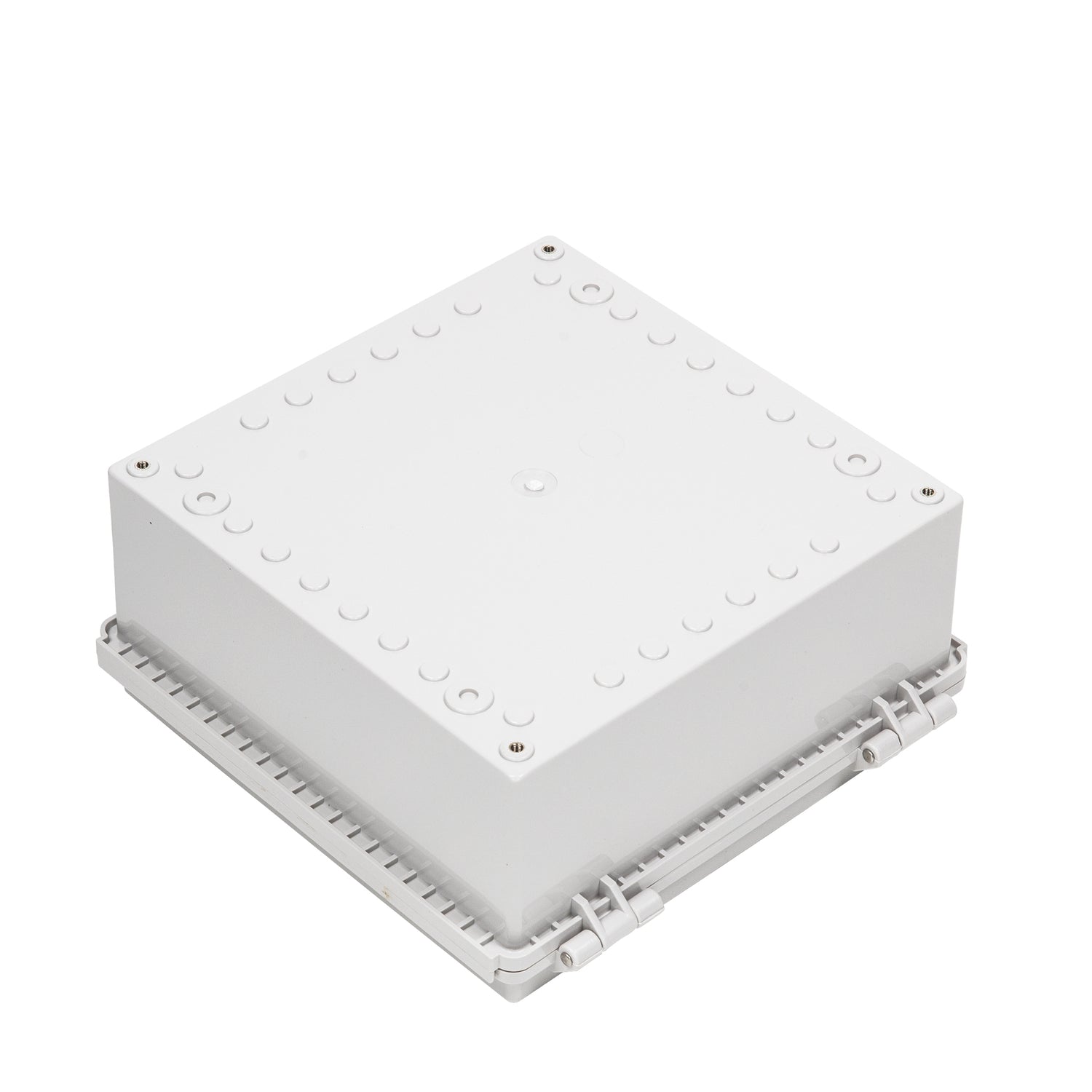

Boxco P-Series 210x210x100mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-212110
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGP-212110 is a 210×210×100 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-212110Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
210×210×100 mm (8.27×8.27×3.94 in)
Mounting plate dimension M1 × M2
179 × 179 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
2020 G (Plastic, G type), 2020 P (Plastic, P type), 2020 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

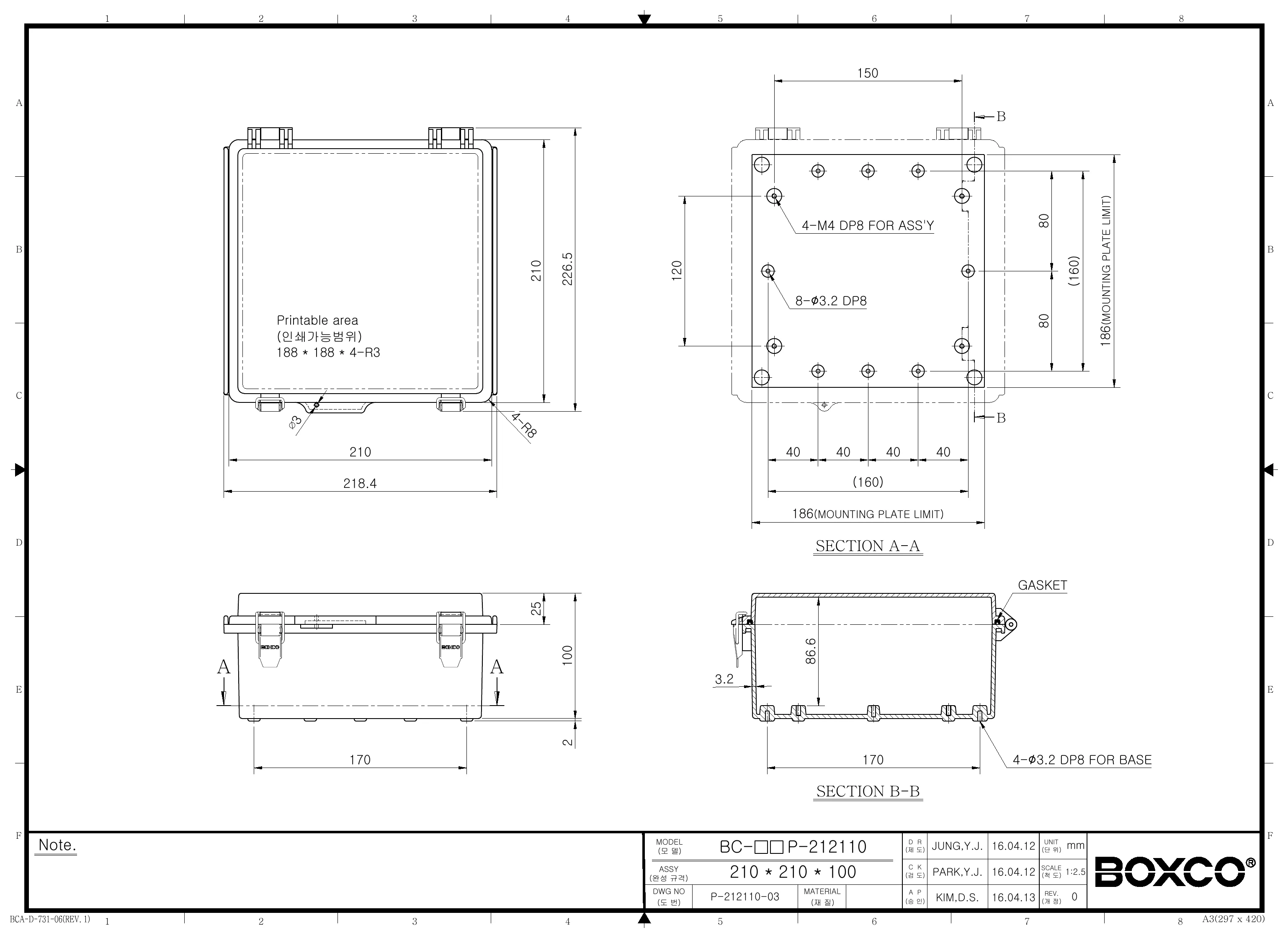

Technical drawings

BC-CGP-212110 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the dimensions of this Boxco P-Series enclosure?

This model measures 8.27 x 8.27 x 3.94 inches, which corresponds to 210 x 210 x 100 mm. It is sized for applications that need a mid-sized non-metallic enclosure with room for internal components and mounting hardware.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over time. It also includes roof protection features and an injected gasket designed to support waterproof and dust-proof performance.

What do the IP67 and IK08 ratings mean for this enclosure?

This enclosure is rated IP67 for protection against dust ingress and temporary water exposure, and IK08 for impact resistance. Combined with its polycarbonate construction, these ratings make it a strong choice for industrial and outdoor protection applications.

What material is this enclosure made from?

This model is made from polycarbonate (PC) and has a grey cover. The description also notes anti-static material use for protecting sensitive electronic instruments and high-impact-resistant construction to help prevent breakage during processing.

What temperature range can this enclosure handle?

The listed operating temperature range is -40 °C to 110 °C. That makes this model suitable for demanding environments where both low-temperature and high-temperature exposure may be a factor.

What features make this enclosure useful for industrial equipment protection?

This model includes a molded hinge and latch design, stainless steel latch components, pre-molded mounting screw nuts, gasket sealing, and mounting plate attachment points. Those features support secure closure, internal equipment support, and durable use in industrial settings.
