Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

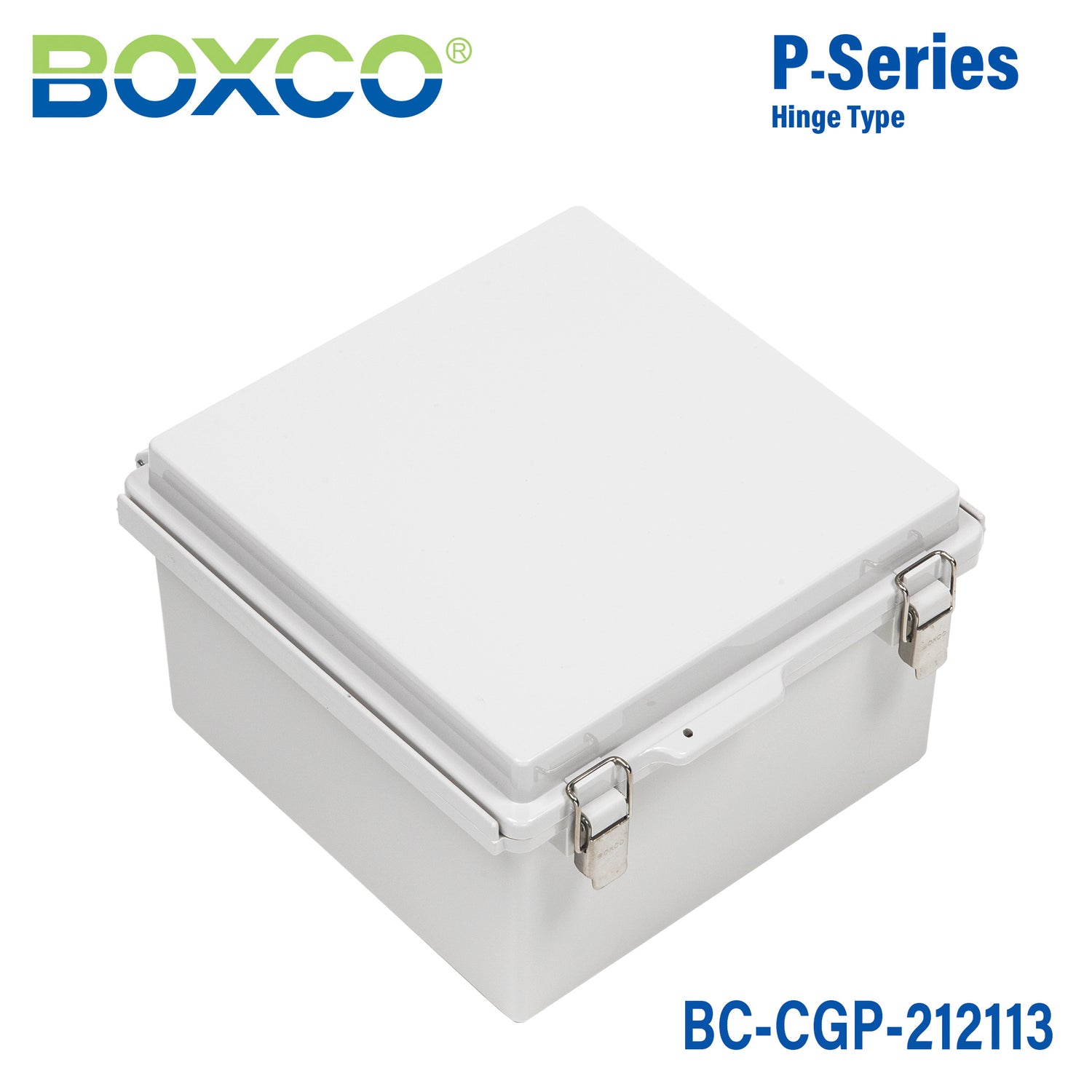

Boxco P-Series 210x210x130mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-212113
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGP-212113 is a 210×210×130 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-212113Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
210×210×130 mm (8.27×8.27×5.12 in)
Mounting plate dimension M1 × M2
179 × 179 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
2020 G (Plastic, G type), 2020 P (Plastic, P type), 2020 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

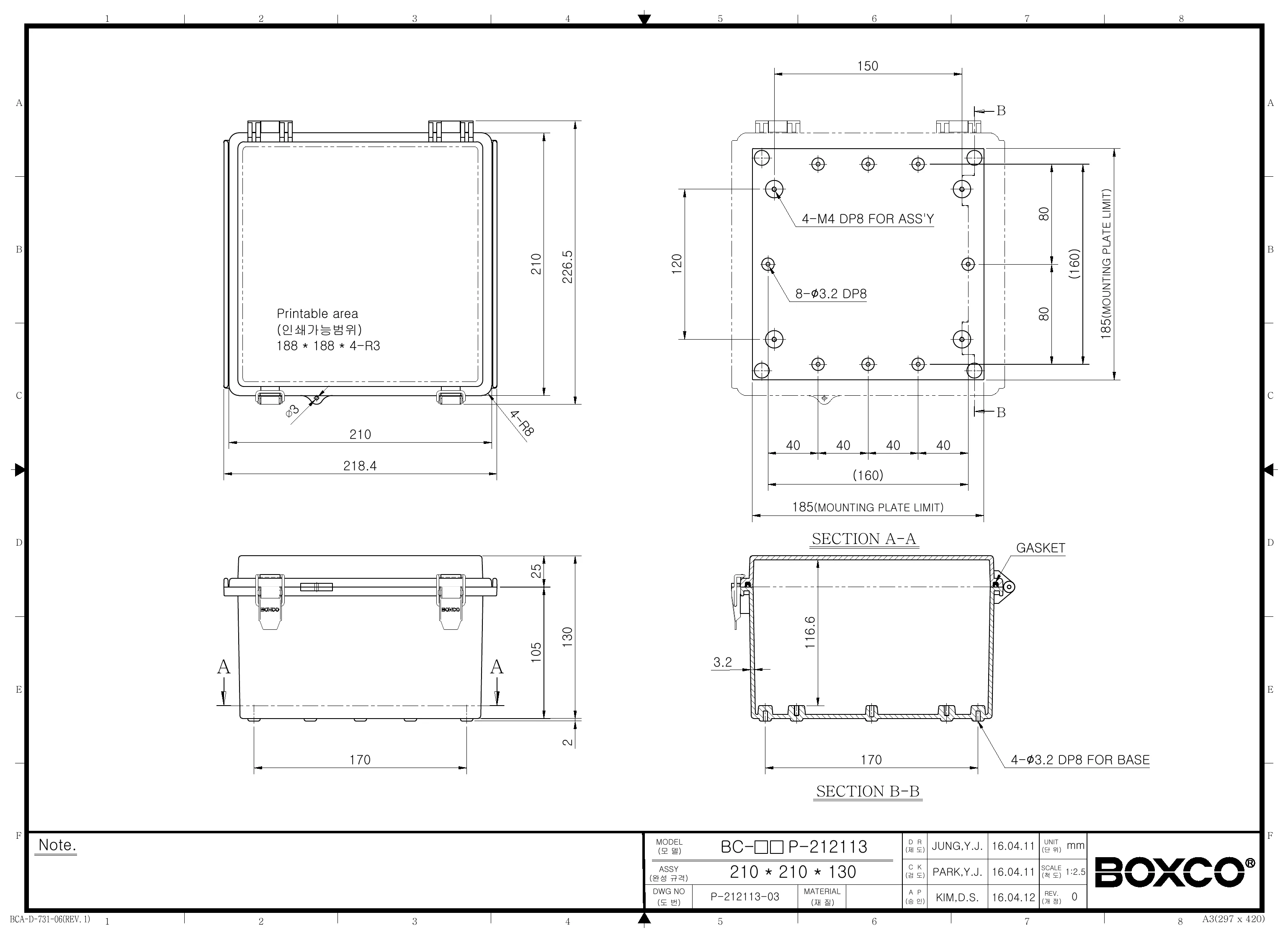

Technical drawings

BC-CGP-212113 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series 210 x 210 x 130mm enclosure suited for?

This enclosure is designed for protecting electrical or electronic equipment that needs a durable non-metallic housing. Its anti-static material, high impact resistant polycarbonate construction, and internal equipment mounting features make it a practical choice for industrial control, automation, and outdoor protection applications.

Is this enclosure suitable for outdoor use?

Yes. Boxco states that this P-Series enclosure includes an ultraviolet stabilizer to help protect it during outdoor use and reduce visible color change over time. The roof protection design at both ends also helps limit water and dust ingress when the cover is opened and closed.

What protection ratings does this model have?

This model is rated IP67 for dust-tight sealing and resistance to temporary water immersion, and IK08 for impact resistance. Those ratings support use in environments where the enclosure may be exposed to dust, moisture, and mechanical impact.

What material is this enclosure made from?

This model is made from polycarbonate (PC) and has a grey cover. The product description also notes high impact resistance and anti-static material properties, which can help protect sensitive electronic instruments from static electricity.

What temperature range can this enclosure handle?

The specified operating temperature range for this model is -40°C to 110°C. That wide range makes it suitable for demanding indoor or outdoor environments where temperatures may vary significantly.

How does this enclosure differ from a basic plastic enclosure box?

This model adds several features beyond a basic box, including a molded hinge and latch-type cover, IP67 and IK08 ratings, UV-stabilized material for outdoor use, and anti-static construction. It also includes pre-molded mounting screw nuts and dedicated attachment points for an internal mounting plate.

What size is this enclosure, and how much does it weigh?

The enclosure measures 8.27 x 8.27 x 5.12 inches, which corresponds to 210 x 210 x 130 mm. Its listed weight is 0.94 kg.
