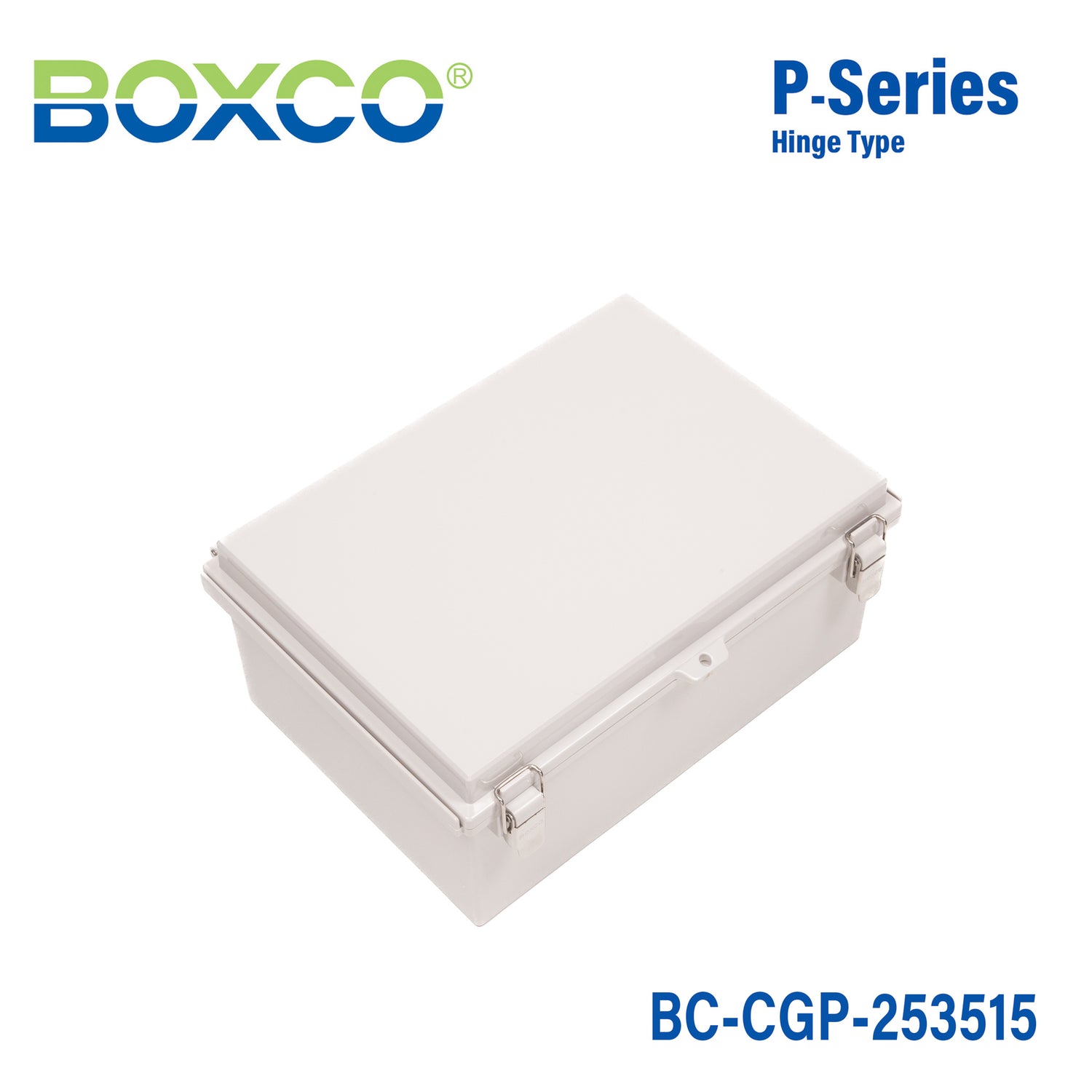

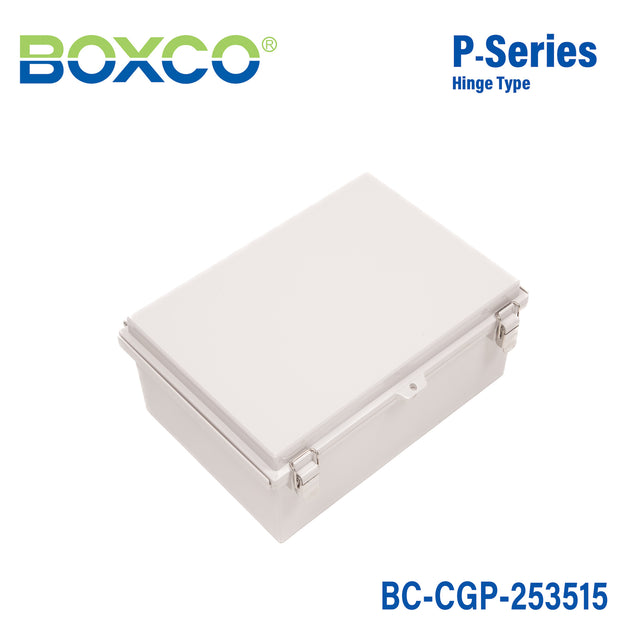

Boxco P-Series 250x350x150mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-253515
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGP-253515 is a 250×350×150 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-253515Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
250×350×150 mm (9.84×13.78×5.91 in)
Mounting plate dimension M1 × M2
216 × 316 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
2535 P (Plastic, P type), 2535 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

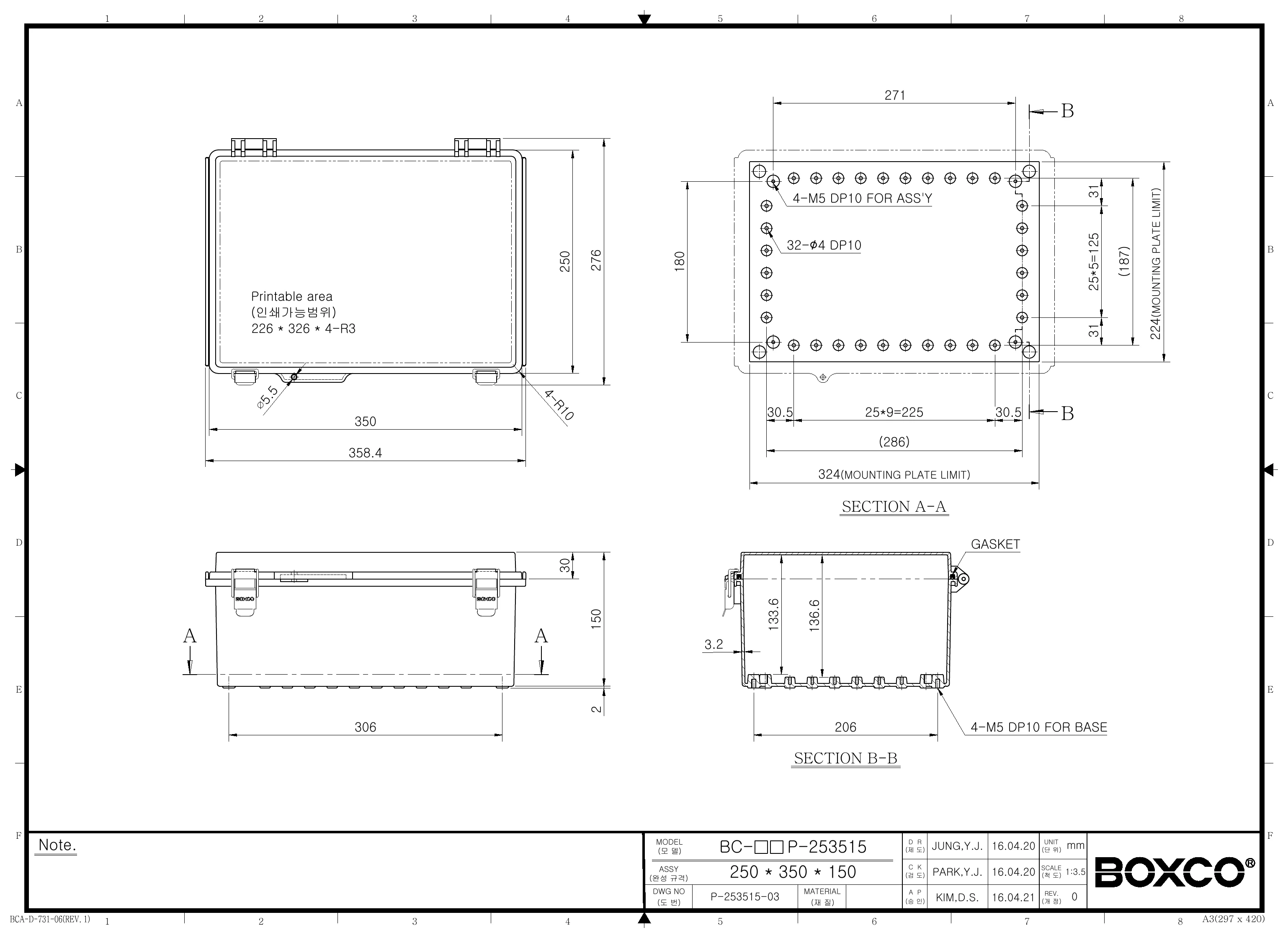

Technical drawings

BC-CGP-253515 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco P-Series enclosure typically used for?

This enclosure is suited to protecting control, monitoring, and instrumentation components that need a sealed non-metallic housing. Its IP67 rating, IK08 impact resistance, and UV-stabilized polycarbonate construction make it a practical option for industrial and outdoor equipment enclosures.

Is this enclosure suitable for outdoor environments?

Yes, this model is built for outdoor use. The description specifies a UV stabilizer for long-term exposure, and the enclosure includes roof protection features designed to help reduce water and dust penetration during outdoor operation.

What protection ratings does this enclosure have?

This enclosure is rated IP67 and IK08. IP67 indicates strong protection against dust ingress and temporary water exposure, while IK08 indicates resistance to mechanical impact for more demanding industrial settings.

What material is this enclosure made from, and why does it matter?

This model is made from polycarbonate (PC). According to the product description, the material is high impact resistant, includes anti-static properties for sensitive electronic instruments, and is designed to resist breakage during hole and press processing.

What are the dimensions and operating temperature range of this enclosure?

The enclosure measures 9.84 x 13.78 x 5.91 inches, which corresponds to 250 x 350 x 150 mm. Its stated operating temperature range is -40 C to 110 C, which supports use across both cold and high-heat environments.

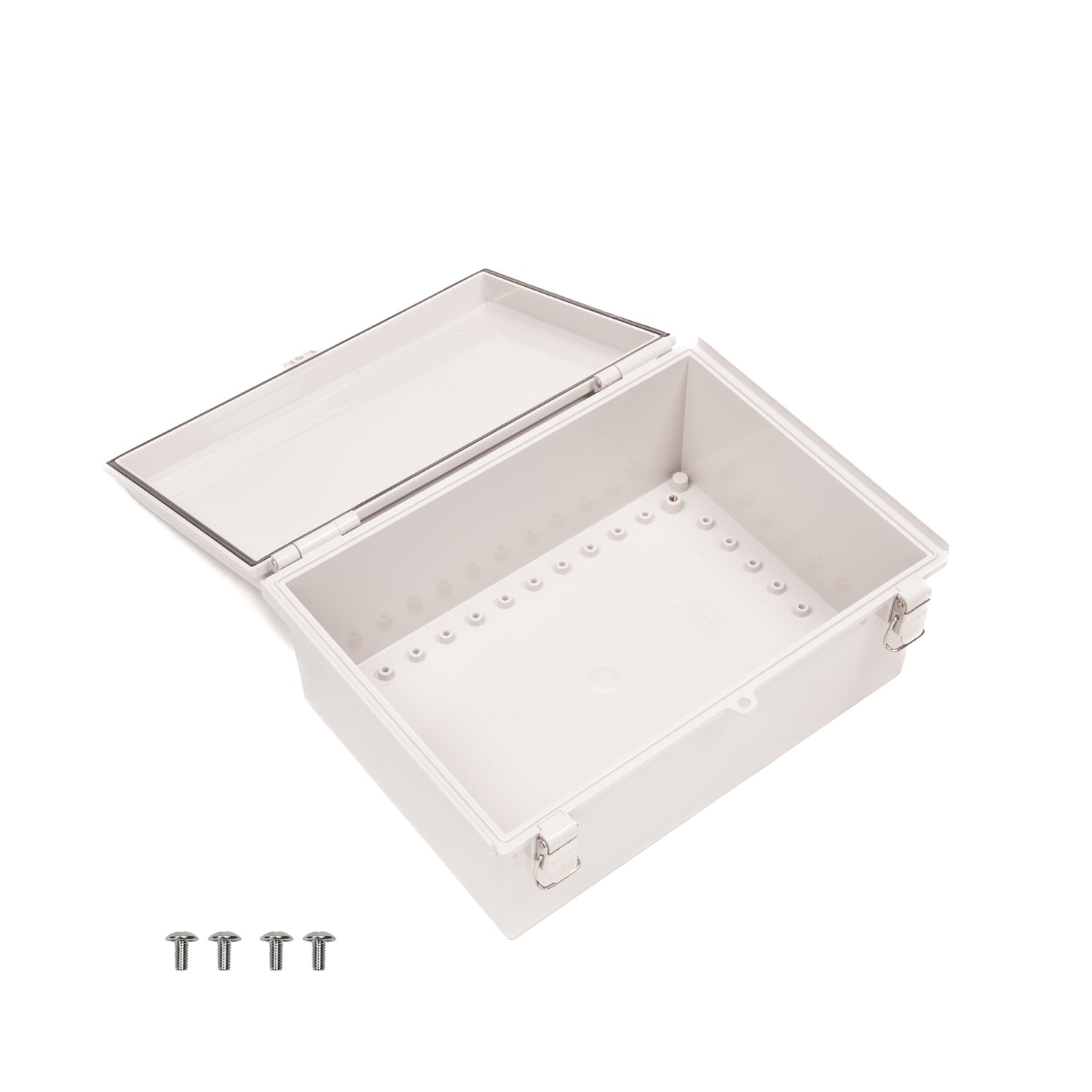

Does this model include features that help with internal equipment mounting?

Yes, it includes pre-molded mounting screw nuts and attachment points for an internal mounting plate. Those features are intended to make it easier to secure DIN rail or other internal equipment while supporting heavier installed components.

What distinguishes this hinged Boxco P-Series enclosure from a basic non-hinged enclosure?

This version uses an integrated molded hinge and latch-style closure, which can be more practical when the enclosure needs to be opened repeatedly for inspection or servicing. The hinge is integrated into the enclosure body, and the bearing is stainless steel to improve service life.
