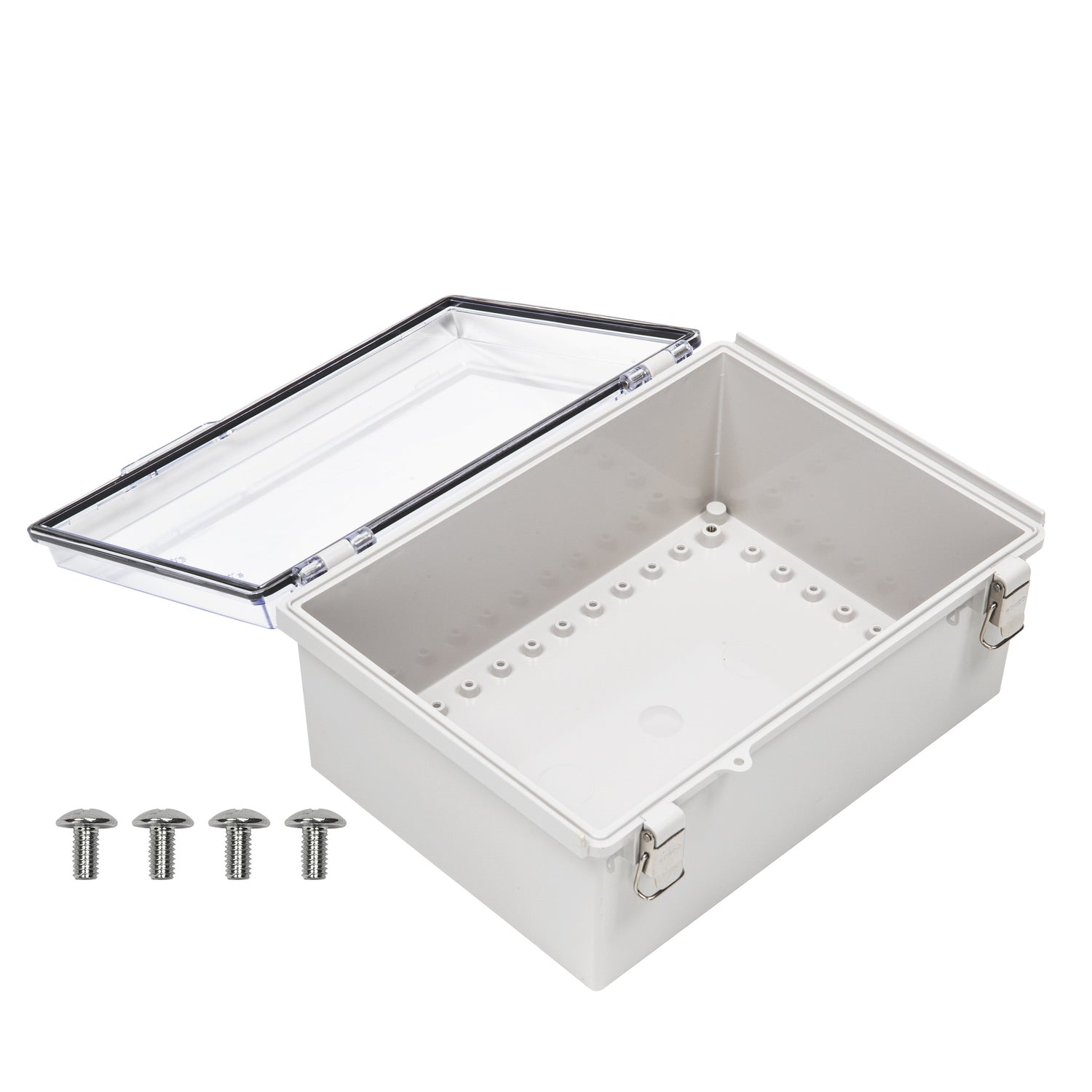

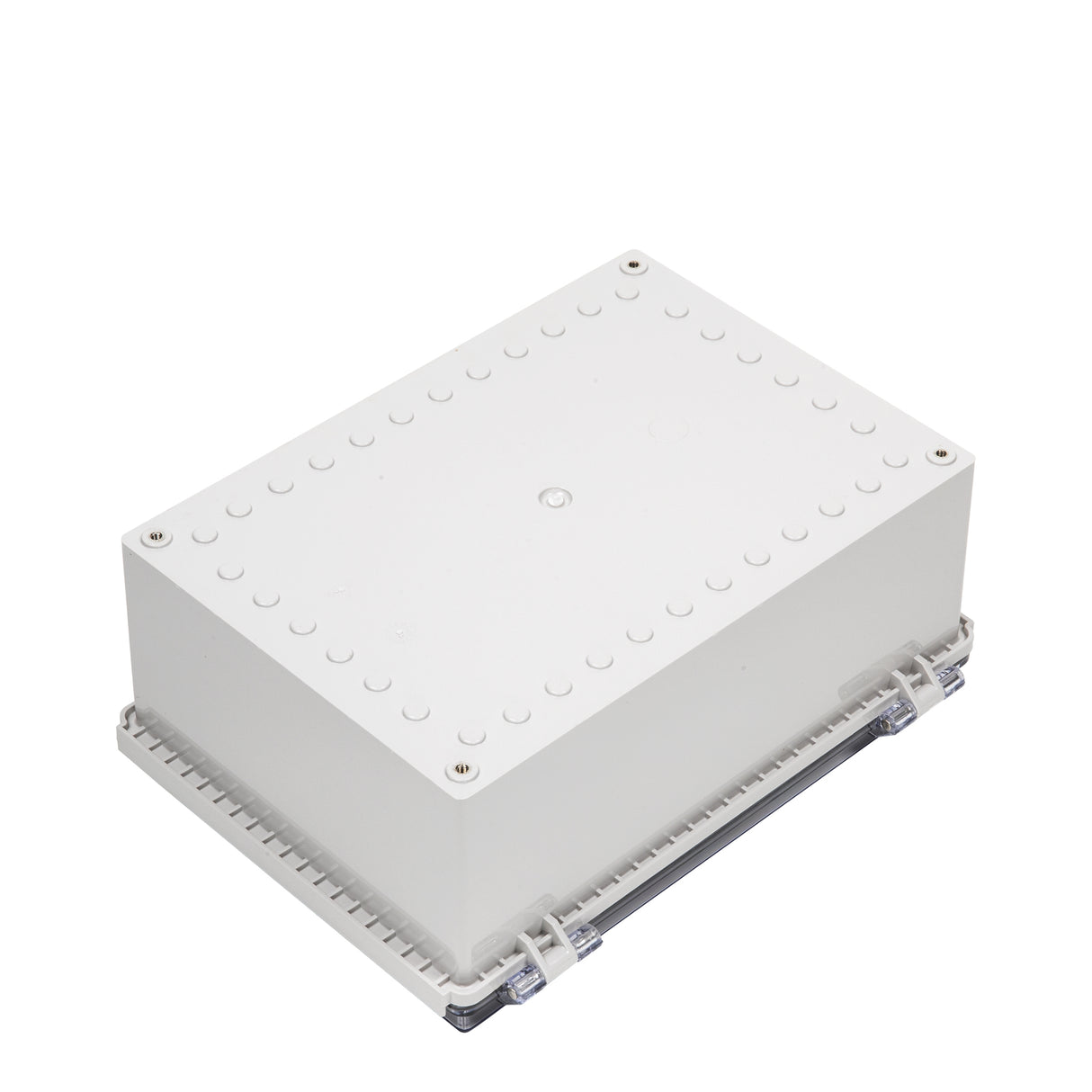

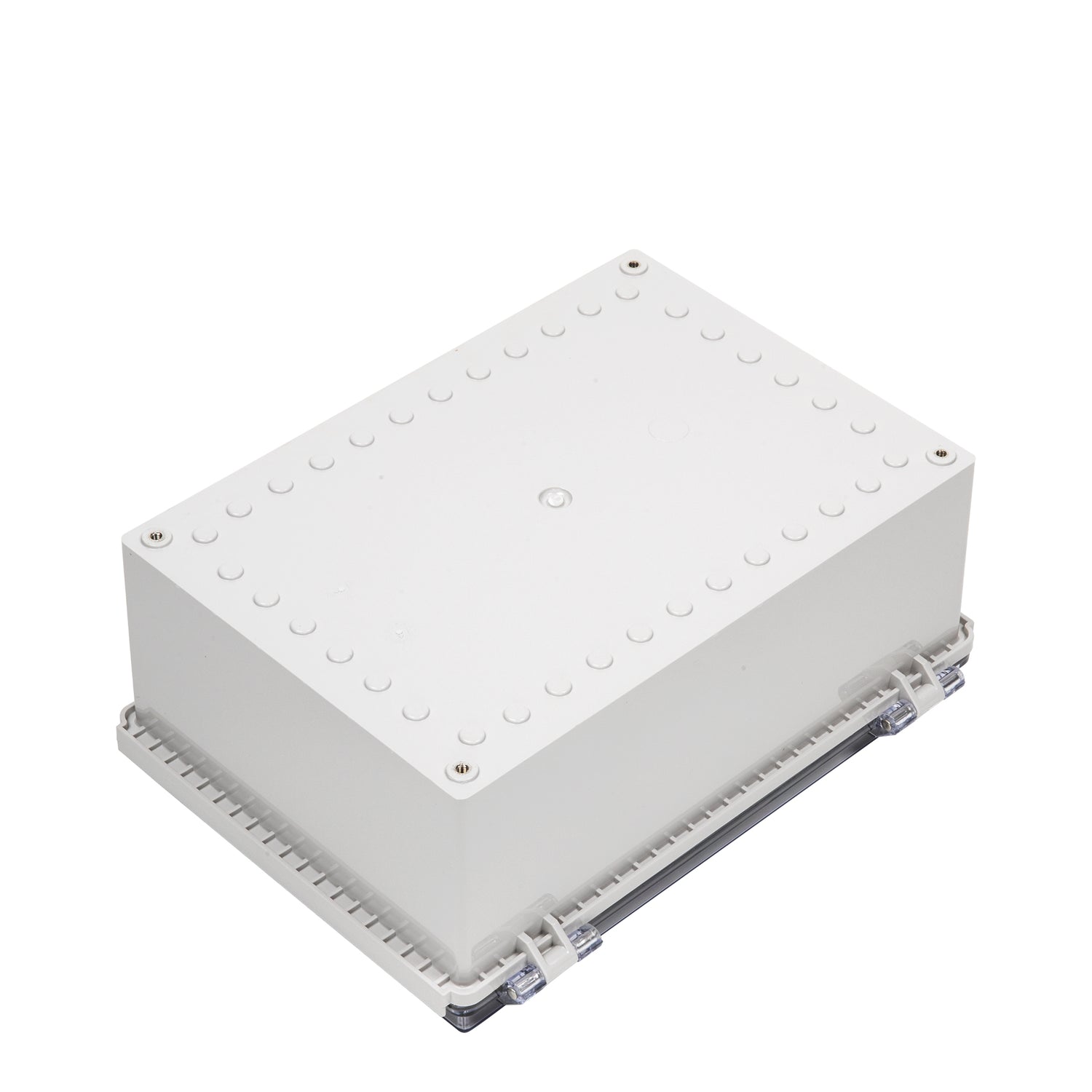

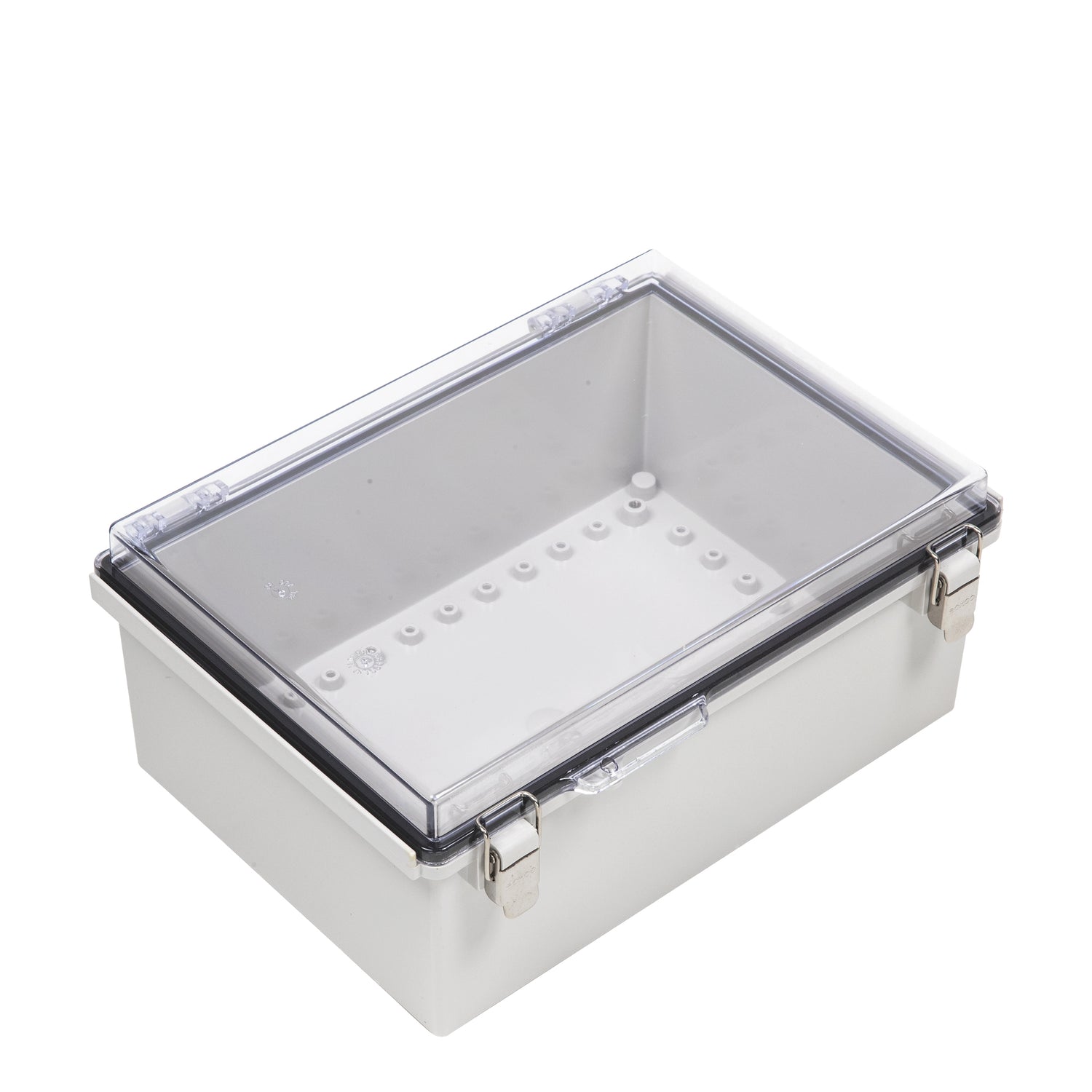

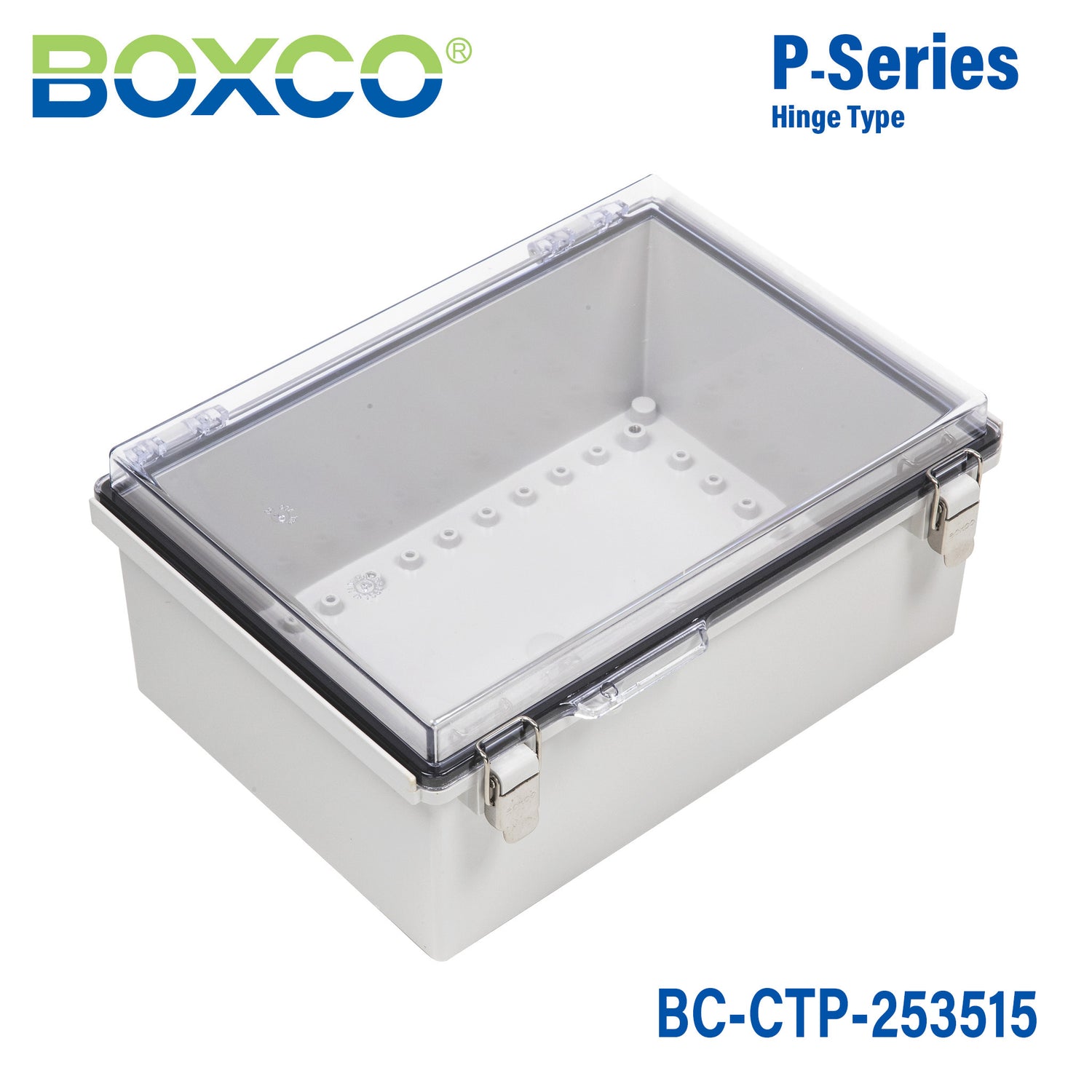

Boxco P-Series 250x350x150mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type

SKU BC-CTP-253515
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTP-253515 is a 250×350×150 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CTP-253515Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
250×350×150 mm (9.84×13.78×5.91 in)
Mounting plate dimension M1 × M2
216 × 316 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
2535 P (Plastic, P type), 2535 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

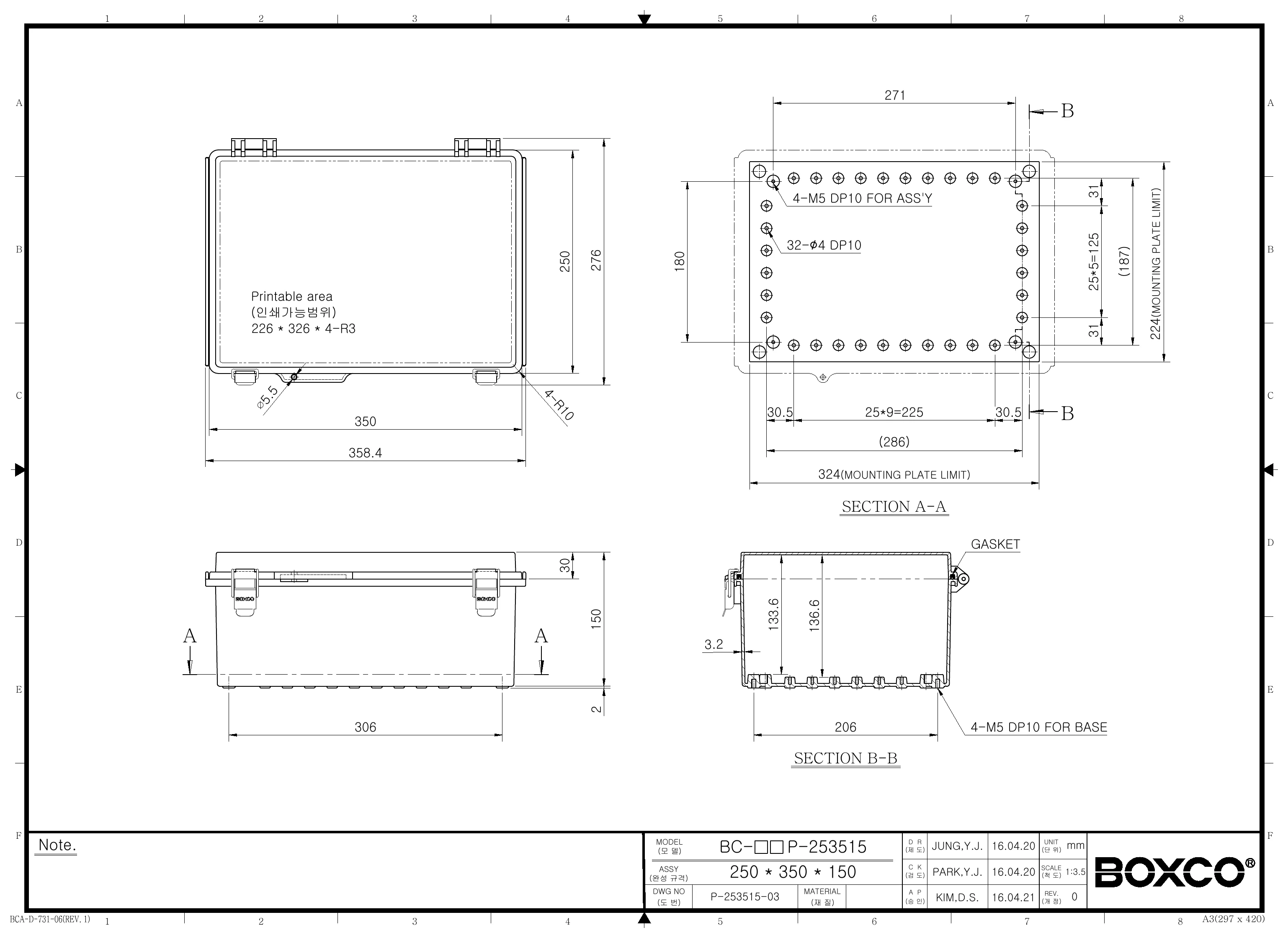

Technical drawings

BC-CTP-253515 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco P-Series enclosure best suited for?

This enclosure is designed for protecting electrical and electronic components in industrial and outdoor environments where dust, water, and impact resistance matter. Its transparent cover makes it useful when contents need to be visually checked without opening the enclosure. The anti-static material also makes it a practical option for housing sensitive electronic instruments.

How durable is this enclosure in harsh outdoor conditions?

This model is rated IP67 for water and dust protection and IK08 for impact resistance. It also includes an ultraviolet stabilizer to help reduce visible color change during long-term outdoor exposure. Boxco additionally describes the body material as high impact resistant for better durability during use and processing.

What are the material and cover type for this enclosure?

This model is made from polycarbonate (PC) and includes a transparent cover. The cover uses a molded hinge and latch design, and the hinge includes a stainless steel bearing to improve service life. The latch main body is also described as stainless steel for added strength.

What are the dimensions of this Boxco P-Series enclosure?

The enclosure measures 9.84 x 13.78 x 5.91 inches, which corresponds to 250 x 350 x 150 mm. This size provides a relatively large internal space compared with smaller general-purpose enclosures. Buyers evaluating fit should use these external dimensions as the starting reference for panel and equipment planning.

What temperature range can this enclosure handle?

This model is specified for use from -40 degrees C up to 110 degrees C. That wide operating range makes it suitable for demanding environments with significant temperature variation. Buyers needing both cold-weather and elevated-temperature performance often look for this type of range.

Does this enclosure support mounting internal components securely?

Yes, the product description states that it includes pre-molded mounting screw nuts for securing DIN rail or other equipment. It also has internal mounting plate attachment points with brass inserted injection molding to help support heavier installed equipment. These built-in features make it better suited for organized internal component layouts than a plain empty box.

What differentiates this P-Series enclosure from a basic plastic enclosure?

Compared with a basic plastic enclosure, this model combines IP67 and IK08 ratings, a transparent cover, integrated molded hinge and latch construction, UV-stabilized material, and anti-static properties. It also includes outdoor-oriented details such as roof protection geometry and a precision-injected gasket for sealing performance. Those features make it more specialized for industrial and outdoor protection than a simple utility box.
