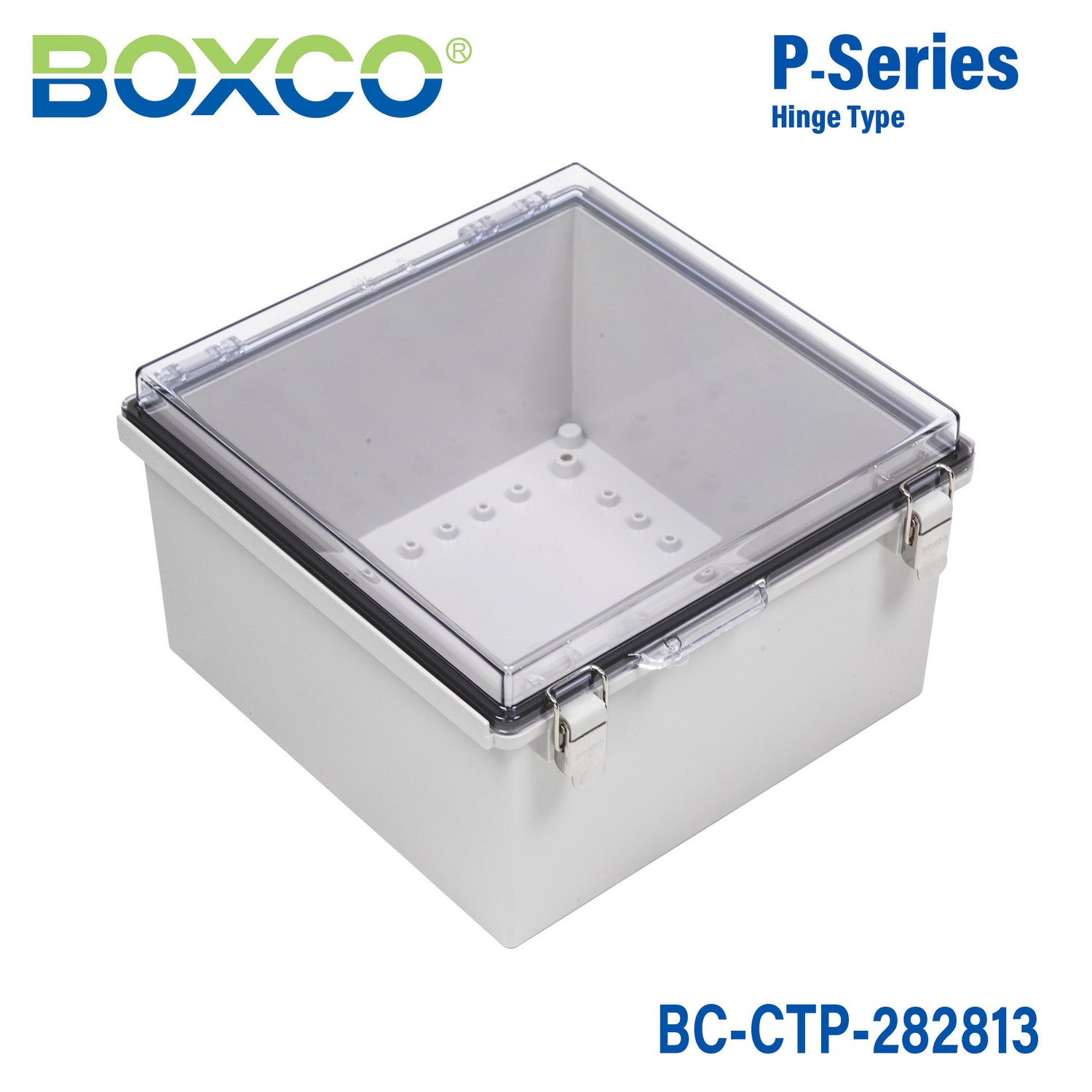

Boxco P-Series 280x280x130mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type

SKU BC-CTP-282813
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTP-282813 is a 280×280×130 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CTP-282813Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
280×280×130 mm (11.02×11.02×5.12 in)
Mounting plate dimension M1 × M2
248 × 248 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
2828 P (Plastic, P type), 2828 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

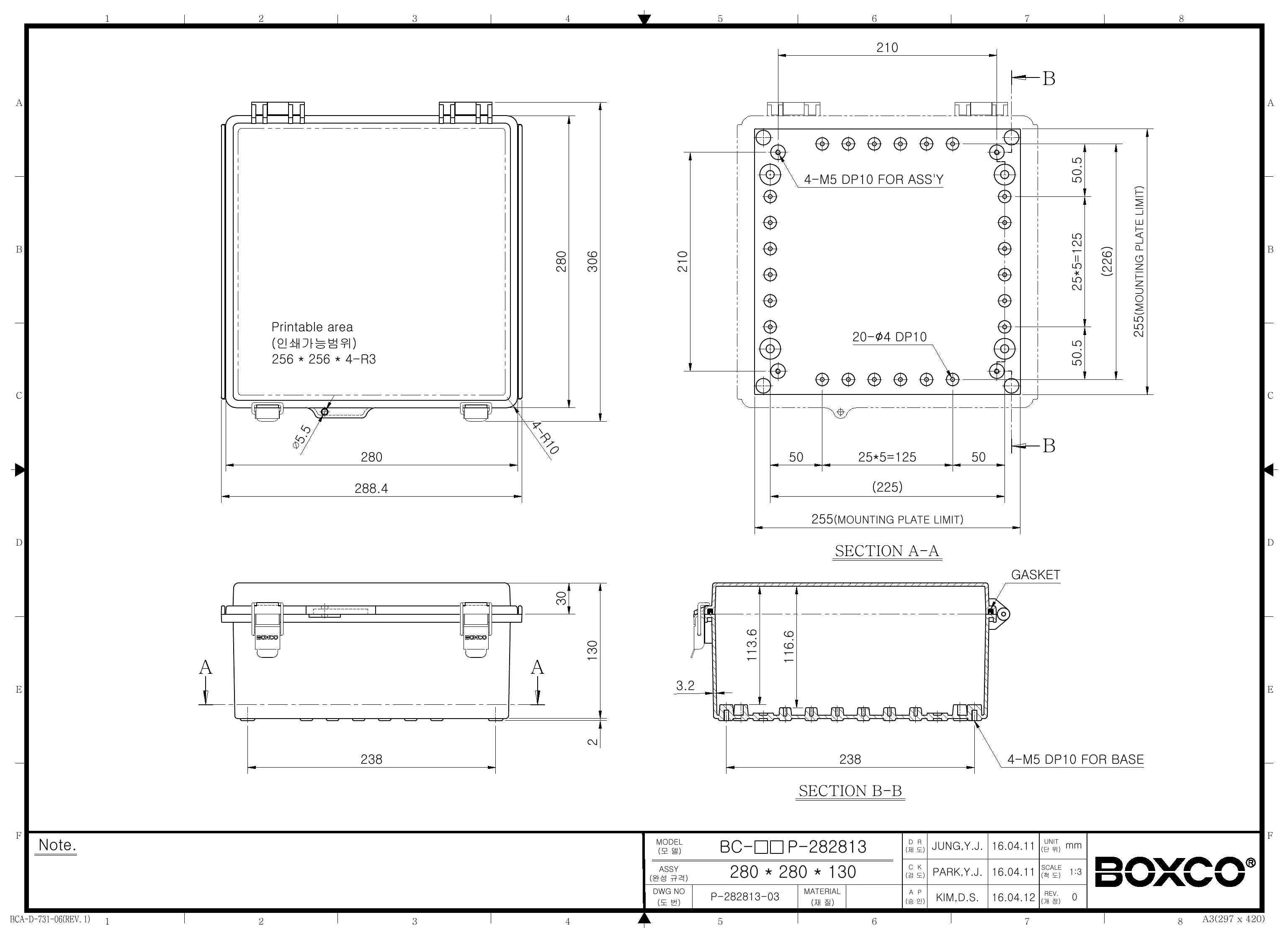

Technical drawings

BC-CTP-282813 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main protection ratings of the Boxco P-Series BC-CTP-282813 enclosure?

This model is rated IP67 for dust-tight and water-resistant enclosure performance and IK08 for impact resistance. It is built from polycarbonate with a transparent cover and is intended for demanding indoor or outdoor equipment protection. The product description also notes UV stabilizer and anti-static material for added durability in exposed or sensitive applications.

Is the BC-CTP-282813 suitable for outdoor use?

Yes, this enclosure is designed for outdoor use. The P-Series description states that UV stabilizer is added to reduce long-term color change, and the roof-protection design helps resist water and dust intrusion when the cover is opened and closed. Its IP67 rating also supports use in exposed environments where moisture and dust are concerns.

What size is this enclosure, and how much internal capacity does it offer?

The enclosure size is 11.02 x 11.02 x 5.12 inches, which corresponds to 280 x 280 x 130 mm. That makes it a relatively large plastic enclosure for control, protection, or housing applications that need more internal space than compact junction-style boxes. The listed product weight is 1.385 kg.

What makes this model different from a standard non-hinged plastic enclosure?

This version includes a molded hinge and latch-type cover, which distinguishes it from simpler screw-fastened box designs. The hinge is integrated into the enclosure, and the bearing is stainless steel to improve service life. It also uses a transparent cover, which is useful when internal indicators or components need to remain visible without opening the box.

Can the BC-CTP-282813 be used for sensitive electronic equipment?

Yes, it is suitable for applications involving sensitive electronics because the description specifies anti-static material. That helps reduce static-related risk compared with general-purpose plastic housings that do not call out this feature. Its impact-resistant polycarbonate construction also helps protect equipment from external mechanical stress.

What temperature range can this enclosure handle?

The listed operating temperature range is -40 °C to 110 °C. That supports use in both cold and high-heat environments where lighter-duty enclosures may be unsuitable. Buyers should still confirm that the full assembled application stays within the limits of both the enclosure and the installed equipment.

Does this enclosure support internal mounting hardware or equipment plates?

Yes, the product description states that it includes pre-molded mounting screw nuts and mounting plate attachment points. It is designed so internal mounting plates can be fixed tightly onto brass inserted injection molding to support heavier installed equipment. This makes it more suitable for organized internal layouts than a basic empty box without mounting provisions.

What warranty is listed for the BC-CTP-282813?

The listed warranty period for this model is 1 year. For buyers comparing enclosure options, that provides a defined baseline for support on this specific Boxco P-Series unit. Warranty terms beyond the listed period would need to be confirmed with the seller or manufacturer documentation.
