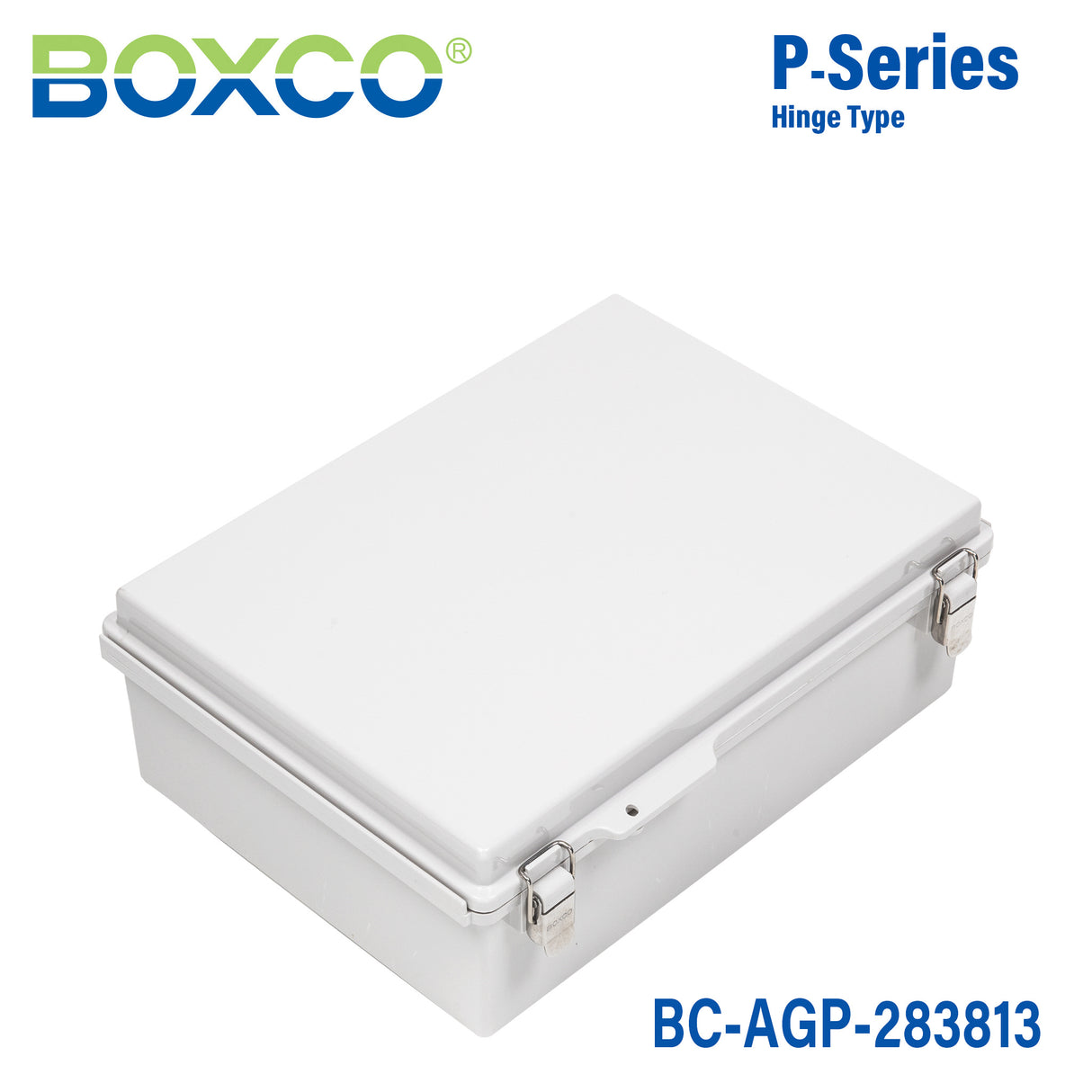

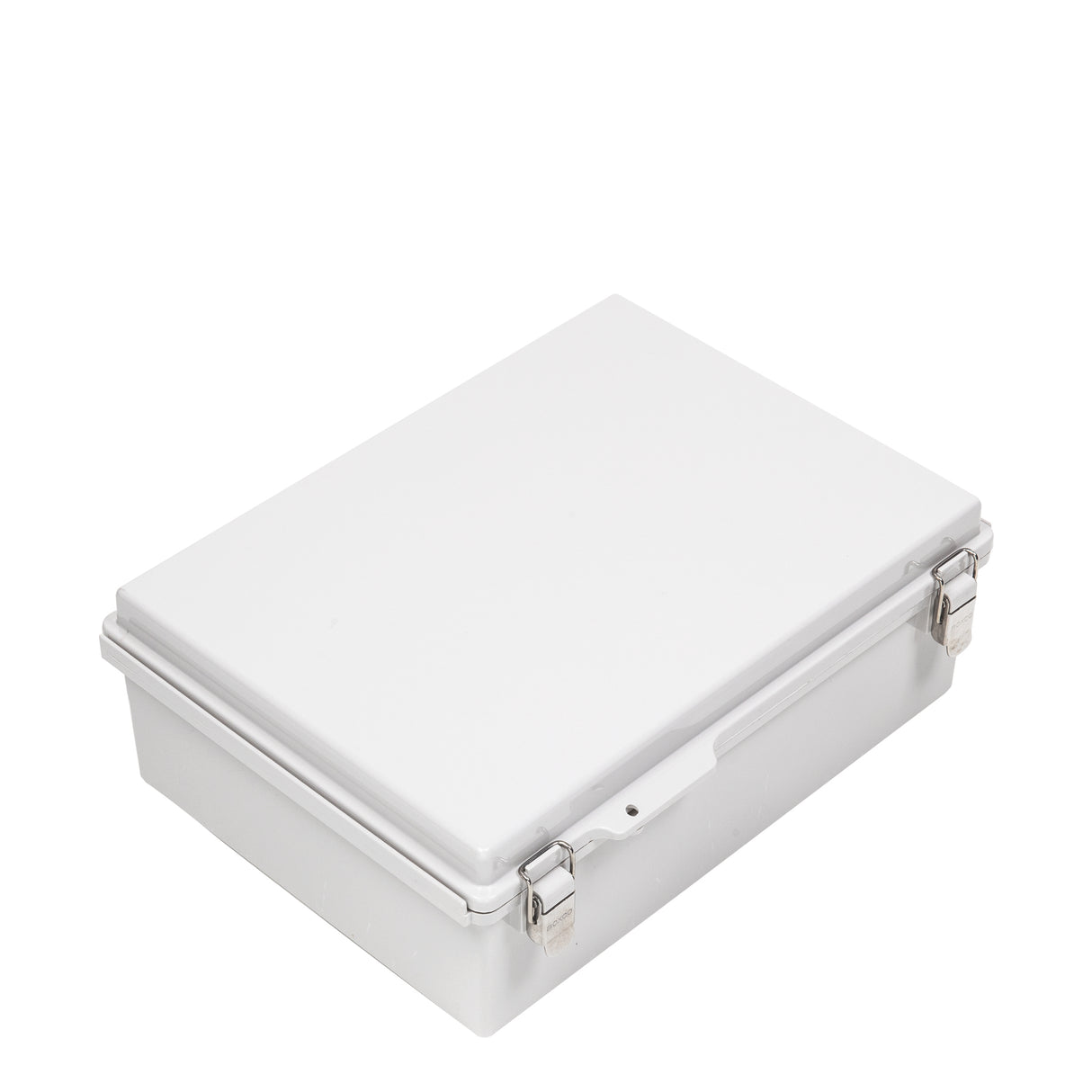

Boxco P-Series 280x380x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-283813
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGP-283813 is a 280×380×130 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-283813Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
280×380×130 mm (11.02×14.96×5.12 in)
Mounting plate dimension M1 × M2
249 × 348 mm

Material

Material
ABS
Cover
Grey
Mounting plates
2838 PG (Plastic, PG type), 2838 P (Plastic, P type), 2838 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

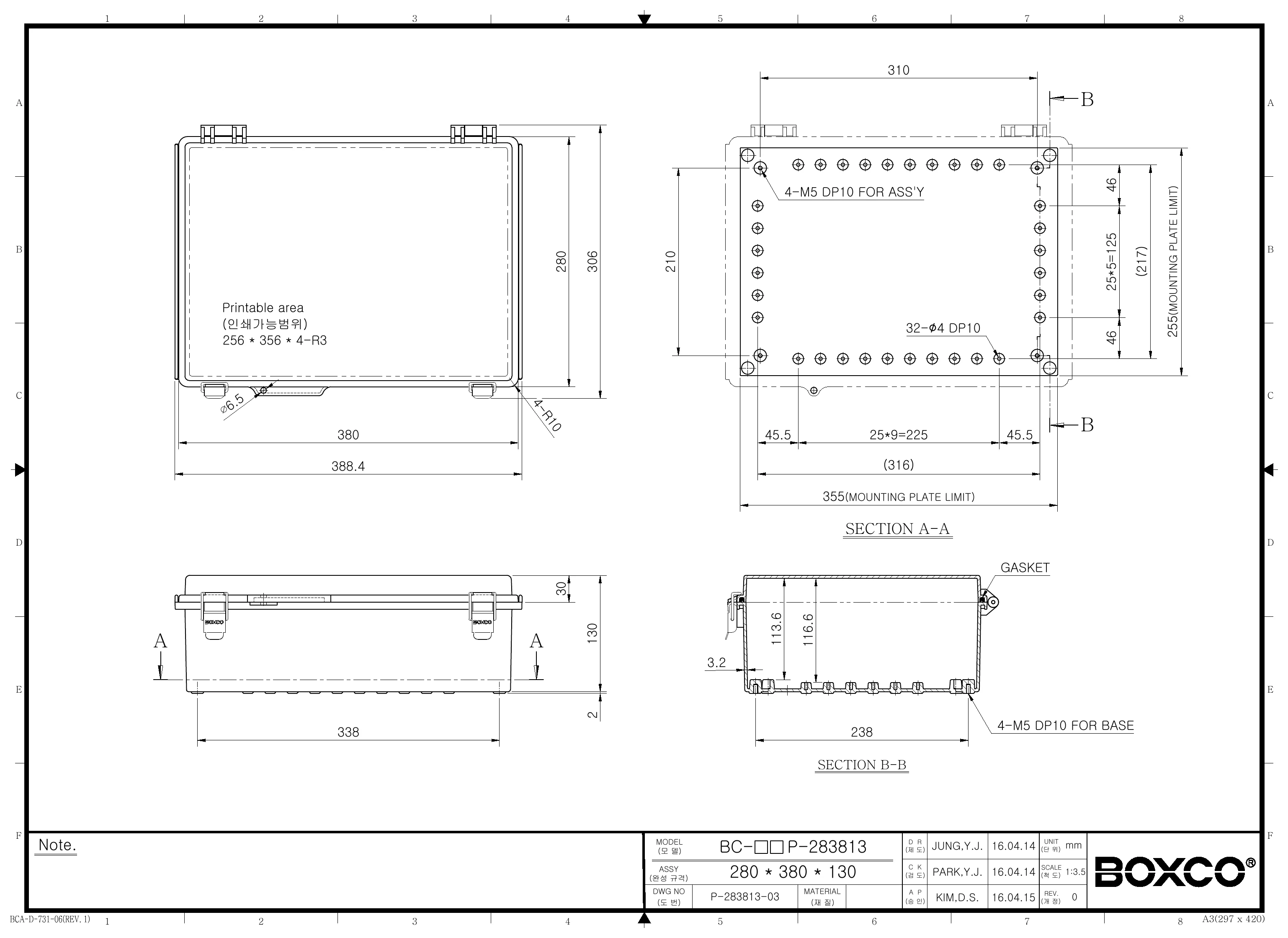

Technical drawings

BC-AGP-283813 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

Is this enclosure suitable for outdoor or washdown environments?

This Boxco P-Series enclosure is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. The product description also states that an ultraviolet stabilizer is added for outdoor use, and the roof-protection design helps reduce water and dust entry when opening or closing the cover.

What are the key size and material specifications for this enclosure?

This model measures 11.02 x 14.96 x 5.12 inches, which corresponds to 280 x 380 x 130 mm. It is made from ABS with a grey cover, uses a molded hinge and latch design, and has a listed weight of 1.436 kg.

How durable is this plastic enclosure for industrial use?

This enclosure is designed for demanding environments with an IK08 impact rating and high-impact-resistant ABS construction. The description also notes a stainless steel latch component and a stainless steel hinge bearing to improve durability over repeated use.

What kinds of equipment is this enclosure a good fit for?

This model is intended for protecting electrical or electronic equipment that needs a sealed plastic enclosure with hinge-and-latch access. Its anti-static material and internal mounting features make it relevant for housing sensitive electronic instruments and heavier internal components where a secure enclosure is needed.

Does this enclosure support internal mounting plates or rail-mounted hardware?

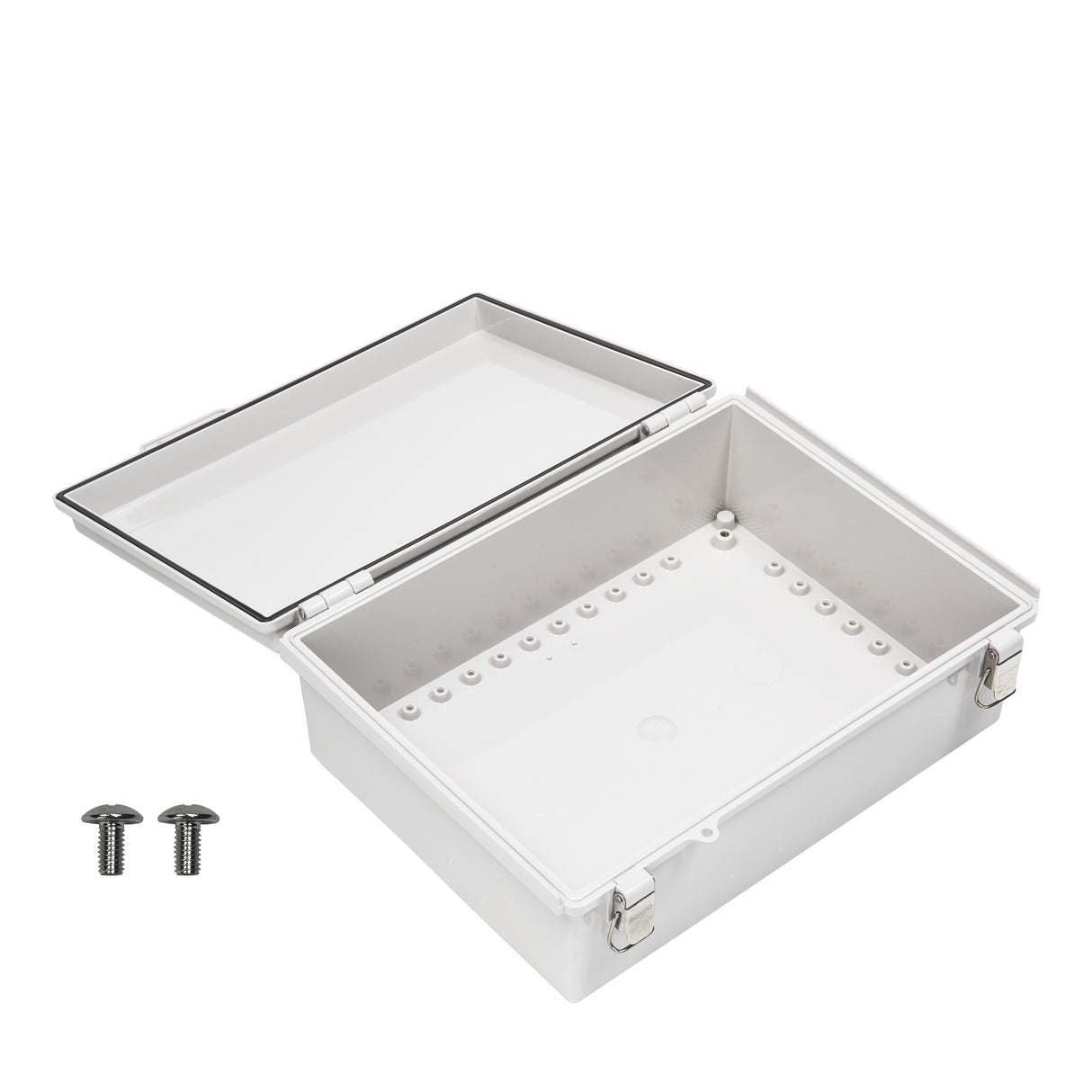

Yes. The product description states that it includes pre-molded mounting screw nuts for fixing DIN rail or other equipment, and it also includes mounting plate attachment points designed to secure an internal mounting plate tightly.

What operating temperature range does this enclosure support?

The listed operating temperature range for this model is -40 degrees C to 70 degrees C. That makes it suitable for a wide range of indoor and outdoor industrial conditions where both low-temperature and elevated-temperature performance matter.
