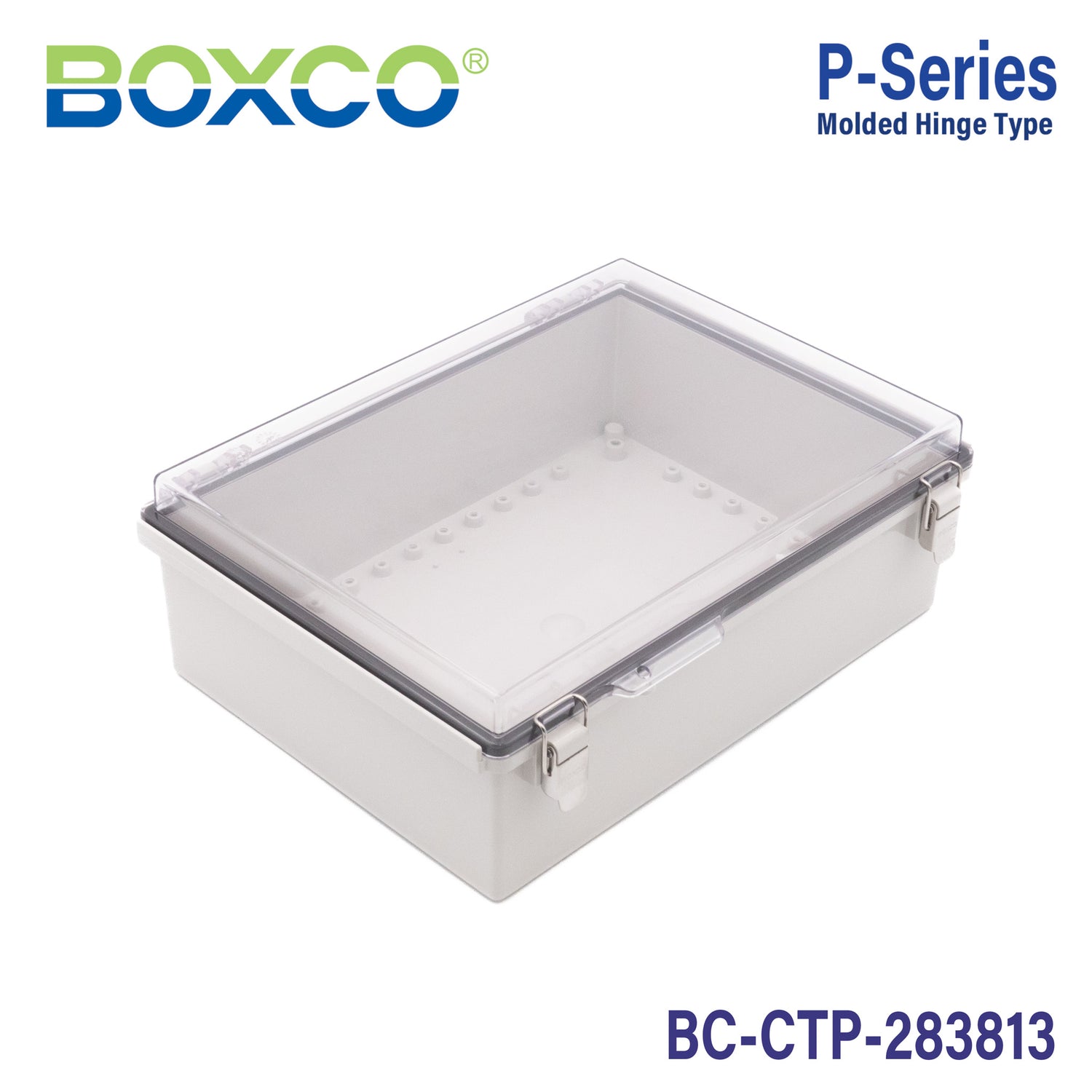

Boxco P-Series 280x380x130mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type

SKU BC-CTP-283813
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

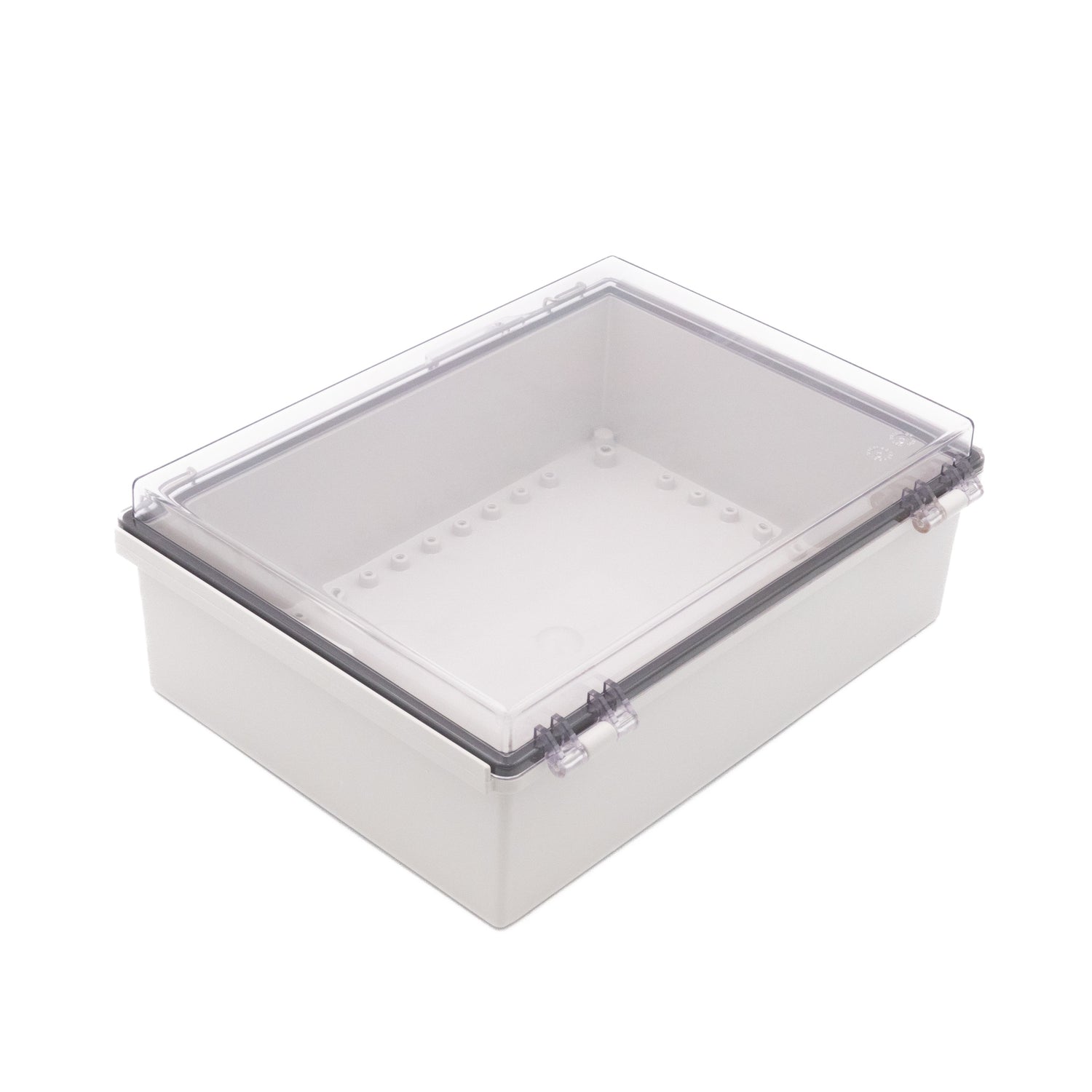

BC-CTP-283813 is a 280×380×130 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CTP-283813Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
280×380×130 mm (11.02×14.96×5.12 in)
Mounting plate dimension M1 × M2
249 × 348 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
2838 PG (Plastic, PG type), 2838 P (Plastic, P type), 2838 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

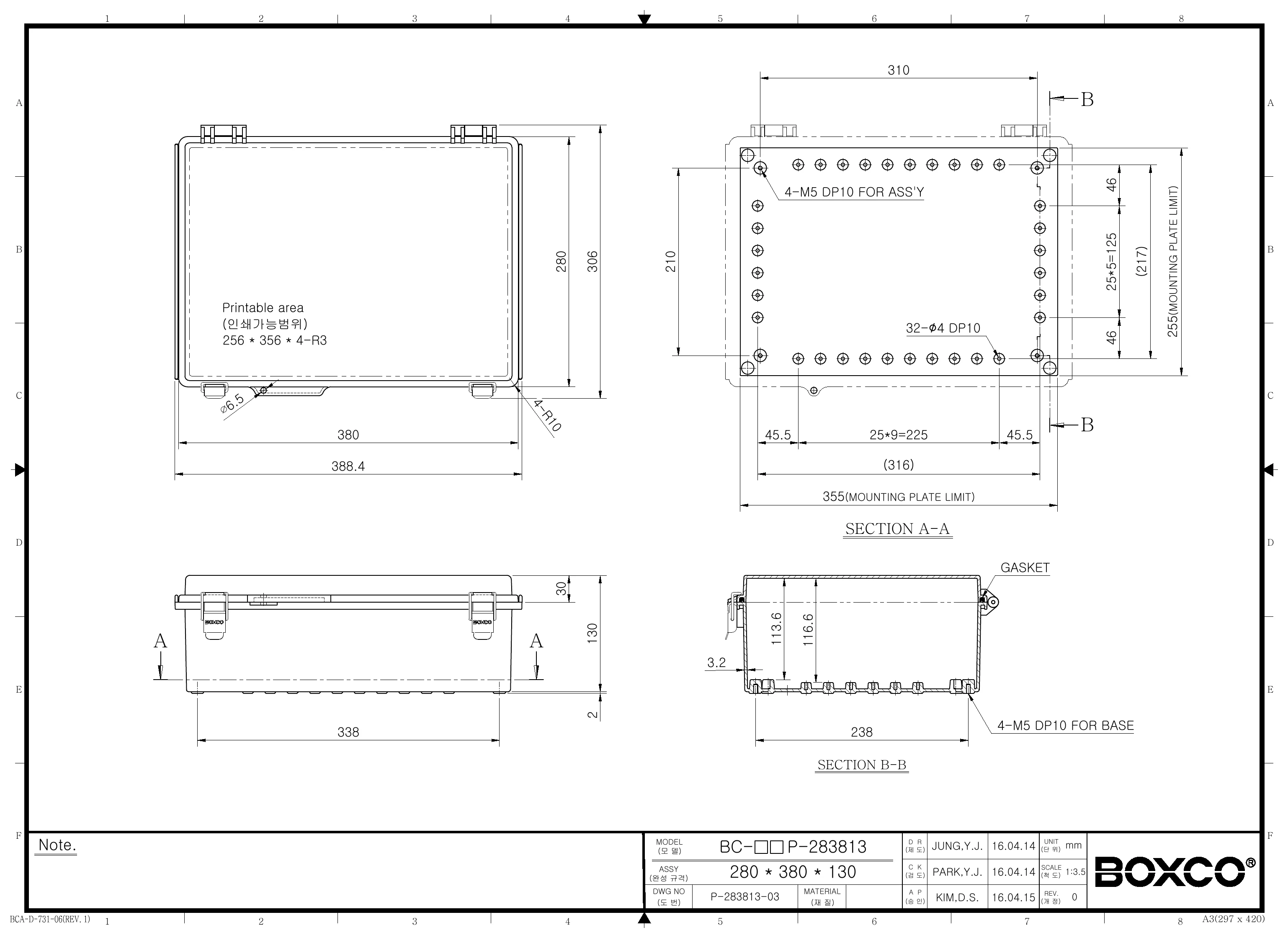

BC-CTP-283813 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main dimensions of this enclosure?

This Boxco P-Series enclosure measures 11.02 x 14.96 x 5.12 inches, which corresponds to 280 x 380 x 130 mm. It provides a relatively large plastic enclosure format for protecting internal components in industrial or outdoor applications.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added to help protect the enclosure in outdoor use, and the design includes roof protection features to reduce water and dust penetration during cover operation. Its IP67 rating also supports use in demanding environments where sealing matters.

What do the IP67 and IK08 ratings mean for this model?

This model is rated IP67 for dust-tight sealing and protection against temporary water immersion under rated conditions. It also carries an IK08 impact rating, indicating resistance to external mechanical impact for a plastic enclosure in this class.

What material is this enclosure made from?

This enclosure is made from polycarbonate (PC) and includes a transparent cover. The description also notes high impact resistance and anti-static material properties, which can be useful when housing sensitive electronic equipment.

What temperature range can this enclosure handle?

This model is specified for temperatures from -40 °C to 110 °C. That range makes it suitable for environments with both low-temperature exposure and elevated operating heat within the stated limits.

What types of applications is this enclosure typically used for?

This enclosure is intended for protecting electrical or electronic equipment that needs a sealed, impact-resistant housing. Its anti-static material, transparent cover, molded hinge, latch design, and internal mounting points make it relevant for industrial control, instrumentation, and outdoor equipment protection use cases.

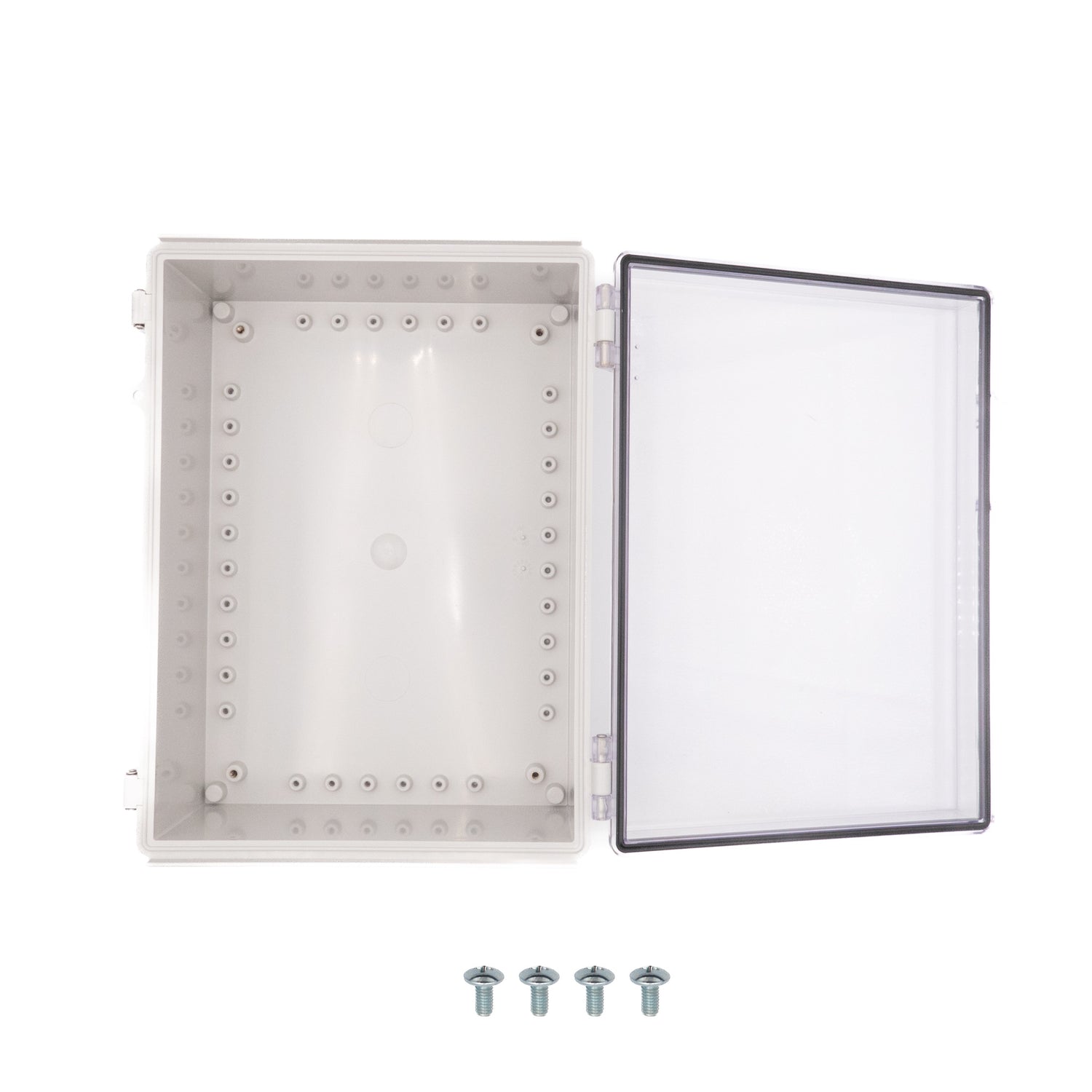

Does this enclosure support internal mounting hardware or accessories?

Yes. The product description states that it includes pre-molded mounting screw nuts for fixing DIN rail or other equipment, and it also has mounting plate attachment points with brass inserted injection molding. These features help support secure internal equipment mounting inside the enclosure.

What kind of cover and closure design does this model use?

This model has a transparent cover with a molded hinge and latch type closure. The integrated plastic hinge uses a stainless steel bearing to improve service life, and the draw latch main part is made of stainless steel for added strength.
