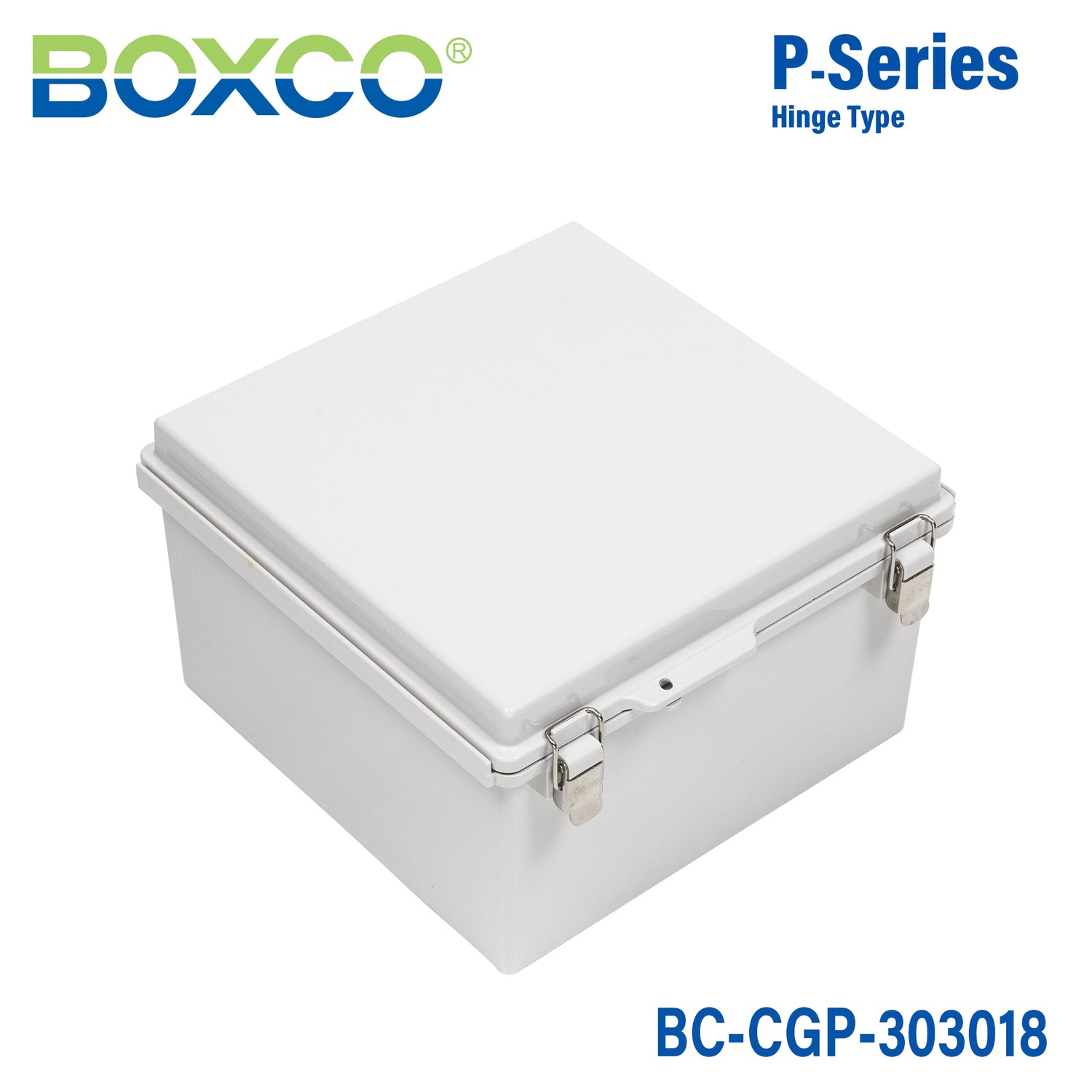

Boxco P-Series 300x300x180mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-303018
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGP-303018 is a 300×300×180 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-303018Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
300×300×180 mm (11.81×11.81×7.09 in)
Mounting plate dimension M1 × M2
262 × 262 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
3030 P (Plastic, P type), 3030 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

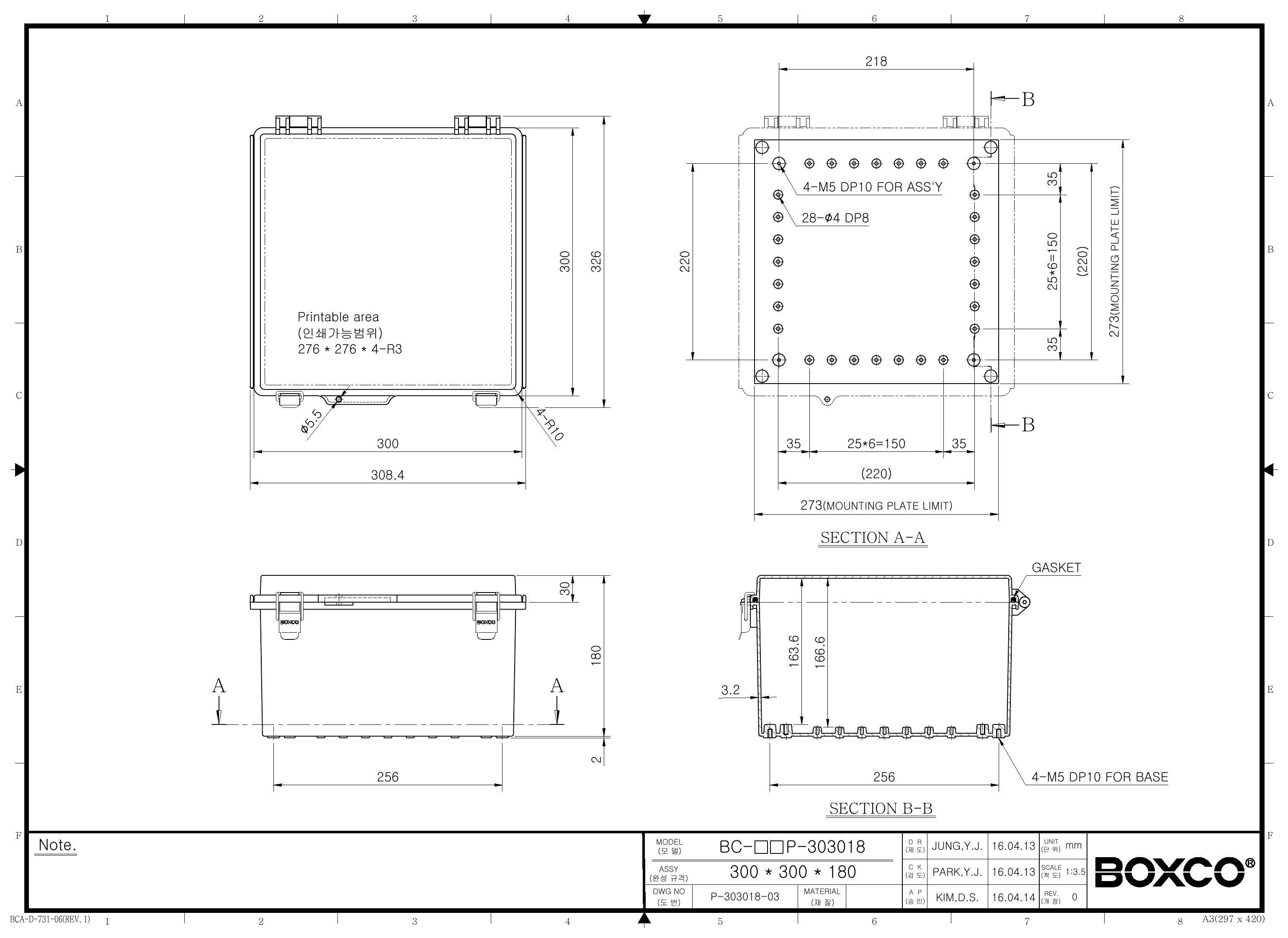

BC-CGP-303018 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series 300 x 300 x 180mm plastic enclosure suitable for?

This enclosure is designed for protecting electrical and electronic equipment in demanding industrial and commercial environments. Its anti-static material, impact-resistant polycarbonate construction, and IP67 rating make it a strong fit for control, instrumentation, and equipment protection where dust, water, and outdoor exposure are concerns.

Is this enclosure suitable for outdoor use?

Yes. Boxco states that an ultraviolet stabilizer is added to help protect the enclosure for outdoor usage and reduce visible color change over time. The design also includes roof protection features that help resist water penetration and dust intrusion during outdoor use.

What are the key protection ratings for this model?

This model is rated IP67 and IK08. That means it is built for strong protection against dust and water ingress and also offers solid resistance to external impact for industrial enclosure use.

What material is this enclosure made from?

This model is made from polycarbonate (PC) and includes anti-static material protection for sensitive electronic instruments. Boxco also describes it as high impact resistant, which helps reduce breakage during machining and processing.

What is the usable temperature range for this enclosure?

The specified operating temperature range is -40 degrees C to 110 degrees C. That makes this model suitable for both low-temperature and elevated-temperature environments where durable non-metallic protection is required.

Does this enclosure include a hinged cover and latch?

Yes. This version uses a molded hinge and latch-type design with an integrated plastic hinge and a stainless steel bearing to help extend service life. The main part of the draw latch is also made of stainless steel for added strength.

Are there built-in features for mounting internal components?

Yes. The enclosure includes pre-molded mounting screw nuts for securing items such as DIN rail or other internal equipment. It also has internal mounting plate attachment points with brass inserted injection molding to support heavier installed equipment.
