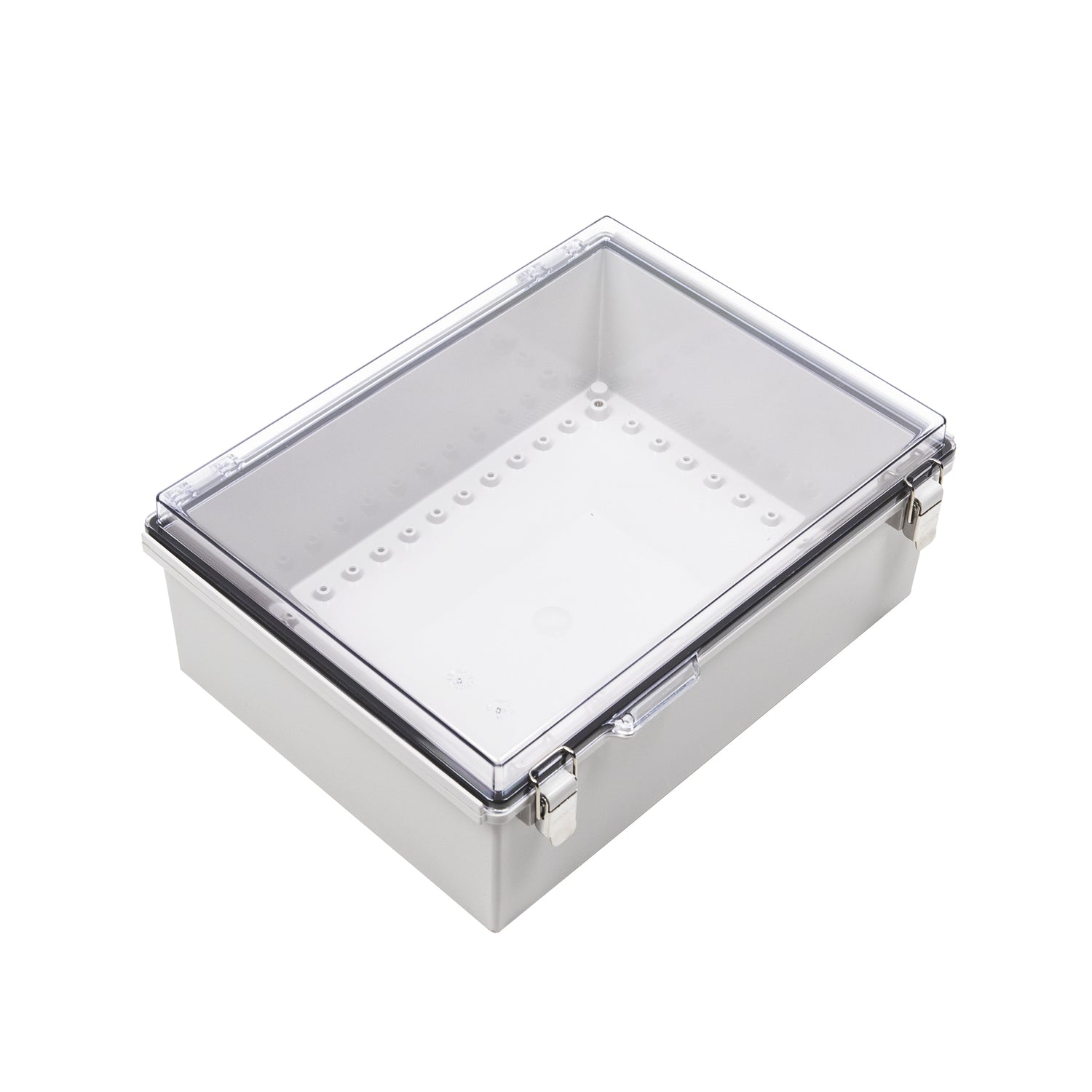

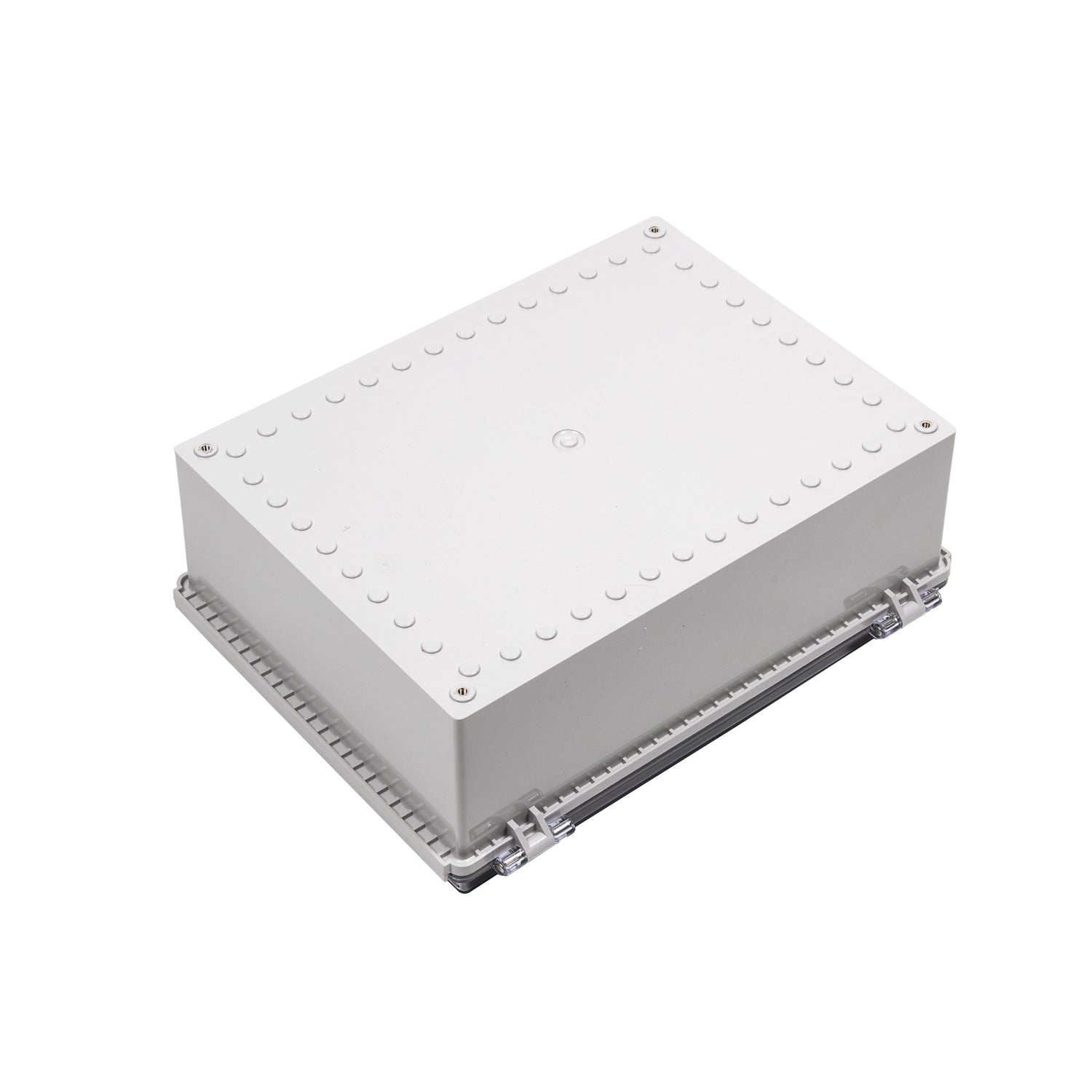

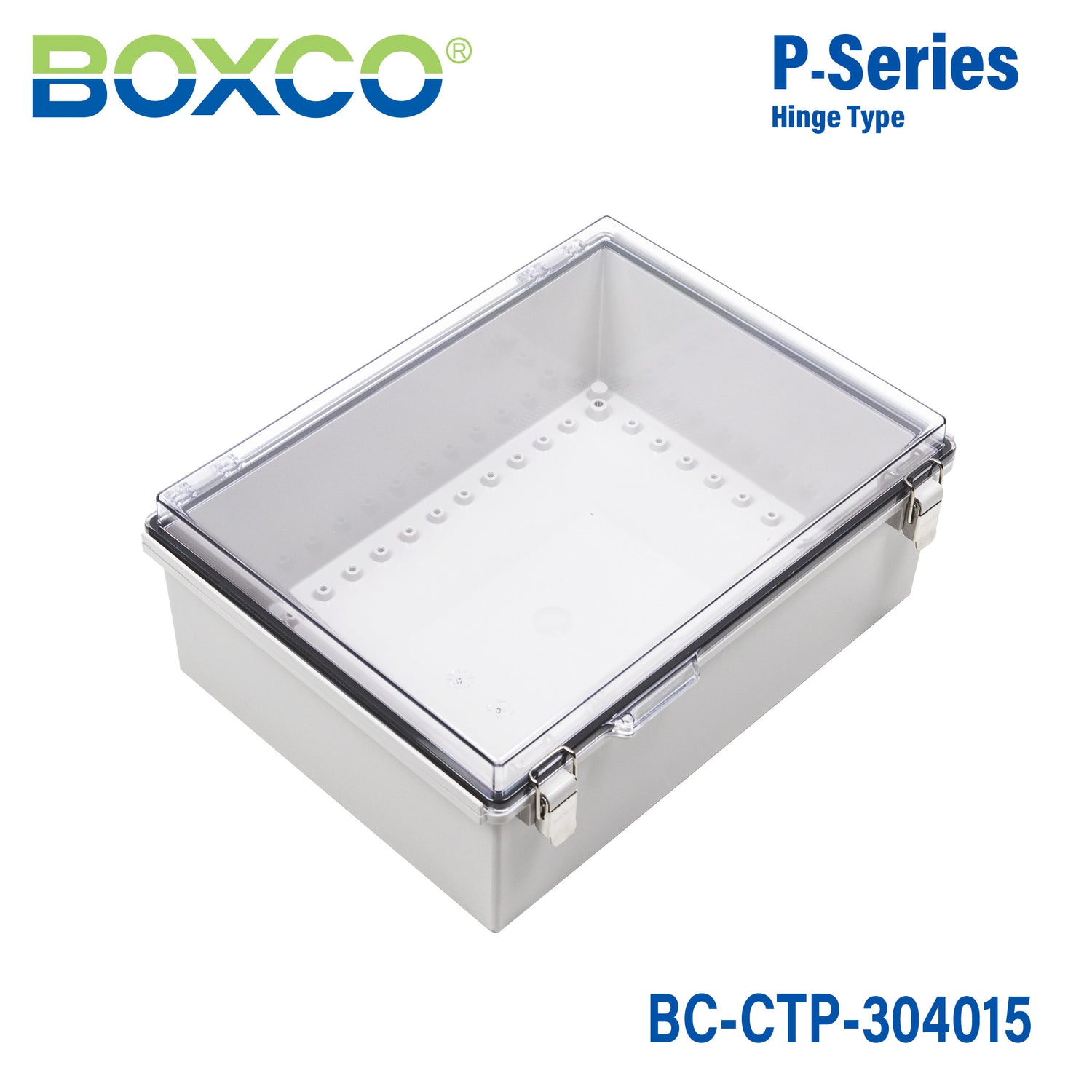

Boxco P-Series 300x400x150mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type

SKU BC-CTP-304015
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTP-304015 is a 300×400×150 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CTP-304015Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
300×400×150 mm (11.81×15.75×5.91 in)
Mounting plate dimension M1 × M2
264 × 364 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
3040 P (Plastic, P type), 3040 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

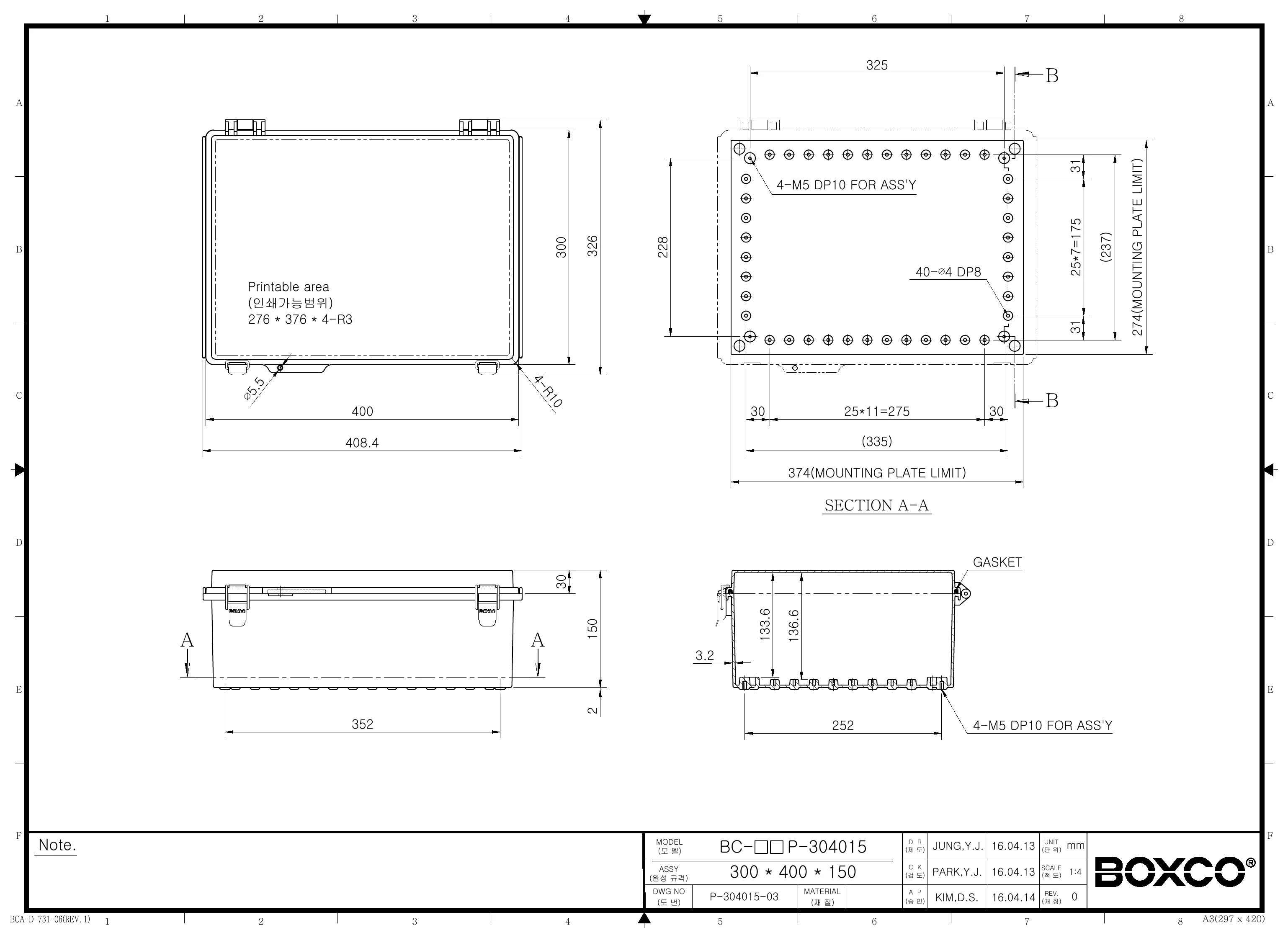

Technical drawings

BC-CTP-304015 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series BC-CTP-304015 enclosure suited for?

This enclosure is suited for protecting electronic components in industrial and outdoor environments where dust, water resistance, and impact resistance matter. Its IP67 and IK08 ratings, transparent polycarbonate cover, and anti-static material make it a practical choice for control, monitoring, and equipment protection applications.

Is this enclosure suitable for outdoor use?

Yes. Boxco states that an ultraviolet stabilizer is added to help protect the enclosure during outdoor use and reduce visible color change over time. The design also includes roof protection features and a gasket intended to support strong waterproof and dust-proof performance.

What are the key specifications of the BC-CTP-304015 enclosure?

This model measures 11.81 x 15.75 x 5.91 inches, which corresponds to 300 x 400 x 150 mm. It is made from polycarbonate, uses a transparent cover, carries IP67 and IK08 ratings, weighs 1.819 kg, and has an operating temperature range of -40 C to 110 C.

What makes this model different from a standard opaque enclosure box?

This version includes a transparent cover, which can be useful when visual inspection is needed without opening the enclosure. It also uses a molded hinge and latch design, along with stainless steel elements in the latch and hinge bearing to support durability.

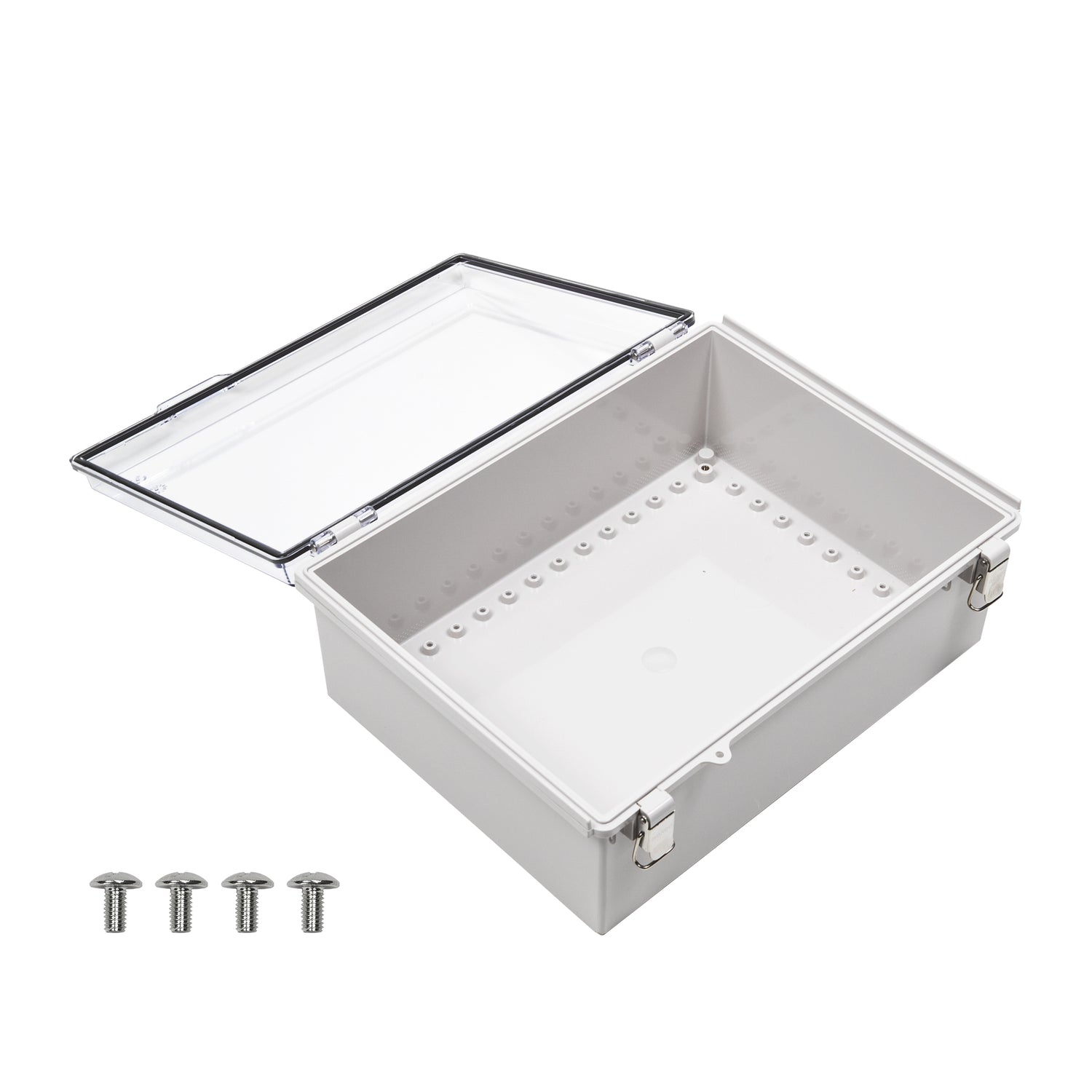

Does this enclosure support mounting internal components?

Yes. The enclosure includes pre-molded mounting screw nuts that can be used for securing DIN rail or other equipment, and it also has mounting plate attachment points with brass inserted injection molding for heavier internal equipment. These features make it suitable for organized internal component mounting.

How durable is the BC-CTP-304015 enclosure in demanding environments?

The enclosure is made from high impact resistant material designed to resist external impact and help prevent breakage during hole and press processing. It is also rated IK08 for impact resistance and uses stainless steel in key hinge and latch components to support long service life.

What warranty is offered for this enclosure?

This model includes a 1-year warranty period. That provides baseline coverage for buyers evaluating it for industrial or commercial enclosure applications.
