Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

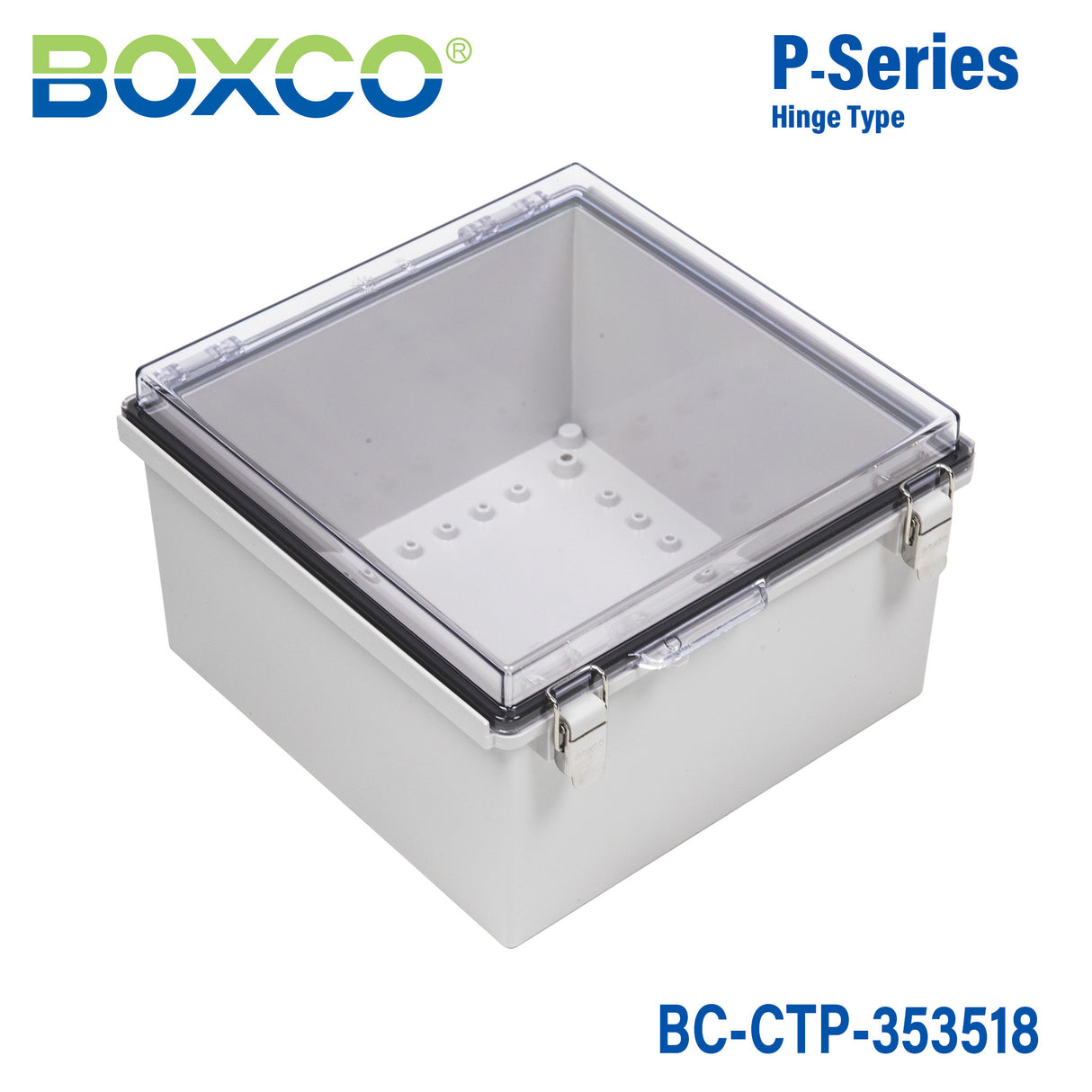

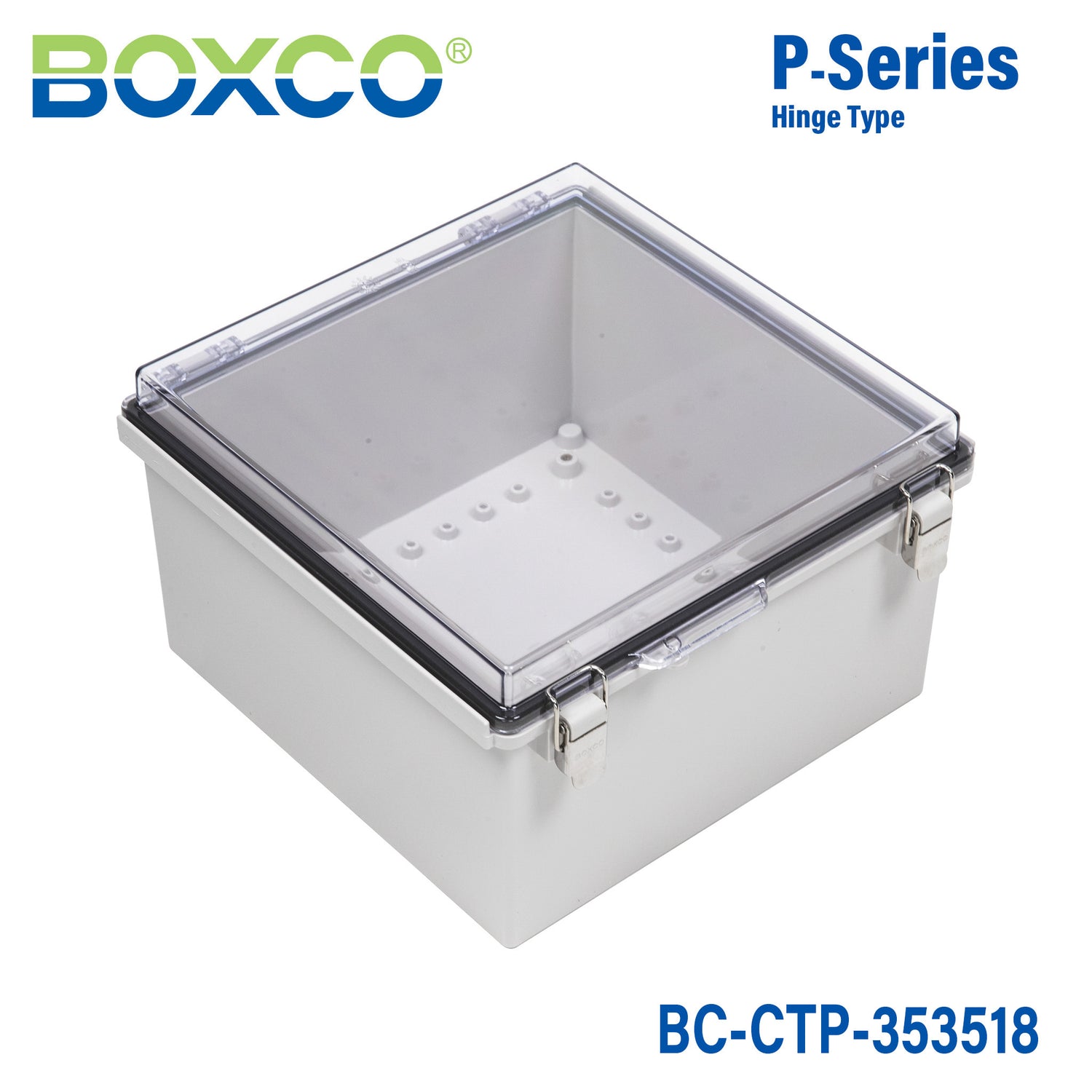

Boxco P-Series 350x350x180mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type

SKU BC-CTP-353518
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTP-353518 is a 350×350×180 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CTP-353518Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
350×350×180 mm (13.78×13.78×7.09 in)
Mounting plate dimension M1 × M2
314 × 314 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
3535 P (Plastic, P type), 3535 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

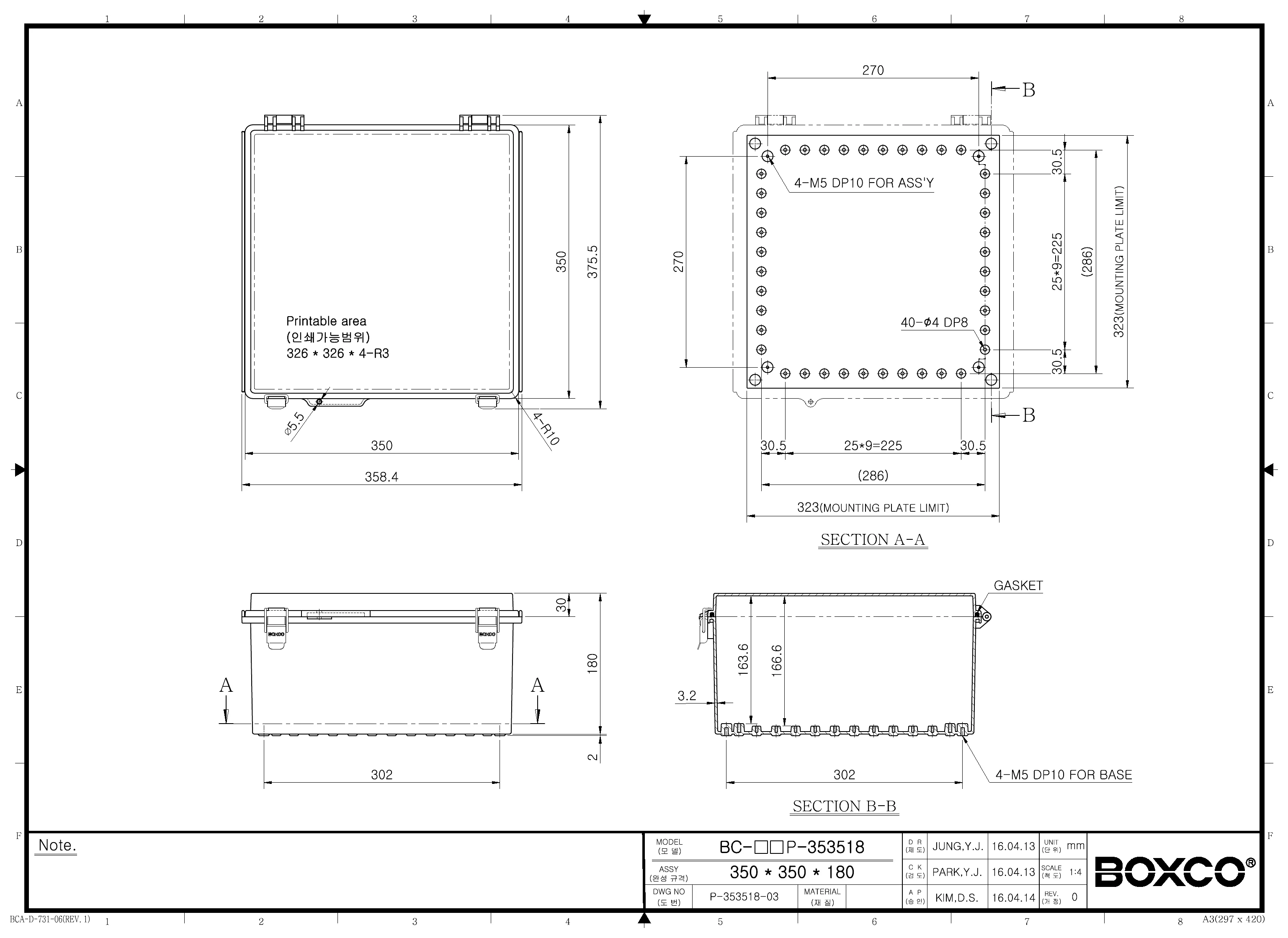

BC-CTP-353518 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco P-Series plastic enclosure best suited for?

This enclosure is designed for protecting electrical and electronic components in industrial or commercial environments where dust, water, and impact resistance matter. Its transparent cover makes it useful when internal indicators or equipment need to remain visible without opening the box.

Is this enclosure suitable for outdoor use?

Yes, this model is intended for outdoor-capable use. The housing includes ultraviolet stabilizer material to help reduce long-term color change, and the roof protection design helps limit water penetration around the cover area.

What protection ratings does this enclosure have?

This model is rated IP67 for dust-tight and water-resistant protection and IK08 for impact resistance. It is made from high-impact polycarbonate with a gasket system designed for strong waterproof and dust-proof performance.

What are the dimensions of this enclosure?

This Boxco P-Series enclosure measures 13.78 x 13.78 x 7.09 inches, which corresponds to 350 x 350 x 180 mm. Its size makes it appropriate for larger component layouts that need more internal space than compact junction-style enclosures.

What temperature range can this enclosure handle?

This enclosure is specified for use from -40 °C to 110 °C. That wide range makes it suitable for demanding environments where equipment may be exposed to both low and elevated temperatures.

What distinguishes this model from a basic non-hinged enclosure?

This version includes a molded hinge and latch-type cover, which makes repeated access more convenient than a fully removable cover design. It also has a transparent cover, stainless steel latch components, and integrated mounting-related features that add durability and usability for enclosed equipment.
