Boxco

Boxco P-Series 350x450x120mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type

SKU BC-CTP-354512
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTP-354512 is a 350×450×120 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CTP-354512Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
350×450×120 mm (13.78×17.72×4.72 in)
Mounting plate dimension M1 × M2
305 × 405 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
3545 P (Plastic, P type), 3545 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

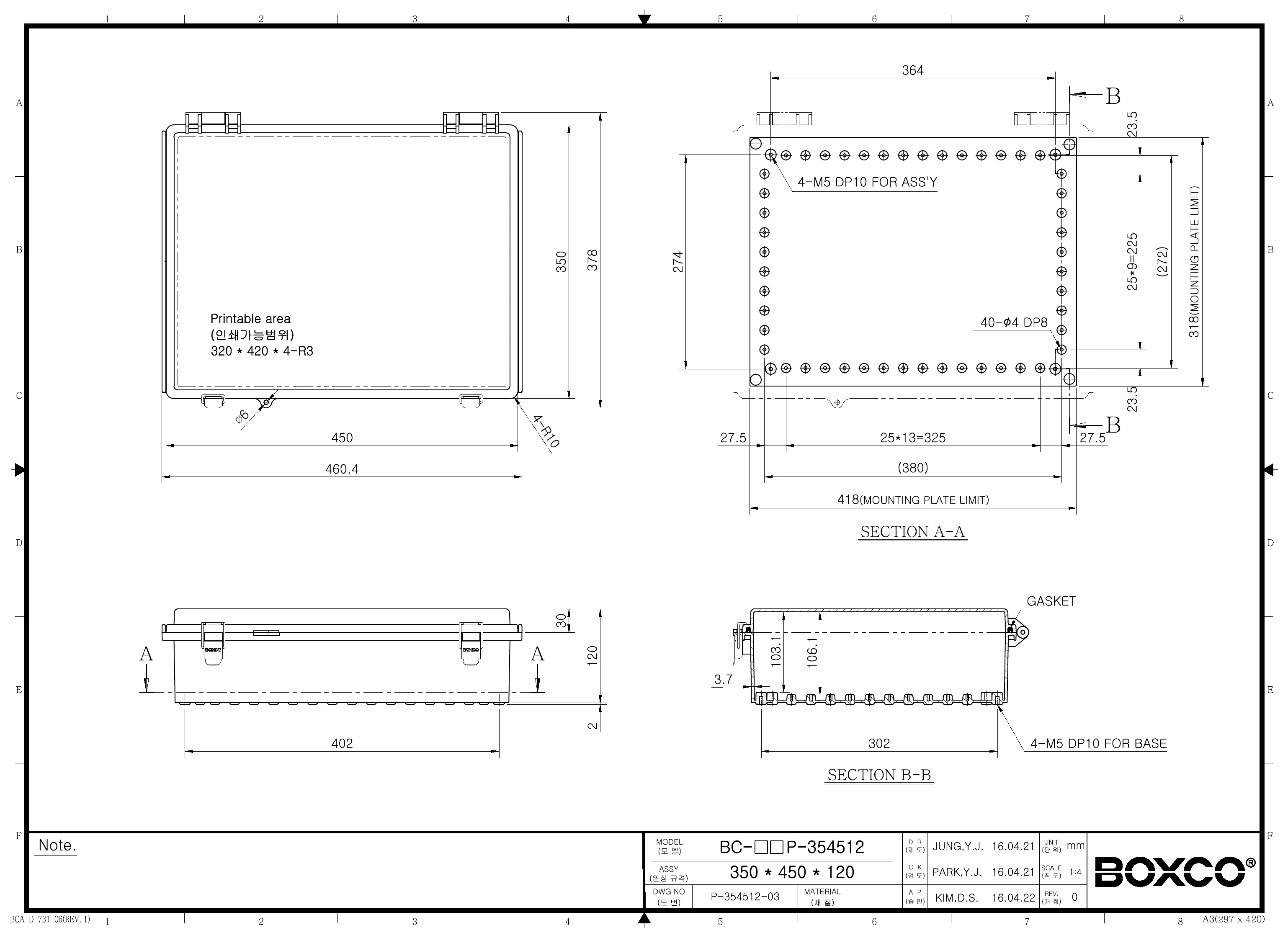

Technical drawings

BC-CTP-354512 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main specifications of the Boxco P-Series BC-CTP-354512 enclosure?

This model is a polycarbonate enclosure with a transparent cover and molded hinge-and-latch design. It measures 13.78 x 17.72 x 4.72 inches (350 x 450 x 120 mm), carries IP67 and IK08 ratings, weighs 2.377 kg, and is rated for use from -40 degrees C to 110 degrees C.

Is the BC-CTP-354512 suitable for outdoor or washdown environments?

It is designed for demanding environments where dust and water resistance matter, with an IP67 rating and UV stabilizer added for outdoor use. The product description also notes roof protection and a precision-injected gasket to help maintain waterproof and dust-proof performance.

What types of industrial applications is this enclosure commonly used for?

This enclosure is suited to protecting control, instrumentation, and other sensitive electrical or electronic equipment that needs a sealed non-metallic housing. Its anti-static material and high-impact construction make it a practical choice for industrial panels, monitoring devices, and outdoor equipment housings.

Why choose this transparent-cover version instead of an opaque enclosure?

The transparent cover is useful when operators need to visually inspect indicators, displays, or internal status without opening the enclosure. That can help reduce unnecessary exposure to dust or moisture compared with designs that require the cover to be opened for every check.

Can the BC-CTP-354512 support internal mounting plates or DIN rail hardware?

Yes, the product description specifically states that it includes pre-molded mounting screw nuts for fixing DIN rail or other equipment. It also includes mounting plate attachment points with brass-inserted injection molding to support securely mounted internal hardware.

How durable is the molded hinge and latch design on this model?

The enclosure is built for repeated industrial use, with an integrated plastic hinge that uses a stainless steel bearing to improve service life. The draw latch also uses stainless steel in the main latch component, and the enclosure body is made from high-impact-resistant material for added toughness.
